Migrate data from MongoDB to an Azure Cosmos DB for MongoDB account by using Azure Databricks
APPLIES TO: MongoDB
This migration guide is part of series on migrating databases from MongoDB to Azure CosmosDB API for MongoDB. The critical migration steps are pre-migration, migration, and post-migration, as shown below.
Data migration using Azure Databricks
Azure Databricks is a platform as a service (PaaS) offering for Apache Spark. It offers a way to do offline migrations on a large-scale dataset. You can use Azure Databricks to do an offline migration of databases from MongoDB to Azure Cosmos DB for MongoDB.
In this tutorial, you will learn how to:
Provision an Azure Databricks cluster
Create and run Scala or Python notebook
Optimize the migration performance
Troubleshoot rate-limiting errors that may be observed during migration
To complete this tutorial, you need to:
- Complete the pre-migration steps such as estimating throughput and choosing a shard key.
- Create an Azure Cosmos DB for MongoDB account.
Provision an Azure Databricks cluster
You can follow instructions to provision an Azure Databricks cluster. We recommend selecting Databricks runtime version 7.6, which supports Spark 3.0.

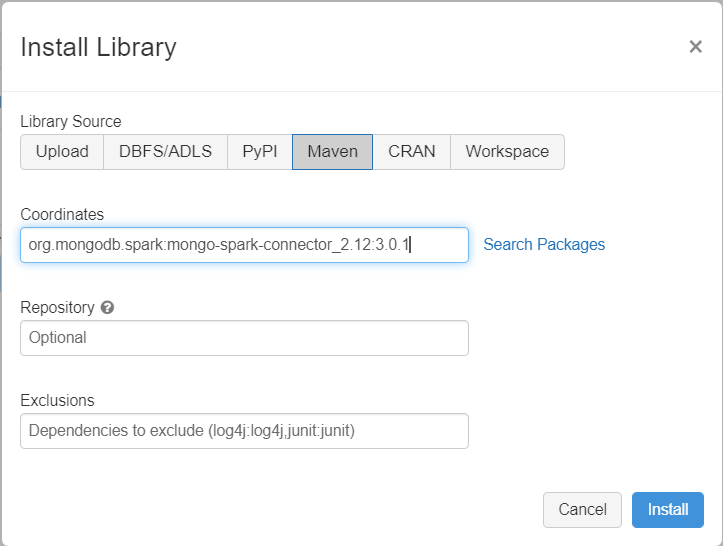

Add the MongoDB Connector for Spark library to your cluster to connect to both native MongoDB and Azure Cosmos DB for MongoDB endpoints. In your cluster, select Libraries > Install New > Maven, and then add
org.mongodb.spark:mongo-spark-connector_2.12:3.0.1 Maven coordinates.
Select Install, and then restart the cluster when installation is complete.
Make sure that you restart the Databricks cluster after the MongoDB Connector for Spark library has been installed.
After that, you may create a Scala or Python notebook for migration.
Create Scala notebook for migration
Create a Scala Notebook in Databricks. Make sure to enter the right values for the variables before running the following code:
import com.mongodb.spark._ import com.mongodb.spark.config._ import org.apache.spark._ import org.apache.spark.sql._ var sourceConnectionString = "mongodb://<USERNAME>:<PASSWORD>@<HOST>:<PORT>/<AUTHDB>" var sourceDb = "<DB NAME>" var sourceCollection = "<COLLECTIONNAME>" var targetConnectionString = "mongodb://<ACCOUNTNAME>:<PASSWORD>@<ACCOUNTNAME>.mongo.cosmos.azure.com:10255/?ssl=true&replicaSet=globaldb&retrywrites=false&maxIdleTimeMS=120000&appName=@<ACCOUNTNAME>@" var targetDb = "<DB NAME>" var targetCollection = "<COLLECTIONNAME>" val readConfig = ReadConfig(Map( "spark.mongodb.input.uri" -> sourceConnectionString, "spark.mongodb.input.database" -> sourceDb, "spark.mongodb.input.collection" -> sourceCollection, )) val writeConfig = WriteConfig(Map( "spark.mongodb.output.uri" -> targetConnectionString, "spark.mongodb.output.database" -> targetDb, "spark.mongodb.output.collection" -> targetCollection, "spark.mongodb.output.maxBatchSize" -> "8000" )) val sparkSession = SparkSession .builder() .appName("Data transfer using spark") .getOrCreate() val customRdd = MongoSpark.load(sparkSession, readConfig) MongoSpark.save(customRdd, writeConfig)
Create Python notebook for migration
Create a Python Notebook in Databricks. Make sure to enter the right values for the variables before running the following code:
from pyspark.sql import SparkSession sourceConnectionString = "mongodb://<USERNAME>:<PASSWORD>@<HOST>:<PORT>/<AUTHDB>" sourceDb = "<DB NAME>" sourceCollection = "<COLLECTIONNAME>" targetConnectionString = "mongodb://<ACCOUNTNAME>:<PASSWORD>@<ACCOUNTNAME>.mongo.cosmos.azure.com:10255/?ssl=true&replicaSet=globaldb&retrywrites=false&maxIdleTimeMS=120000&appName=@<ACCOUNTNAME>@" targetDb = "<DB NAME>" targetCollection = "<COLLECTIONNAME>" my_spark = SparkSession \ .builder \ .appName("myApp") \ .getOrCreate() df = my_spark.read.format("com.mongodb.spark.sql.DefaultSource").option("uri", sourceConnectionString).option("database", sourceDb).option("collection", sourceCollection).load() df.write.format("mongo").mode("append").option("uri", targetConnectionString).option("maxBatchSize",2500).option("database", targetDb).option("collection", targetCollection).save()
Optimize the migration performance
The migration performance can be adjusted through these configurations:
Number of workers and cores in the Spark cluster: More workers mean more compute nodes to execute tasks.
maxBatchSizevalue controls the rate at which data is saved to the target Azure Cosmos DB collection. However, if the maxBatchSize is too high for the collection throughput, it can cause rate limiting errors.
You would need to adjust the number of workers and maxBatchSize, depending on the number of executors in the Spark cluster, potentially the size (and that's why RU cost) of each document being written, and the target collection throughput limits.
maxBatchSize = Collection throughput / ( RU cost for 1 document * number of Spark workers * number of CPU cores per worker )
MongoDB Spark partitioner and partitionKey: The default partitioner used is MongoDefaultPartitioner and default partitionKey is _id. Partitioner can be changed by assigning value
MongoSamplePartitionerto the input configuration property
spark.mongodb.input.partitioner. Similarly, partitionKey can be changed by assigning the appropriate field name to the input configuration property
spark.mongodb.input.partitioner.partitionKey. Right partitionKey can help avoid data skew (large number of records being written for the same shard key value).
Disable indexes during data transfer: For large amounts of data migration, consider disabling indexes, specially wildcard index on the target collection. Indexes increase the RU cost for writing each document. Freeing these RUs can help improve the data transfer rate. You may enable the indexes once the data has been migrated over.
Timeout Error (Error code 50)
You might see a 50 error code for operations against the Azure Cosmos DB for MongoDB database. The following scenarios can cause timeout errors:
- Throughput allocated to the database is low: Ensure that the target collection has sufficient throughput assigned to it.
- Excessive data skew with large data volume. If you have a large amount of data to migrate into a given table but have a significant skew in the data, you might still experience rate limiting even if you have several request units provisioned in your table. Request units are divided equally among physical partitions, and heavy data skew can cause a bottleneck of requests to a single shard. Data skew means large number of records for the same shard key value.
Rate limiting (Error code 16500)
You might see a 16500 error code for operations against the Azure Cosmos DB for MongoDB database. These are rate limiting errors and may be observed on older accounts or accounts where server-side retry feature is disabled.
- Enable Server-side retry: Enable the Server Side Retry (SSR) feature and let the server retry the rate limited operations automatically.
After you migrate the data, you can connect to Azure Cosmos DB and manage the data. You can also follow other post-migration steps such as optimizing the indexing policy, update the default consistency level, or configure global distribution for your Azure Cosmos DB account. For more information, see the Post-migration optimization article.
- Trying to do capacity planning for a migration to Azure Cosmos DB?
- If all you know is the number of vcores and servers in your existing database cluster, read about estimating request units using vCores or vCPUs
- If you know typical request rates for your current database workload, read about estimating request units using Azure Cosmos DB capacity planner
