Quickstart: Vector search with Java in Azure Cosmos DB

  • Applies to: ✅ NoSQL

Use vector search in Azure Cosmos DB with the Java client library. Store and query vector data efficiently in your applications.

This quickstart uses a sample hotel dataset in a JSON file with vectors from the text-embedding-3-small model. The dataset includes hotel names, locations, descriptions, and vector embeddings.

Find the sample code with resource provisioning on GitHub.

Prerequisites

Create data file with vectors

  1. Create a new data directory for the hotels data file:

    mkdir data

  2. Download the raw data file with vectors to your data directory:

    curl -o data/HotelsData_toCosmosDB_Vector.json https://raw.githubusercontent.com/Azure-Samples/cosmos-db-vector-samples/refs/heads/main/data/HotelsData_toCosmosDB_Vector.json

Create a Java project

  1. Create a new sibling directory for your project, at the same level as the data directory, and open it in Visual Studio Code:

    mkdir vector-search-quickstart
cd vector-search-quickstart
code .

  2. Create a pom.xml file in the project root with the Maven configuration:

    <project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.example.cosmos.samples</groupId>
    <artifactId>nosql-vector-search-sample</artifactId>
    <version>1.0.0</version>
    <name>Azure Cosmos DB NoSQL Vector Search - Java</name>

    <properties>
        <maven.compiler.release>21</maven.compiler.release>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <!-- Azure Cosmos DB SDK (NoSQL API) -->
        <dependency>
            <groupId>com.azure</groupId>
            <artifactId>azure-cosmos</artifactId>
            <version>4.69.0</version>
        </dependency>

        <!-- Azure Identity (DefaultAzureCredential) -->
        <dependency>
            <groupId>com.azure</groupId>
            <artifactId>azure-identity</artifactId>
            <version>1.18.1</version>
        </dependency>

        <!-- Azure OpenAI (embeddings) -->
        <dependency>
            <groupId>com.azure</groupId>
            <artifactId>azure-ai-openai</artifactId>
            <version>1.0.0-beta.16</version>
        </dependency>

        <!-- Jackson (JSON serialization) -->
        <dependency>
            <groupId>tools.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>3.0.3</version>
        </dependency>

        <!-- Suppress noisy SDK logging -->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-nop</artifactId>
            <version>2.0.17</version>
            <scope>runtime</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>exec-maven-plugin</artifactId>
                <version>3.5.0</version>
                <configuration>
                    <mainClass>com.example.cosmos.vectorsearch.VectorSearch</mainClass>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

    Key dependencies:

    • azure-identity - Azure authentication library for passwordless (managed identity) connections
    • azure-cosmos - Azure Cosmos DB client library for database operations
    • azure-ai-openai - Azure OpenAI SDK for generating embeddings
    • slf4j-nop - Suppresses noisy SDK logging at runtime

  3. Create the source directory structure:

    mkdir -p src/main/java/com/example/cosmos/vectorsearch

  4. Create a .env file in your project root for environment variables:

    # Azure OpenAI Embedding Settings
AZURE_OPENAI_EMBEDDING_MODEL=text-embedding-3-small
AZURE_OPENAI_EMBEDDING_API_VERSION=2024-08-01-preview
AZURE_OPENAI_EMBEDDING_ENDPOINT=

# Cosmos DB configuration
AZURE_COSMOSDB_ENDPOINT=

# Data file
DATA_FILE_WITH_VECTORS=../data/HotelsData_toCosmosDB_Vector.json
FIELD_TO_EMBED=Description
EMBEDDED_FIELD=DescriptionVector
EMBEDDING_DIMENSIONS=1536

# Vector search algorithm: diskann or quantizedflat
VECTOR_ALGORITHM=diskann

    Replace the placeholder values in the .env file with your own information:

    • AZURE_OPENAI_EMBEDDING_ENDPOINT: Your Azure OpenAI resource endpoint URL
    • AZURE_COSMOSDB_ENDPOINT: Your Azure Cosmos DB endpoint URL

    Note

    The Java sample uses System.getenv() to read environment variables. You must export these variables in your shell session or use azd env get-values to set them. The .env file serves as a reference template — it is not loaded automatically by the application.

Understand the document schema

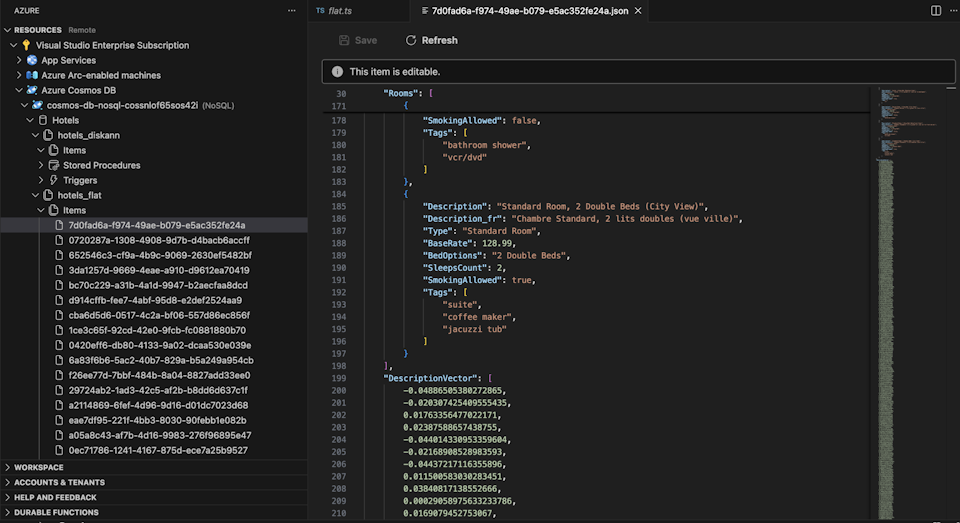

Before building the application, understand how vectors are stored in Azure Cosmos DB documents. Each hotel document contains:

  • Standard fields: HotelId, HotelName, Description, Category, etc.
  • Vector field: DescriptionVector - an array of 1536 floating-point numbers representing the semantic meaning of the hotel description

Here's a simplified example of a hotel document structure:

{
  "HotelId": "1",
  "HotelName": "Stay-Kay City Hotel",
  "Description": "This classic hotel is fully-refurbished...",
  "Rating": 3.6,
  "DescriptionVector": [
    -0.04886505,
    -0.02030743,
    0.01763356,
    ...
    // 1536 dimensions total
  ]
}

Key points about storing embeddings:

  • Vector arrays are stored as standard JSON arrays in your documents
  • Vector policy defines the path (/DescriptionVector), data type (float32), dimensions (1536), and distance function (cosine)
  • Indexing policy creates a vector index on the vector field for efficient similarity search
  • The vector field should be excluded from standard indexing to optimize insertion performance

These policies are defined in the Bicep templates for the distance metrics for this sample project. For more information on vector policies and indexing, see Vector search in Azure Cosmos DB.

Create two Java source files in the src/main/java/com/example/cosmos/vectorsearch directory:

touch src/main/java/com/example/cosmos/vectorsearch/VectorSearch.java
touch src/main/java/com/example/cosmos/vectorsearch/Utils.java

Paste the following code into the VectorSearch.java file.

package com.example.cosmos.vectorsearch;

import com.azure.ai.openai.OpenAIClient;
import com.azure.ai.openai.models.EmbeddingItem;
import com.azure.ai.openai.models.EmbeddingsOptions;
import com.azure.cosmos.CosmosClient;
import com.azure.cosmos.CosmosContainer;
import com.azure.cosmos.models.CosmosQueryRequestOptions;
import com.azure.cosmos.models.SqlParameter;
import com.azure.cosmos.models.SqlQuerySpec;

import java.nio.file.Path;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;
import java.util.Set;

/**
 * Azure Cosmos DB NoSQL vector search sample — Java port of nosql-vector-search-typescript.
 *
 * Demonstrates:
 * - Passwordless authentication with DefaultAzureCredential
 * - Bulk insert of hotel data with pre-computed embeddings
 * - Vector similarity search using VectorDistance() SQL function
 * - DiskANN and QuantizedFlat algorithm selection via environment variable
 */
public final class VectorSearch {

    private static final String SAMPLE_QUERY =
            "quintessential lodging near running trails, eateries, retail";

    private static final Set<String> VALID_ALGORITHMS = Set.of("diskann", "quantizedflat");

    private static final Map<String, String> ALGORITHM_CONTAINERS = Map.of(
            "diskann", "hotels_diskann",
            "quantizedflat", "hotels_quantizedflat"
    );

    private static final Map<String, String> ALGORITHM_DISPLAY = Map.of(
            "diskann", "DiskANN",
            "quantizedflat", "QuantizedFlat"
    );

    public static void main(String[] args) {
        try {
            new VectorSearch().run();
        } catch (Exception e) {
            System.err.println("App failed: " + e.getMessage());
            e.printStackTrace();
            System.exit(1);
        }
        System.exit(0);
    }

    private void run() throws Exception {
        // ── Configuration ───────────────────────────────────────────────
        var algorithm = Utils.envOrDefault("VECTOR_ALGORITHM", "diskann").trim().toLowerCase();
        var dbName = Utils.envOrDefault("AZURE_COSMOSDB_DATABASENAME", "Hotels");
        var dataFile = Utils.requireEnv("DATA_FILE_WITH_VECTORS");
        var embeddedField = Utils.requireEnv("EMBEDDED_FIELD");
        var deployment = Utils.requireEnv("AZURE_OPENAI_EMBEDDING_MODEL");
        var distanceFunction = Utils.envOrDefault("VECTOR_DISTANCE_FUNCTION", "cosine");

        if (!VALID_ALGORITHMS.contains(algorithm)) {
            throw new IllegalArgumentException(
                    "Invalid algorithm '" + algorithm + "'. Must be one of: " +
                    String.join(", ", VALID_ALGORITHMS));
        }

        var containerName = ALGORITHM_CONTAINERS.get(algorithm);
        var algorithmDisplay = ALGORITHM_DISPLAY.get(algorithm);

        // ── Clients ─────────────────────────────────────────────────────
        OpenAIClient aiClient = Utils.createOpenAIClient();
        CosmosClient dbClient = Utils.createCosmosClient();

        try {
            var database = dbClient.getDatabase(dbName);
            System.out.println("Connected to database: " + dbName);

            CosmosContainer container = database.getContainer(containerName);
            System.out.println("Connected to container: " + containerName);
            System.out.println("\n[Algorithm] Vector Search Algorithm: " + algorithmDisplay);
            System.out.println("[Distance]  Distance Function: " + distanceFunction);

            // Verify container exists
            container.read();

            // ── Load & Insert Data ──────────────────────────────────────
            var dataPath = Path.of(dataFile);
            var data = Utils.readJsonFile(dataPath);
            Utils.insertData(container, data);

            // ── Generate Query Embedding ────────────────────────────────
            var embeddingOptions = new EmbeddingsOptions(List.of(SAMPLE_QUERY));
            var embeddingResult = aiClient.getEmbeddings(deployment, embeddingOptions);

            List<Float> embedding = embeddingResult.getData().get(0).getEmbedding();

            // Convert Float list to List<Double> for Cosmos DB parameter binding
            var embeddingDoubles = new ArrayList<Double>(embedding.size());
            for (var f : embedding) {
                embeddingDoubles.add(f.doubleValue());
            }

            // ── Build & Execute Vector Search Query ─────────────────────
            var safeField = Utils.validateFieldName(embeddedField);
            var queryText = "SELECT TOP 5 c.HotelName, c.Description, c.Rating, " +
                    "VectorDistance(c." + safeField + ", @embedding) AS SimilarityScore " +
                    "FROM c " +
                    "ORDER BY VectorDistance(c." + safeField + ", @embedding)";

            System.out.println("\n--- Executing Vector Search Query ---");
            System.out.println("Query: " + queryText);
            System.out.println("Parameters: @embedding (vector with " + embeddingDoubles.size() + " dimensions)");
            System.out.println("--------------------------------------\n");

            var sqlQuery = new SqlQuerySpec(
                    queryText,
                    List.of(new SqlParameter("@embedding", embeddingDoubles))
            );

            var queryOptions = new CosmosQueryRequestOptions();

            @SuppressWarnings("unchecked")
            var resultPages = container.queryItems(sqlQuery, queryOptions, Map.class);

            var results = new ArrayList<Map<String, Object>>();
            var requestCharge = 0.0;

            for (var page : resultPages.iterableByPage()) {
                requestCharge += page.getRequestCharge();
                for (var item : page.getResults()) {
                    @SuppressWarnings("unchecked")
                    var typedItem = (Map<String, Object>) item;
                    results.add(typedItem);
                }
            }

            Utils.printSearchResults(results, requestCharge);

        } finally {
            dbClient.close();
        }
    }
}

This code:

  • Configures either a DiskANN or quantizedFlat vector algorithm from the VECTOR_ALGORITHM environment variable.
  • Connects to Azure OpenAI and Azure Cosmos DB using passwordless authentication.
  • Loads pre-vectorized hotel data from a JSON file.
  • Inserts data into the appropriate container.
  • Generates an embedding for a natural-language query (quintessential lodging near running trails, eateries, retail).
  • Executes a VectorDistance SQL query to retrieve the top 5 most semantically similar hotels ranked by similarity score.
  • Handles errors for missing clients, invalid algorithm selection, and non-existent containers/databases.

Understand the code: Generate embeddings with Azure OpenAI

The code creates embeddings for query text:

EmbeddingsOptions options = new EmbeddingsOptions(
    List.of(queryText) // Array of description strings to embed
);
Embeddings embeddings = openAIClient.getEmbeddings(model, options);
List<Float> queryVector = embeddings.getData().get(0).getEmbedding();

This Azure OpenAI SDK call converts text like "quintessential lodging near running trails" into a 1536-dimension vector that captures its semantic meaning. For more details on generating embeddings, see Azure OpenAI embeddings documentation.

Understand the code: Store vectors in Azure Cosmos DB

All documents with vector arrays are inserted at scale using the executeBulkOperations method in Utils.insertData(). Each document is mapped to a bulk create operation using the PartitionKeyBuilder with each document's partition key value. The utility tracks inserted, skipped, and failed counts along with total RU consumption.

This inserts hotel documents including their pre-generated DescriptionVector arrays into the container. You can safely pass in all the document data, and the client library handles the batch processing and retries for you.

The code performs a vector search using the VectorDistance function:

String queryText = String.format(
    "SELECT TOP 5 c.HotelName, c.Description, c.Rating, " +
    "VectorDistance(c.%s, @embedding) AS SimilarityScore " +
    "FROM c ORDER BY VectorDistance(c.%s, @embedding)",
    embeddedField, embeddedField
);

SqlQuerySpec querySpec = new SqlQuerySpec(queryText,
    new SqlParameter("@embedding", queryVector));

CosmosPagedIterable<ObjectNode> results = container.queryItems(
    querySpec, new CosmosQueryRequestOptions(), ObjectNode.class);

This code builds a parameterized SQL query that uses the VectorDistance function to compare the query's embedding vector (@embedding) against each document's stored vector field (DescriptionVector), returning the top 5 hotels with their name and similarity score, ordered from most similar to least similar. The query embedding is passed as a parameter to avoid injection and comes from a prior Azure OpenAI embeddings call.

What this query returns:

  • Top 5 most similar hotels based on vector distance
  • Hotel properties: HotelName, Description, Rating
  • SimilarityScore: A numeric value indicating how similar each hotel is to your query
  • Results ordered from most similar to least similar

For more information on the VectorDistance function, see VectorDistance documentation.

Create utility functions

Paste the following code into Utils.java:

package com.example.cosmos.vectorsearch;

import com.azure.ai.openai.OpenAIClientBuilder;
import com.azure.ai.openai.OpenAIClient;
import com.azure.cosmos.CosmosClient;
import com.azure.cosmos.CosmosClientBuilder;
import com.azure.cosmos.CosmosContainer;
import com.azure.cosmos.models.CosmosBulkOperations;
import com.azure.cosmos.models.CosmosItemOperation;
import com.azure.cosmos.models.PartitionKey;
import com.azure.cosmos.models.PartitionKeyBuilder;
import com.azure.identity.DefaultAzureCredentialBuilder;

import tools.jackson.databind.json.JsonMapper;

import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Path;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;

/**
 * Shared utilities for Azure Cosmos DB NoSQL vector search sample.
 * Provides authentication, bulk insert, field validation, and result formatting.
 */
public final class Utils {

    private static final JsonMapper JSON_MAPPER = JsonMapper.builder().build();

    private Utils() {
        // utility class
    }

    // ── Authentication ──────────────────────────────────────────────────

    /**
     * Create an Azure OpenAI client using DefaultAzureCredential (passwordless).
     */
    public static OpenAIClient createOpenAIClient() {
        var endpoint = requireEnv("AZURE_OPENAI_EMBEDDING_ENDPOINT");
        var credential = new DefaultAzureCredentialBuilder().build();
        return new OpenAIClientBuilder()
                .endpoint(endpoint)
                .credential(credential)
                .buildClient();
    }

    /**
     * Create a Cosmos DB client using DefaultAzureCredential (passwordless).
     */
    public static CosmosClient createCosmosClient() {
        var endpoint = requireEnv("AZURE_COSMOSDB_ENDPOINT");
        var credential = new DefaultAzureCredentialBuilder().build();
        return new CosmosClientBuilder()
                .endpoint(endpoint)
                .credential(credential)
                .buildClient();
    }

    // ── Data Loading ────────────────────────────────────────────────────

    /**
     * Read a JSON array file and return its contents as a list of maps.
     */
    @SuppressWarnings("unchecked")
    public static List<Map<String, Object>> readJsonFile(Path filePath) throws IOException {
        System.out.println("Reading JSON file from " + filePath);
        var bytes = Files.readAllBytes(filePath);
        return JSON_MAPPER.readValue(bytes, List.class);
    }

    // ── Bulk Insert ─────────────────────────────────────────────────────

    /**
     * Insert documents into a Cosmos DB container using bulk operations.
     * Skips insert if the container already contains data.
     *
     * @return summary with counts and RU charge
     */
    public static BulkInsertResult insertData(CosmosContainer container,
                                               List<Map<String, Object>> data) {
        // Check existing document count
        var existingCount = getDocumentCount(container);
        if (existingCount > 0) {
            System.out.println("Container already has " + existingCount + " documents. Skipping insert.");
            return new BulkInsertResult(0, 0, 0, (int) existingCount, 0.0);
        }

        System.out.println("Inserting " + data.size() + " items using bulk operations...");

        // Build bulk create operations
        var operations = new ArrayList<CosmosItemOperation>();
        for (var item : data) {
            // Cosmos DB requires an "id" field — map HotelId to id
            var doc = new java.util.HashMap<>(item);
            var hotelId = String.valueOf(doc.get("HotelId"));
            doc.put("id", hotelId);
            operations.add(CosmosBulkOperations.getCreateItemOperation(doc,
                new PartitionKeyBuilder().add(hotelId).build()));
        }

        var inserted = 0;
        var failed = 0;
        var skipped = 0;
        var totalRUs = 0.0;

        var startTime = System.currentTimeMillis();
        System.out.println("Starting bulk insert (" + operations.size() + " items)...");

        var responses = container.executeBulkOperations(operations);
        for (var response : responses) {
            var statusCode = response.getResponse().getStatusCode();
            totalRUs += response.getResponse().getRequestCharge();

            if (statusCode >= 200 && statusCode < 300) {
                inserted++;
            } else if (statusCode == 409) {
                skipped++;
            } else {
                failed++;
            }
        }

        var durationSec = (System.currentTimeMillis() - startTime) / 1000.0;
        System.out.printf("Bulk insert completed in %.2fs%n", durationSec);
        System.out.printf("%nInsert Request Charge: %.2f RUs%n%n", totalRUs);

        return new BulkInsertResult(data.size(), inserted, failed, skipped, totalRUs);
    }

    private static long getDocumentCount(CosmosContainer container) {
        var result = container.queryItems(
                "SELECT VALUE COUNT(1) FROM c",
                new com.azure.cosmos.models.CosmosQueryRequestOptions(),
                Long.class
        );
        for (var count : result) {
            return count;
        }
        return 0;
    }

    // ── Field Name Validation ───────────────────────────────────────────

    /**
     * Validates a field name to prevent NoSQL injection when building queries
     * with string interpolation.
     *
     * @param fieldName the field name to validate
     * @return the validated field name
     * @throws IllegalArgumentException if the field name contains unsafe characters
     */
    public static String validateFieldName(String fieldName) {
        if (!fieldName.matches("^[A-Za-z_][A-Za-z0-9_]*$")) {
            throw new IllegalArgumentException(
                    "Invalid field name: \"" + fieldName + "\". " +
                    "Field names must start with a letter or underscore " +
                    "and contain only letters, numbers, and underscores.");
        }
        return fieldName;
    }

    // ── Output Formatting ───────────────────────────────────────────────

    /**
     * Print search results in a consistent tabular format.
     */
    public static void printSearchResults(List<Map<String, Object>> results, double requestCharge) {
        System.out.println("\n--- Search Results ---");

        if (results == null || results.isEmpty()) {
            System.out.println("No results found.");
            return;
        }

        for (var i = 0; i < results.size(); i++) {
            var r = results.get(i);
            var name = r.get("HotelName");
            var score = r.get("SimilarityScore");
            System.out.printf("%d. %s, Score: %.4f%n", i + 1, name, ((Number) score).doubleValue());
        }

        System.out.printf("%nVector Search Request Charge: %.2f RUs%n%n", requestCharge);
    }

    // ── Environment Helpers ─────────────────────────────────────────────

    public static String requireEnv(String key) {
        var value = System.getenv(key);
        if (value == null || value.isBlank()) {
            throw new IllegalStateException("Required environment variable not set: " + key);
        }
        return value;
    }

    public static String envOrDefault(String key, String defaultValue) {
        var value = System.getenv(key);
        return (value != null && !value.isBlank()) ? value : defaultValue;
    }

    // ── Result Record ───────────────────────────────────────────────────

    public record BulkInsertResult(int total, int inserted, int failed, int skipped, double requestCharge) {}
}

This utility class provides these key functions:

  • createOpenAIClient / createCosmosClient: Create clients for Azure OpenAI and Azure Cosmos DB using passwordless authentication via DefaultAzureCredential. Enable RBAC on both resources and sign in to Azure CLI
  • insertData: Inserts data in batches into an Azure Cosmos DB container using bulk operations and tracks inserted, skipped, and failed counts along with total RU consumption
  • printSearchResults: Prints the results of a vector search, including the score and hotel name
  • validateFieldName: Validates that a field name exists in the data to prevent injection

Authenticate with Azure CLI

Sign in to Azure CLI before you run the application so the app can access Azure resources securely.

az login

The code uses your local developer authentication to access Azure Cosmos DB and Azure OpenAI with createOpenAIClient and createCosmosClient from Utils.java. These functions rely on DefaultAzureCredential from azure-identity, which walks an ordered chain of credential providers and resolves to Azure CLI credentials for local development. Learn more about how to Authenticate Java apps to Azure services using the Azure Identity library.

Build and run the application

Build and run the application with Maven:

Linux/macOS:

VECTOR_ALGORITHM=diskann mvn compile exec:java

Windows:

set VECTOR_ALGORITHM=diskann && mvn compile exec:java

The app logging and output show:

  • Data insertion status
  • Vector index creation
  • Search results with hotel names and similarity scores
Connected to database: Hotels
Connected to container: hotels_diskann

📊 Vector Search Algorithm: DiskANN
📏 Distance Function: cosine
Reading JSON file from ../data/HotelsData_toCosmosDB_Vector.json
Inserting 50 items using bulk operations...
Starting bulk insert (50 items)...
Bulk insert completed in 3.41s

Insert Request Charge: 6805.25 RUs


--- Executing Vector Search Query ---
Query: SELECT TOP 5 c.HotelName, c.Description, c.Rating, VectorDistance(c.DescriptionVector, @embedding) AS SimilarityScore FROM c ORDER BY VectorDistance(c.DescriptionVector, @embedding)
Parameters: @embedding (vector with 1536 dimensions)
--------------------------------------


--- Search Results ---
1. Royal Cottage Resort, Score: 0.4991
2. Country Comfort Inn, Score: 0.4786
3. Nordick's Valley Motel, Score: 0.4635
4. Economy Universe Motel, Score: 0.4461
5. Roach Motel, Score: 0.4388

Vector Search Request Charge: 5.33 RUs

Distance metrics

Azure Cosmos DB supports three distance functions for vector similarity:

Distance Function Score Range Interpretation Best For
Cosine (default) 0.0 to 1.0 Higher scores (closer to 1.0) indicate greater similarity General text similarity, Azure OpenAI embeddings (used in this quickstart)
Euclidean (L2) 0.0 to ∞ Lower = more similar Spatial data, when magnitude matters
Dot Product -∞ to +∞ Higher = more similar When vector magnitudes are normalized

The distance function is set in the vector embedding policy when creating the container. This is provided in the infrastructure in the sample repository. It is defined as part of the container definition.

{
    name: 'hotels_diskann'
    partitionKeyPaths: [
        '/HotelId'
    ]
    indexingPolicy: {
        indexingMode: 'consistent'
        automatic: true
        includedPaths: [
        {
            path: '/*'
        }
        ]
        excludedPaths: [
        {
            path: '/_etag/?'
        }
        {
            path: '/DescriptionVector/*'
        }
        ]
        vectorIndexes: [
        {
            path: '/DescriptionVector'
            type: 'diskANN'
        }
        ]
    }
    vectorEmbeddingPolicy: {
        vectorEmbeddings: [
        {
            path: '/DescriptionVector'
            dataType: 'float32'
            dimensions: 1536
            distanceFunction: 'cosine'
        }
        ]
    }
}

This Bicep code defines an Azure Cosmos DB container configuration for storing hotel documents with vector search capabilities.

Property Description
partitionKeyPaths Partitions documents by HotelId for distributed storage.
indexingPolicy Configures automatic indexing on all document properties (/*) except the system _etag field and the DescriptionVector array to optimize write performance. Vector fields don't need standard indexing because they use a specialized vectorIndexes configuration instead.
vectorIndexes Creates either a DiskANN or quantizedFlat index on the /DescriptionVector path for efficient similarity searches.
vectorEmbeddingPolicy Defines the vector field's characteristics: float32 data type with 1536 dimensions (matching the text-embedding-3-small model output) and cosine as the distance function to measure similarity between vectors during queries.

Interpret similarity scores

In the example output using cosine similarity:

  • 0.4991 (Royal Cottage Resort) - Highest similarity, best match for "lodging near running trails, eateries, retail"
  • 0.4388 (Roach Motel) - Lower similarity, still relevant but less matching
  • Scores closer to 1.0 indicate stronger semantic similarity
  • Scores near 0 indicate little similarity

Important

  • Absolute score values depend on your embedding model and data
  • Focus on relative ranking rather than absolute thresholds
  • Azure OpenAI embeddings work best with cosine similarity

For detailed information on distance functions, see What are distance functions?

View and manage data in Visual Studio Code

  1. Select the Cosmos DB extension in Visual Studio Code to connect to your Azure Cosmos DB account.

  2. View the data and indexes in the Hotels database.

    Screenshot of Visual Studio Code showing the Azure Cosmos DB extension with Hotels database items and a JSON document editor.

Clean up resources

When you no longer need the API for NoSQL account, you can delete the corresponding resource group.

  1. Navigate to the resource group you previously created in the Azure portal.

    Tip

    In this quickstart, we recommended the name msdocs-cosmos-quickstart-rg.

  2. Select Delete resource group.

    Screenshot of the Delete resource group option in the navigation bar for a resource group.

  3. On the Are you sure you want to delete dialog, enter the name of the resource group, and then select Delete.

    Screenshot of the delete confirmation page for a resource group.

Related content

  • Last updated on
