Create a New Cluster

Article
11/29/2023

New clusters can be created through the CycleCloud CLI or a web browser. Clusters are created from templates, which may be text files on disk or may have been imported into the CycleCloud application server.

This article shows you how to create a new cluster from an existing template. Read more about CycleCloud cluster templates.

Using a Web Browser

Click the Add button located in the lower left of the clusters page. This will bring up a list of icons, each representing a cluster template from which the new cluster will be created. If you would like to import a new cluster template so that it shows up on this page, see Importing a Cluster Template below. Select one of the templates and enter a unique name for the new cluster.

CycleCloud Create New Cluster Screen

Fill out the new cluster form and hit Save to create the new cluster. You can later change these values using Edit on the cluster page, though most changes require the cluster to be terminated first.

The cluster form itself is based on two things: the cluster parameters, which are grouped into sections, and automatic sections added by CycleCloud.

Cluster Parameters

The parameters in the form vary based on the cluster template, but below are some that are commonly required:

Region determines the region of nodes in the cluster. Changing the region may also affect the types of VMs which are available as well as the capacity and quota.
Subnet ID controls the virtual network and subnet in which nodes are started. New subnets may be created through the Azure Portal or CLI and will be automatically detected after a small amount of time.
Max Cores limits the number of nodes which will be autoscaled based on the total number of running cores.
Credentials are associated with a single subscription and may change the values of many of the other cluster options. For example, selecting credentials associated with Azure Government will limit the regions available.
Return Proxy if checked, nodes will communicate back to the CycleCloud application server via a proxy running on the cluster head node. Select this option if direct network access to CycleCloud is blocked from the cluster nodes.

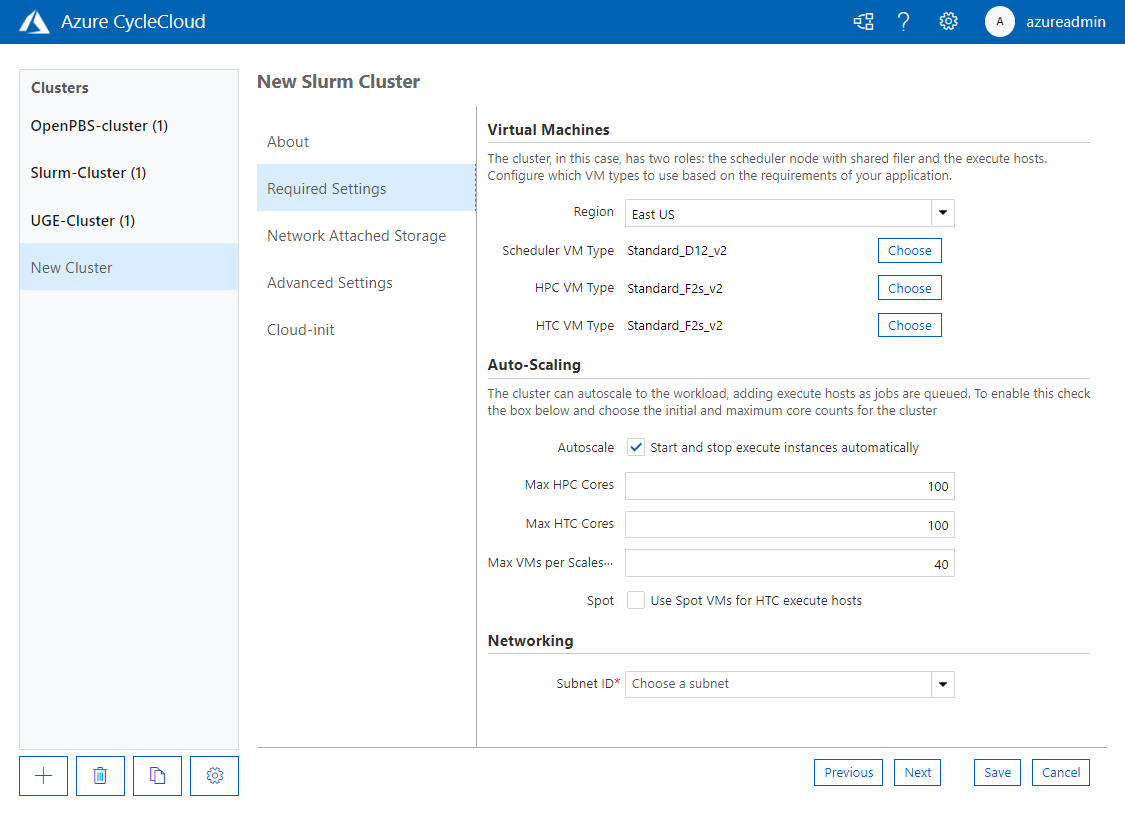

CycleCloud New Cluster Form

Standard Cluster Sections

CycleCloud 8 adds standard cluster sections automatically to the Create and Edit form for every cluster, regardless of type. These are not specified in the cluster template itself, and cannot be imported or exported as parameters.

CycleCloud 8.0+ includes a Cloud-init section
CycleCloud 8.5+ includes a Security section

These sections let you edit certain settings for the node arrays and the standalone nodes defined in the cluster template. (It does not include nodes created from the node arrays, such as execute nodes.) The default for new clusters is to use the same values across all standalone nodes and node arrays, but there is an option to use different values for each.

Separate settings for each standalone node and node array: CycleCloud Separate Node Array Settings

Shared settings used for all standalone nodes and node arrays: CycleCloud Shared Node Array Settings

If the values happen to match across all standalone nodes and node arrays, then Apply to all is initially activated.

Warning

Toggling the Apply to all setting on and clicking Save will update all standalone nodes and node arrays with the new settings in the form!

Using the CycleCloud CLI

There are two ways to create a cluster from the CycleCloud CLI: From an imported template and from a template file on disk. In either case, you will need to provide any required cluster parameters as a JSON file.

The easiest way to generate a JSON file for use in the CLI is to create a cluster using your web browser and export its parameters via the export_parameters command. Read more about cluster template parameters.

To export parameters from a cluster named "existing-cluster", run:

cyclecloud export_parameters existing-cluster > params.json

Creating a new cluster from an imported template

If the cluster template has already been imported into CycleCloud, you can run the create_cluster command to create a cluster. To create a new cluster named "new-cluster" from a template named "Example", run:

cyclecloud create_cluster Example new-cluster -p params.json

Creating a new cluster from a template file

If the cluster template exists as a file on disk, you can run the import_cluster command to create a cluster. To create a new cluster from a template file named "example-template.txt", run:

cyclecloud import_cluster -f example-template.txt -p params.json

This will use the name of the cluster in the template file, but you can specify your own name as well. If the cluster in the file is named "Example", and you would like to create a new cluster named "new-cluster", run:

cyclecloud import_cluster new-cluster -c Example -f example-template.txt -p params.json

Importing a Cluster Template

To create a cluster using a web browser or the create_cluster CLI command, you will need to import the template file into CycleCloud. The examples below will use the following template file, named example-template.txt:

[cluster Example]

    [[node scheduler]]
    ImageName = OpenLogic:CentOS:7.5:latest
    Region = $Region
    MachineType = $MachineType
    SubnetId = $SubnetId
    Credentials = $Credentials

[parameters Settings]

    [[parameter Region]]
    Description = Deployment Location
    ParameterType = Cloud.Region
    DefaultValue = westus2

    [[parameter MachineType]]
    Label = VM Type
    ParameterType = Cloud.MachineType
    DefaultValue = Standard_D12_v2

    [[parameter SubnetId]]
    Label = Subnet ID
    ParameterType = Azure.Subnet
    Required = True

    [[parameter Credentials]]
    ParameterType = Cloud.Credentials

To import the "Example" template above, simply run the following command:

cyclecloud import_cluster -t -f example-template.txt

The template will now be available for creation using a web browser or the create_cluster CLI command. During import, you may also specify a name which is different from the one appearing in the file. To import the template with the name "Contoso" instead of "Example", run:

cyclecloud import_cluster "Contoso" -c Example -t -f ./example-template.txt

Note

Various attributes inside the cluster template will affect how the template appears in the browser. For example, the icon displayed is specified by "IconUrl" and the heading above template uses the "Category" attribute. For a full list of the supported attributes, see Build a New Cluster Template.
