Copy data from Vertica using Azure Data Factory or Synapse Analytics

APPLIES TO: Azure Data Factory Azure Synapse Analytics

This article outlines how to use the Copy Activity in an Azure Data Factory or Synapse Analytics pipeline to copy data from Vertica. It builds on the copy activity overview article that presents a general overview of copy activity.

Supported capabilities

This Vertica connector is supported for the following capabilities:

Supported capabilities IR
Copy activity (source/-) ① ②
Lookup activity ① ②

① Azure integration runtime ② Self-hosted integration runtime

For a list of data stores that are supported as sources/sinks by the copy activity, see the Supported data stores table.

The service provides a built-in driver to enable connectivity, therefore you don't need to manually install any driver using this connector.

Prerequisites

If your data store is located inside an on-premises network, an Azure virtual network, or Amazon Virtual Private Cloud, you need to configure a self-hosted integration runtime to connect to it.

If your data store is a managed cloud data service, you can use the Azure Integration Runtime. If the access is restricted to IPs that are approved in the firewall rules, you can add Azure Integration Runtime IPs to the allow list.

You can also use the managed virtual network integration runtime feature in Azure Data Factory to access the on-premises network without installing and configuring a self-hosted integration runtime.

For more information about the network security mechanisms and options supported by Data Factory, see Data access strategies.

Getting started

You can create a pipeline with copy activity using .NET SDK, Python SDK, Azure PowerShell, REST API, or Azure Resource Manager template. See Copy activity tutorial for step-by-step instructions to create a pipeline with a copy activity.

Create a linked service to Vertica using UI

Use the following steps to create a linked service to Vertica in the Azure portal UI.

  1. Browse to the Manage tab in your Azure Data Factory or Synapse workspace and select Linked Services, then click New:

  2. Search for Vertica and select the Vertica connector.

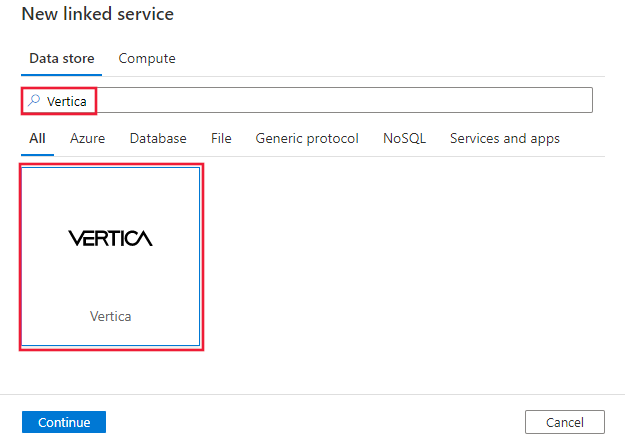

    Screenshot of the Vertica connector.

  3. Configure the service details, test the connection, and create the new linked service.

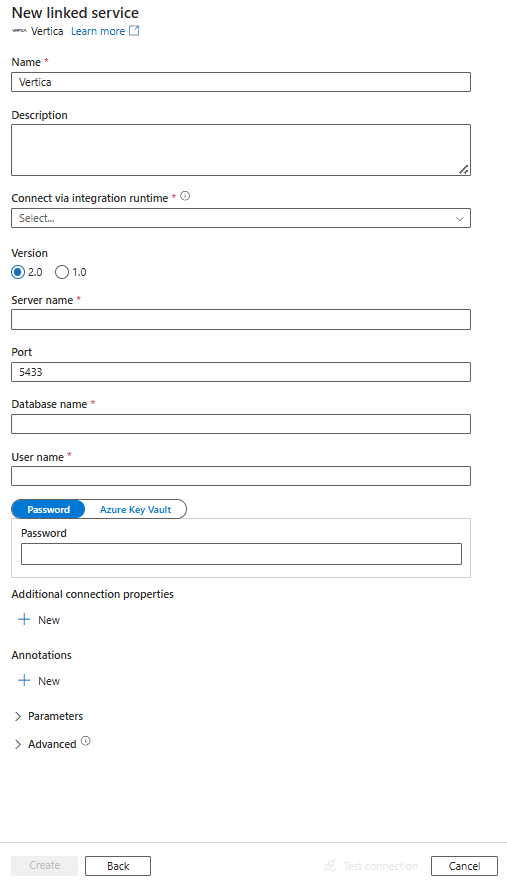

    Screenshot of linked service configuration for Vertica.

Connector configuration details

The following sections provide details about properties that are used to define Data Factory entities specific to Vertica connector.

Linked service properties

The following properties are supported for Vertica linked service:

Property Description Required
type The type property must be set to: Vertica Yes
connectionString An ODBC connection string to connect to Vertica.
You can also put password in Azure Key Vault and pull the pwd configuration out of the connection string. Refer to the following samples and Store credentials in Azure Key Vault article with more details.
Yes
connectVia The Integration Runtime to be used to connect to the data store. Learn more from Prerequisites section. If not specified, it uses the default Azure Integration Runtime. No

Example:

{
    "name": "VerticaLinkedService",
    "properties": {
        "type": "Vertica",
        "typeProperties": {
            "connectionString": "Server=<server>;Port=<port>;Database=<database>;UID=<user name>;PWD=<password>"
        },
        "connectVia": {
            "referenceName": "<name of Integration Runtime>",
            "type": "IntegrationRuntimeReference"
        }
    }
}

Example: store password in Azure Key Vault

{
    "name": "VerticaLinkedService",
    "properties": {
        "type": "Vertica",
        "typeProperties": {
            "connectionString": "Server=<server>;Port=<port>;Database=<database>;UID=<user name>;",
            "pwd": {
                "type": "AzureKeyVaultSecret",
                "store": {
                    "referenceName": "<Azure Key Vault linked service name>",
                    "type": "LinkedServiceReference"
                },
                "secretName": "<secretName>"
            }
        },
        "connectVia": {
            "referenceName": "<name of Integration Runtime>",
            "type": "IntegrationRuntimeReference"
        }
    }
}

Dataset properties

For a full list of sections and properties available for defining datasets, see the datasets article. This section provides a list of properties supported by Vertica dataset.

To copy data from Vertica, set the type property of the dataset to VerticaTable. The following properties are supported:

Property Description Required
type The type property of the dataset must be set to: VerticaTable Yes
schema Name of the schema. No (if "query" in activity source is specified)
table Name of the table. No (if "query" in activity source is specified)
tableName Name of the table with schema. This property is supported for backward compatibility. Use schema and table for new workload. No (if "query" in activity source is specified)

Example

{
    "name": "VerticaDataset",
    "properties": {
        "type": "VerticaTable",
        "typeProperties": {},
        "schema": [],
        "linkedServiceName": {
            "referenceName": "<Vertica linked service name>",
            "type": "LinkedServiceReference"
        }
    }
}

Copy activity properties

For a full list of sections and properties available for defining activities, see the Pipelines article. This section provides a list of properties supported by Vertica source.

Vertica as source

To copy data from Vertica, set the source type in the copy activity to VerticaSource. The following properties are supported in the copy activity source section:

Property Description Required
type The type property of the copy activity source must be set to: VerticaSource Yes
query Use the custom SQL query to read data. For example: "SELECT * FROM MyTable". No (if "tableName" in dataset is specified)

Example:

"activities":[
    {
        "name": "CopyFromVertica",
        "type": "Copy",
        "inputs": [
            {
                "referenceName": "<Vertica input dataset name>",
                "type": "DatasetReference"
            }
        ],
        "outputs": [
            {
                "referenceName": "<output dataset name>",
                "type": "DatasetReference"
            }
        ],
        "typeProperties": {
            "source": {
                "type": "VerticaSource",
                "query": "SELECT * FROM MyTable"
            },
            "sink": {
                "type": "<sink type>"
            }
        }
    }
]

Lookup activity properties

To learn details about the properties, check Lookup activity.

Next steps

For a list of data stores supported as sources and sinks by the copy activity, see supported data stores.
