Surrogate key transformation in mapping data flow

  • Article

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

Data flows are available both in Azure Data Factory and Azure Synapse Pipelines. This article applies to mapping data flows. If you are new to transformations, please refer to the introductory article Transform data using a mapping data flow.

Use the surrogate key transformation to add an incrementing key value to each row of data. This is useful when designing dimension tables in a star schema analytical data model. In a star schema, each member in your dimension tables requires a unique key that is a non-business key.

Configuration

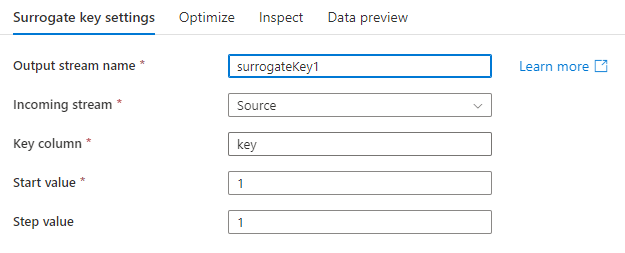

Surrogate Key Transform

Key column: The name of the generated surrogate key column.

Start value: The lowest key value that will be generated.

Increment keys from existing sources

To start your sequence from a value that exists in a source, we recommend to use a cache sink to save that value and use a derived column transformation to add the two values together. Use a cached lookup to get the output and append it to the generated key. For more information, learn about cache sinks and cached lookups.

Surrogate Key lookup

Increment from existing maximum value

To seed the key value with the previous max, there are two techniques that you can use based on where your source data is.

Database sources

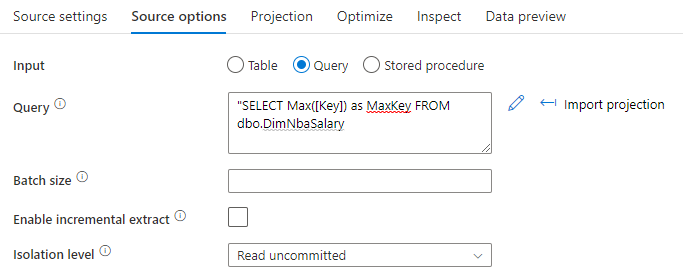

Use a SQL query option to select MAX() from your source. For example, Select MAX(<surrogateKeyName>) as maxval from <sourceTable>.

Surrogate Key Query

File sources

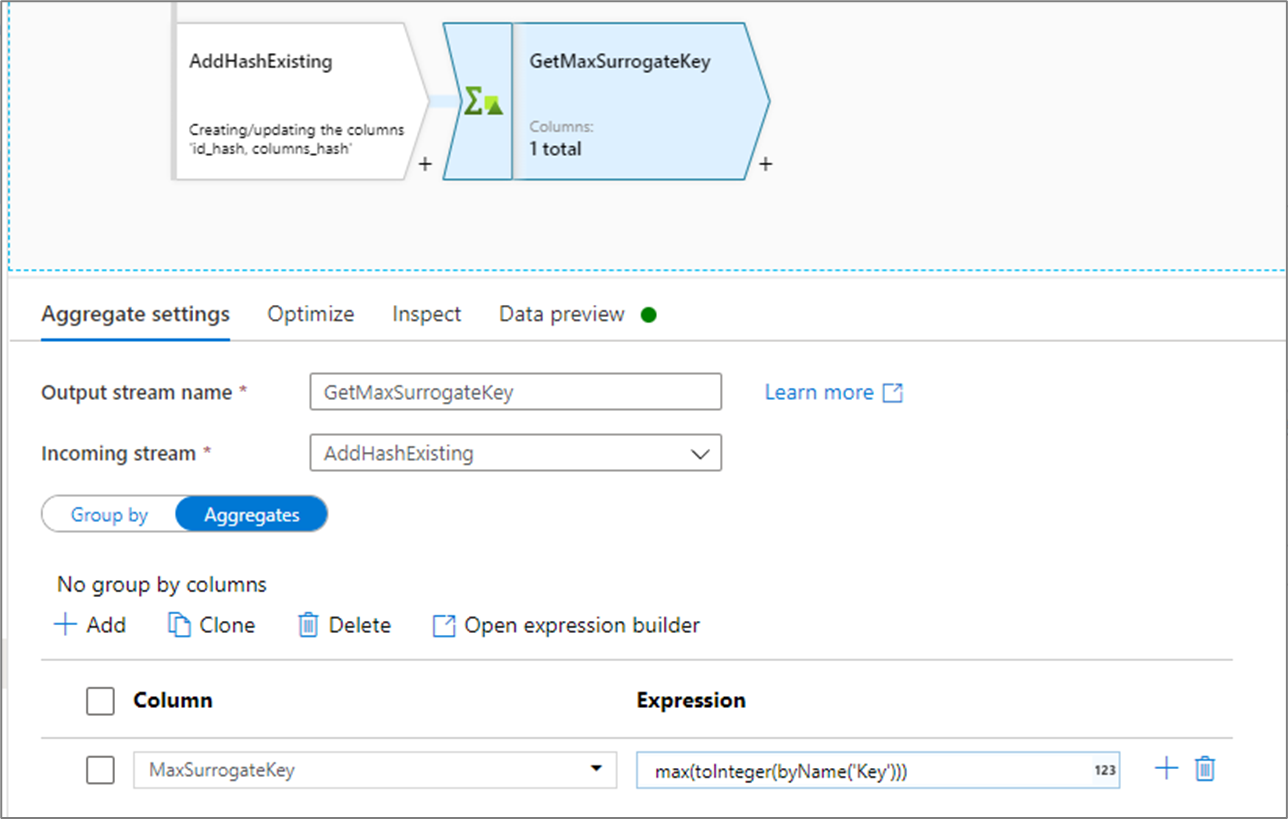

If your previous max value is in a file, use the max() function in the aggregate transformation to get the previous max value:

Surrogate Key File

In both cases, you will need to write to a cache sink and lookup the value.

Data flow script

Syntax

<incomingStream>
    keyGenerate(
        output(<surrogateColumnName> as long),
        startAt: <number>L
    ) ~> <surrogateKeyTransformationName>

Example

Surrogate Key Transform

The data flow script for the above surrogate key configuration is in the code snippet below.

AggregateDayStats
    keyGenerate(
        output(key as long),
        startAt: 1L
    ) ~> SurrogateKey1

Related content

These examples use the Join and Derived Column transformations.
