Create a trigger that runs a pipeline on a tumbling window

  • Article

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

This article provides steps to create, start, and monitor a tumbling window trigger. For general information about triggers and the supported types, see Pipeline execution and triggers.

Tumbling window triggers are a type of trigger that fires at a periodic time interval from a specified start time, while retaining state. Tumbling windows are a series of fixed-sized, non-overlapping, and contiguous time intervals. A tumbling window trigger has a one-to-one relationship with a pipeline and can only reference a singular pipeline. Tumbling window trigger is a more heavy weight alternative for schedule trigger offering a suite of features for complex scenarios(dependency on other tumbling window triggers, rerunning a failed job and set user retry for pipelines). To further understand the difference between schedule trigger and tumbling window trigger, please visit here.

Azure Data Factory and Synapse portal experience

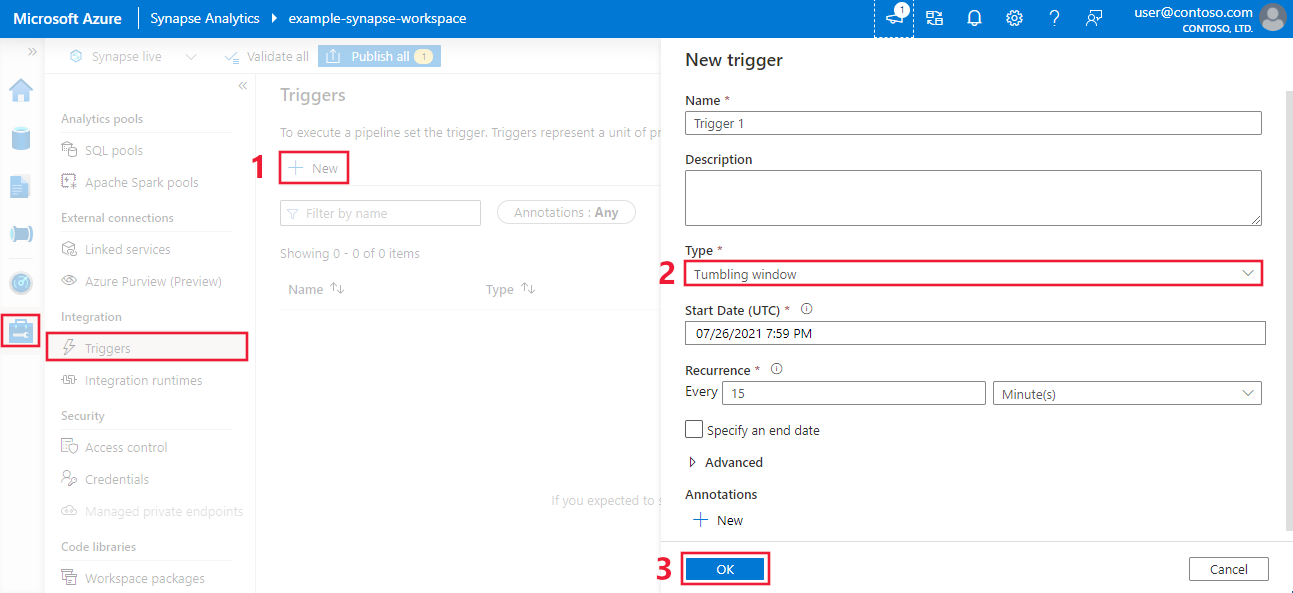

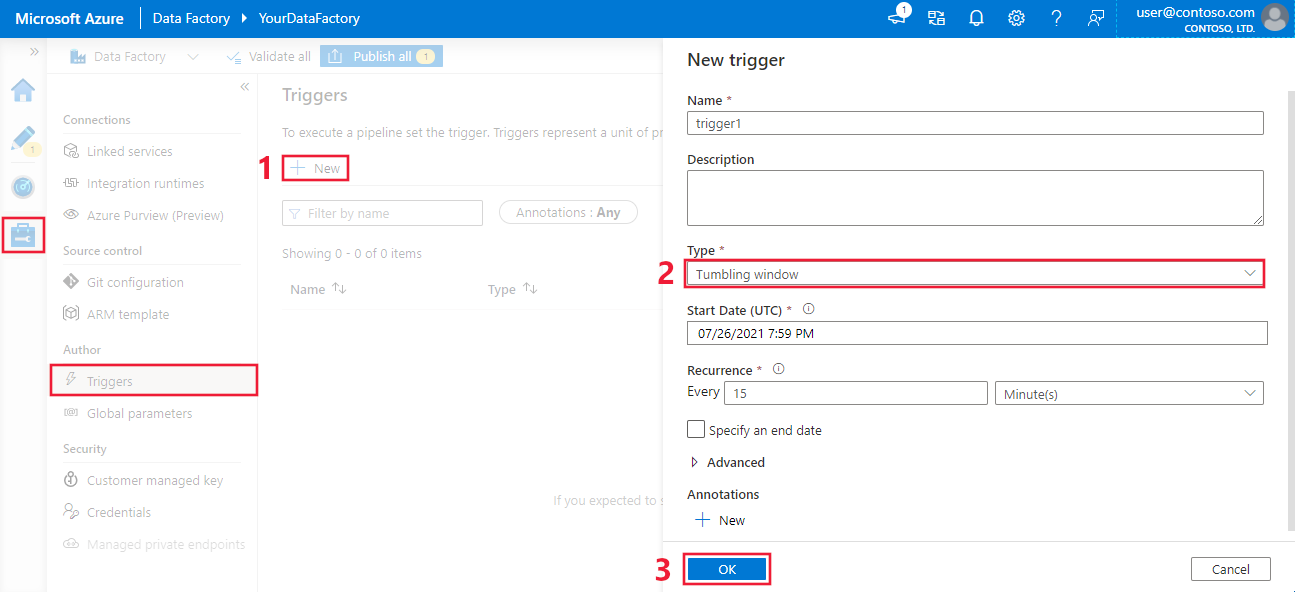

  1. To create a tumbling window trigger in the Azure portal, select the Triggers tab, and then select New.
  2. After the trigger configuration pane opens, select Tumbling Window, and then define your tumbling window trigger properties.
  3. When you're done, select Save.

Tumbling window trigger type properties

A tumbling window has the following trigger type properties:

{
    "name": "MyTriggerName",
    "properties": {
        "type": "TumblingWindowTrigger",
        "runtimeState": "<<Started/Stopped/Disabled - readonly>>",
        "typeProperties": {
            "frequency": <<Minute/Hour>>,
            "interval": <<int>>,
            "startTime": "<<datetime>>",
            "endTime": <<datetime - optional>>,
            "delay": <<timespan - optional>>,
            "maxConcurrency": <<int>> (required, max allowed: 50),
            "retryPolicy": {
                "count": <<int - optional, default: 0>>,
                "intervalInSeconds": <<int>>,
            },
            "dependsOn": [
                {
                    "type": "TumblingWindowTriggerDependencyReference",
                    "size": <<timespan - optional>>,
                    "offset": <<timespan - optional>>,
                    "referenceTrigger": {
                        "referenceName": "MyTumblingWindowDependency1",
                        "type": "TriggerReference"
                    }
                },
                {
                    "type": "SelfDependencyTumblingWindowTriggerReference",
                    "size": <<timespan - optional>>,
                    "offset": <<timespan>>
                }
            ]
        },
        "pipeline": {
            "pipelineReference": {
                "type": "PipelineReference",
                "referenceName": "MyPipelineName"
            },
            "parameters": {
                "parameter1": {
                    "type": "Expression",
                    "value": "@{concat('output',formatDateTime(trigger().outputs.windowStartTime,'-dd-MM-yyyy-HH-mm-ss-ffff'))}"
                },
                "parameter2": {
                    "type": "Expression",
                    "value": "@{concat('output',formatDateTime(trigger().outputs.windowEndTime,'-dd-MM-yyyy-HH-mm-ss-ffff'))}"
                },
                "parameter3": "https://mydemo.azurewebsites.net/api/demoapi"
            }
        }
    }
}

The following table provides a high-level overview of the major JSON elements that are related to recurrence and scheduling of a tumbling window trigger:

JSON element Description Type Allowed values Required
type The type of the trigger. The type is the fixed value "TumblingWindowTrigger". String "TumblingWindowTrigger" Yes
runtimeState The current state of the trigger run time.
Note: This element is <readOnly>.		 String "Started," "Stopped," "Disabled" Yes
frequency A string that represents the frequency unit (minutes, hours, or months) at which the trigger recurs. If the startTime date values are more granular than the frequency value, the startTime dates are considered when the window boundaries are computed. For example, if the frequency value is hourly and the startTime value is 2017-09-01T10:10:10Z, the first window is (2017-09-01T10:10:10Z, 2017-09-01T11:10:10Z). String "Minute," "Hour", "Month" Yes
interval A positive integer that denotes the interval for the frequency value, which determines how often the trigger runs. For example, if the interval is 3 and the frequency is "hour," the trigger recurs every 3 hours.
Note: The minimum window interval is 5 minutes.		 Integer A positive integer. Yes
startTime The first occurrence, which can be in the past. The first trigger interval is (startTime, startTime + interval). DateTime A DateTime value. Yes
endTime The last occurrence, which can be in the past. DateTime A DateTime value. Yes
delay The amount of time to delay the start of data processing for the window. The pipeline run is started after the expected execution time plus the amount of delay. The delay defines how long the trigger waits past the due time before triggering a new run. The delay doesn’t alter the window startTime. For example, a delay value of 00:10:00 implies a delay of 10 minutes. Timespan
(hh:mm:ss)		 A timespan value where the default is 00:00:00. No
maxConcurrency The number of simultaneous trigger runs that are fired for windows that are ready. For example, to back fill hourly runs for yesterday results in 24 windows. If maxConcurrency = 10, trigger events are fired only for the first 10 windows (00:00-01:00 - 09:00-10:00). After the first 10 triggered pipeline runs are complete, trigger runs are fired for the next 10 windows (10:00-11:00 - 19:00-20:00). Continuing with this example of maxConcurrency = 10, if there are 10 windows ready, there are 10 total pipeline runs. If there's only 1 window ready, there's only 1 pipeline run. Integer An integer between 1 and 50. Yes
retryPolicy: Count The number of retries before the pipeline run is marked as "Failed." Integer An integer, where the default is 0 (no retries). No
retryPolicy: intervalInSeconds The delay between retry attempts specified in seconds. Integer The number of seconds, where the default is 30. The minimum value is 30. No
dependsOn: type The type of TumblingWindowTriggerReference. Required if a dependency is set. String "TumblingWindowTriggerDependencyReference", "SelfDependencyTumblingWindowTriggerReference" No
dependsOn: size The size of the dependency tumbling window. Timespan
(hh:mm:ss)		 A positive timespan value where the default is the window size of the child trigger No
dependsOn: offset The offset of the dependency trigger. Timespan
(hh:mm:ss)		 A timespan value that must be negative in a self-dependency. If no value specified, the window is the same as the trigger itself. Self-Dependency: Yes
Other: No

Note

After a tumbling window trigger is published, interval and frequency can't be edited.

WindowStart and WindowEnd system variables

You can use the WindowStart and WindowEnd system variables of the tumbling window trigger in your pipeline definition (that is, for part of a query). Pass the system variables as parameters to your pipeline in the trigger definition. The following example shows you how to pass these variables as parameters:

{
    "name": "MyTriggerName",
    "properties": {
        "type": "TumblingWindowTrigger",
            ...
        "pipeline": {
            "pipelineReference": {
                "type": "PipelineReference",
                "referenceName": "MyPipelineName"
            },
            "parameters": {
                "MyWindowStart": {
                    "type": "Expression",
                    "value": "@{concat('output',formatDateTime(trigger().outputs.windowStartTime,'-dd-MM-yyyy-HH-mm-ss-ffff'))}"
                },
                "MyWindowEnd": {
                    "type": "Expression",
                    "value": "@{concat('output',formatDateTime(trigger().outputs.windowEndTime,'-dd-MM-yyyy-HH-mm-ss-ffff'))}"
                }
            }
        }
    }
}

To use the WindowStart and WindowEnd system variable values in the pipeline definition, use your "MyWindowStart" and "MyWindowEnd" parameters, accordingly.

Execution order of windows in a backfill scenario

If the startTime of trigger is in the past, then based on this formula, M=(CurrentTime- TriggerStartTime)/TumblingWindowSize, the trigger will generate {M} backfill(past) runs in parallel, honoring trigger concurrency, before executing the future runs. The order of execution for windows is deterministic, from oldest to newest intervals. Currently, this behavior can't be modified.

Note

Be aware that in this scenario, all runs from the selected startTime will be run before executing future runs. If you need to backfill a long period of time, doing an intial historical load is recommended.

Existing TriggerResource elements

The following points apply to update of existing TriggerResource elements:

  • The value for the frequency element (or window size) of the trigger along with interval element cannot be changed once the trigger is created. This is required for proper functioning of triggerRun reruns and dependency evaluations
  • If the value for the endTime element of the trigger changes (added or updated), the state of the windows that are already processed is not reset. The trigger honors the new endTime value. If the new endTime value is before the windows that are already executed, the trigger stops. Otherwise, the trigger stops when the new endTime value is encountered.

User assigned retries of pipelines

In case of pipeline failures, tumbling window trigger can retry the execution of the referenced pipeline automatically, using the same input parameters, without the user intervention. This can be specified using the property "retryPolicy" in the trigger definition.

Tumbling window trigger dependency

If you want to make sure that a tumbling window trigger is executed only after the successful execution of another tumbling window trigger in the data factory, create a tumbling window trigger dependency.

Cancel tumbling window run

You can cancel runs for a tumbling window trigger, if the specific window is in Waiting, Waiting on Dependency, or Running state

  • If the window is in Running state, cancel the associated Pipeline Run, and the trigger run will be marked as Canceled afterwards

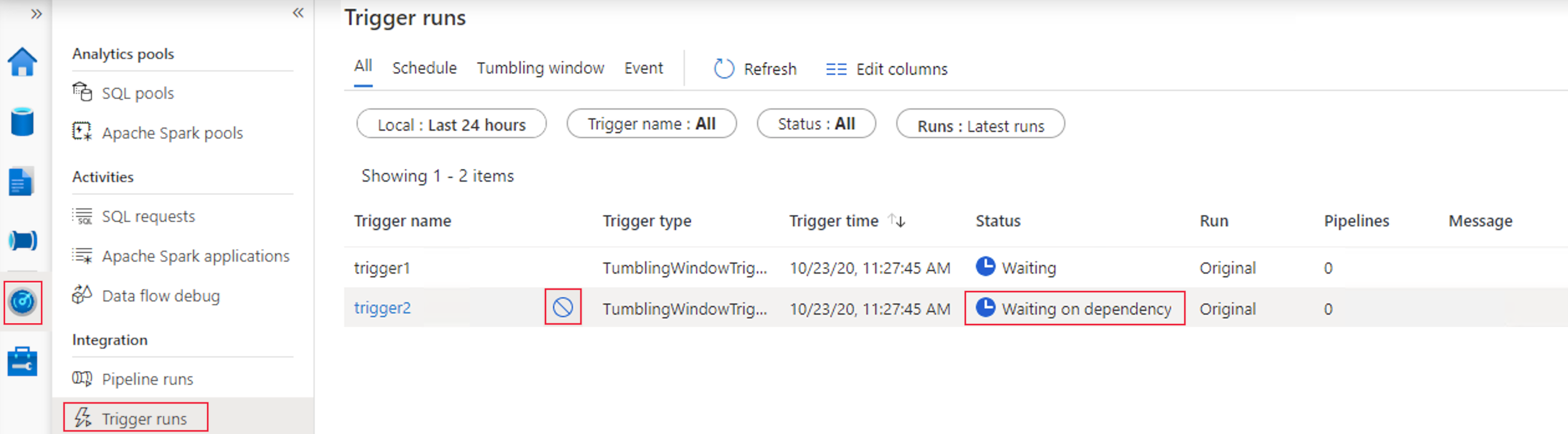

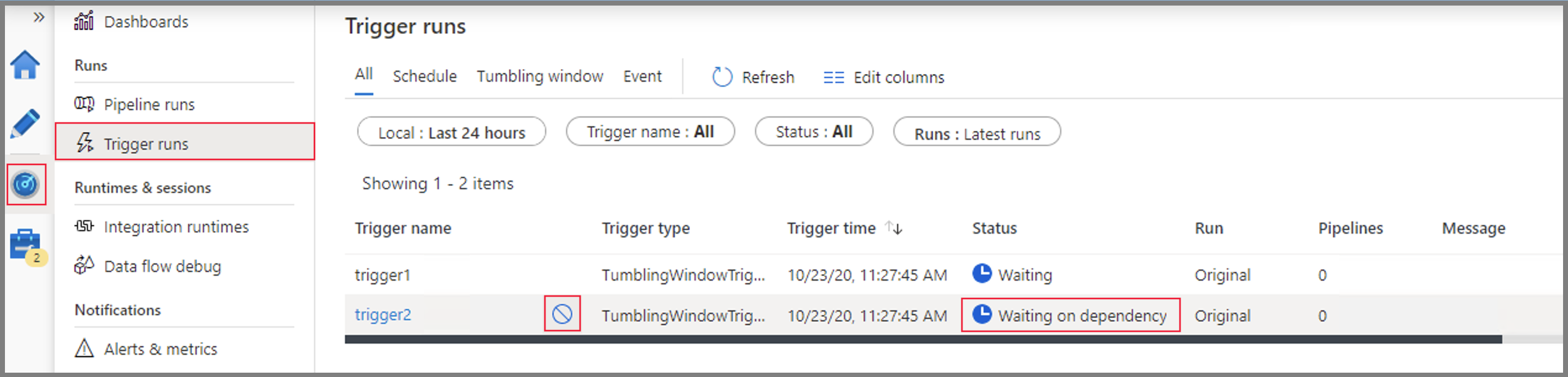

  • If the window is in Waiting or Waiting on Dependency state, you can cancel the window from Monitoring:

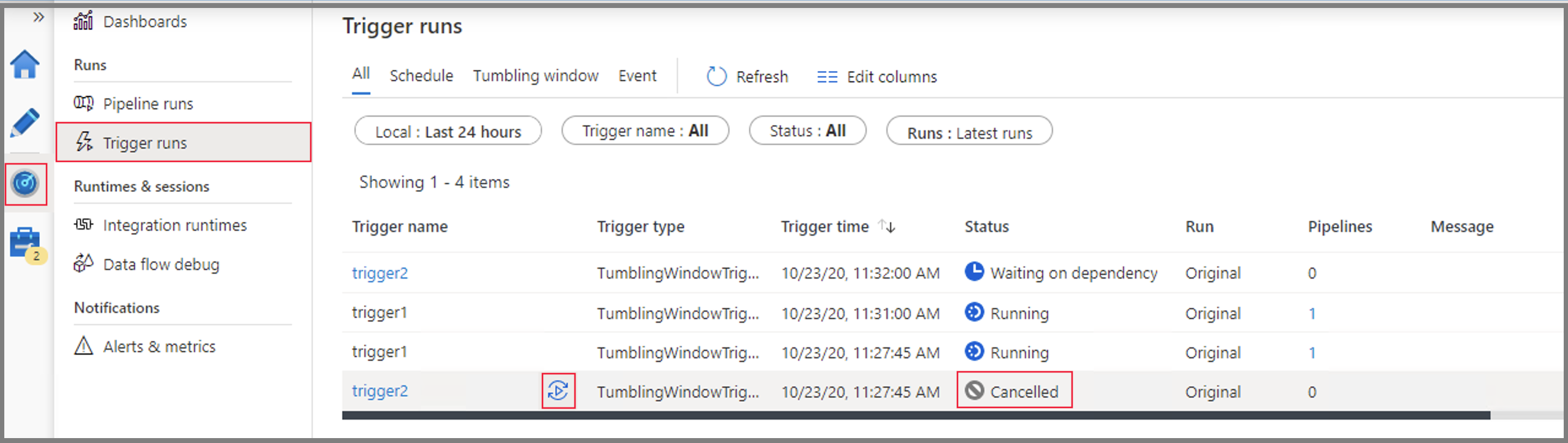

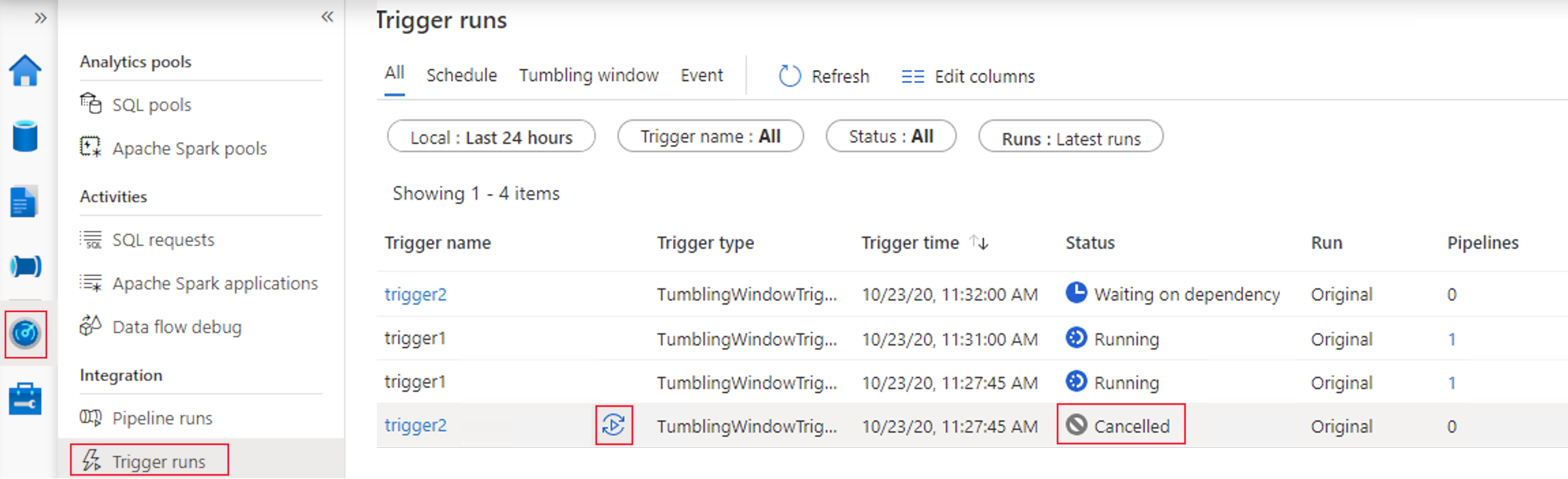

You can also rerun a canceled window. The rerun will take the latest published definitions of the trigger, and dependencies for the specified window will be re-evaluated upon rerun

Sample for Azure PowerShell and Azure CLI

This section shows you how to use Azure PowerShell to create, start, and monitor a trigger.

Note

We recommend that you use the Azure Az PowerShell module to interact with Azure. See Install Azure PowerShell to get started. To learn how to migrate to the Az PowerShell module, see Migrate Azure PowerShell from AzureRM to Az.

Prerequisites

Sample Code

  1. Create a JSON file named MyTrigger.json in the C:\ADFv2QuickStartPSH\ folder with the following content:

    Important

    Before you save the JSON file, set the value of the startTime element to the current UTC time. Set the value of the endTime element to one hour past the current UTC time.

    {
  "name": "PerfTWTrigger",
  "properties": {
    "type": "TumblingWindowTrigger",
    "typeProperties": {
      "frequency": "Minute",
      "interval": "15",
      "startTime": "2017-09-08T05:30:00Z",
      "endTime" : "2017-09-08T06:30:00Z",
      "delay": "00:00:01",
      "retryPolicy": {
        "count": 2,
        "intervalInSeconds": 30
      },
      "maxConcurrency": 50
    },
    "pipeline": {
      "pipelineReference": {
        "type": "PipelineReference",
        "referenceName": "DynamicsToBlobPerfPipeline"
      },
      "parameters": {
        "windowStart": "@trigger().outputs.windowStartTime",
        "windowEnd": "@trigger().outputs.windowEndTime"
      }
    },
    "runtimeState": "Started"
  }
}

  2. Create a trigger by using the Set-AzDataFactoryV2Trigger cmdlet:

    Set-AzDataFactoryV2Trigger -ResourceGroupName $ResourceGroupName -DataFactoryName $DataFactoryName -Name "MyTrigger" -DefinitionFile "C:\ADFv2QuickStartPSH\MyTrigger.json"

  3. Confirm that the status of the trigger is Stopped by using the Get-AzDataFactoryV2Trigger cmdlet:

    Get-AzDataFactoryV2Trigger -ResourceGroupName $ResourceGroupName -DataFactoryName $DataFactoryName -Name "MyTrigger"

  4. Start the trigger by using the Start-AzDataFactoryV2Trigger cmdlet:

    Start-AzDataFactoryV2Trigger -ResourceGroupName $ResourceGroupName -DataFactoryName $DataFactoryName -Name "MyTrigger"

  5. Confirm that the status of the trigger is Started by using the Get-AzDataFactoryV2Trigger cmdlet:

    Get-AzDataFactoryV2Trigger -ResourceGroupName $ResourceGroupName -DataFactoryName $DataFactoryName -Name "MyTrigger"

  6. Get the trigger runs in Azure PowerShell by using the Get-AzDataFactoryV2TriggerRun cmdlet. To get information about the trigger runs, execute the following command periodically. Update the TriggerRunStartedAfter and TriggerRunStartedBefore values to match the values in your trigger definition:

    Get-AzDataFactoryV2TriggerRun -ResourceGroupName $ResourceGroupName -DataFactoryName $DataFactoryName -TriggerName "MyTrigger" -TriggerRunStartedAfter "2017-12-08T00:00:00" -TriggerRunStartedBefore "2017-12-08T01:00:00"

To monitor trigger runs and pipeline runs in the Azure portal, see Monitor pipeline runs.
