Update your Azure Data Box Gateway

  • Article

This article describes the steps required to install update on your Azure Data Box Gateway via the local web UI and through the Azure portal. You apply the software updates or hotfixes to keep your Data Box Gateway device up-to-date.

Important

  • Update 1911 corresponds to 1.6.1049.786 software version on your device. For information on this update, go to Release notes.

  • Keep in mind that installing an update or hotfix restarts your device. Given that the Data Box Gateway is a single node device, any I/O in progress is disrupted and your device experiences a downtime of up to 30 minutes for the device software update.

Each of these steps is described in the following sections.

Use the Azure portal

We recommend that you install updates through the Azure portal. The device automatically scans for updates once a day. Once the updates are available, you see a notification in the portal. You can then download and install the updates.

Note

Make sure that the device is healthy and status shows as Online before you proceed to install the updates.

  1. When the updates are available for your device, you see a notification. Select the notification or from the top command bar, Update device. This will allow you to apply device software updates.

    Screenshot of the Azure Data Box Gateway Home page with the Overview and Update device options called out.

  2. In the Device updates blade, check that you have reviewed the license terms associated with new features in the release notes.

    You can choose to Download and install the updates or just Download the updates. You can then choose to install these updates later.

    Screenshot of the Device updates dialog box with the Accept and Understand options and the Download and install option called out.

    If you want to download and install the updates, check the option that updates install automatically after the download completes.

    Screenshot of the Device updates dialog box with the Accept option and the Download option called out.

  3. The download of updates starts. You see a notification that the download is in progress.

    Screenshot of the notification that says, "Download and install updates in progress."

    A notification banner is also displayed in the Azure portal. This indicates the download progress.

    Screenshot of the Azure Data Box Gateway Home page with the Overview option and the Downloading updates notification banner called out.

    You can select this notification or select Update device to see the detailed status of the update.

    Screenshot of the Download and install updates dialog box with the Status: In progress message and the Download updates message called out.

  4. After the download is complete, the notification banner updates to indicate the completion. If you chose to download and install the updates, the installation will begin automatically.

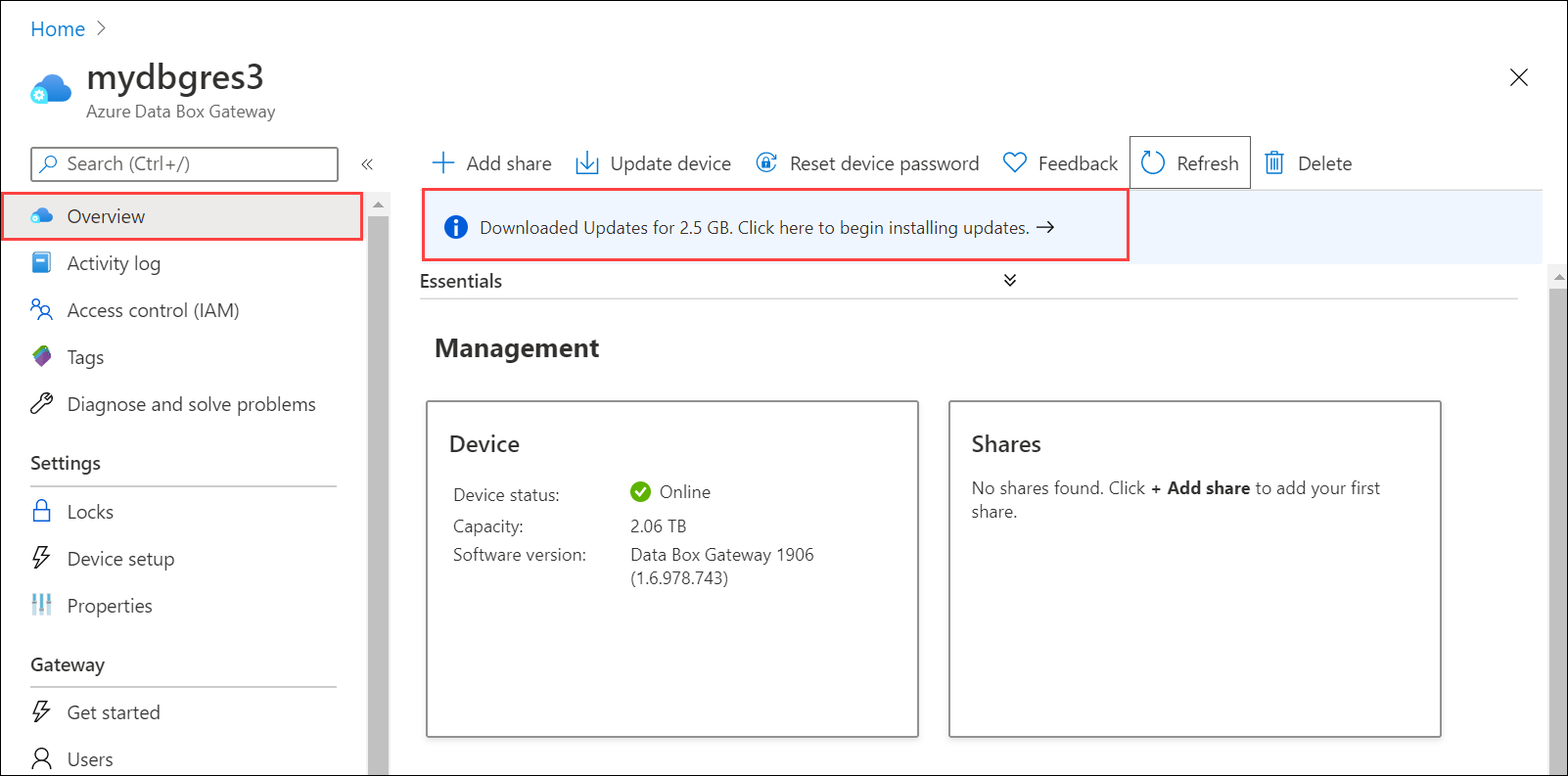

    Screenshot of the Azure Data Box Gateway Home page with the Overview option and the Downloaded Updates notification banner called out.

    If you chose to download updates only, then select the notification to open the Device updates blade. Select Install.

    Screenshot of the Device updates dialog box with the Install option called out.

  5. You see a notification that the install is in progress.

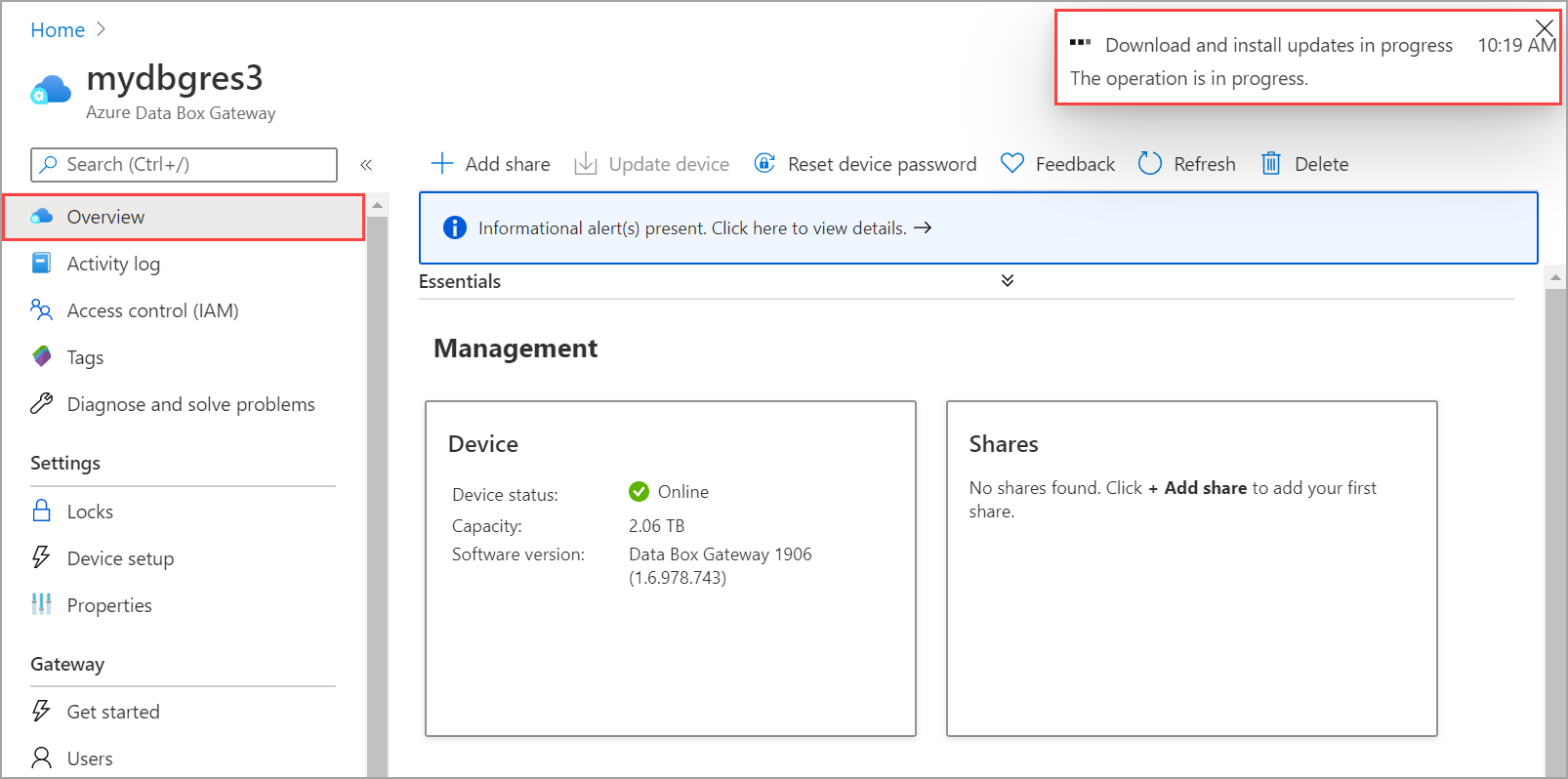

    Screenshot of the Azure Data Box Gateway Home page with the Overview option and the Download and install progress message called out.

    The portal also displays an informational alert to indicate that the install is in progress.

  6. As this is a 1-node device, the device will restart after the updates are installed. The critical alert during the restart will indicate that the device heartbeat is lost.

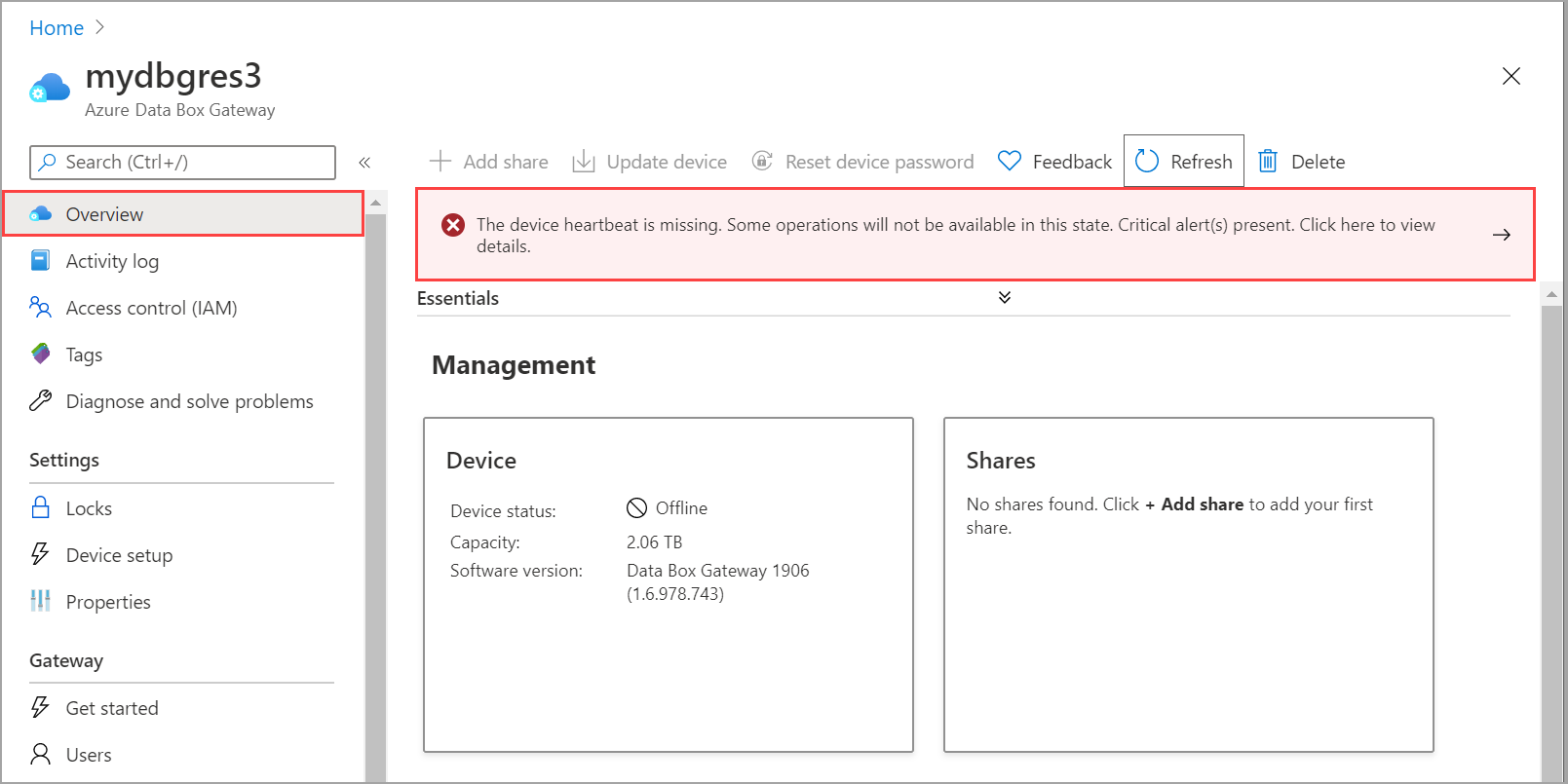

    Screenshot of the Azure Data Box Gateway Home page with the Overview option and the critical alert notification banner called out.

    Select the alert to see the corresponding device event.

    Screenshot of the Device events section with the Lost heartbeat from your device event called out.

  7. The device status updates to Online after the updates are installed.

    Screenshot of the Azure Data Box Gateway Home page with the Overview option and the Online status called out.

    From the top command bar, select Device updates. Verify that update has successfully installed and the device software version reflects that.

    Screenshot of the Device updates dialog box with the Installed software version section called out.

Use the local web UI

There are two steps when using the local web UI:

  • Download the update or the hotfix
  • Install the update or the hotfix

Each of these steps is described in detail in the following sections.

Download the update or the hotfix

Perform the following steps to download the update. You can download the update from the Microsoft-supplied location or from the Microsoft Update Catalog.

Do the following steps to download the update from the Microsoft Update Catalog.

  1. Start the browser and navigate to https://catalog.update.microsoft.com.

    Screenshot of the Microsoft Update Catalog in a browser window with Data Box Gateway typed into the search text box. Both the browser's address bar and the Search text box are called out.

  2. In the search box of the Microsoft Update Catalog, enter the Knowledge Base (KB) number of the hotfix or terms for the update you want to download. For example, enter Azure Data Box Gateway, and then click Search.

    The update listing appears as Azure Data Box Gateway 1911.

    Screenshot of the Microsoft Update Catalog in a browser window with Data Box Gateway search results displayed and called out.

  3. Select Download. There is a single file to download called SoftwareUpdatePackage.exe that corresponds to the device software update. Download the file to a folder on the local system. You can also copy the folder to a network share that is reachable from the device.

    Screenshot of the Download dialog box with the link to the Software Update Package dot E X E file called out.

Install the update or the hotfix

Prior to the update or hotfix installation, make sure that:

  • You have the update or the hotfix downloaded either locally on your host or accessible via a network share.

  • Your device status is healthy as shown in the Overview page of the local web UI.

    Screenshot of the Data Box Gateway local web U I with the Dashboard option and the Software status: Healthy message called out.

This procedure takes around 20 minutes to complete. Perform the following steps to install the update or hotfix.

  1. In the local web UI, go to Maintenance > Software update. Make a note of the software version that you are running.

    Screenshot of the Data Box Gateway local web U I with the Software update option and the Current software version message called out.

  2. Provide the path to the update file. You can also browse to the update installation file if placed on a network share. Select the software update file with SoftwareUpdatePackage.exe suffix.

    Screenshot of File Explorer with the Software Update Package dot E X E file called out.

  3. Select Apply.

    Screenshot of the Data Box Gateway local web U I with the Software update option, the Update file path text box, and the Apply Update option called out.

  4. When prompted for confirmation, select Yes to proceed. Given the device is a single node device, after the update is applied, the device restarts and there is downtime.

    Screenshot of the Software update dialog box with the Yes option highlighted.

  5. The update starts. After the device is successfully updated, it restarts. The local UI is not accessible in this duration.

  6. After the restart is complete, you are taken to the Sign in page. To verify that the device software has updated, in the local web UI, go to Maintenance > Software update. The displayed software version in this example is 1.6.1049.786.

    Screenshot of the Data Box Gateway local web U I with the Software update option and the updated Current software version message called out.

Next steps

Learn more about administering your Azure Data Box Gateway.
