Erase data from your Azure Stack Edge

APPLIES TO: Yes for Pro GPU SKUAzure Stack Edge Pro - GPUYes for Pro 2 SKUAzure Stack Edge Pro 2Yes for Pro R SKUAzure Stack Edge Pro RYes for Mini R SKUAzure Stack Edge Mini R

This article provides steps to reset an Azure Stack Edge device. The reset operation generates a Secure Erase Certificate that verifies details about your device in an erase record. You can also manually generate a Secure Erase Certificate.

The Secure Erase Certificate includes software version details about the device and disk-by-disk details including data erasure type, data erasure method, and erasure verification method.

The following erase types are supported:

Data erasure type Description
CryptoErase Sanitizes the encryption key, leaving the data on disk unrecoverable.
BlockErase Deletes all user data from the disk.
CryptoAndBlockErase Performs a crypto erase followed by a block erase.

Reset the Azure Stack Edge device

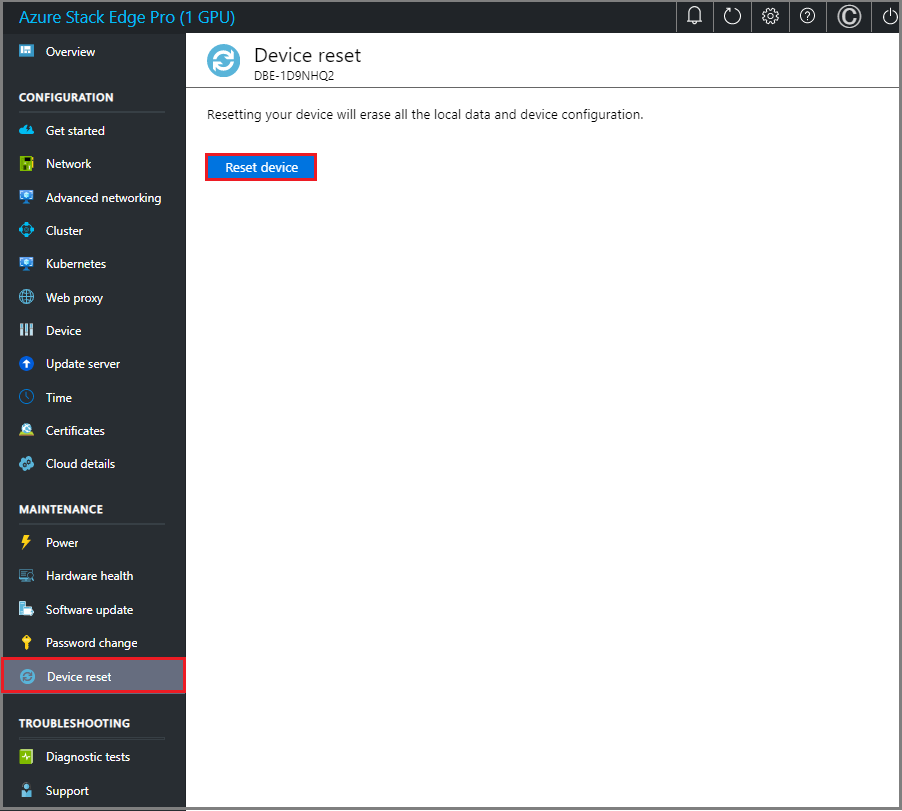

  1. In Azure portal for your Azure Stack Edge device, select Device reset in the left-hand navigation, then select Reset device.

    Screenshot that shows the Azure portal option to reset an Azure Stack Edge device.

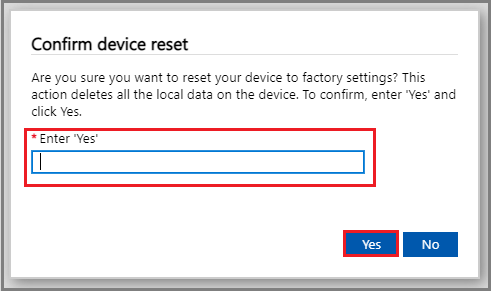

  2. On the Confirm device reset dialog, type Yes and then select Yes to confirm the reset operation.

    Screenshot that shows the Azure portal option to confirm device reset for an Azure Stack Edge device.

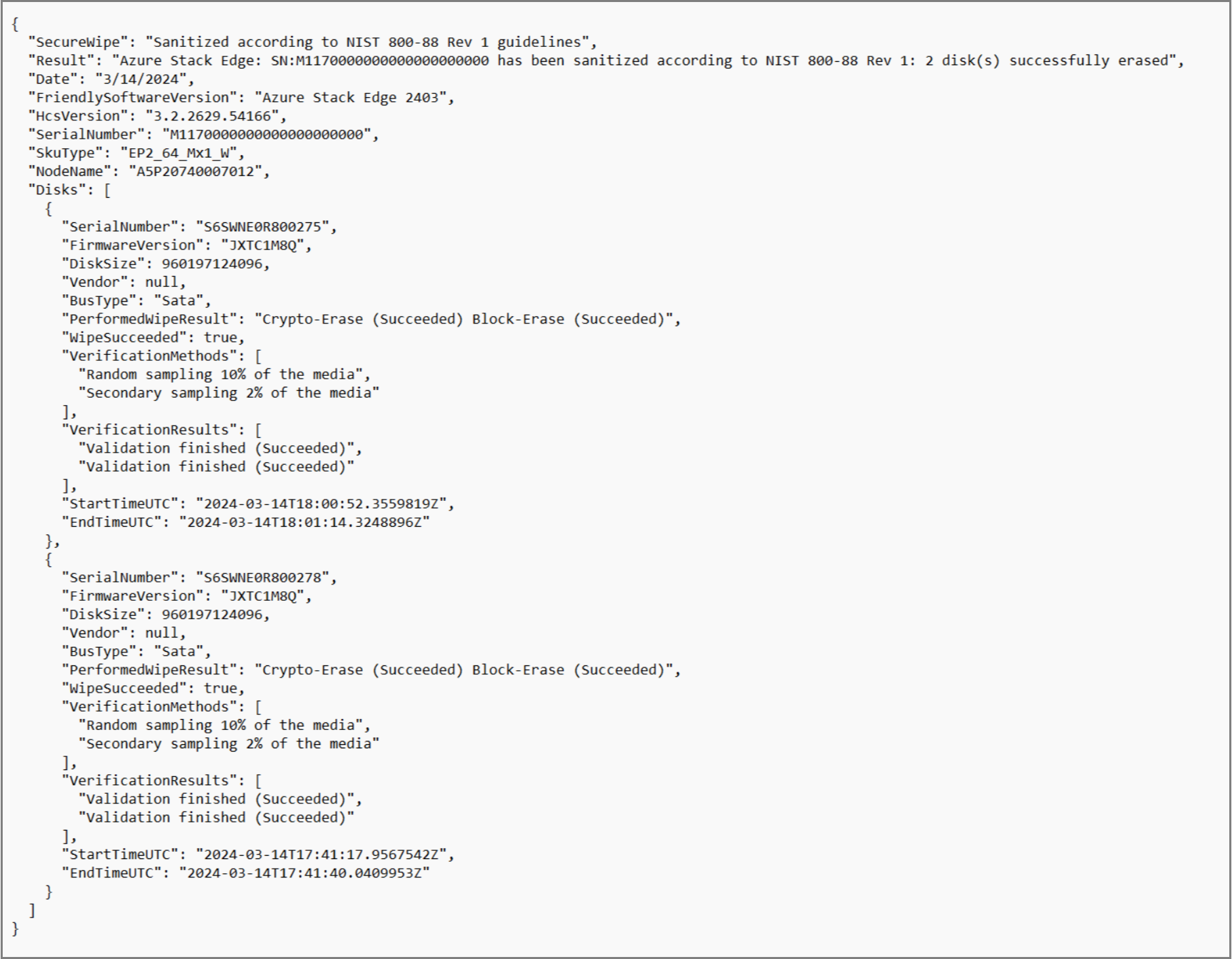

  3. Azure Stack Edge device reset operation generates a Secure Erase Certificate:

    Screenshot of the Secure Erase Certificate following reset of an Azure Stack Edge device.

Download the Secure Erase Certificate for your device

Use the following steps to download a Secure Erase Certificate for your device after device reset:

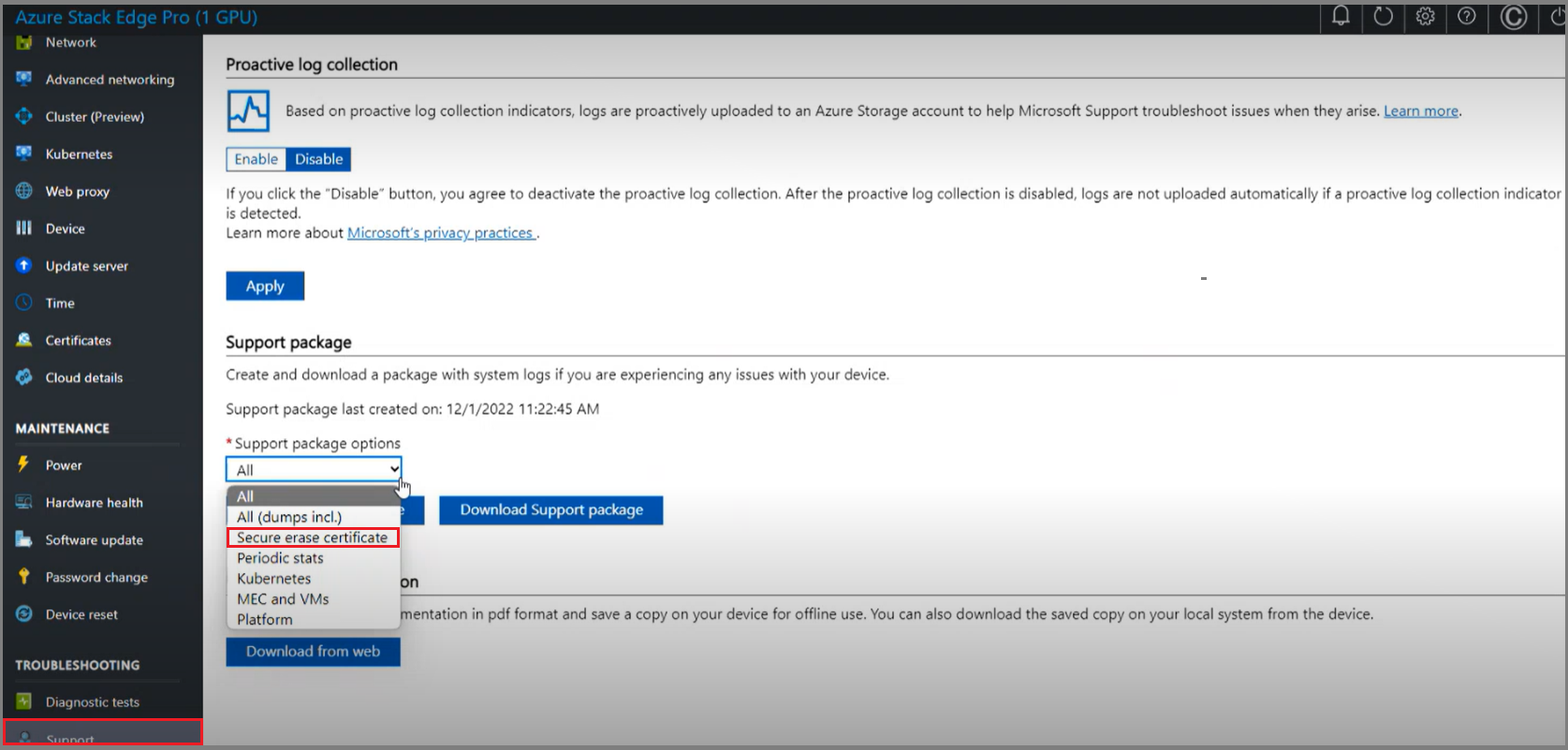

  1. On the Azure portal, select Support and then select Secure erase certificate from the Support package options dropdown.

  2. Select Secure erase certificate.

    Screenshot of the Support package options dropdown menu for generating a Secure Erase Certificate following reset of an Azure Stack Edge device.

  3. Select Create Support package > Download Support package to download the certificate.
