Databricks Connect

Article
03/15/2023
26 minutes to read

Note

Databricks recommends that you use either dbx or the Databricks extension for Visual Studio Code for local development instead of Databricks Connect.

Databricks Connect allows you to connect your favorite IDE (Eclipse, IntelliJ, PyCharm, RStudio, Visual Studio Code), notebook server (Jupyter Notebook, Zeppelin), and other custom applications to Azure Databricks clusters.

This article explains how Databricks Connect works, walks you through the steps to get started with Databricks Connect, explains how to troubleshoot issues that may arise when using Databricks Connect, and differences between running using Databricks Connect versus running in an Azure Databricks notebook.

Overview

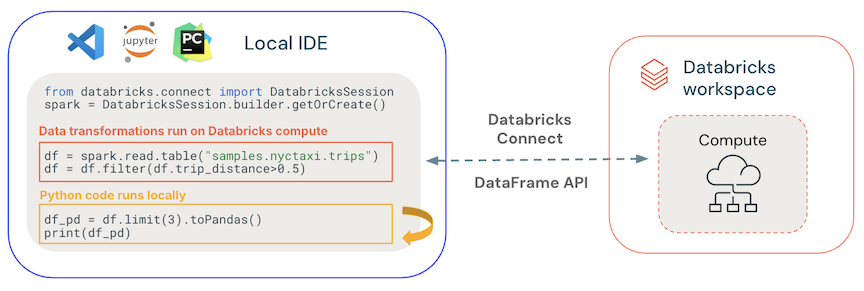

Databricks Connect is a client library for Databricks Runtime. It allows you to write jobs using Spark APIs and run them remotely on an Azure Databricks cluster instead of in the local Spark session.

For example, when you run the DataFrame command spark.read.format("parquet").load(...).groupBy(...).agg(...).show() using Databricks Connect, the parsing and planning of the job runs on your local machine. Then, the logical representation of the job is sent to the Spark server running in Azure Databricks for execution in the cluster.

With Databricks Connect, you can:

Run large-scale Spark jobs from any Python, Java, Scala, or R application. Anywhere you can import pyspark, import org.apache.spark, or require(SparkR), you can now run Spark jobs directly from your application, without needing to install any IDE plugins or use Spark submission scripts.
Step through and debug code in your IDE even when working with a remote cluster.
Iterate quickly when developing libraries. You do not need to restart the cluster after changing Python or Java library dependencies in Databricks Connect, because each client session is isolated from each other in the cluster.
Shut down idle clusters without losing work. Because the client application is decoupled from the cluster, it is unaffected by cluster restarts or upgrades, which would normally cause you to lose all the variables, RDDs, and DataFrame objects defined in a notebook.

Note

For Python development with SQL queries, Databricks recommends that you use the Databricks SQL Connector for Python instead of Databricks Connect. the Databricks SQL Connector for Python is easier to set up than Databricks Connect. Also, Databricks Connect parses and plans jobs runs on your local machine, while jobs run on remote compute resources. This can make it especially difficult to debug runtime errors. The Databricks SQL Connector for Python submits SQL queries directly to remote compute resources and fetches results.

Requirements

Only the following Databricks Runtime versions are supported:
- Databricks Runtime 11.3 LTS ML, Databricks Runtime 11.3 LTS
- Databricks Runtime 10.4 LTS ML, Databricks Runtime 10.4 LTS
- Databricks Runtime 9.1 LTS ML, Databricks Runtime 9.1 LTS
- Databricks Runtime 7.3 LTS ML, Databricks Runtime 7.3 LTS
The minor version of your client Python installation must be the same as the minor Python version of your Azure Databricks cluster. The table shows the Python version installed with each Databricks Runtime.

Databricks Runtime version Python version

11.3 LTS ML, 11.3 LTS 3.9

10.4 LTS ML, 10.4 LTS 3.8

9.1 LTS ML, 9.1 LTS 3.8

7.3 LTS ML, 7.3 LTS 3.7

For example, if you’re using Conda on your local development environment and your cluster is running Python 3.7, you must create an environment with that version, for example:
```
conda create --name dbconnect python=3.7
conda
```
The Databricks Connect major and minor package version must always match your Databricks Runtime version. Databricks recommends that you always use the most recent package of Databricks Connect that matches your Databricks Runtime version. For example, when using a Databricks Runtime 7.3 LTS cluster, use the databricks-connect==7.3.* package.

Note

See the Databricks Connect release notes for a list of available Databricks Connect releases and maintenance updates.
Java Runtime Environment (JRE) 8. The client has been tested with the OpenJDK 8 JRE. The client does not support Java 11.

Databricks Runtime version	Python version
11.3 LTS ML, 11.3 LTS	3.9
10.4 LTS ML, 10.4 LTS	3.8
9.1 LTS ML, 9.1 LTS	3.8
7.3 LTS ML, 7.3 LTS	3.7

Note

On Windows, if you see an error that Databricks Connect cannot find winutils.exe, see Cannot find winutils.exe on Windows.

Set up the client

Note

Before you begin to set up the Databricks Connect client, you must meet the requirements for Databricks Connect.

Step 1: Install the client

Uninstall PySpark. This is required because the databricks-connect package conflicts with PySpark. For details, see Conflicting PySpark installations.
```
pip uninstall pyspark
```
Install the Databricks Connect client.
```
pip install -U "databricks-connect==7.3.*"  # or X.Y.* to match your cluster version.
```
Note

Always specify databricks-connect==X.Y.* instead of databricks-connect=X.Y, to make sure that the newest package is installed.

Step 2: Configure connection properties

Collect the following configuration properties:
- Azure Databricks workspace URL.
- Azure Databricks personal access token or an Azure Active Directory token.
  - For Azure Data Lake Storage (ADLS) credential passthrough, you must use an Azure Active Directory token. Azure Active Directory credential passthrough is supported only on Standard clusters running Databricks Runtime 7.3 LTS and above, and is not compatible with service principal authentication.
  - For more information about authentication with Azure Active Directory tokens, see Authentication using Azure Active Directory tokens.
- The ID of the cluster you created. You can obtain the cluster ID from the URL. Here the cluster ID is 1108-201635-xxxxxxxx.
- The unique organization ID for your workspace. See Get identifiers for workspace assets.
- The port that Databricks Connect connects to. The default port is 15001. If your cluster is configured to use a different port, such as 8787 which was given in previous instructions for Azure Databricks, use the configured port number.

Configure the connection. You can use the CLI, SQL configs, or environment variables. The precedence of configuration methods from highest to lowest is: SQL config keys, CLI, and environment variables.

CLI

Run databricks-connect.

databricks-connect configure

The license displays:

Copyright (2018) Databricks, Inc.

This library (the "Software") may not be used except in connection with the
Licensee's use of the Databricks Platform Services pursuant to an Agreement
  ...

Accept the license and supply configuration values. For Databricks Host and Databricks Token, enter the workspace URL and the personal access token you noted in Step 1.

Do you accept the above agreement? [y/N] y
Set new config values (leave input empty to accept default):
Databricks Host [no current value, must start with https://]: <databricks-url>
Databricks Token [no current value]: <databricks-token>
Cluster ID (e.g., 0921-001415-jelly628) [no current value]: <cluster-id>
Org ID (Azure-only, see ?o=orgId in URL) [0]: <org-id>
Port [15001]: <port>

If you get a message that the Azure Active Directory token is too long, you can leave the Databricks Token field empty and manually enter the token in ~/.databricks-connect.

SQL configs or environment variables. The following table shows the SQL config keys and the environment variables that correspond to the configuration properties you noted in Step 1. To set a SQL config key, use sql("set config=value"). For example: sql("set spark.databricks.service.clusterId=0304-201045-abcdefgh").

Parameter	SQL config key	Environment variable name
Databricks Host	spark.databricks.service.address	DATABRICKS_ADDRESS
Databricks Token	spark.databricks.service.token	DATABRICKS_API_TOKEN
Cluster ID	spark.databricks.service.clusterId	DATABRICKS_CLUSTER_ID
Org ID	spark.databricks.service.orgId	DATABRICKS_ORG_ID
Port	spark.databricks.service.port	DATABRICKS_PORT

Test connectivity to Azure Databricks.

databricks-connect test

If the cluster you configured is not running, the test starts the cluster which will remain running until its configured autotermination time. The output should be something like:

* PySpark is installed at /.../3.5.6/lib/python3.5/site-packages/pyspark
* Checking java version
java version "1.8.0_152"
Java(TM) SE Runtime Environment (build 1.8.0_152-b16)
Java HotSpot(TM) 64-Bit Server VM (build 25.152-b16, mixed mode)
* Testing scala command
18/12/10 16:38:44 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Using Spark's default log4j profile: org/apache/spark/log4j-defaults.properties
Setting default log level to "WARN".
To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel).
18/12/10 16:38:50 WARN MetricsSystem: Using default name SparkStatusTracker for source because neither spark.metrics.namespace nor spark.app.id is set.
18/12/10 16:39:53 WARN SparkServiceRPCClient: Now tracking server state for 5abb7c7e-df8e-4290-947c-c9a38601024e, invalidating prev state
18/12/10 16:39:59 WARN SparkServiceRPCClient: Syncing 129 files (176036 bytes) took 3003 ms
Welcome to
      ____              __
     / __/__  ___ _____/ /__
    _\ \/ _ \/ _ `/ __/  '_/
   /___/ .__/\_,_/_/ /_/\_\   version 2.4.0-SNAPSHOT
      /_/

Using Scala version 2.11.12 (Java HotSpot(TM) 64-Bit Server VM, Java 1.8.0_152)
Type in expressions to have them evaluated.
Type :help for more information.

scala> spark.range(100).reduce(_ + _)
Spark context Web UI available at https://10.8.5.214:4040
Spark context available as 'sc' (master = local[*], app id = local-1544488730553).
Spark session available as 'spark'.
View job details at <databricks-url>/?o=0#/setting/clusters/<cluster-id>/sparkUi
View job details at <databricks-url>?o=0#/setting/clusters/<cluster-id>/sparkUi
res0: Long = 4950

scala> :quit

* Testing python command
18/12/10 16:40:16 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Using Spark's default log4j profile: org/apache/spark/log4j-defaults.properties
Setting default log level to "WARN".
To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel).
18/12/10 16:40:17 WARN MetricsSystem: Using default name SparkStatusTracker for source because neither spark.metrics.namespace nor spark.app.id is set.
18/12/10 16:40:28 WARN SparkServiceRPCClient: Now tracking server state for 5abb7c7e-df8e-4290-947c-c9a38601024e, invalidating prev state
View job details at <databricks-url>/?o=0#/setting/clusters/<cluster-id>/sparkUi

Set up your IDE or notebook server

The section describes how to configure your preferred IDE or notebook server to use the Databricks Connect client.

Jupyter notebook

Note

Databricks recommends that you use either dbx or the Databricks extension for Visual Studio Code for local development instead of Databricks Connect.

Before you begin to use Databricks Connect, you must meet the requirements and set up the client for Databricks Connect.

The Databricks Connect configuration script automatically adds the package to your project configuration. To get started in a Python kernel, run:

from pyspark.sql import SparkSession
spark = SparkSession.builder.getOrCreate()

To enable the %sql shorthand for running and visualizing SQL queries, use the following snippet:

from IPython.core.magic import line_magic, line_cell_magic, Magics, magics_class

@magics_class
class DatabricksConnectMagics(Magics):

   @line_cell_magic
   def sql(self, line, cell=None):
       if cell and line:
           raise ValueError("Line must be empty for cell magic", line)
       try:
           from autovizwidget.widget.utils import display_dataframe
       except ImportError:
           print("Please run `pip install autovizwidget` to enable the visualization widget.")
           display_dataframe = lambda x: x
       return display_dataframe(self.get_spark().sql(cell or line).toPandas())

   def get_spark(self):
       user_ns = get_ipython().user_ns
       if "spark" in user_ns:
           return user_ns["spark"]
       else:
           from pyspark.sql import SparkSession
           user_ns["spark"] = SparkSession.builder.getOrCreate()
           return user_ns["spark"]

ip = get_ipython()
ip.register_magics(DatabricksConnectMagics)

PyCharm

Note

Databricks recommends that you use either dbx or the Databricks extension for Visual Studio Code for local development instead of Databricks Connect.

Before you begin to use Databricks Connect, you must meet the requirements and set up the client for Databricks Connect.

The Databricks Connect configuration script automatically adds the package to your project configuration.

Python 3 clusters

When you create a PyCharm project, select Existing Interpreter. From the drop-down menu, select the Conda environment you created (see Requirements).
Go to Run > Edit Configurations.
Add PYSPARK_PYTHON=python3 as an environment variable.

SparkR and RStudio Desktop

Note

Databricks recommends that you use either dbx or the Databricks extension for Visual Studio Code for local development instead of Databricks Connect.

Before you begin to use Databricks Connect, you must meet the requirements and set up the client for Databricks Connect.

Download and unpack the open source Spark onto your local machine. Choose the same version as in your Azure Databricks cluster (Hadoop 2.7).
Run databricks-connect get-jar-dir. This command returns a path like /usr/local/lib/python3.5/dist-packages/pyspark/jars. Copy the file path of one directory above the JAR directory file path, for example, /usr/local/lib/python3.5/dist-packages/pyspark, which is the SPARK_HOME directory.

Configure the Spark lib path and Spark home by adding them to the top of your R script. Set <spark-lib-path> to the directory where you unpacked the open source Spark package in step 1. Set <spark-home-path> to the Databricks Connect directory from step 2.

# Point to the OSS package path, e.g., /path/to/.../spark-2.4.0-bin-hadoop2.7
library(SparkR, lib.loc = .libPaths(c(file.path('<spark-lib-path>', 'R', 'lib'), .libPaths())))

# Point to the Databricks Connect PySpark installation, e.g., /path/to/.../pyspark
Sys.setenv(SPARK_HOME = "<spark-home-path>")

Initiate a Spark session and start running SparkR commands.

sparkR.session()

df <- as.DataFrame(faithful)
head(df)

df1 <- dapply(df, function(x) { x }, schema(df))
collect(df1)

sparklyr and RStudio Desktop

Important

This feature is in Public Preview.

Note

Databricks recommends that you use either dbx or the Databricks extension for Visual Studio Code for local development instead of Databricks Connect.

Before you begin to use Databricks Connect, you must meet the requirements and set up the client for Databricks Connect.

You can copy sparklyr-dependent code that you’ve developed locally using Databricks Connect and run it in an Azure Databricks notebook or hosted RStudio Server in your Azure Databricks workspace with minimal or no code changes.

In this section:

Requirements
Install, configure, and use sparklyr
Resources
sparklyr and RStudio Desktop limitations

Requirements

sparklyr 1.2 or above.
Databricks Runtime 7.3 or above with matching Databricks Connect.

Install, configure, and use sparklyr

In RStudio Desktop, install sparklyr 1.2 or above from CRAN or install the latest master version from GitHub.

# Install from CRAN
install.packages("sparklyr")

# Or install the latest master version from GitHub
install.packages("devtools")
devtools::install_github("sparklyr/sparklyr")

Activate the Python environment with Databricks Connect installed and run the following command in the terminal to get the <spark-home-path>:
```
databricks-connect get-spark-home
```

Initiate a Spark session and start running sparklyr commands.

library(sparklyr)
sc <- spark_connect(method = "databricks", spark_home = "<spark-home-path>")

iris_tbl <- copy_to(sc, iris, overwrite = TRUE)

library(dplyr)
src_tbls(sc)

iris_tbl %>% count

Close the connection.
```
spark_disconnect(sc)
```

Resources

For more information, see the sparklyr GitHub README.

For code examples, see sparklyr.

sparklyr and RStudio Desktop limitations

The following features are unsupported:

sparklyr streaming APIs
sparklyr ML APIs
broom APIs
csv_file serialization mode
spark submit

IntelliJ (Scala or Java)

Note

Databricks recommends that you use either dbx or the Databricks extension for Visual Studio Code for local development instead of Databricks Connect.

Before you begin to use Databricks Connect, you must meet the requirements and set up the client for Databricks Connect.

Run databricks-connect get-jar-dir.
Point the dependencies to the directory returned from the command. Go to File > Project Structure > Modules > Dependencies > ‘+’ sign > JARs or Directories.

To avoid conflicts, we strongly recommend removing any other Spark installations from your classpath. If this is not possible, make sure that the JARs you add are at the front of the classpath. In particular, they must be ahead of any other installed version of Spark (otherwise you will either use one of those other Spark versions and run locally or throw a ClassDefNotFoundError).
Check the setting of the breakout option in IntelliJ. The default is All and will cause network timeouts if you set breakpoints for debugging. Set it to Thread to avoid stopping the background network threads.

Eclipse

Note

Databricks recommends that you use either dbx or the Databricks extension for Visual Studio Code for local development instead of Databricks Connect.

Before you begin to use Databricks Connect, you must meet the requirements and set up the client for Databricks Connect.

Run databricks-connect get-jar-dir.
Point the external JARs configuration to the directory returned from the command. Go to Project menu > Properties > Java Build Path > Libraries > Add External Jars.

To avoid conflicts, we strongly recommend removing any other Spark installations from your classpath. If this is not possible, make sure that the JARs you add are at the front of the classpath. In particular, they must be ahead of any other installed version of Spark (otherwise you will either use one of those other Spark versions and run locally or throw a ClassDefNotFoundError).

Visual Studio Code

Note

Databricks recommends that you use either dbx or the Databricks extension for Visual Studio Code for local development instead of Databricks Connect.

Before you begin to use Databricks Connect, you must meet the requirements and set up the client for Databricks Connect.

Verify that the Python extension is installed.
Open the Command Palette (Command+Shift+P on macOS and Ctrl+Shift+P on Windows/Linux).
Select a Python interpreter. Go to Code > Preferences > Settings, and choose python settings.
Run databricks-connect get-jar-dir.
Add the directory returned from the command to the User Settings JSON under python.venvPath. This should be added to the Python Configuration.
Disable the linter. Click the … on the right side and edit json settings. The modified settings are as follows:
If running with a virtual environment, which is the recommended way to develop for Python in VS Code, in the Command Palette type select python interpreter and point to your environment that matches your cluster Python version.

For example, if your cluster is Python 3.5, your local environment should be Python 3.5.

SBT

Note

Databricks recommends that you use either dbx or the Databricks extension for Visual Studio Code for local development instead of Databricks Connect.

Before you begin to use Databricks Connect, you must meet the requirements and set up the client for Databricks Connect.

To use SBT, you must configure your build.sbt file to link against the Databricks Connect JARs instead of the usual Spark library dependency. You do this with the unmanagedBase directive in the following example build file, which assumes a Scala app that has a com.example.Test main object:

`build.sbt`

name := "hello-world"
version := "1.0"
scalaVersion := "2.11.6"
// this should be set to the path returned by ``databricks-connect get-jar-dir``
unmanagedBase := new java.io.File("/usr/local/lib/python2.7/dist-packages/pyspark/jars")
mainClass := Some("com.example.Test")

Run examples from your IDE

Java

import java.util.ArrayList;
import java.util.List;
import java.sql.Date;
import org.apache.spark.sql.SparkSession;
import org.apache.spark.sql.types.*;
import org.apache.spark.sql.Row;
import org.apache.spark.sql.RowFactory;
import org.apache.spark.sql.Dataset;

public class App {
    public static void main(String[] args) throws Exception {
        SparkSession spark = SparkSession
            .builder()
            .appName("Temps Demo")
            .config("spark.master", "local")
            .getOrCreate();

        // Create a Spark DataFrame consisting of high and low temperatures
        // by airport code and date.
        StructType schema = new StructType(new StructField[] {
            new StructField("AirportCode", DataTypes.StringType, false, Metadata.empty()),
            new StructField("Date", DataTypes.DateType, false, Metadata.empty()),
            new StructField("TempHighF", DataTypes.IntegerType, false, Metadata.empty()),
            new StructField("TempLowF", DataTypes.IntegerType, false, Metadata.empty()),
        });

        List<Row> dataList = new ArrayList<Row>();
        dataList.add(RowFactory.create("BLI", Date.valueOf("2021-04-03"), 52, 43));
        dataList.add(RowFactory.create("BLI", Date.valueOf("2021-04-02"), 50, 38));
        dataList.add(RowFactory.create("BLI", Date.valueOf("2021-04-01"), 52, 41));
        dataList.add(RowFactory.create("PDX", Date.valueOf("2021-04-03"), 64, 45));
        dataList.add(RowFactory.create("PDX", Date.valueOf("2021-04-02"), 61, 41));
        dataList.add(RowFactory.create("PDX", Date.valueOf("2021-04-01"), 66, 39));
        dataList.add(RowFactory.create("SEA", Date.valueOf("2021-04-03"), 57, 43));
        dataList.add(RowFactory.create("SEA", Date.valueOf("2021-04-02"), 54, 39));
        dataList.add(RowFactory.create("SEA", Date.valueOf("2021-04-01"), 56, 41));

        Dataset<Row> temps = spark.createDataFrame(dataList, schema);

        // Create a table on the Databricks cluster and then fill
        // the table with the DataFrame's contents.
        // If the table already exists from a previous run,
        // delete it first.
        spark.sql("USE default");
        spark.sql("DROP TABLE IF EXISTS demo_temps_table");
        temps.write().saveAsTable("demo_temps_table");

        // Query the table on the Databricks cluster, returning rows
        // where the airport code is not BLI and the date is later
        // than 2021-04-01. Group the results and order by high
        // temperature in descending order.
        Dataset<Row> df_temps = spark.sql("SELECT * FROM demo_temps_table " +
            "WHERE AirportCode != 'BLI' AND Date > '2021-04-01' " +
            "GROUP BY AirportCode, Date, TempHighF, TempLowF " +
            "ORDER BY TempHighF DESC");
        df_temps.show();

        // Results:
        //
        // +-----------+----------+---------+--------+
        // |AirportCode|      Date|TempHighF|TempLowF|
        // +-----------+----------+---------+--------+
        // |        PDX|2021-04-03|       64|      45|
        // |        PDX|2021-04-02|       61|      41|
        // |        SEA|2021-04-03|       57|      43|
        // |        SEA|2021-04-02|       54|      39|
        // +-----------+----------+---------+--------+

        // Clean up by deleting the table from the Databricks cluster.
        spark.sql("DROP TABLE demo_temps_table");
    }
}

Python

from pyspark.sql import SparkSession
from pyspark.sql.types import *
from datetime import date

spark = SparkSession.builder.appName('temps-demo').getOrCreate()

# Create a Spark DataFrame consisting of high and low temperatures
# by airport code and date.
schema = StructType([
    StructField('AirportCode', StringType(), False),
    StructField('Date', DateType(), False),
    StructField('TempHighF', IntegerType(), False),
    StructField('TempLowF', IntegerType(), False)
])

data = [
    [ 'BLI', date(2021, 4, 3), 52, 43],
    [ 'BLI', date(2021, 4, 2), 50, 38],
    [ 'BLI', date(2021, 4, 1), 52, 41],
    [ 'PDX', date(2021, 4, 3), 64, 45],
    [ 'PDX', date(2021, 4, 2), 61, 41],
    [ 'PDX', date(2021, 4, 1), 66, 39],
    [ 'SEA', date(2021, 4, 3), 57, 43],
    [ 'SEA', date(2021, 4, 2), 54, 39],
    [ 'SEA', date(2021, 4, 1), 56, 41]
]

temps = spark.createDataFrame(data, schema)

# Create a table on the Databricks cluster and then fill
# the table with the DataFrame's contents.
# If the table already exists from a previous run,
# delete it first.
spark.sql('USE default')
spark.sql('DROP TABLE IF EXISTS demo_temps_table')
temps.write.saveAsTable('demo_temps_table')

# Query the table on the Databricks cluster, returning rows
# where the airport code is not BLI and the date is later
# than 2021-04-01. Group the results and order by high
# temperature in descending order.
df_temps = spark.sql("SELECT * FROM demo_temps_table " \
    "WHERE AirportCode != 'BLI' AND Date > '2021-04-01' " \
    "GROUP BY AirportCode, Date, TempHighF, TempLowF " \
    "ORDER BY TempHighF DESC")
df_temps.show()

# Results:
#
# +-----------+----------+---------+--------+
# |AirportCode|      Date|TempHighF|TempLowF|
# +-----------+----------+---------+--------+
# |        PDX|2021-04-03|       64|      45|
# |        PDX|2021-04-02|       61|      41|
# |        SEA|2021-04-03|       57|      43|
# |        SEA|2021-04-02|       54|      39|
# +-----------+----------+---------+--------+

# Clean up by deleting the table from the Databricks cluster.
spark.sql('DROP TABLE demo_temps_table')

Scala

import org.apache.spark.sql.SparkSession
import org.apache.spark.sql.types._
import org.apache.spark.sql.Row
import java.sql.Date

object Demo {
  def main(args: Array[String]) {
      val spark = SparkSession.builder.master("local").getOrCreate()

      // Create a Spark DataFrame consisting of high and low temperatures
      // by airport code and date.
      val schema = StructType(Array(
        StructField("AirportCode", StringType, false),
        StructField("Date", DateType, false),
        StructField("TempHighF", IntegerType, false),
        StructField("TempLowF", IntegerType, false)
      ))

      val data = List(
        Row("BLI", Date.valueOf("2021-04-03"), 52, 43),
        Row("BLI", Date.valueOf("2021-04-02"), 50, 38),
        Row("BLI", Date.valueOf("2021-04-01"), 52, 41),
        Row("PDX", Date.valueOf("2021-04-03"), 64, 45),
        Row("PDX", Date.valueOf("2021-04-02"), 61, 41),
        Row("PDX", Date.valueOf("2021-04-01"), 66, 39),
        Row("SEA", Date.valueOf("2021-04-03"), 57, 43),
        Row("SEA", Date.valueOf("2021-04-02"), 54, 39),
        Row("SEA", Date.valueOf("2021-04-01"), 56, 41)
      )

      val rdd = spark.sparkContext.makeRDD(data)
      val temps = spark.createDataFrame(rdd, schema)

      // Create a table on the Databricks cluster and then fill
      // the table with the DataFrame's contents.
      // If the table already exists from a previous run,
      // delete it first.
      spark.sql("USE default")
      spark.sql("DROP TABLE IF EXISTS demo_temps_table")
      temps.write.saveAsTable("demo_temps_table")

      // Query the table on the Databricks cluster, returning rows
      // where the airport code is not BLI and the date is later
      // than 2021-04-01. Group the results and order by high
      // temperature in descending order.
      val df_temps = spark.sql("SELECT * FROM demo_temps_table " +
        "WHERE AirportCode != 'BLI' AND Date > '2021-04-01' " +
        "GROUP BY AirportCode, Date, TempHighF, TempLowF " +
        "ORDER BY TempHighF DESC")
      df_temps.show()

      // Results:
      //
      // +-----------+----------+---------+--------+
      // |AirportCode|      Date|TempHighF|TempLowF|
      // +-----------+----------+---------+--------+
      // |        PDX|2021-04-03|       64|      45|
      // |        PDX|2021-04-02|       61|      41|
      // |        SEA|2021-04-03|       57|      43|
      // |        SEA|2021-04-02|       54|      39|
      // +-----------+----------+---------+--------+

      // Clean up by deleting the table from the Databricks cluster.
      spark.sql("DROP TABLE demo_temps_table")
  }
}

Work with dependencies

Typically your main class or Python file will have other dependency JARs and files. You can add such dependency JARs and files by calling sparkContext.addJar("path-to-the-jar") or sparkContext.addPyFile("path-to-the-file"). You can also add Egg files and zip files with the addPyFile() interface. Every time you run the code in your IDE, the dependency JARs and files are installed on the cluster.

Python

from lib import Foo
from pyspark.sql import SparkSession

spark = SparkSession.builder.getOrCreate()

sc = spark.sparkContext
#sc.setLogLevel("INFO")

print("Testing simple count")
print(spark.range(100).count())

print("Testing addPyFile isolation")
sc.addPyFile("lib.py")
print(sc.parallelize(range(10)).map(lambda i: Foo(2)).collect())

class Foo(object):
  def __init__(self, x):
    self.x = x

Python + Java UDFs

from pyspark.sql import SparkSession
from pyspark.sql.column import _to_java_column, _to_seq, Column

## In this example, udf.jar contains compiled Java / Scala UDFs:
#package com.example
#
#import org.apache.spark.sql._
#import org.apache.spark.sql.expressions._
#import org.apache.spark.sql.functions.udf
#
#object Test {
#  val plusOne: UserDefinedFunction = udf((i: Long) => i + 1)
#}

spark = SparkSession.builder \
  .config("spark.jars", "/path/to/udf.jar") \
  .getOrCreate()
sc = spark.sparkContext

def plus_one_udf(col):
  f = sc._jvm.com.example.Test.plusOne()
  return Column(f.apply(_to_seq(sc, [col], _to_java_column)))

sc._jsc.addJar("/path/to/udf.jar")
spark.range(100).withColumn("plusOne", plus_one_udf("id")).show()

Scala

package com.example

import org.apache.spark.sql.SparkSession

case class Foo(x: String)

object Test {
  def main(args: Array[String]): Unit = {
    val spark = SparkSession.builder()
      ...
      .getOrCreate();
    spark.sparkContext.setLogLevel("INFO")

    println("Running simple show query...")
    spark.read.format("parquet").load("/tmp/x").show()

    println("Running simple UDF query...")
    spark.sparkContext.addJar("./target/scala-2.11/hello-world_2.11-1.0.jar")
    spark.udf.register("f", (x: Int) => x + 1)
    spark.range(10).selectExpr("f(id)").show()

    println("Running custom objects query...")
    val objs = spark.sparkContext.parallelize(Seq(Foo("bye"), Foo("hi"))).collect()
    println(objs.toSeq)
  }
}

Access DBUtils

You can use dbutils.fs and dbutils.secrets utilities of the Databricks Utilities module. Supported commands are dbutils.fs.cp, dbutils.fs.head, dbutils.fs.ls, dbutils.fs.mkdirs, dbutils.fs.mv, dbutils.fs.put, dbutils.fs.rm, dbutils.secrets.get, dbutils.secrets.getBytes, dbutils.secrets.list, dbutils.secrets.listScopes. See File system utility (dbutils.fs) or run dbutils.fs.help() and Secrets utility (dbutils.secrets) or run dbutils.secrets.help().

Python

from pyspark.sql import SparkSession
from pyspark.dbutils import DBUtils

spark = SparkSession.builder.getOrCreate()

dbutils = DBUtils(spark)
print(dbutils.fs.ls("dbfs:/"))
print(dbutils.secrets.listScopes())

When using Databricks Runtime 7.3 LTS or above, to access the DBUtils module in a way that works both locally and in Azure Databricks clusters, use the following get_dbutils():

def get_dbutils(spark):
  from pyspark.dbutils import DBUtils
  return DBUtils(spark)

Otherwise, use the following get_dbutils():

def get_dbutils(spark):
  if spark.conf.get("spark.databricks.service.client.enabled") == "true":
    from pyspark.dbutils import DBUtils
    return DBUtils(spark)
  else:
    import IPython
    return IPython.get_ipython().user_ns["dbutils"]

Scala

val dbutils = com.databricks.service.DBUtils
println(dbutils.fs.ls("dbfs:/"))
println(dbutils.secrets.listScopes())

Copying files between local and remote filesystems

You can use dbutils.fs to copy files between your client and remote filesystems. Scheme file:/ refers to the local filesystem on the client.

from pyspark.dbutils import DBUtils
dbutils = DBUtils(spark)

dbutils.fs.cp('file:/home/user/data.csv', 'dbfs:/uploads')
dbutils.fs.cp('dbfs:/output/results.csv', 'file:/home/user/downloads/')

The maximum file size that can be transferred that way is 250 MB.

Enable `dbutils.secrets.get`

Because of security restrictions, the ability to call dbutils.secrets.get is disabled by default. Contact Azure Databricks support to enable this feature for your workspace.

Access the Hadoop filesystem

You can also access DBFS directly using the standard Hadoop filesystem interface:

> import org.apache.hadoop.fs._

// get new DBFS connection
> val dbfs = FileSystem.get(spark.sparkContext.hadoopConfiguration)
dbfs: org.apache.hadoop.fs.FileSystem = com.databricks.backend.daemon.data.client.DBFS@2d036335

// list files
> dbfs.listStatus(new Path("dbfs:/"))
res1: Array[org.apache.hadoop.fs.FileStatus] = Array(FileStatus{path=dbfs:/$; isDirectory=true; ...})

// open file
> val stream = dbfs.open(new Path("dbfs:/path/to/your_file"))
stream: org.apache.hadoop.fs.FSDataInputStream = org.apache.hadoop.fs.FSDataInputStream@7aa4ef24

// get file contents as string
> import org.apache.commons.io._
> println(new String(IOUtils.toByteArray(stream)))

Set Hadoop configurations

On the client you can set Hadoop configurations using the spark.conf.set API, which applies to SQL and DataFrame operations. Hadoop configurations set on the sparkContext must be set in the cluster configuration or using a notebook. This is because configurations set on sparkContext are not tied to user sessions but apply to the entire cluster.

Troubleshooting

Run databricks-connect test to check for connectivity issues. This section describes some common issues you may encounter and how to resolve them.

Python version mismatch

Check the Python version you are using locally has at least the same minor release as the version on the cluster (for example, 3.5.1 versus 3.5.2 is OK, 3.5 versus 3.6 is not).

If you have multiple Python versions installed locally, ensure that Databricks Connect is using the right one by setting the PYSPARK_PYTHON environment variable (for example, PYSPARK_PYTHON=python3).

Server not enabled

Ensure the cluster has the Spark server enabled with spark.databricks.service.server.enabled true. You should see the following lines in the driver log if it is:

18/10/25 21:39:18 INFO SparkConfUtils$: Set spark config:
spark.databricks.service.server.enabled -> true
...
18/10/25 21:39:21 INFO SparkContext: Loading Spark Service RPC Server
18/10/25 21:39:21 INFO SparkServiceRPCServer:
Starting Spark Service RPC Server
18/10/25 21:39:21 INFO Server: jetty-9.3.20.v20170531
18/10/25 21:39:21 INFO AbstractConnector: Started ServerConnector@6a6c7f42
{HTTP/1.1,[http/1.1]}{0.0.0.0:15001}
18/10/25 21:39:21 INFO Server: Started @5879ms

Conflicting PySpark installations

The databricks-connect package conflicts with PySpark. Having both installed will cause errors when initializing the Spark context in Python. This can manifest in several ways, including “stream corrupted” or “class not found” errors. If you have PySpark installed in your Python environment, ensure it is uninstalled before installing databricks-connect. After uninstalling PySpark, make sure to fully re-install the Databricks Connect package:

pip uninstall pyspark
pip uninstall databricks-connect
pip install -U "databricks-connect==9.1.*"  # or X.Y.* to match your cluster version.

Conflicting `SPARK_HOME`

If you have previously used Spark on your machine, your IDE may be configured to use one of those other versions of Spark rather than the Databricks Connect Spark. This can manifest in several ways, including “stream corrupted” or “class not found” errors. You can see which version of Spark is being used by checking the value of the SPARK_HOME environment variable:

Java

System.out.println(System.getenv("SPARK_HOME"));

Python

import os
print(os.environ['SPARK_HOME'])

Scala

println(sys.env.get("SPARK_HOME"))

Resolution

If SPARK_HOME is set to a version of Spark other than the one in the client, you should unset the SPARK_HOME variable and try again.

Check your IDE environment variable settings, your .bashrc, .zshrc, or .bash_profile file, and anywhere else environment variables might be set. You will most likely have to quit and restart your IDE to purge the old state, and you may even need to create a new project if the problem persists.

You should not need to set SPARK_HOME to a new value; unsetting it should be sufficient.

Conflicting or Missing `PATH` entry for binaries

It is possible your PATH is configured so that commands like spark-shell will be running some other previously installed binary instead of the one provided with Databricks Connect. This can cause databricks-connect test to fail. You should make sure either the Databricks Connect binaries take precedence, or remove the previously installed ones.

If you can’t run commands like spark-shell, it is also possible your PATH was not automatically set up by pip install and you’ll need to add the installation bin dir to your PATH manually. It’s possible to use Databricks Connect with IDEs even if this isn’t set up. However, the databricks-connect test command will not work.

Conflicting serialization settings on the cluster

If you see “stream corrupted” errors when running databricks-connect test, this may be due to incompatible cluster serialization configs. For example, setting the spark.io.compression.codec config can cause this issue. To resolve this issue, consider removing these configs from the cluster settings, or setting the configuration in the Databricks Connect client.

Cannot find `winutils.exe` on Windows

If you are using Databricks Connect on Windows and see:

ERROR Shell: Failed to locate the winutils binary in the hadoop binary path
java.io.IOException: Could not locate executable null\bin\winutils.exe in the Hadoop binaries.

Follow the instructions to configure the Hadoop path on Windows.

The filename, directory name, or volume label syntax is incorrect on Windows

If you are using Databricks Connect on Windows and see:

The filename, directory name, or volume label syntax is incorrect.

Either Java or Databricks Connect was installed into a directory with a space in your path. You can work around this by either installing into a directory path without spaces, or configuring your path using the short name form.

Authentication using Azure Active Directory tokens

When you use Databricks Connect, you can authenticate by using an Azure Active Directory token instead of a personal access token. Azure Active Directory tokens have a limited lifetime. When the Azure Active Directory token expires, Databricks Connect fails with an Invalid Token error.

In Databricks Connect 7.3.5 and above, you can provide the Azure Active Directory token in your running Databricks Connect application. Your application needs to obtain the new access token, and set it to the spark.databricks.service.token SQL config key.

Python

spark.conf.set("spark.databricks.service.token", new_aad_token)

Scala

spark.conf.set("spark.databricks.service.token", newAADToken)

After you update the token, the application can continue to use the same SparkSession and any objects and state that are created in the context of the session. To avoid intermittent errors, Databricks recommends that you provide a new token before the old token expires.

You can extend the lifetime of the Azure Active Directory token to persist during the execution of your application. To do that, attach a TokenLifetimePolicy with an appropriately long lifetime to the Azure Active Directory authorization application that you used to acquire the access token.

Note

Azure Active Directory passthrough uses two tokens: the Azure Active Directory access token that was previously described that you configure in Databricks Connect, and the ADLS passthrough token for the specific resource that Databricks generates while Databricks processes the request. You cannot extend the lifetime of ADLS passthrough tokens by using Azure Active Directory token lifetime policies. If you send a command to the cluster that takes longer than an hour, it will fail if the command accesses an ADLS resource after the one hour mark.

Limitations

Databricks Connect does not support the following Azure Databricks features and third-party platforms:

Unity Catalog.
Structured Streaming.
Running arbitrary code that is not a part of a Spark job on the remote cluster.
Native Scala, Python, and R APIs for Delta table operations (for example, DeltaTable.forPath) are not supported. However, the SQL API (spark.sql(...)) with Delta Lake operations and the Spark API (for example, spark.read.load) on Delta tables are both supported.
Copy into.
Using SQL functions, Python or Scala UDFs which are part of the server’s catalog. However, locally introduced Scala and Python UDFs work.
Apache Zeppelin 0.7.x and below.
Connecting to clusters with table access control.
Connecting to clusters with process isolation enabled (in other words, where spark.databricks.pyspark.enableProcessIsolation is set to true).
Delta CLONE SQL command.
Global temporary views.
Koalas.
CREATE TABLE table AS SELECT ... SQL commands do not always work. Instead, use spark.sql("SELECT ...").write.saveAsTable("table").
Azure Active Directory credential passthrough is supported only on standard clusters running Databricks Runtime 7.3 LTS and above, and is not compatible with service principal authentication.
The following Databricks Utilities:

Databricks Connect

Overview

Requirements

Set up the client

Step 1: Install the client

Step 2: Configure connection properties

Set up your IDE or notebook server

In this section:

Jupyter notebook

PyCharm

Python 3 clusters

SparkR and RStudio Desktop

sparklyr and RStudio Desktop

In this section:

Requirements

Install, configure, and use sparklyr

Resources

sparklyr and RStudio Desktop limitations

IntelliJ (Scala or Java)

Eclipse

Visual Studio Code

SBT

build.sbt

Run examples from your IDE

Java

Python

Scala

Work with dependencies

Python

Scala

Access DBUtils

Python

Scala

Copying files between local and remote filesystems

Enable dbutils.secrets.get

Access the Hadoop filesystem

Set Hadoop configurations

Troubleshooting

Python version mismatch

Server not enabled

Conflicting PySpark installations

Conflicting SPARK_HOME

Java

Python

Scala

Resolution

Conflicting or Missing PATH entry for binaries

Conflicting serialization settings on the cluster

Cannot find winutils.exe on Windows

The filename, directory name, or volume label syntax is incorrect on Windows

Authentication using Azure Active Directory tokens

Python

Scala

Limitations

Feedback

Additional resources

Additional resources

`build.sbt`

Enable `dbutils.secrets.get`

Conflicting `SPARK_HOME`

Conflicting or Missing `PATH` entry for binaries

Cannot find `winutils.exe` on Windows
