Create custom model serving endpoints

This article describes how to create model serving endpoints that serve custom models using Databricks Model Serving.

Model Serving provides the following options for serving endpoint creation:

• The Serving UI
• REST API
• MLflow Deployments SDK

For creating endpoints that serve generative AI foundation models, see Create foundation model serving endpoints.

Requirements

• Your workspace must be in a supported region.
• If you use custom libraries or libraries from a private mirror server with your model, see Use custom Python libraries with Model Serving before you create the model endpoint.
• For creating endpoints using the MLflow Deployments SDK, you must install the MLflow Deployment client. To install it, run:

import mlflow.deployments

client = mlflow.deployments.get_deploy_client("databricks")

Access control

To understand access control options for model serving endpoints for endpoint management, see Manage permissions on your model serving endpoint.

You can also add environment variables to store credentials for model serving. See Configure access to resources from model serving endpoints

Create an endpoint

Serving ui

You can create an endpoint for model serving with the Serving UI.

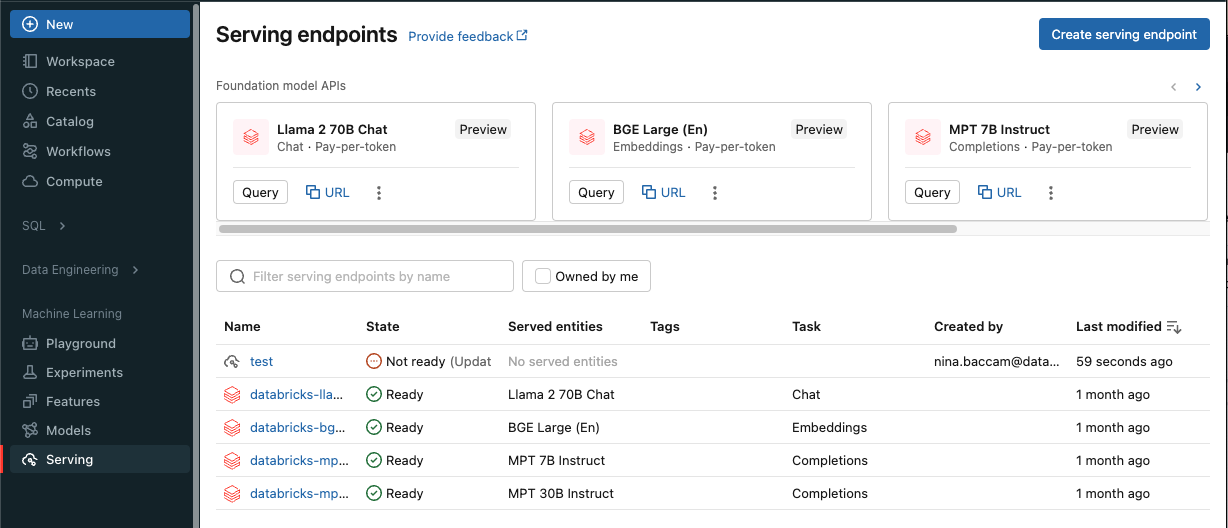

1. Click Serving in the sidebar to display the Serving UI.

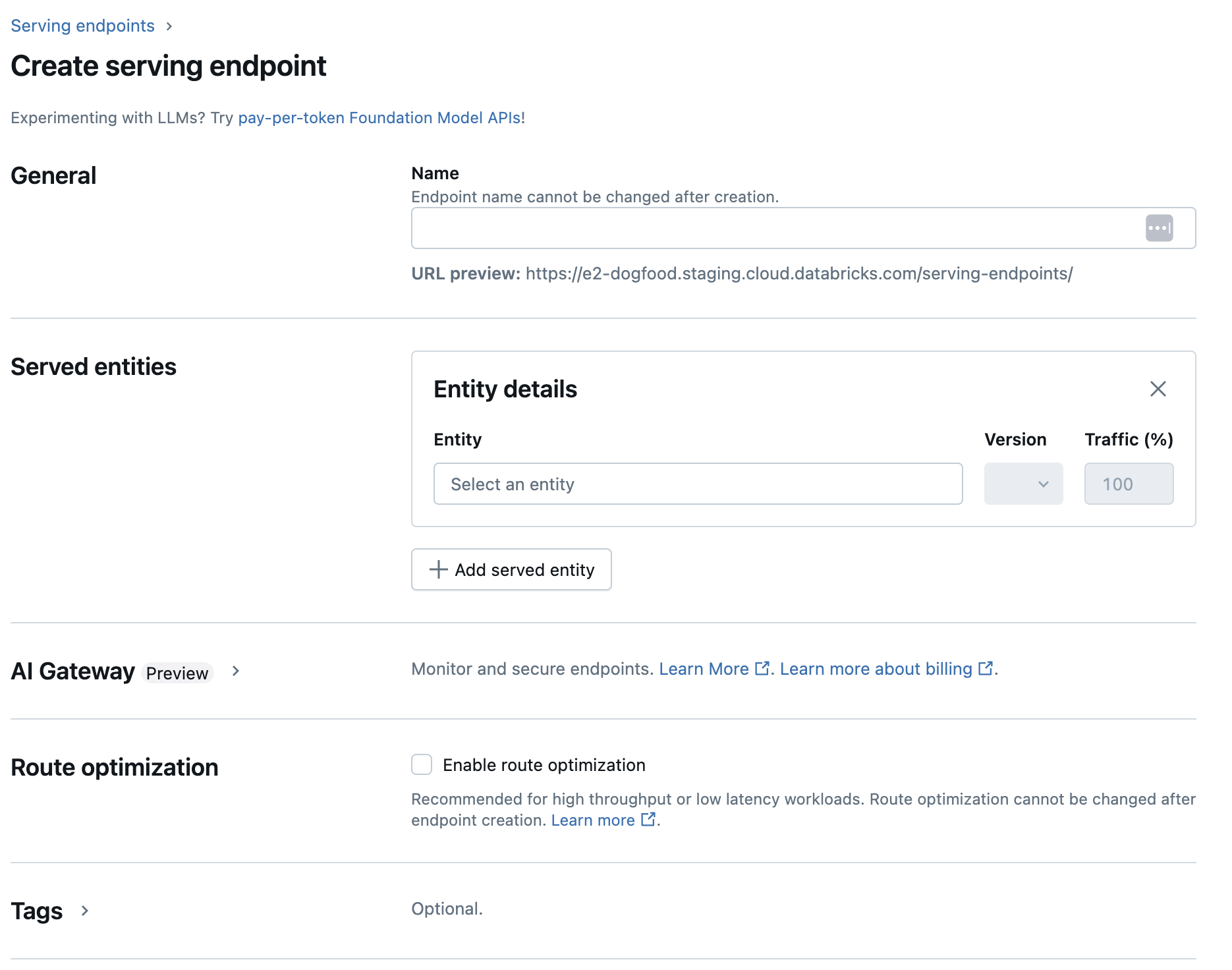

2. Click Create serving endpoint.



For models registered in the Workspace model registry or models in Unity Catalog:

1. In the Name field provide a name for your endpoint.

2. In the Served entities section

   1. Click into the Entity field to open the Select served entity form.
   2. Select the type of model you want to serve. The form dynamically updates based on your selection.
   3. Select which model and model version you want to serve.
   4. Select the percentage of traffic to route to your served model.
   5. Select what size compute to use. You can use CPU or GPU computes for your workloads. See GPU workload types for more information on available GPU computes.
   6. Under Compute Scale-out, select the size of the compute scale out that corresponds with the number of requests this served model can process at the same time. This number should be roughly equal to QPS x model run time.
      1. Available sizes are Small for 0-4 requests, Medium 8-16 requests, and Large for 16-64 requests.
   7. Specify if the endpoint should scale to zero when not in use.

3. Click Create. The Serving endpoints page appears with Serving endpoint state shown as Not Ready.



Rest api

You can create endpoints using the REST API. See POST /api/2.0/serving-endpoints for endpoint configuration parameters.

The following example creates an endpoint that serves the first version of the ads1 model that is registered in the model registry. To specify a model from Unity Catalog, provide the full model name including parent catalog and schema such as, catalog.schema.example-model.

POST /api/2.0/serving-endpoints

{
  "name": "workspace-model-endpoint",
  "config":{
    "served_entities": [
      {
        "name": "ads-entity"
        "entity_name": "my-ads-model",
        "entity_version": "3",
        "workload_size": "Small",
        "scale_to_zero_enabled": true
      },
      {
        "entity_name": "my-ads-model",
        "entity_version": "4",
        "workload_size": "Small",
        "scale_to_zero_enabled": true
      }
    ],
    "traffic_config":{
      "routes": [
        {
          "served_model_name": "my-ads-model-3",
          "traffic_percentage": 100
        },
        {
          "served_model_name": "my-ads-model-4",
          "traffic_percentage": 20
        }
      ]
    }
  },
  "tags": [
    {
      "key": "team",
      "value": "data science"
    }
  ]
}

The following is an example response. The endpoint’s config_update state is NOT_UPDATING and the served model is in a READY state.

{
  "name": "workspace-model-endpoint",
  "creator": "user@email.com",
  "creation_timestamp": 1700089637000,
  "last_updated_timestamp": 1700089760000,
  "state": {
    "ready": "READY",
    "config_update": "NOT_UPDATING"
  },
  "config": {
    "served_entities": [
      {
        "name": "ads-entity",
        "entity_name": "my-ads-model-3",
        "entity_version": "3",
        "workload_size": "Small",
        "scale_to_zero_enabled": true,
        "workload_type": "CPU",
      "state": {
        "deployment": "DEPLOYMENT_READY",
        "deployment_state_message": ""
      },
      "creator": "user@email.com",
      "creation_timestamp": 1700089760000
      }
    ],
    "traffic_config": {
      "routes": [
        {
          "served_model_name": "my-ads-model-3",
          "traffic_percentage": 100
        }
      ]
    },
    "config_version": 1
  },
  "tags": [
    {
      "key": "team",
      "value": "data science"
    }
  ],
  "id": "e3bd3e471d6045d6b75f384279e4b6ab",
  "permission_level": "CAN_MANAGE",
  "route_optimized": false
}

Mlflow deployments sdk

MLflow Deployments provides an API for create, update and deletion tasks. The APIs for these tasks accept the same parameters as the REST API for serving endpoints. See POST /api/2.0/serving-endpoints for endpoint configuration parameters.

from mlflow.deployments import get_deploy_client

client = get_deploy_client("databricks")
endpoint = client.create_endpoint(
    name="workspace-model-endpoint",
    config={
        "served_entities": [
            {
                "name": "ads-entity"
                "entity_name": "my-ads-model",
                "entity_version": "3",
                "workload_size": "Small",
                "scale_to_zero_enabled": true
            }
        ],
        "traffic_config": {
            "routes": [
                {
                    "served_model_name": "my-ads-model-3",
                    "traffic_percentage": 100
                }
            ]
        }
    }
)

You can also:

• Configure your endpoint to serve multiple models.
• Configure your endpoint to access external resources using Databricks Secrets.
• Enable inference tables to automatically capture incoming requests and outgoing responses to your model serving endpoints.

GPU workload types

GPU deployment is compatible with the following package versions:

• Pytorch 1.13.0 - 2.0.1
• TensorFlow 2.5.0 - 2.13.0
• MLflow 2.4.0 and above

To deploy your models using GPUs include the workload_type field in your endpoint configuration during endpoint creation or as an endpoint configuration update using the API. To configure your endpoint for GPU workloads with the Serving UI, select the desired GPU type from the Compute Type dropdown.

{
  "served_entities": [{
    "name": "ads1",
    "entity_version": "2",
    "workload_type": "GPU_LARGE",
    "workload_size": "Small",
    "scale_to_zero_enabled": false,
  }]
}

The following table summarizes the available GPU workload types supported.

GPU workload type	GPU instance	GPU memory
GPU_SMALL	1xT4	16GB
GPU_LARGE	1xA100	80GB
GPU_LARGE_2	2xA100	160GB

Modify a custom model endpoint

After enabling a custom model endpoint, you can update the compute configuration as desired. This configuration is particularly helpful if you need additional resources for your model. Workload size and compute configuration play a key role in what resources are allocated for serving your model.

Until the new configuration is ready, the old configuration keeps serving prediction traffic. While there is an update in progress, another update cannot be made.

Serving ui

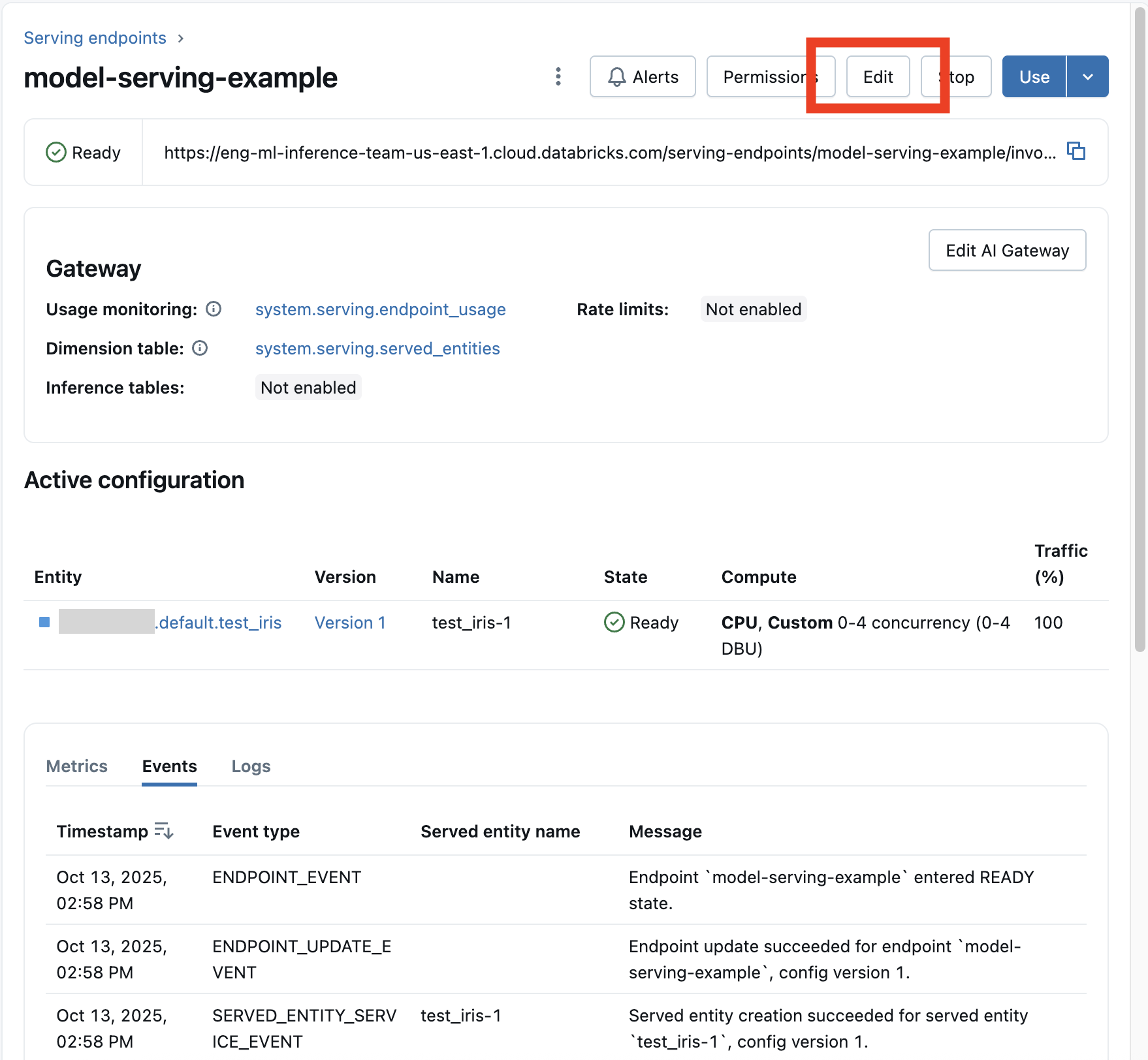

After you enable a model endpoint, select Edit endpoint to modify the compute configuration of your endpoint.

You can do the following:

• Choose from a few workload sizes, and autoscaling is automatically configured within the workload size.
• Specify if your endpoint should scale down to zero when not in use.
• Modify the percent of traffic to route to your served model.

Rest api

The following is an endpoint configuration update example using the REST API. See PUT /api/2.0/serving-endpoints/{name}/config.

PUT /api/2.0/serving-endpoints/{name}/config

{
  "name": "workspace-model-endpoint",
  "config":{
    "served_entities": [
      {
        "name": "ads-entity"
        "entity_name": "my-ads-model",
        "entity_version": "5",
        "workload_size": "Small",
        "scale_to_zero_enabled": true
      }
    ],
    "traffic_config":{
      "routes": [
        {
          "served_model_name": "my-ads-model-5",
          "traffic_percentage": 100
        }
      ]
    }
  }
}

Mlflow deployments sdk

The MLflow Deployments SDK uses the same parameters as the REST API, see PUT /api/2.0/serving-endpoints/{name}/config for request and response schema details.

The following code sample uses a model from the Unity Catalog model registry:

import mlflow
from mlflow.deployments import get_deploy_client

mlflow.set_registry_uri("databricks-uc")
client = get_deploy_client("databricks")

endpoint = client.create_endpoint(
  name=f"{endpointname}",
  config={
    "served_entities": [
        {
            "entity_name": f"{catalog}.{schema}.{model_name}",
            "entity_version": "1",
            "workload_size": "Small",
            "scale_to_zero_enabled": True
        }
    ],
    "traffic_config": {
        "routes": [
            {
                "served_model_name": f"{model_name}-1",
                "traffic_percentage": 100
            }
        ]
    }
  }
)

You can also:

• Configure your endpoint to serve multiple models.
• Configure your endpoint to access external resources using Databricks Secrets.
• Enable inference tables to automatically capture incoming requests and outgoing responses to your model serving endpoints.

Scoring a model endpoint

To score your model, send requests to the model serving endpoint.

• See Query serving endpoints for custom models.
• See Query foundation models.

Additional resources

• Manage model serving endpoints.
• Query serving endpoints for custom models.
• Query foundation models.
• External models in Databricks Model Serving.
• Inference tables for monitoring and debugging models.
• If you prefer to use Python, you can use the Databricks real-time serving Python SDK.

Notebook examples

The following notebooks include different Databricks registered models that you can use to get up and running with model serving endpoints.

The model examples can be imported into the workspace by following the directions in Import a notebook. After you choose and create a model from one of the examples, register it in the MLflow Model Registry, and then follow the UI workflow steps for model serving.

Train and register a scikit-learn model for model serving notebook

Get notebook

Train and register a HuggingFace model for model serving notebook

Get notebook
