Each operation that modifies a table creates a new table version. Use history information to audit operations, rollback a table, or query a table at a specific point in time using time travel.
Note
Databricks doesn't recommend using table history as a long-term backup solution for data archival. Use only the past 7 days for time travel operations unless you have set both data and log retention configurations to a larger value.
Retrieve table history
Retrieve information including the operations, user, and timestamp for each write to a table by running the history command. The operations are returned in reverse chronological order.
Table history retention is determined by the table setting logRetentionDuration, which is 30 days by default.
Note
Time travel and table history are controlled by different retention thresholds. See What is time travel?.
DESCRIBE HISTORY table_name -- get the full history of the table
DESCRIBE HISTORY table_name LIMIT 1 -- get the last operation only
For Spark SQL syntax details, see DESCRIBE HISTORY.
See the Delta Lake API documentation for Scala/Java/Python syntax details.
Catalog Explorer provides a visual view of this detailed table information and history. In addition to the table schema and sample data, you can click the History tab to see the table history that displays with DESCRIBE HISTORY.
History schema
The output of the history operation has the following columns.
| Column | Type | Description |
|---|---|---|
| version | long |
Table version generated by the operation. |
| timestamp | timestamp |
When this version was committed. |
| userId | string |
ID of the user that ran the operation. |
| userName | string |
Name of the user that ran the operation. |
| operation | string |
Name of the operation. |
| operationParameters | map |
Parameters of the operation (for example, predicates.) |
| job | struct |
Details of the Lakeflow job that ran the operation. Populates only for commits written from a Lakeflow job. Otherwise, null. |
| notebook | struct |
Details of the Databricks notebook from which the operation was run. Populates only for commits written from a Databricks notebook. Otherwise, null. |
| clusterId | string |
ID of the cluster on which the operation ran. |
| readVersion | long |
Version of the table that was read to perform the write operation. |
| isolationLevel | string |
Isolation level used for this operation. |
| isBlindAppend | boolean |
Whether this operation appended data. |
| operationMetrics | map |
Metrics of the operation (for example, number of rows and files modified.) |
| userMetadata | string |
User-defined commit metadata if it was specified. |
+-------+-------------------+------+--------+---------+--------------------+----+--------+---------+-----------+-----------------+-------------+--------------------+
|version| timestamp|userId|userName|operation| operationParameters| job|notebook|clusterId|readVersion| isolationLevel|isBlindAppend| operationMetrics|
+-------+-------------------+------+--------+---------+--------------------+----+--------+---------+-----------+-----------------+-------------+--------------------+
| 5|2019-07-29 14:07:47| ###| ###| DELETE|[predicate -> ["(...|null| ###| ###| 4|WriteSerializable| false|[numTotalRows -> ...|
| 4|2019-07-29 14:07:41| ###| ###| UPDATE|[predicate -> (id...|null| ###| ###| 3|WriteSerializable| false|[numTotalRows -> ...|
| 3|2019-07-29 14:07:29| ###| ###| DELETE|[predicate -> ["(...|null| ###| ###| 2|WriteSerializable| false|[numTotalRows -> ...|
| 2|2019-07-29 14:06:56| ###| ###| UPDATE|[predicate -> (id...|null| ###| ###| 1|WriteSerializable| false|[numTotalRows -> ...|
| 1|2019-07-29 14:04:31| ###| ###| DELETE|[predicate -> ["(...|null| ###| ###| 0|WriteSerializable| false|[numTotalRows -> ...|
| 0|2019-07-29 14:01:40| ###| ###| WRITE|[mode -> ErrorIfE...|null| ###| ###| null|WriteSerializable| true|[numFiles -> 2, n...|
+-------+-------------------+------+--------+---------+--------------------+----+--------+---------+-----------+-----------------+-------------+--------------------+
Note
- A few of the other columns are not available if you write into a table using the following methods:
- Columns added in the future will always be added after the last column.
Understanding partitionBy in operation parameters
The partitionBy field is only meaningful for CREATE and OVERWRITE operations that define or change a table's partition schema.
For append operations to existing tables (APPEND, INSERT, UPDATE, DELETE, MERGE), this field might show an empty array [] or partition columns depending on the write method used (.save() vs .saveAsTable()). This inconsistency is expected behavior and should not be used to validate writes.
Important
Do not rely on partitionBy in history to validate append operations. The value varies based on implementation details but does not affect how data is written to partitions.
Example
Consider a table partitioned by the date column:
# Initial table creation - partitionBy is populated
df.write.format("delta") \
.partitionBy("date") \
.saveAsTable("sales_data")
The CREATE operation in history shows:
operationParameters: {
"mode": "ErrorIfExists",
"partitionBy": "[\"date\"]"
}
When you append data to this table:
# Subsequent append - partitionBy shows empty
new_df.write.format("delta") \
.mode("append") \
.saveAsTable("sales_data")
The APPEND operation shows:
operationParameters: {
"mode": "Append",
"partitionBy": "[]"
}
The empty partitionBy value is expected. The data is still written to the correct partitions based on the table's existing partition schema. Note that .save() to a path may show partition columns in this field, but this difference is an implementation detail and does not affect write behavior.
Operation metrics
The history operation returns a collection of operations metrics in the operationMetrics column map.
The following tables list the map key definitions by operation.
WRITE, CREATE TABLE AS SELECT, REPLACE TABLE AS SELECT, COPY INTO
The following metrics are available for these operations:
| Metric name | Description |
|---|---|
numFiles |
The number of files written. |
numOutputBytes |
The size in bytes of the written contents. |
numOutputRows |
The number of rows written. |
STREAMING UPDATE
The following metrics are available for this operation:
| Metric name | Description |
|---|---|
numAddedFiles |
The number of files added. |
numRemovedFiles |
The number of files removed. |
numOutputRows |
The number of rows written. |
numOutputBytes |
The size of write in bytes. |
DELETE
The following metrics are available for this operation:
| Metric name | Description |
|---|---|
numAddedFiles |
The number of files added. Not provided when partitions of the table are deleted. |
numRemovedFiles |
The number of files removed. |
numDeletedRows |
The number of rows removed. Not provided when partitions of the table are deleted. |
numCopiedRows |
The number of rows copied in the process of deleting files. |
executionTimeMs |
The time taken to execute the entire operation. |
scanTimeMs |
The time taken to scan the files for matches. |
rewriteTimeMs |
The time taken to rewrite the matched files. |
TRUNCATE
The following metrics are available for this operation:
| Metric name | Description |
|---|---|
numRemovedFiles |
The number of files removed. |
executionTimeMs |
The time taken to execute the entire operation. |
MERGE
The following metrics are available for this operation:
| Metric name | Description |
|---|---|
numSourceRows |
The number of rows in the source DataFrame. |
numTargetRowsInserted |
The number of rows inserted into the target table. |
numTargetRowsUpdated |
The number of rows updated in the target table. |
numTargetRowsDeleted |
The number of rows deleted in the target table. |
numTargetRowsCopied |
The number of target rows copied. |
numOutputRows |
The total number of rows written out. |
numTargetFilesAdded |
The number of files added to the sink (target). |
numTargetFilesRemoved |
The number of files removed from the sink (target). |
executionTimeMs |
The time taken to execute the entire operation. |
scanTimeMs |
The time taken to scan the files for matches. |
rewriteTimeMs |
The time taken to rewrite the matched files. |
UPDATE
The following metrics are available for this operation:
| Metric name | Description |
|---|---|
numAddedFiles |
The number of files added. |
numRemovedFiles |
The number of files removed. |
numUpdatedRows |
The number of rows updated. |
numCopiedRows |
The number of rows just copied over in the process of updating files. |
executionTimeMs |
The time taken to execute the entire operation. |
scanTimeMs |
The time taken to scan the files for matches. |
rewriteTimeMs |
The time taken to rewrite the matched files. |
FSCK
The following metrics are available for this operation:
| Metric name | Description |
|---|---|
numRemovedFiles |
The number of files removed. |
CONVERT
The following metrics are available for this operation:
| Metric name | Description |
|---|---|
numConvertedFiles |
The number of Parquet files that have been converted. |
OPTIMIZE
The following metrics are available for this operation:
| Metric name | Description |
|---|---|
numAddedFiles |
The number of files added. |
numRemovedFiles |
The number of files optimized. |
numAddedBytes |
The number of bytes added after the table was optimized. |
numRemovedBytes |
The number of bytes removed. |
minFileSize |
The size of the smallest file after the table was optimized. |
p25FileSize |
The size of the 25th percentile file after the table was optimized. |
p50FileSize |
The median file size after the table was optimized. |
p75FileSize |
The size of the 75th percentile file after the table was optimized. |
maxFileSize |
The size of the largest file after the table was optimized. |
CLONE
The following metrics are available for this operation:
| Metric name | Description |
|---|---|
sourceTableSize |
The size in bytes of the source table at the version that's cloned. |
sourceNumOfFiles |
The number of files in the source table at the version that's cloned. |
numRemovedFiles |
The number of files removed from the target table if a previous table was replaced. |
removedFilesSize |
The total size in bytes of the files removed from the target table if a previous table was replaced. |
numCopiedFiles |
The number of files that were copied over to the new location. 0 for shallow clones. |
copiedFilesSize |
The total size in bytes of the files that were copied over to the new location. 0 for shallow clones. |

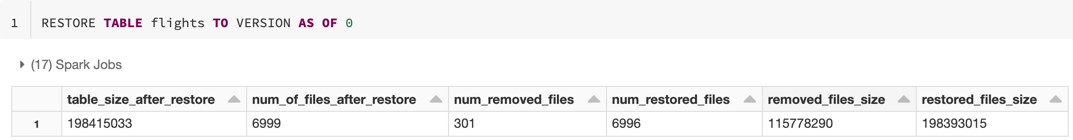

RESTORE
The following metrics are available for this operation:
| Metric name | Description |
|---|---|
tableSizeAfterRestore |
The table size in bytes after restore. |
numOfFilesAfterRestore |
The number of files in the table after restore. |
numRemovedFiles |
The number of files removed by the restore operation. |
numRestoredFiles |
The number of files that were added as a result of the restore. |
removedFilesSize |
The size in bytes of files removed by the restore. |
restoredFilesSize |
The size in bytes of files added by the restore. |
VACUUM
The following metrics are available for this operation:
| Metric name | Description |
|---|---|
numDeletedFiles |
The number of deleted files. |
numVacuumedDirectories |
The number of vacuumed directories. |
numFilesToDelete |
The number of files to delete. |
What is time travel?
Time travel supports querying previous table versions based on timestamp or table version (as recorded in the transaction log). You can use time travel for applications such as the following:
- Re-creating analyses, reports, or outputs (for example, the output of a machine learning model). This could be useful for debugging or auditing, especially in regulated industries.
- Writing complex temporal queries.
- Fixing mistakes in your data.
- Providing snapshot isolation for a set of queries for fast changing tables.
Important
In Databricks Runtime 18.0 and above, time travel queries are blocked if they request a version older than the deletedFileRetentionDuration table property (default 7 days). For Unity Catalog managed tables, this applies to Databricks Runtime 12.2 and above.
Time travel syntax
You query a table with time travel by adding a clause after the table name specification.
timestamp_expressioncan be any one of:'2018-10-18T22:15:12.013Z', that is, a string that can be cast to a timestampcast('2018-10-18 13:36:32 CEST' as timestamp)'2018-10-18', that is, a date stringcurrent_timestamp() - interval 12 hoursdate_sub(current_date(), 1)- Any other expression that is or can be cast to a timestamp
versionis a long value that can be obtained from the output ofDESCRIBE HISTORY table_spec.
Neither timestamp_expression nor version can be subqueries.
Only date or timestamp strings are accepted. For example, "2019-01-01" and "2019-01-01T00:00:00.000Z". See the following code for example syntax:
SQL
SELECT * FROM people10m TIMESTAMP AS OF '2018-10-18T22:15:12.013Z';
SELECT * FROM people10m VERSION AS OF 123;
Python
df1 = spark.read.option("timestampAsOf", "2019-01-01").table("people10m")
df2 = spark.read.option("versionAsOf", 123).table("people10m")
You can also use the @ syntax to specify the timestamp or version as part of the table name. The timestamp must be in yyyyMMddHHmmssSSS format. You can specify a version after @ by prepending a v to the version. See the following code for example syntax:
SQL
SELECT * FROM people10m@20190101000000000
SELECT * FROM people10m@v123
Python
spark.read.table("people10m@20190101000000000")
spark.read.table("people10m@v123")
What are transaction log checkpoints?
Table versions are recorded as JSON files within the transaction log directory, which is stored alongside table data. To optimize checkpoint querying, table versions are aggregated to Parquet checkpoint files, preventing the need to read all JSON versions of table history. Azure Databricks optimizes checkpointing frequency for data size and workload. Users should not need to interact with checkpoints directly. The checkpoint frequency is subject to change without notice.
Configure data retention for time travel queries
To query a previous table version, you must retain both the log and the data files for that version.
Data files are deleted when VACUUM runs against a table. Log file removal is managed automatically after checkpointing table versions.
Because most tables have VACUUM run against them regularly, point-in-time queries should respect the retention threshold for VACUUM, which is 7 days by default.
To increase the data retention threshold for tables, you must configure the following table properties:
delta.logRetentionDuration = "interval <interval>": controls how long the history for a table is kept. The default isinterval 30 days. For Apache Iceberg tables, useiceberg.logRetentionDurationinstead.delta.deletedFileRetentionDuration = "interval <interval>": determines the thresholdVACUUMuses to remove data files no longer referenced in the current table version. The default isinterval 7 days. For Apache Iceberg tables, useiceberg.deletedFileRetentionDurationinstead.
You can specify table properties during table creation or set them with an ALTER TABLE statement. See Table properties reference.
Note
In Databricks Runtime 18.0 and above, logRetentionDuration must be greater than or equal to deletedFileRetentionDuration. For Unity Catalog managed tables, this applies to Databricks Runtime 12.2 and above.
To access 30 days of historical data, set delta.deletedFileRetentionDuration = "interval 30 days" (which matches the default setting for delta.logRetentionDuration).
Increasing data retention threshold can cause your storage costs to go up, as more data files are maintained.
Restore a table to an earlier state
You can restore a table to its earlier state by using the RESTORE command. Tables internally maintain historic versions that enable them to be restored to an earlier state.
A version corresponding to the earlier state or a timestamp of when the earlier state was created are supported as options by the RESTORE command.
Important
- You can restore an already restored table.
- You can restore a cloned table.
- You must have
MODIFYpermission on the table being restored. - You cannot restore a table to an older version where the data files were deleted manually or by
vacuum. Restoring to this version partially is still possible ifspark.sql.files.ignoreMissingFilesis set totrue. - The timestamp format for restoring to an earlier state is
yyyy-MM-dd HH:mm:ss. Providing only a date(yyyy-MM-dd) string is also supported.
RESTORE TABLE target_table TO VERSION AS OF <version>;
RESTORE TABLE target_table TO TIMESTAMP AS OF <timestamp>;
For syntax details, see RESTORE.
Important
Restore is considered a data-changing operation. Log entries added by the RESTORE command contain dataChange set to true. If there is a downstream application, such as a Structured streaming job that processes the updates to a table, the data change log entries added by the restore operation are considered as new data updates, and processing them may result in duplicate data.
For example:
| Table version | Operation | Log updates | Records in data change log updates |
|---|---|---|---|
| 0 | INSERT | AddFile(/path/to/file-1, dataChange = true) | (name = Viktor, age = 29), (name = George, age = 55) |
| 1 | INSERT | AddFile(/path/to/file-2, dataChange = true) | (name = George, age = 39) |
| 2 | OPTIMIZE | AddFile(/path/to/file-3, dataChange = false), RemoveFile(/path/to/file-1), RemoveFile(/path/to/file-2) | No records. OPTIMIZE compaction does not change the data in the table. |
| 3 | RESTORE(version=1) | RemoveFile(/path/to/file-3), AddFile(/path/to/file-1, dataChange = true), AddFile(/path/to/file-2, dataChange = true) | (name = Viktor, age = 29), (name = George, age = 55), (name = George, age = 39) |
In the preceding example, the RESTORE command results in updates that were already seen when reading the table version 0 and 1. If a streaming query was reading this table, then these files will be considered as newly added data and will be processed again.
:::
Restore metrics
RESTORE reports the following metrics as a single row DataFrame once the operation is complete:
table_size_after_restore: The size of the table after restoring.num_of_files_after_restore: The number of files in the table after restoring.num_removed_files: Number of files removed (logically deleted) from the table.num_restored_files: Number of files restored due to rolling back.removed_files_size: Total size in bytes of the files that are removed from the table.restored_files_size: Total size in bytes of the files that are restored.
Examples of using time travel
Fix accidental deletes to a table for the user
111:INSERT INTO my_table SELECT * FROM my_table TIMESTAMP AS OF date_sub(current_date(), 1) WHERE userId = 111Fix accidental incorrect updates to a table:
MERGE INTO my_table target USING my_table TIMESTAMP AS OF date_sub(current_date(), 1) source ON source.userId = target.userId WHEN MATCHED THEN UPDATE SET *Query the number of new customers added over the last week.
SELECT ( SELECT count(distinct userId) FROM my_table ) - ( SELECT count(distinct userId) FROM my_table TIMESTAMP AS OF date_sub(current_date(), 7) ) AS new_customers
How do I find the last commit's version in the Spark session?
To get the version number of the last commit written by the current SparkSession across all threads
and all tables, query the SQL configuration spark.databricks.delta.lastCommitVersionInSession.
Note
For Apache Iceberg tables, use spark.databricks.iceberg.lastCommitVersionInSession instead of spark.databricks.delta.lastCommitVersionInSession.
SQL
SET spark.databricks.delta.lastCommitVersionInSession
Python
spark.conf.get("spark.databricks.delta.lastCommitVersionInSession")
Scala
spark.conf.get("spark.databricks.delta.lastCommitVersionInSession")
If no commits have been made by the SparkSession, querying the key returns an empty value.
Note
If you share the same SparkSession across multiple threads, it's similar to sharing a variable
across multiple threads; you may hit race conditions as the configuration value is updated
concurrently.
