Make your project compatible with Azure Developer CLI (preview)

Azure Developer CLI (azd) enables developers to create apps from templates stored in GitHub repositories. Microsoft provides several templates to get you started. In this article, you learn how to enable your own project as a template.

Understand the azd architecture

The following diagram gives a quick overview of the process to create an azd template:

Diagram of Azure Developer CLI template workflow.

All azd templates have the same file structure, based on azd conventions. The following hierarchy shows the directory structure you'll build in this tutorial. For the complete directory structure, refer to the azd conventions section.

├── .github                    [ Configure GitHub workflow ]
├── infra                      [ Creates and configures Azure resources ]
│   ├── main.bicep             [ Main infrastructure file ]
│   ├── main.parameters.json   [ Parameters file ]
│   └── resources.bicep        [ Resources file ]
└── azure.yaml                 [ Describes the app and type of Azure resources]

Create the project and source directories

  1. Create a new directory for your project and change into it. This directory is your project directory.

  2. Add your app source code either:

    • To the root of your project directory, or
    • In a subdirectory src, or source directory, which can be the same as your project directory.
  1. Run the following command to clone the Python Flask web app:

    git clone https://github.com/Azure-Samples/msdocs-python-flask-webapp-quickstart


    Optionally, to see the sample working, follow the instructions to run the app locally.

  2. Change the current directory to msdocs-python-flask-webapp-quickstart.

Initialize a new environment

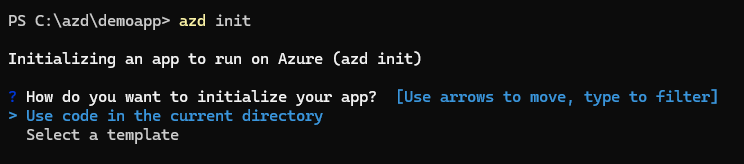

  1. Run the following command to initialize the project.

    azd init

  2. Select Empty Template from the list of project templates.

  3. Supply/select the appropriate values for your environment.

    Parameter Description
    Environment Name Prefix for the resource group that will be created to hold all Azure resources. What is an Environment Name in azd?
    Azure Location The Azure location where your resources will be deployed.
    Azure Subscription The Azure Subscription where your resources will be deployed.

    Key points After you run azd init:

    • A directory called .azure is created.
    • Within the .azure directory, a directory is created: <environment_name>.
    • Within the \.azure\<your environment_name> directory, a file named .env is created.
    • The .env file contains information such as the values you supplied:
      • Environment name
      • Location
      • Azure subscription
    • A file named azure.yaml is created in the root of your project.

Add Bicep files

To provision the Azure resources, Bicep files need to be created within a directory called infra. In this section, you'll see how to perform this step by provisioning Azure App Service resources.

As this sample provisions App Service resources, you need:

  • An Azure App Service Plan
  • An Azure App Service running on Linux

For samples, refer to sample Azure App Service Bicep files. However, you can use the information in this section with any supported host.

  1. Create a directory named infra in your project directory and change into it.

  2. Create a new file named main.parameters.json. Insert the environment variables (found in the .env file in your project's .azure/<environment_name> directory). For example:

    {
        "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentParameters.json#",
        "contentVersion": "1.0.0.0",
        "parameters": {
            "name": {
            "value": "${AZURE_ENV_NAME}"
            },
            "location": {
            "value": "${AZURE_LOCATION}"
            },
            "principalId": {
            "value": "${AZURE_PRINCIPAL_ID}"
            }
        }
    }

  3. Create a file named main.bicep as the main entry point. Declare the parameters you included in main.parameters.json.

    For more information, see Parameters in Bicep. You can also refer to the main.bicep of an Azure Developer CLI template (such as todo-nodejs-mongo template) and remove the outputs you don't need.

    For example:

    targetScope = 'subscription'

    @minLength(1)
    @maxLength(50)
    @description('Name of the the environment which is used to generate a short unique hash used in all resources.')
    param name string

    @minLength(1)
    @description('Primary location for all resources')
    param location string

    @description('Id of the user or app to assign app roles')
    param principalId string = ''

    resource resourceGroup 'Microsoft.Resources/resourceGroups@2020-06-01' = {
        name: 'rg-${name}'
        location: location
        tags: tags
    }

    var resourceToken = toLower(uniqueString(subscription().id, name))
    var tags = {
        'azd-env-name': name
    }

    module resources './resources.bicep' = {
        name: 'resources-${resourceToken}'
        scope: resourceGroup
        params: {
            location: location
            principalId: principalId
            resourceToken: resourceToken
            tags: tags
        }
    }

    output APP_WEB_BASE_URL string = resources.outputs.WEB_URI
    output AZURE_LOCATION string = location



    In this sample, a unique string is generated based on subscription ID and used as a resource token. This token is appended to the name of all Azure resources created by azd. azd uses tags to identify resources so you can modify the names based on your organization's naming convention.

  4. Create a file named resources.bicep.

  5. Declare the following parameters:

    param location string
    param principalId string = ''
    param resourceToken string
    param tags object
    param sku string = 'S1'
    param linuxFxVersion string = 'PYTHON|3.8'

  6. Add the following code, to add a tag named azd-service-name with the value of web to your Azure resource. azd uses this tag to determine what resource to deploy your application to. The value should match the name of your service as defined in azure.yaml.

    tags: union(tags, {
      'azd-service-name': 'web'
      })

  7. Add the following code for zip deployment.

    resource appSettings 'config' = {
      name: 'appsettings'
      properties: {
        'SCM_DO_BUILD_DURING_DEPLOYMENT': 'true'
        }
      }

  8. The following code represents a complete resources.bicep file that creates an Azure App Service for hosting a Python web app:

    param location string
    param principalId string = ''
    param resourceToken string
    param tags object
    param sku string = 'S1'
    param linuxFxVersion string = 'PYTHON|3.8'

    resource appServicePlan 'Microsoft.Web/serverfarms@2020-06-01' = {
      name: 'plan-${resourceToken}'
      location: location
      tags: tags
      sku: {
        name: sku
      }
      kind: 'linux'
      properties: {
      reserved: true
      }
    }

    resource web 'Microsoft.Web/sites@2020-06-01' = {
      name: 'app-web-${resourceToken}'
      location: location
      tags: union(tags, {
        'azd-service-name': 'web'
        })
      kind: 'app'
      properties: {
        serverFarmId: appServicePlan.id
        siteConfig: {
        linuxFxVersion: linuxFxVersion
        }
      }

      resource appSettings 'config' = {
        name: 'appsettings'
        properties: {
          'SCM_DO_BUILD_DURING_DEPLOYMENT': 'true'
          }
        }
      }

      output WEB_URI string = 'https://${web.properties.defaultHostName}'

  9. Run the following command to provision the Azure resources.

    azd provision


    Key points:

    • After you run azd provision, the Azure resources are created under the resource group rg-<environment_name>.
    • The web end point is added to .env file in the project's .azure/<environment_name> directory.

Update azure.yaml

To deploy the app, azd needs to know more about your app. Specify the app's source code location, the app type, and the Azure service that will be hosting your app in the azure.yaml file.

  1. Edit azure.yaml by adding the following lines:

    name: msdocs-python-flask-webapp-quickstart
    services:
      web:
        project: .
        language: py
        host: appservice

    Value Description
    name Root element. Required. Name of the app.
    services Root element. Required. Definition of services that is part of the app.
    web Required. Name of the service. Can be any name, for example, api, web. This name needs to be the same as the azd-service-name value you specified earlier.
    project Required. Path to the service source code directory. Use src/web if your source code is found under /src/web.
    language Service implementation language. py for Python. If not specified, .NET will be assumed.
    host Type of Azure resource used for service implementation. "appservice" for Azure App Service. If not required, appservice is assumed.

    For full details, refer to azure.yaml.json.

  2. Run the following command to deploy the app to Azure:

    azd deploy


    Key points After running azd deploy, the service web is deployed to the app service you previously provisioned.

  3. Use your browser to open the end point to test your app.

Your project is now compatible with Azure Developer CLI and can be used as a template!

Note

You can run azd up to perform both azd provision and azd deploy in a single step. If you wish to create a new environment, run azd env new.

Configure a DevOps pipeline

  1. Within your project directory, create a directory named .github.

  2. Within the .github directory, create a directory named workflows.

  3. Copy the azure-dev.yml file from any azd template (for example, todo-nodejs-mongo template) and paste as new file into the .github/workflows directory.

  4. Run the following command to push updates to the repository. The GitHub Actions workflow is triggered because of the update.

    azd pipeline config

  5. Using your browser, go to the GitHub repository for your project.

  6. Select Actions to see the workflow running.

Note

.venv should be added to the .gitignore file

Clean up resources

When you no longer need the resources created in this article, run the following command:

azd down

azd conventions

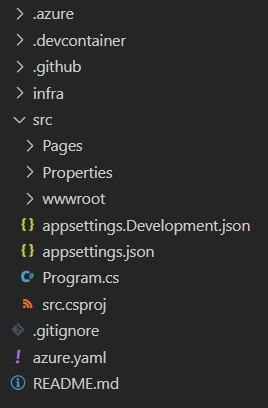

The following hierarchy shows the complete directory structure of an azd template.

├── .devcontainer              [ For DevContainer ]
├── .github                    [ Configure GitHub workflow ]
├── .vscode                    [ VS Code workspace ]
├── assets                     [ Assets used by README.MD ]
├── infra                      [ Creates and configures Azure resources ]
│   ├── main.bicep             [ Main infrastructure file ]
│   ├── main.parameters.json   [ Parameters file ]
│   └── resources.bicep        [ Resources file ]
├── src                        [ Contains directories for the app code ]
└── azure.yaml                 [ Describes the app and type of Azure resources]
