Quickstart: Use an ARM template to deploy a Linux web app to Azure

Azure DevOps Services

Get started with Azure Resource Manager templates (ARM templates) by deploying a Linux web app with MySQL. ARM templates give you a way to save your configuration in code. Using an ARM template is an example of infrastructure as code and a good DevOps practice.

An ARM template is a JavaScript Object Notation (JSON) file that defines the infrastructure and configuration for your project. The template uses declarative syntax. In declarative syntax, you describe your intended deployment without writing the sequence of programming commands to create the deployment.

You can use either JSON or Bicep syntax to deploy Azure resources. Learn more about the difference between JSON and Bicep for templates.

Prerequisites

Before you begin, you need:

• An Azure account with an active subscription. Create an account for free.
• An active Azure DevOps organization. Sign up for Azure Pipelines.
• (For Bicep deployments) An existing resource group. Create a resource group with Azure portal, Azure CLI, or Azure PowerShell.

Get the code

Fork this repository on GitHub:

https://github.com/Azure/azure-quickstart-templates/tree/master/quickstarts/microsoft.web/webapp-linux-managed-mysql

Review the template

JSON

The template used in this quickstart is from Azure Quickstart Templates.

The template defines several resources:

• Microsoft.Web/serverfarms
• Microsoft.Web/sites
• Microsoft.DBforMySQL/servers
• Microsoft.DBforMySQL/servers/firewallrules
• Microsoft.DBforMySQL/servers/databases

Create your pipeline and deploy your template

1. Sign in to your Azure DevOps organization and navigate to your project. Create a project if you do not already have one.

2. Go to Pipelines, and then select Create Pipeline.

3. Select GitHub as the location of your source code.

   Note

   You may be redirected to GitHub to sign in. If so, enter your GitHub credentials.

4. When the list of repositories appears, select yourname/azure-quickstart-templates/.

   Note

   You may be redirected to GitHub to install the Azure Pipelines app. If so, select Approve and install.

5. When the Configure tab appears, select Starter pipeline.

6. Replace the content of your pipeline with this code:

   trigger:
   - none

   pool:
     vmImage: 'ubuntu-latest'


7. Create three variables: siteName, administratorLogin, and adminPass. adminPass needs to be a secret variable.

   • Select Variables.
   • Use the + sign to add three variables. When you create adminPass, select Keep this value secret.
   • Click Save when you're done.

   Variable	Value	Secret?
   siteName	mytestsite	No
   adminUser	fabrikam	No
   adminPass	Fqdn:5362!	Yes

8. Map the secret variable $(adminPass) so that it is available in your Azure Resource Group Deployment task. At the top of your YAML file, map $(adminPass) to $(ARM_PASS).

   variables:
     ARM_PASS: $(adminPass)

   trigger:
   - none

   pool:
     vmImage: 'ubuntu-latest'


9. Add the Copy Files task to the YAML file. You will use the 101-webapp-linux-managed-mysql project. For more information, see Build a Web app on Linux with Azure database for MySQL repo for more details.

   variables:
     ARM_PASS: $(adminPass)

   trigger:
   - none

   pool:
     vmImage: 'ubuntu-latest'

   steps:
   - task: CopyFiles@2
     inputs:
       SourceFolder: 'quickstarts/microsoft.web/webapp-linux-managed-mysql/'
       Contents: '**'
       TargetFolder: '$(Build.ArtifactStagingDirectory)'


10. Add and configure the Azure Resource Group Deployment task.

    The task references both the artifact you built with the Copy Files task and your pipeline variables. Set these values when configuring your task.

    • Deployment scope (deploymentScope): Set the deployment scope to Resource Group. You can target your deployment to a management group, an Azure subscription, or a resource group.
    • Azure Resource Manager connection (azureResourceManagerConnection): Select your Azure Resource Manager service connection. To configure new service connection, select the Azure subscription from the list and click Authorize. See Connect to Microsoft Azure for more details
    • Subscription (subscriptionId): Select the subscription where the deployment should go.
    • Action (action): Set to Create or update resource group to create a new resource group or to update an existing one.
    • Resource group: Set toARMPipelinesLAMP-rg to name your new resource group. If this is an existing resource group, it will be updated.
    • Location(location): Location for deploying the resource group. Set to your closest location (for example, West US). If the resource group already exists in your subscription, this value will be ignored.
    • Template location (templateLocation): Set to Linked artifact. This is location of your template and the parameters files.
    • Template (csmFile): Set to $(Build.ArtifactStagingDirectory)/azuredeploy.json. This is the path to the ARM template.
    • Template parameters (csmParametersFile): Set to $(Build.ArtifactStagingDirectory)/azuredeploy.parameters.json. This is the path to the parameters file for your ARM template.
    • Override template parameters (overrideParameters): Set to -siteName $(siteName) -administratorLogin $(adminUser) -administratorLoginPassword $(ARM_PASS) to use the variables you created earlier. These values will replace the parameters set in your template parameters file.
    • Deployment mode (deploymentMode): The way resources should be deployed. Set to Incremental. Incremental keeps resources that are not in the ARM template and is faster than Complete. Validate mode lets you find problems with the template before deploying.

    variables:
      ARM_PASS: $(adminPass)

    trigger:
    - none

    pool:
      vmImage: 'ubuntu-latest'

    steps:
    - task: CopyFiles@2
      inputs:
        SourceFolder: 'quickstarts/microsoft.web/webapp-linux-managed-mysql/'
        Contents: '**'
        TargetFolder: '$(Build.ArtifactStagingDirectory)'

    - task: AzureResourceManagerTemplateDeployment@3
      inputs:
        deploymentScope: 'Resource Group'
        azureResourceManagerConnection: '<your-resource-manager-connection>'
        subscriptionId: '<your-subscription-id>'
        action: 'Create Or Update Resource Group'
        resourceGroupName: 'ARMPipelinesLAMP-rg'
        location: '<your-closest-location>'
        templateLocation: 'Linked artifact'
        csmFile: '$(Build.ArtifactStagingDirectory)/azuredeploy.json'
        csmParametersFile: '$(Build.ArtifactStagingDirectory)/azuredeploy.parameters.json'
        overrideParameters: '-siteName $(siteName) -administratorLogin $(adminUser) -administratorLoginPassword $(ARM_PASS)'
        deploymentMode: 'Incremental'


11. Click Save and run to deploy your template. The pipeline job will be launched and after few minutes, depending on your agent, the job status should indicate Success.

Bicep

1. Sign in to your Azure DevOps organization and navigate to your project. Create a project if you do not already have one.

2. Go to Pipelines, and then select Create Pipeline.

3. Select GitHub as the location of your source code.

   Note

   You may be redirected to GitHub to sign in. If so, enter your GitHub credentials.

4. When the list of repositories appears, select yourname/azure-quickstart-templates/.

   Note

   You may be redirected to GitHub to install the Azure Pipelines app. If so, select Approve and install.

5. When the Configure tab appears, select Starter pipeline.

6. Replace the content of your pipeline with this code:

   trigger:
   - none

   pool:
     vmImage: $(vmImageName)


7. Create three variables: siteName, administratorLogin, and administratorLoginPassword. administratorLoginPassword needs to be a secret variable.

   • Select Variables.
   • Use the + sign to add three variables. When you create adminPass, select Keep this value secret.
   • Click Save when you're done.

   Variable	Value	Secret?
   siteName	mytestsite	No
   administratorLogin	fabrikam	No
   administratorLoginPassword	Fqdn:5362!	Yes

8. At the top of your YAML file, map values for location and resourceGroupName. Your location should be the location of the resource group. Your resource group needs to already exist.

   variables:
     vmImageName: 'ubuntu-latest'
     resourceGroupName: '<resource-group-name>' # Needs to already exist
     location: '<your-closest-location>'
     templateFile: './main.bicep'
     sourceFolder: 'quickstarts/microsoft.web/webapp-linux-managed-mysql/'


9. If you do not already have an Azure Resource Manager service connection, create a service connection. Learn more about connecting to Azure.

   • The service connection be in the same resource group as your resourceGroupName.



10. Add the Azure CLI task to deploy with Bicep. The task uses the az deployment group create Azure CLI command. You'll pass the administratorLogin and administratorLoginPassword parameter values as variables.

    • Set the Azure Resource Manager connection to your service connection.
    • The Script Type is Shell.
    • The Script Location is Inline script.

    variables:
      vmImageName: 'ubuntu-latest'
      resourceGroupName: '<resource-group-name>' # Needs to already exist
      location: '<your-closest-location>'
      templateFile: './main.bicep'
      sourceFolder: 'quickstarts/microsoft.web/webapp-linux-managed-mysql/'

    trigger:
    - none

    pool:
      vmImage: $(vmImageName)

    name: Bicep deploy template

    steps:
    - task: AzureCLI@2
      inputs:
        azureSubscription: '<service-connection-name>'
        scriptType: bash
        scriptLocation: inlineScript
        inlineScript: |
          az deployment group create --resource-group $(resourceGroupName) --template-file $(sourceFolder)$(templateFile) \
          --parameters administratorLogin=$(administratorLogin) administratorLoginPassword=$(administratorLoginPassword)


Review deployed resources

JSON

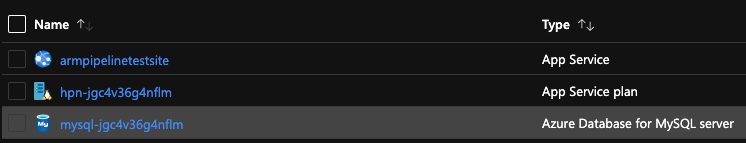

1. Verify that the resources deployed. Go to the ARMPipelinesLAMP-rg resource group in the Azure portal and verify that you see App Service, App Service Plan, and Azure Database for MySQL server resources.



   You can also verify the resources using Azure CLI.

   az resource list --resource-group ARMPipelinesLAMP-rg --output table


2. Go to your new site. If you set siteName to armpipelinetestsite, the site is located at https://armpipelinetestsite.azurewebsites.net/.

Bicep

1. Verify that the resources deployed. Go to your resource group in the Azure portal and verify that you see App Service, App Service Plan, and Azure Database for MySQL server resources.



   You can also verify the resources using Azure CLI.

   az resource list --resource-group <resource-group-name> --output table


2. Go to your new site. If you set siteName to armpipelinetestsite, the site is located at https://armpipelinetestsite.azurewebsites.net/.

Clean up resources

JSON

You can also use an ARM template to delete resources. Change the action value in your Azure Resource Group Deployment task to DeleteRG. You can also remove the inputs for templateLocation, csmFile, csmParametersFile, overrideParameters, and deploymentMode.

variables:
  ARM_PASS: $(adminPass)

trigger:
- none

pool:
  vmImage: 'ubuntu-latest'

steps:
- task: CopyFiles@2
  inputs:
    SourceFolder: 'quickstarts/microsoft.web/webapp-linux-managed-mysql/'
    Contents: '**'
    TargetFolder: '$(Build.ArtifactStagingDirectory)'

- task: AzureResourceManagerTemplateDeployment@3
  inputs:
    deploymentScope: 'Resource Group'
    azureResourceManagerConnection: '<your-resource-manager-connection>'
    subscriptionId: '<your-subscription-id>'
    action: 'DeleteRG'
    resourceGroupName: 'ARMPipelinesLAMP-rg'
    location: ''<your-closest-location>'

Bicep

If you no longer need your deployed resources, delete your resource group.

az group delete -n  <resource-group-name>
