Migrate from Travis to Azure Pipelines

  • Article

Azure DevOps Services

This purpose of this guide is to help you migrate from Travis to Azure Pipelines. This guide describes shows how to translate from a Travis configuration to an Azure Pipelines configuration.

We need your help to make this guide better! Submit comments or contribute your changes directly.

Key differences

There are many differences between Travis and Azure Pipelines, including:

  • Travis builds have stages, jobs and phases, while Azure Pipelines has steps that can be arranged and executed in an arbitrary order or grouping that you choose.

  • Azure Pipelines allows job definitions and steps to be stored in separate YAML files in the same or a different repository, enabling steps to be shared across multiple pipelines.

  • Azure Pipelines provides full support for building and testing on Microsoft-managed Linux, Windows, and macOS images. For more information about hosted agents, see Microsoft-hosted agents.

Prerequisites

Language

Travis uses the language keyword to identify the prerequisite build environment to set up for your build. For example, to select Node.JS 16.x:

.travis.yml

language: node_js
node_js:
  - 16

Microsoft-hosted agents contain the SDKs for many languages by default. To use a specific language version, you may need to use a language selection task to set up the environment.

For example, to select Node.JS 16.x:

azure-pipelines.yml

steps:
- task: UseNode@1
  inputs:
    version: '16.x'

Language mappings

The language keyword in Travis implies both that version of language tools be used and that many build steps be implicitly performed. In Azure Pipelines, you need to specify the commands that you want to run.

Here's a translation guide from the language keyword to the commands that are executed automatically for the most commonly used languages:

Language Commands
c
cpp		 ./configure
make
make install
csharp nuget restore [solution.sln]
msbuild /p:Configuration=Release [solution.sln]
clojure lein deps
lein test
go go get -t -v ./...
make or go test
java
groovy		 Gradle:
gradle assemble
gradle check

Maven:
mvn install -DskipTests=true -Dmaven.javadoc.skip=true -B -V
mvn test -B

Ant:
ant test
node_js npm install or npm ci or yarn
npm test
objective-c
swift		 pod install or bundle exec pod install
xcodebuild -scheme [scheme] build test \| xcpretty
perl cpanm --quiet --installdeps --notest .

Build.PL:
perl ./Build.pl
./Build test

Makefile.PL:
perl Makefile.PL
make test

Makefile:
make test
php phpunit
python pip install -r requirements.txt
ruby bundle install --jobs=3 --retry=3
rake

In addition, less common languages can be enabled but require another dependency installation step or execution inside a docker container:

Language Commands
crystal docker run -v $(pwd):/src -w /src crystallang/crystal shards install
docker run -v $(pwd):/src -w /src crystallang/crystal crystal spec
d sudo wget http://master.dl.sourceforge.net/project/d-apt/files/d-apt.list -O /etc/apt/sources.list.d/d-apt.list
sudo apt-get update
sudo apt-get -y --allow-unauthenticated install --reinstall d-apt-keyring
sudo apt-get update
sudo apt-get install dmd-compiler dub
dub test --compiler=dmd
dart wget https://dl-ssl.google.com/linux/linux_signing_key.pub -O - \| sudo apt-key add -
wget https://storage.googleapis.com/download.dartlang.org/linux/debian/dart_stable.list -O /etc/apt/sources.list.d/dart_stable.list
sudo apt-get update
sudo apt-get install dart
/usr/lib/dart/bin/pub get
/usr/lib/dart/bin/pub run test
erlang sudo apt-get install rebar
rebar get-deps
rebar compile
rebar skip_deps=true eunit
elixir sudo apt-get install elixir
mix local.rebar --force
mix local.hex --force
mix deps.get
mix test
haskell sudo apt-get install cabal-install
cabal install --only-dependencies --enable-tests
cabal configure --enable-tests
cabal build
cabal test
haxe sudo apt-get install haxe
yes \| haxelib install [hxml]
haxe [hxml]
julia sudo apt-get install julia
julia -e "using Pkg; Pkg.build(); end"
julia --check-bounds=yes -e "Pkg; Pkg.test(coverage=true); end"
nix docker run -v $(pwd):/src -w /src nixos/nix nix-build
perl6 sudo apt-get install rakudo
PERL6LIB=lib prove -v -r --exec=perl6 t/
rust curl -sSf https://sh.rustup.rs | sh -s -- -y
cargo build --verbose
cargo test --verbose
scala echo "deb https://repo.scala-sbt.org/scalasbt/debian /" | /etc/apt/sources.list.d/sbt.list
sudo apt-key adv --keyserver hkp://keyserver.ubuntu.com:80 --recv 2EE0EA64E40A89B84B2DF73499E82A75642AC823
sudo apt-get update
sudo apt-get install sbt
sbt ++2.11.6 test
smalltalk docker run -v $(pwd):/src -w /src hpiswa/smalltalkci smalltalkci

Multiple language selections

You can also configure an environment that supports building different applications in multiple languages. For example, to ensure the build environment targets both Node.JS 16.x and Ruby 3.2 or better:

azure-pipelines.yml

steps:
- task: UseNode@1
  inputs:
    version: '8.x'
- task: UseRubyVersion@0
  inputs:
    versionSpec: '>= 3.2'

Phases

In Travis, steps are defined in a fixed set of named phases such as before_install or before_script. Azure Pipelines doesn't have named phases and steps can be grouped, named, and organized in whatever way makes sense for the pipeline.

For example:

.travis.yml

before_install:
    - npm install -g bower
install:
    - npm install
    - bower install
script:
    - npm run build
    - npm test

azure-pipelines.yml

steps:
- script: npm install -g bower
- script: npm install
- script: bower install
- script: npm run build
- script: npm test

Alternatively, steps can be grouped together and optionally named:

azure-pipelines.yml

steps:
- script: |
    npm install -g bower
    npm install
    bower install
  displayName: 'Install dependencies'
- script: npm run build
- script: npm test

Parallel jobs

Travis provides parallelism by letting you define a stage, which is a group of jobs that are executed in parallel. A Travis build can have multiple stages; once all jobs in a stage have completed, the next stage starts.

With Azure Pipelines, you can make each step or stage dependent on any other step. In this way, you specify which steps run serially, and which can run in parallel. So you can fan out with multiple steps run in parallel after the completion of one step, and then fan back in with a single step that runs afterward. This model gives you options to define complex workflows if necessary. For now, here's a simple example:

Simple Parallel Execution Illustration

For example, to run a build script, then upon its completion run both the unit tests and the integration tests in parallel, and once all tests have finished, package the artifacts and then run the deploy to pre-production:

.travis.yml

jobs:
  include:
  - stage: build
    script: ./build.sh
  - stage: test
    script: ./test.sh unit_tests
  - script: ./test.sh integration_tests
  - stage: package
    script: ./package.sh
  - stage: deploy
    script: ./deploy.sh pre_prod

azure-pipelines.yml

jobs:
- job: build
  steps:
  - script: ./build.sh
- job: test1
  dependsOn: build
  steps:
  - script: ./test.sh unit_tests
- job: test2
  dependsOn: build
  steps:
  - script: ./test.sh integration_tests
- job: package
  dependsOn:
  - test1
  - test2
  script: ./package.sh
- job: deploy
  dependsOn: package
  steps:
  - script: ./deploy.sh pre_prod

Advanced parallel execution

In Azure Pipelines you have more options and control over how you orchestrate your pipeline.

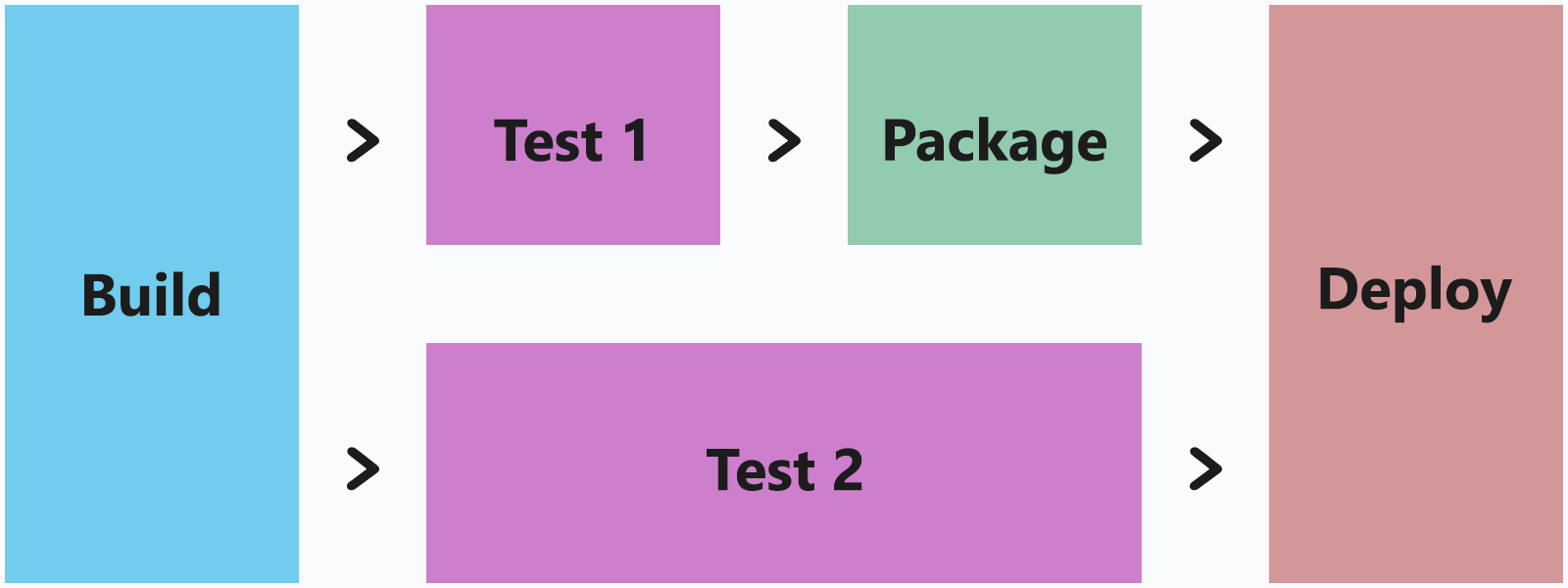

For example, a team has a set of fast-running unit tests, and another set of and slower integration tests. The team wants to begin creating the .ZIP file for a release as soon as the unit are completed because they provide high confidence that the build provides a good package. But before they deploy to pre-production, they want to wait until all tests have passed:

Advanced Parallel Execution Illustration

In Azure Pipelines they can do it this way:

azure-pipelines.yml

jobs:
- job: build
  steps:
  - script: ./build.sh
- job: test1
  dependsOn: build
  steps:
  - script: ./test.sh unit_tests
- job: test2
  dependsOn: build
  steps:
  - script: ./test.sh integration_tests
- job: package
  dependsOn: test1
  script: ./package.sh
- job: deploy
  dependsOn:
  - test1
  - test2
  - package
  steps:
  - script: ./deploy.sh pre_prod

Step reuse

In Travis you can use matrices to run multiple executions across a single configuration. In Azure Pipelines you can use matrices in the same way, but you can also implement configuration reuse with templates.

Example: Environment variable in a matrix

One of the most common ways to run several builds with a slight variation is to change the execution using environment variables. For example, your build script can look for the presence of an environment variable and change the way your software is built, or the way it's tested.

You can use a matrix to have run a build configuration several times, once for each value in the environment variable. For example, to run a given script three times, each time with a different setting for an environment variable:

.travis.yml

os: osx
env:
  matrix:
  - MY_ENVIRONMENT_VARIABLE: 'one'
  - MY_ENVIRONMENT_VARIABLE: 'two'
  - MY_ENVIRONMENT_VARIABLE: 'three'
script: echo $MY_ENVIRONMENT_VARIABLE

azure-pipelines.yml

pool:
  vmImage: 'macOS-latest'
strategy:
  matrix:
    set_env_to_one:
      MY_ENVIRONMENT_VARIABLE: 'one'
    set_env_to_two:
      MY_ENVIRONMENT_VARIABLE: 'two'
    set_env_to_three:
      MY_ENVIRONMENT_VARIABLE: 'three'
steps:
- script: echo $(MY_ENVIRONMENT_VARIABLE)

Example: Language versions in a matrix

Another common scenario is to run against several different language environments. Travis supports an implicit definition using the language keyword, while Azure Pipelines expects an explicit task to define how to configure that language version.

You can use the environment variable matrix options in Azure Pipelines to enable a matrix for different language versions. For example, you can set an environment variable in each matrix variable that corresponds to the language version that you want to use, then in the first step, use that environment variable to run the language configuration task:

.travis.yml

os: linux
matrix:
  include:
  - rvm: 2.3.7
  - rvm: 2.4.4
  - rvm: 2.5.1
script: ruby --version

azure-pipelines.yml

vmImage: 'ubuntu-latest'
strategy:
  matrix:
    ruby 2.3:
      ruby_version: '2.3.7'
    ruby 2.4:
      ruby_version: '2.4.4'
    ruby 2.5:
      ruby_version: '2.5.1'
steps:
- task: UseRubyVersion@0
  inputs:
    versionSpec: $(ruby_version)
- script: ruby --version

Example: Operating systems within a matrix

It's also common to run builds in multiple operating systems. Travis supports this definition using the os keyword, while Azure Pipelines lets you configure the operating system by selecting the pool to run in using the vmImage keyword.

For example, you can set an environment variable in each matrix variable that corresponds to the operating system image that you want to use. Then you can set the machine pool to the variable you've set:

.travis.yml

matrix:
  include:
  - os: linux
  - os: windows
  - os: osx
script: echo Hello, world!

azure-pipelines.yml

strategy:
  matrix:
    linux:
      imageName: 'ubuntu-latest'
    mac:
      imageName: 'macOS-latest'
    windows:
      imageName: 'windows-latest'

pool:
  vmImage: $(imageName)

steps:
- script: echo Hello, world!

Success and failure handling

Travis allows you to specify steps that run when the build succeeds, using the after_success phase, or when the build fails, using the after_failure phase. With Azure Pipelines you can define success and failure conditions based on the result of any step, which enables more flexible and powerful pipelines.

.travis.yml

build: ./build.sh
after_success: echo Success
after_failure: echo Failed

azure-pipelines.yml

steps:
- script: ./build.sh
- script: echo Success
  condition: succeeded()
- script: echo Failed
  condition: failed()

Advanced success and failure handling

In Azure Pipelines you can program a flexible set of dependencies and conditions for flow control between jobs.
You can configure jobs to run based on the success or failure of previous jobs or based on environment variables. You can even configure jobs to always run, regardless of the success of other jobs.

For example, if you want to run a script when the build fails, but only if it's running as a build on the main branch:

azure-pipelines.yml

jobs:
- job: build
  steps:
  - script: ./build.sh
- job: alert
  dependsOn: build
  condition: and(failed(), eq(variables['Build.SourceBranch'], 'refs/heads/main'))
  steps:
  - script: ./sound_the_alarms.sh

Predefined variables

Both Travis and Azure Pipelines set multiple environment variables to allow you to inspect and interact with the execution environment of the CI system.

In most cases, there's an Azure Pipelines variable to match the environment variable in Travis. Here's a list of commonly used environment variables in Travis and their analog in Azure Pipelines:

Travis Azure Pipelines Description
CI=true or TRAVIS=true TF_BUILD=True Indicates that your build is running in the CI system; useful for scripts that are also intended to be run locally during development.
TRAVIS_BRANCH CI builds:
BUILD_SOURCEBRANCH

Pull request builds:
SYSTEM_PULLREQUEST_TARGETBRANCH		 The name of the branch the build was queued for, or the name of the branch the pull request is targeting.
TRAVIS_BUILD_DIR BUILD_SOURCESDIRECTORY The location of your checked out source and the default working directory.
TRAVIS_BUILD_NUMBER BUILD_BUILDID A unique numeric identifier for the current build invocation.
TRAVIS_COMMIT CI builds:
BUILD_SOURCEVERSION		 The commit ID currently being built.
TRAVIS_COMMIT Pull request builds:
git rev-parse HEAD^2		 For pull request validation builds, Azure Pipelines sets BUILD_SOURCEVERSION to the resulting merge commit of the pull request into main; this command identifies the pull request commit itself.
TRAVIS_COMMIT_MESSAGE BUILD_SOURCEVERSIONMESSAGE The log message of the commit being built.
TRAVIS_EVENT_TYPE BUILD_REASON The reason the build was queued; a map of values is in the "build reasons" table below.
TRAVIS_JOB_NAME AGENT_JOBNAME The name of the current job, if specified.
TRAVIS_OS_NAME AGENT_OS The operating system that the job is running on; a map of values is in the "operating systems" table below.
TRAVIS_PULL_REQUEST Azure Repos:
SYSTEM_PULLREQUEST_PULLREQUESTID

GitHub:
SYSTEM_PULLREQUEST_PULLREQUESTNUMBER		 The pull request number that triggered this build. (For GitHub builds, this is a unique identifier that is not the pull request number.)
TRAVIS_PULL_REQUEST_BRANCH SYSTEM_PULLREQUEST_SOURCEBRANCH The name of the branch where the pull request originated.
TRAVIS_PULL_REQUEST_SHA Pull request builds:
git rev-parse HEAD^2		 For pull request validation builds, Azure Pipelines sets BUILD_SOURCEVERSION to the resulting merge commit of the pull request into main; this command identifies the pull request commit itself.
TRAVIS_PULL_REQUEST_SLUG The name of the forked repository, if the pull request originated in a fork. There's no analog to this in Azure Pipelines.
TRAVIS_REPO_SLUG BUILD_REPOSITORY_NAME The name of the repository that this build is configured for.
TRAVIS_TEST_RESULT AGENT_JOBSTATUS Travis sets this value to 0 if all previous steps have succeeded (returned 0). For Azure Pipelines, check that AGENT_JOBSTATUS=Succeeded.
TRAVIS_TAG BUILD_SOURCEBRANCH If this build was queued by the creation of a tag then this is the name of that tag. For Azure Pipelines, the BUILD_SOURCEBRANCH is set to the full Git reference name, for example, refs/tags/tag_name.
TRAVIS_BUILD_STAGE_NAME The name of the stage in Travis. As we saw earlier, Azure Pipelines handles flow control using jobs. You can reference AGENT_JOBNAME.

Build Reasons:

The TRAVIS_EVENT_TYPE variable contains values that map to values provided by the Azure Pipelines BUILD_REASON variable:

Travis Azure Pipelines Description
push IndividualCI The build is a continuous integration build from a push.
pull_request PullRequest The build was queued to validate a pull request.
api Manual The build was queued by the REST API or a manual request on the web page.
cron Schedule The build was scheduled.

Operating Systems:

The TRAVIS_OS_NAME variable contains values that map to values provided by the Azure Pipelines AGENT_OS variable:

Travis Azure Pipelines Description
linux Linux The build is running on Linux.
osx Darwin The build is running on macOS.
windows Windows_NT The build is running on Windows.

For more information, see Predefined environment variables.

If there isn't a variable for the data you need, then you can use a shell command to get it. For example, a good substitute of an environment variable containing the commit ID of the pull request being built is to run a git command: git rev-parse HEAD^2.

Building specific branches

By default, both Travis and Azure Pipelines perform CI builds on all branches. Similarly, both systems allow you to limit these builds to specific branches. In Azure Pipelines, the list of branches to build should be listed in the include list and the branches not to build should be listed in the `exclude list. Wildcards are supported.

For example, to build only the main branch and those that begin with the word "releases":

.travis.yml

branches:
  only:
  - main
  - /^releases.*/

azure-pipelines.yml

trigger:
  branches:
    include:
    - main
    - releases*

Output caching

Travis supports caching dependencies and intermediate build output to improve build times. Azure Pipelines doesn't support caching intermediate build output, but does offer integration with Azure Artifacts for dependency storage.

Git submodules

Travis and Azure Pipelines both clone git repos "recursively" by default. This means that submodules are cloned by the agent, which is useful since submodules usually contain dependencies. However, the extra cloning takes time, so if you don't need the dependencies then you can disable cloning submodules:

.travis.yml

git:
  submodules: false

azure-pipelines.yml

checkout:
  submodules: false
