Access data through Excel

Azure DevOps Services | Azure DevOps Server 2022 - Azure DevOps Server 2019

You can access data through Excel, generate reports, and then publish the charts to Power BI or use the Excel file as a basis for Power BI reports. At this time, you'll need to have alternate credentials enabled to access data Analytics via Excel.

Note

The Analytics service is automatically enabled for all Azure DevOps Services. It is supported for use in production. Power BI integration and access to the OData feed of the Analytics Service are generally available. We encourage you to use it and provide us feedback. >
Data available is version-dependent. The latest supported version is v2.0, and the latest preview version is v4.0-preview. To learn more, see OData API versioning.

Note

The Analytics service is automatically installed on all new project collections for Azure DevOps Server 2020 and later versions. It is supported for use in production. Power BI integration and access to the OData feed of the Analytics Service are generally available. We encourage you to use it and provide us feedback. If you upgraded from Azure DevOps Server 2019, then you're provided with the option to install the Analytics service during upgrade.

Data available is version-dependent. The latest supported version is v2.0, and the latest preview version is v4.0-preview. To learn more, see OData API versioning.

Note

The Analytics service is in preview for Azure DevOps Server 2019. You access Analytics by enabling or installing it for a project collection. Power BI integration and access to the OData feed of the Analytics Service are in Preview. We encourage you to use it and provide us feedback.

Data available is version-dependent. The latest supported version is v2.0, and the latest preview version is v4.0-preview. To learn more, see OData API versioning.

  1. To get started, Open Excel 2016.

    It will work with earlier versions of Excel. You'll need to have installed the Power Query add-in that you can do from Microsoft Power Query for Excel.

  2. Create a blank workbook.

  3. In the Data tab, choose New Query>From Other Sources>From OData Feed.

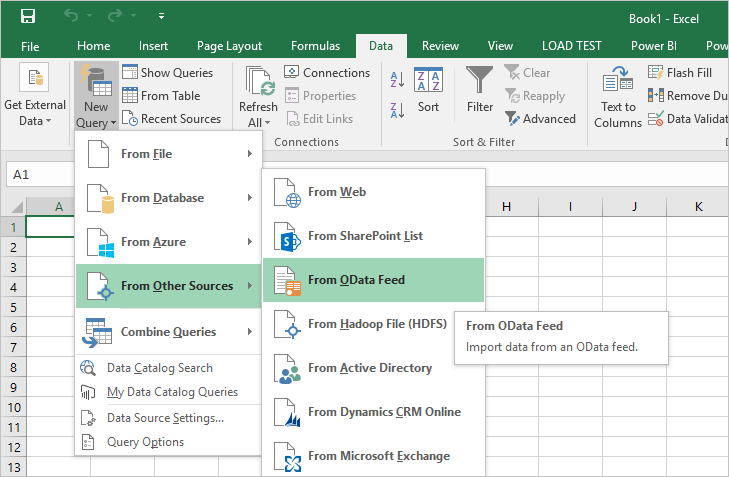

    Excel Get Data

  4. Enter the URL in the format below and choose OK:

     https://analytics.dev.azure.com/{OrganizationName}/_odata/{version}/


    If the OrganizationName is fabrikam and the version is v1.0, then the URL is https://analytics.dev.azure.com/fabrikam/_odata/v1.0/.

    Select OData Feed

    Note

    Alternatively, you can enter the URL with the ProjectName specified which will trim the results by the specified project across all entities related to that project.

    https://analytics.dev.azure.com/{OrganizationName}/{ProjectName}/_odata/{version}/

     https://{ServerName}:{Port}/tfs/{CollectionName}/_odata/{version}/


    If the CollectionName is fabrikam and the version is v1.0, then the URL is https://{ServerName}:{Port}/tfs/fabrikam/_odata/{v1.0}/.

    Select OData Feed

    Note

    Alternatively, you can enter the URL with the ProjectName specified which will trim the results by the specified project across all entities related to that project.

    https://{ServerName}:{Port}/tfs/{CollectionName}/{ProjectName}/_odata/{version}/

  5. At this point, you'll be prompted to authenticate against the service. If you haven't done so previously, see Client authentication options.

  6. Either select a single entity to retrieve the data for or check Select multiple items and choose the data to return.

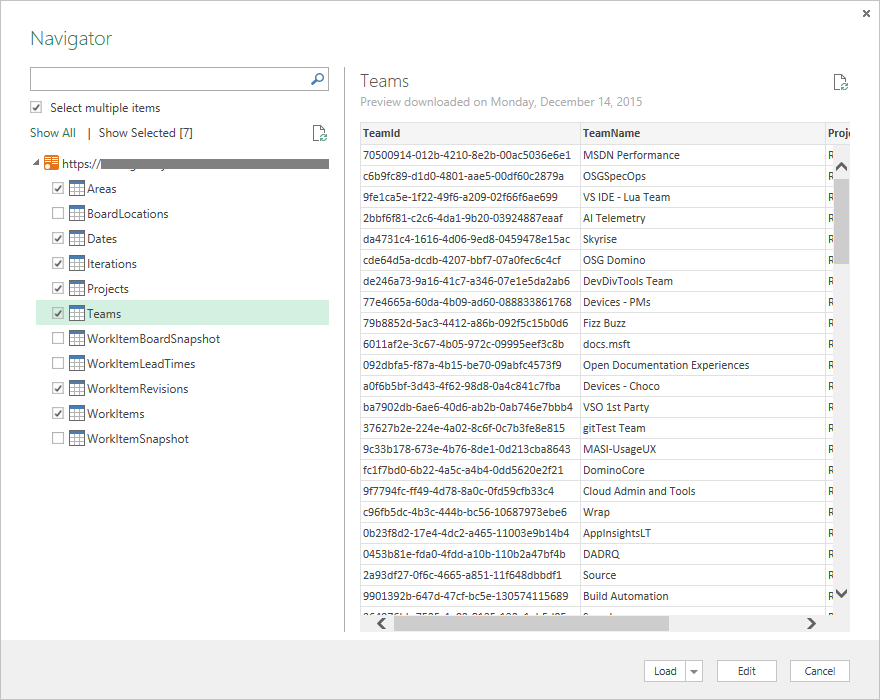

    Excel Navigator

    At this point, if you select Load, Excel will load all of the data in each entity into Power Query. However, it may be more data than you want (or than Excel can handle). To filter the data, select the entity to filter and choose Edit to bring up the Query Editor. For each column you want to filter on, select it and set your filter. When it's complete, choose Close & Apply in the upper left corner.

    Important

    Do not select any entity with the name Snapshot in it. These entities contain the state of every work item on every day since each work item was created. For repositories of any size this will lead to tens or hundreds of millions of work items which will not load correctly. In order to perform trend analysis, narrow the scope of data being retrieved to the specific items and time frame and pull this information in with a separate OData query.

As an alternative to loading the data into Power Query, you can choose the drop-down arrow next to Load and select Load To instead. This action allows the following options:

  • Load the data to table that is Power Query.
  • Create a connection without loading the data (essentially deferring the data load until later).
  • To a worksheet that will just load the one entity per worksheet.
  • To a model (which you can select with the other options) that loads the data into PowerPivot.

More information on these options can be found in the Excel documentation.

Handling relationships

By default, when basic data is returned from Analytics, the data is related as shown in the figure below:

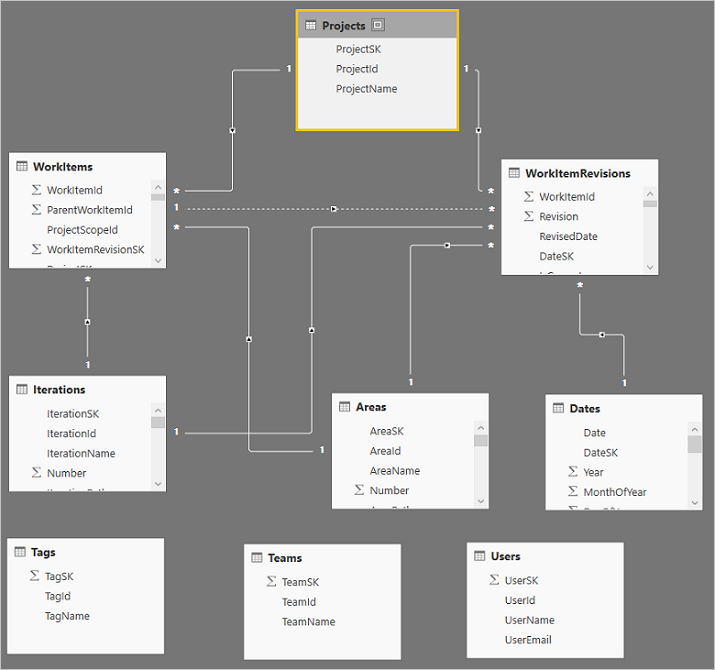

Entity relationships

The Tags, Teams, and Users aren't related to any of the other data. It's because of how those entities are related. They're related by either many-to-many relationships that aren't easily handled in these models or there are multiple relationships between the entities such as between users and work items (they're related by Assigned To, Created By, Changed By, and others).

Multiple relationships can be handled in fairly simply. For example, in the default model you can edit the query, select the AssignedTo column of the WorkItems table and expand the column to include all of the data from the Users table and you can repeat this process for the Created By and Changed By columns as well. It gets you around having multiple links from one table to another which isn't allowed.
