Tutorial: Build out an end-to-end solution

This Azure Digital Twins tutorial describes how to build out an end-to-end solution that demonstrates the functionality of the service. To set up a full end-to-end solution driven by live data from your environment, you can connect your Azure Digital Twins instance to other Azure services for management of devices and data.

In this tutorial, you will...

  • Set up an Azure Digital Twins instance
  • Learn about the sample building scenario and instantiate the pre-written components
  • Use an Azure Functions app to route simulated telemetry from an IoT Hub device into digital twin properties
  • Propagate changes through the twin graph by processing digital twin notifications with Azure Functions, endpoints, and routes

Prerequisites

Before beginning this tutorial, start with these prerequisites:

  • If you don't have an Azure subscription, create a free account before you begin.
  • This tutorial uses .NET Core 3.1. You can download this version of the .NET Core SDK for multiple platforms from Download .NET Core 3.1.

Then, continue through the rest of this section to set up the remaining prerequisites.

Get sample resources

The tutorial is driven by an Azure Digital Twins end-to-end sample project written in C#. Get the sample project on your machine by navigating to the sample link, and selecting the Browse code button underneath the title.

This will take you to the GitHub repo for the samples, which you can download as a .zip by selecting the Code button followed by Download ZIP.

Screenshot of the digital-twins-samples repo on GitHub, highlighting the steps to download it as a zip.

This will download a .zip folder to your machine as digital-twins-samples-main.zip. Unzip the folder and extract the files.

Prepare an Azure Digital Twins instance

To work with Azure Digital Twins in this article, you'll need an Azure Digital Twins instance and the required permissions for using it. If you already have an Azure Digital Twins instance set up, you can use that instance and skip to the next section.

Otherwise, follow the instructions in Set up an instance and authentication. The instructions contain information to help you verify that you've completed each step successfully.

After you set up your instance, make a note of the following values. You'll need these values to connect to the instance later:

  • The instance's host name. You can find the host name in the Azure portal.
  • The Azure subscription that you used to create the instance. Either its name or its ID will work. You can find the subscription on your instance's Overview page in the Azure portal.

Prepare your environment for the Azure CLI

You can use either the Azure Cloud Shell or a local Azure CLI.

Set up CLI session

To start working with Azure Digital Twins in the CLI, the first thing to do is log in and set the CLI context to your subscription for this session. Run these commands in your CLI window:

az login
az account set --subscription "<your-Azure-subscription-ID>"

Tip

You can also use your subscription name instead of the ID in the command above.

If this is the first time you've used this subscription with Azure Digital Twins, run this command to register with the Azure Digital Twins namespace. (If you're not sure, it's ok to run it again even if you've done it sometime in the past.)

az provider register --namespace 'Microsoft.DigitalTwins'

Next you'll add the Microsoft Azure IoT Extension for Azure CLI, to enable commands for interacting with Azure Digital Twins and other IoT services. Run this command to make sure you have the latest version of the extension:

az extension add --upgrade --name azure-iot

Now you are ready to work with Azure Digital Twins in the Azure CLI.

You can verify this by running az dt --help at any time to see a list of the top-level Azure Digital Twins commands that are available.

Configure the sample project

Next, set up a sample client application that will interact with your Azure Digital Twins instance.

Navigate on your machine to the folder you downloaded earlier from Azure Digital Twins end-to-end samples (and unzip it if you haven't already).

Once inside the folder, navigate into digital-twins-samples-main\AdtSampleApp\SampleClientApp and open the appsettings.json file. This JSON file contains a configuration variable that's necessary to run the project.

In the file body, change the instanceUrl to your Azure Digital Twins instance host name URL (by adding https:// in front of the host name, as shown below).

{
  "instanceUrl": "https://<your-Azure-Digital-Twins-instance-host-name>"
}

Save and close the file.

Set up local Azure credentials

This sample uses DefaultAzureCredential (part of the Azure.Identity library) to authenticate users with the Azure Digital Twins instance when you run it on your local machine. For more information on different ways a client app can authenticate with Azure Digital Twins, see Write app authentication code.

With DefaultAzureCredential, the sample will search for credentials in your local environment, like an Azure sign-in in a local Azure CLI or in Visual Studio or Visual Studio Code. For this reason, you should sign in to Azure locally through one of these mechanisms to set up credentials for the sample.

If you're using Visual Studio or Visual Studio Code to run code samples, make sure you're signed in to that editor with the same Azure credentials that you want to use to access your Azure Digital Twins instance. If you're using a local CLI window, run the az login command to sign in to your Azure account. After this, when you run your code sample, you should be authenticated automatically.

Get started with the building scenario

The sample project used in this tutorial represents a real-world building scenario, containing a floor, a room, and a thermostat device. These components will be digitally represented in an Azure Digital Twins instance, which will then be connected to IoT Hub, Event Grid, and two Azure functions to enable movement of data.

Below is a diagram representing the full scenario.

You'll first create the Azure Digital Twins instance (section A in the diagram), then set up the telemetry data flow into the digital twins (arrow B), then set up the data propagation through the twin graph (arrow C).

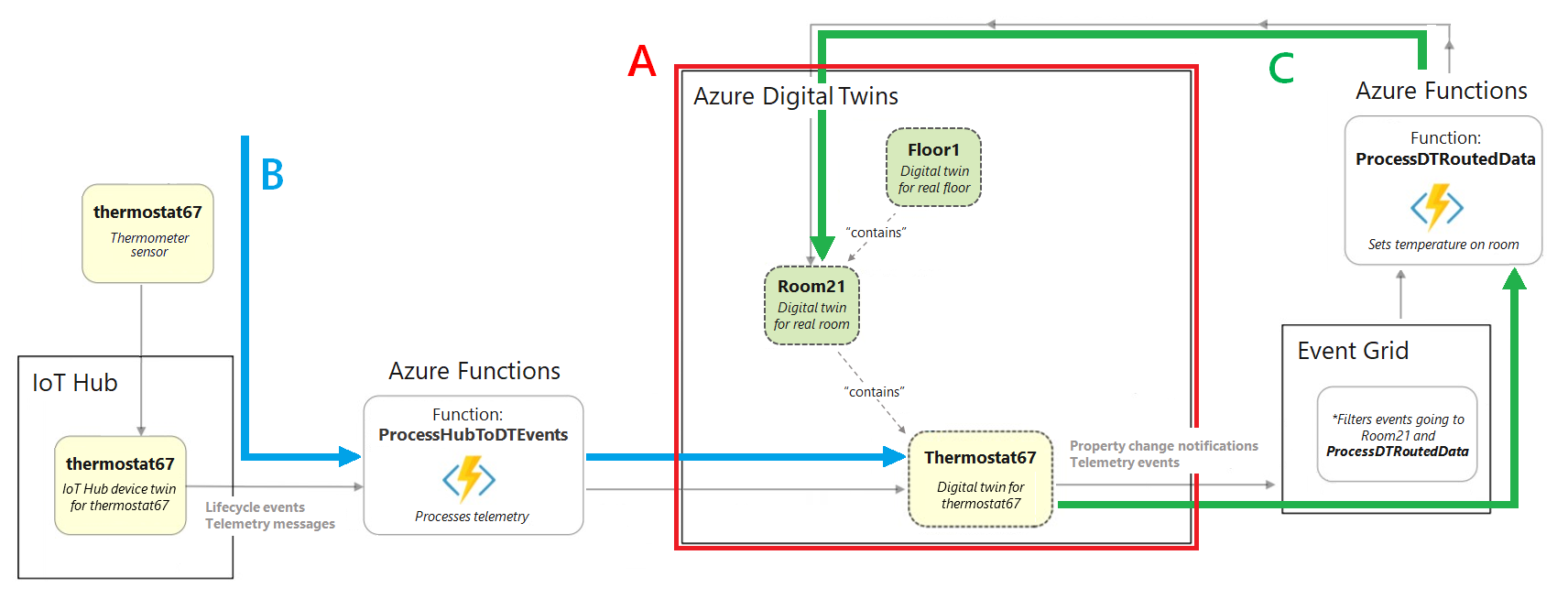

Diagram of the full building scenario, which shows the data flowing from a device into and out of Azure Digital Twins through various Azure services.

To work through the scenario, you'll interact with components of the pre-written sample app you downloaded earlier.

Here are the components implemented by the building scenario AdtSampleApp sample app:

  • Device authentication
  • .NET (C#) SDK usage examples (found in CommandLoop.cs)
  • Console interface to call the Azure Digital Twins API
  • SampleClientApp - A sample Azure Digital Twins solution
  • SampleFunctionsApp - An Azure Functions app that updates your Azure Digital Twins graph based on telemetry from IoT Hub and Azure Digital Twins events

Instantiate the pre-created twin graph

First, you'll use the AdtSampleApp solution from the sample project to build the Azure Digital Twins piece of the end-to-end scenario (section A):

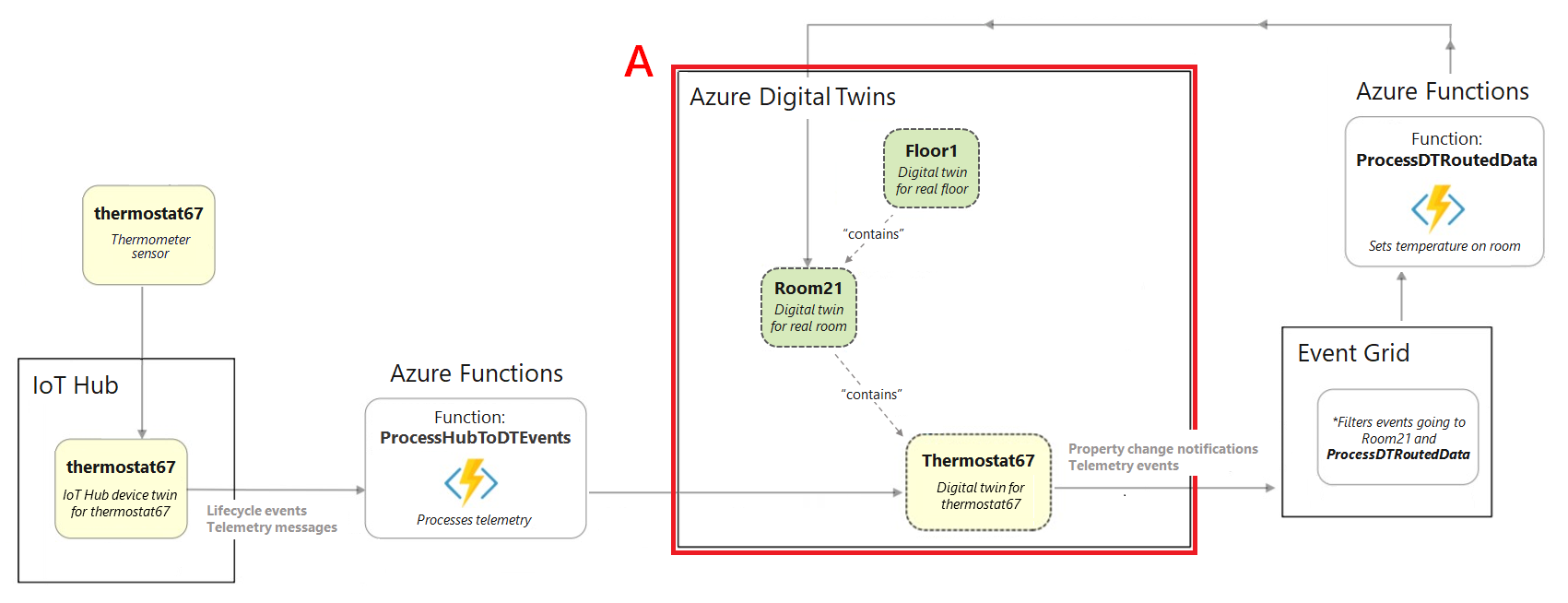

Diagram of an excerpt from the full building scenario diagram highlighting the Azure Digital Twins instance section.

Open a local console window and navigate into the digital-twins-samples-main\AdtSampleApp\SampleClientApp folder. Run the SampleClientApp project with this dotnet command:

dotnet run

The project will start running, carry out authentication, and wait for a command. In this console, run the next command to instantiate the sample Azure Digital Twins solution.

Important

If you already have digital twins and relationships in your Azure Digital Twins instance, running this command will delete them and replace them with the twins and relationships for the sample scenario.

SetupBuildingScenario

The output of this command is a series of confirmation messages as three digital twins are created and connected in your Azure Digital Twins instance: a floor named floor1, a room named room21, and a temperature sensor named thermostat67. These digital twins represent the entities that would exist in a real-world environment.

They're connected via relationships into the following twin graph. The twin graph represents the environment as a whole, including how the entities interact with and relate to each other.

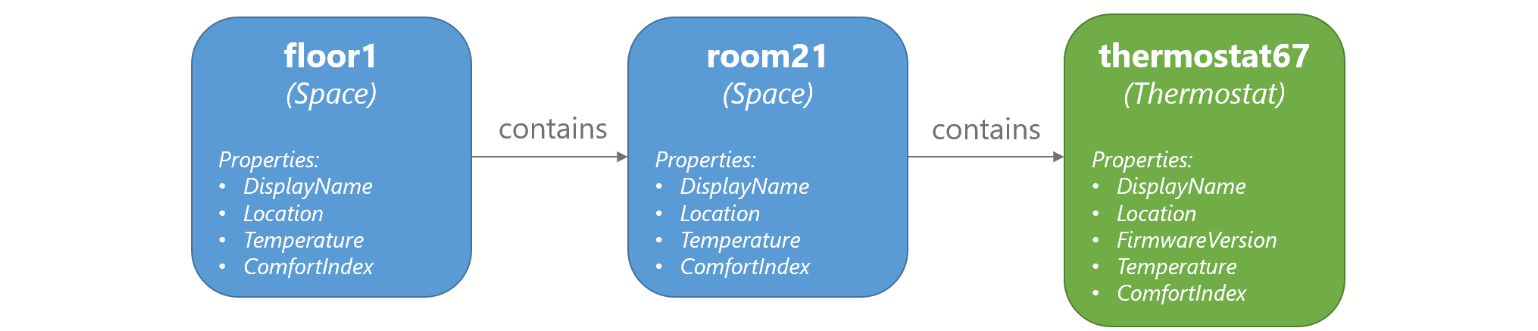

Diagram showing that floor1 contains room21, and room21 contains thermostat67.

You can verify the twins that were created by running the following command, which queries the connected Azure Digital Twins instance for all the digital twins it contains:

Query

You can now stop running the project. Keep the console window open at this location, though, as you'll use this app again later in the tutorial.

Set up the sample function app

The next step is setting up an Azure Functions app that will be used throughout this tutorial to process data. The function app, SampleFunctionsApp, contains two functions:

  • ProcessHubToDTEvents: processes incoming IoT Hub data and updates Azure Digital Twins accordingly
  • ProcessDTRoutedData: processes data from digital twins, and updates the parent twins in Azure Digital Twins accordingly

In this section, you'll publish the pre-written function app, and ensure the function app can access Azure Digital Twins by assigning it an Azure Active Directory (Azure AD) identity.

The function app is part of the sample project you downloaded, located in the digital-twins-samples-main\AdtSampleApp\SampleFunctionsApp folder.

Publish the app

To publish the function app to Azure, you'll need to create a storage account, then create the function app in Azure, and finally publish the functions to the Azure function app. This section completes these actions using the Azure CLI.

  1. Create an Azure storage account by running the following command:

    az storage account create --name <name-for-new-storage-account> --location <location> --resource-group <resource-group> --sku Standard_LRS

  2. Create an Azure function app by running the following command:

    az functionapp create --name <name-for-new-function-app> --storage-account <name-of-storage-account-from-previous-step> --consumption-plan-location <location> --runtime dotnet --resource-group <resource-group>

  3. Next, you'll zip up the functions and publish them to your new Azure function app.

    1. Open a console window on your machine, and navigate into the digital-twins-samples-main\AdtSampleApp\SampleFunctionsApp folder inside your downloaded sample project.

    2. In the console, run the following command to publish the project locally:

      dotnet publish -c Release


      This command publishes the project to the digital-twins-samples-main\AdtSampleApp\SampleFunctionsApp\bin\Release\netcoreapp3.1\publish directory.

    3. Using your preferred method, create a zip of the published files that are located in the digital-twins-samples-main\AdtSampleApp\SampleFunctionsApp\bin\Release\netcoreapp3.1\publish directory. Name the zipped folder publish.zip.

      Tip

      If you're using PowerShell, you can create the zip by copying the full path to that \publish directory and pasting it into the following command:

      Compress-Archive -Path <full-path-to-publish-directory>\* -DestinationPath .\publish.zip


      The cmdlet will create the publish.zip file in the directory location of your console.

      Your publish.zip file should contain folders for bin, ProcessDTRoutedData, and ProcessHubToDTEvents, and there should also be a host.json file.

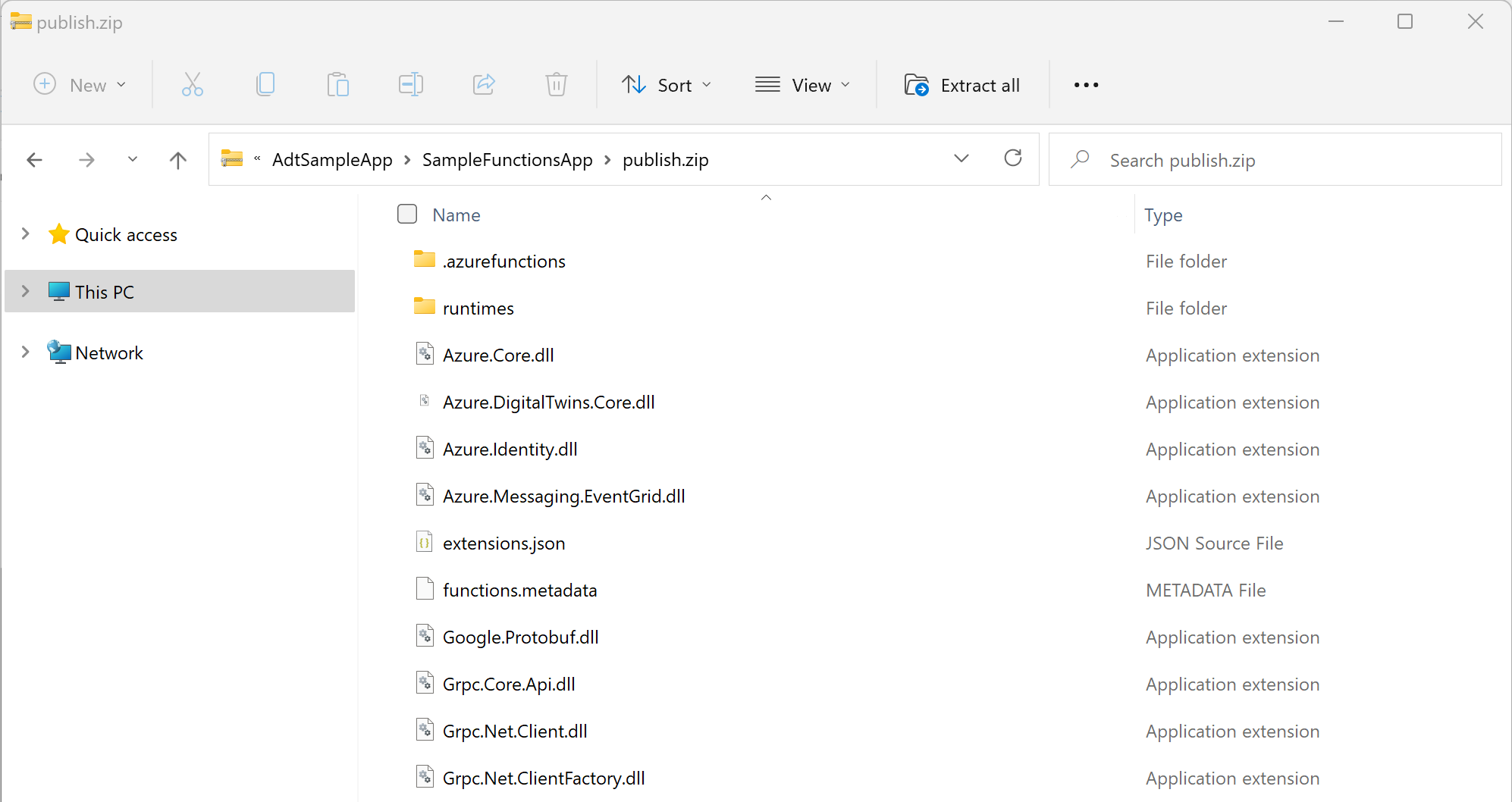

      Screenshot of File Explorer in Windows showing the contents of the publish zip folder.

    Now you can close the local console window that you used to prepare the project. The last step will be done in the Azure CLI.

  4. In the Azure CLI, run the following command to deploy the published and zipped functions to your Azure function app:

    az functionapp deployment source config-zip --resource-group <resource-group> --name <name-of-your-function-app> --src "<full-path-to-publish.zip>"


    Tip

    If you're using the Azure CLI locally, you can access the ZIP file on your computer directly using its path on your machine.

    If you're using the Azure Cloud Shell, upload the ZIP file to Cloud Shell with this button before running the command:

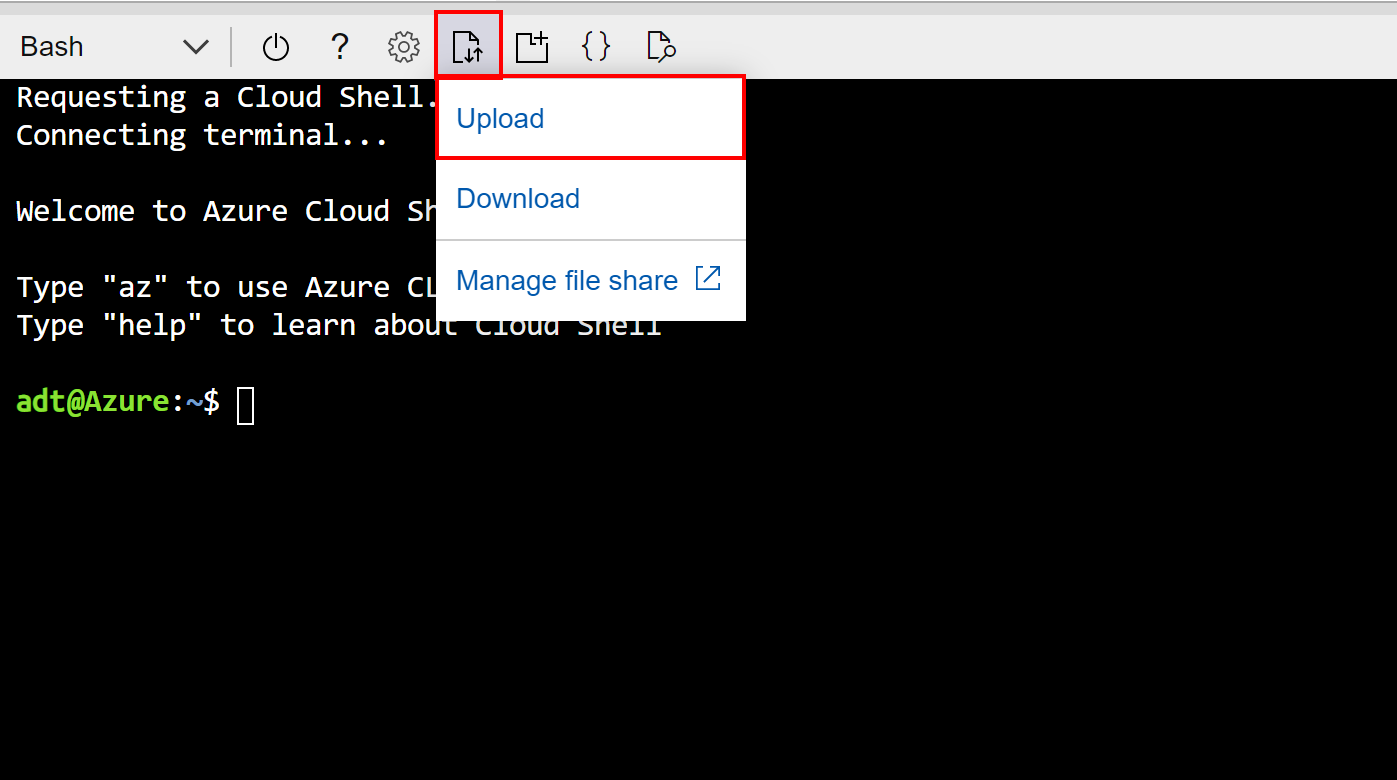

    Screenshot of the Azure Cloud Shell highlighting how to upload files.

    In this case, the file will be uploaded to the root directory of your Cloud Shell storage, so you can refer to the file directly by its name for the --src parameter of the command (as in, --src publish.zip).

    A successful deployment will respond with status code 202 and output a JSON object containing details of your new function. You can confirm the deployment succeeded by looking for this field in the result:

    {
      ...
      "provisioningState": "Succeeded",
      ...
    }


The functions should now be published to a function app in Azure. You can use the following CLI commands to verify both functions were published successfully. Each command has placeholders for your resource group and the name of your function app. The commands will print information about the ProcessDTRoutedData and ProcessHubToDTEvents functions that have been published.

az functionapp function show --resource-group <your-resource-group> --name <your-function-app> --function-name ProcessDTRoutedData
az functionapp function show --resource-group <your-resource-group> --name <your-function-app> --function-name ProcessHubToDTEvents

Next, your function app will need to have the right permission to access your Azure Digital Twins instance. You'll configure this access in the next section.

Configure permissions for the function app

There are two settings that need to be set for the function app to access your Azure Digital Twins instance, both of which can be done using the Azure CLI.

Assign access role

The first setting gives the function app the Azure Digital Twins Data Owner role in the Azure Digital Twins instance. This role is required for any user or function that wants to perform many data plane activities on the instance. You can read more about security and role assignments in Security for Azure Digital Twins solutions.

  1. Use the following command to create a system-managed identity for the function. The output will display details of the identity that's been created. Take note of the principalId field in the output to use in the next step.

    az functionapp identity assign --resource-group <your-resource-group> --name <your-function-app-name>

  2. Use the principalId value in the following command to assign the function app's identity to the Azure Digital Twins Data Owner role for your Azure Digital Twins instance.

    az dt role-assignment create --dt-name <your-Azure-Digital-Twins-instance> --assignee "<principal-ID>" --role "Azure Digital Twins Data Owner"


The result of this command is outputted information about the role assignment you've created. The function app now has permissions to access data in your Azure Digital Twins instance.

Configure application settings

The second setting creates an environment variable for the function with the URL of your Azure Digital Twins instance. The function code will use the value of this variable to refer to your instance. For more information about environment variables, see Manage your function app.

Run the command below, filling in the placeholders with the details of your resources.

az functionapp config appsettings set --resource-group <your-resource-group> --name <your-function-app-name> --settings "ADT_SERVICE_URL=https://<your-Azure-Digital-Twins-instance-host-name>"

The output is the list of settings for the Azure Function, which should now contain an entry called ADT_SERVICE_URL.

Process simulated telemetry from an IoT Hub device

An Azure Digital Twins graph is meant to be driven by telemetry from real devices.

In this step, you'll connect a simulated thermostat device registered in IoT Hub to the digital twin that represents it in Azure Digital Twins. As the simulated device emits telemetry, the data will be directed through the ProcessHubToDTEvents Azure function that triggers a corresponding update in the digital twin. In this way, the digital twin stays up to date with the real device's data. In Azure Digital Twins, the process of directing events data from one place to another is called routing events.

Processing the simulated telemetry happens in this part of the end-to-end scenario (arrow B):

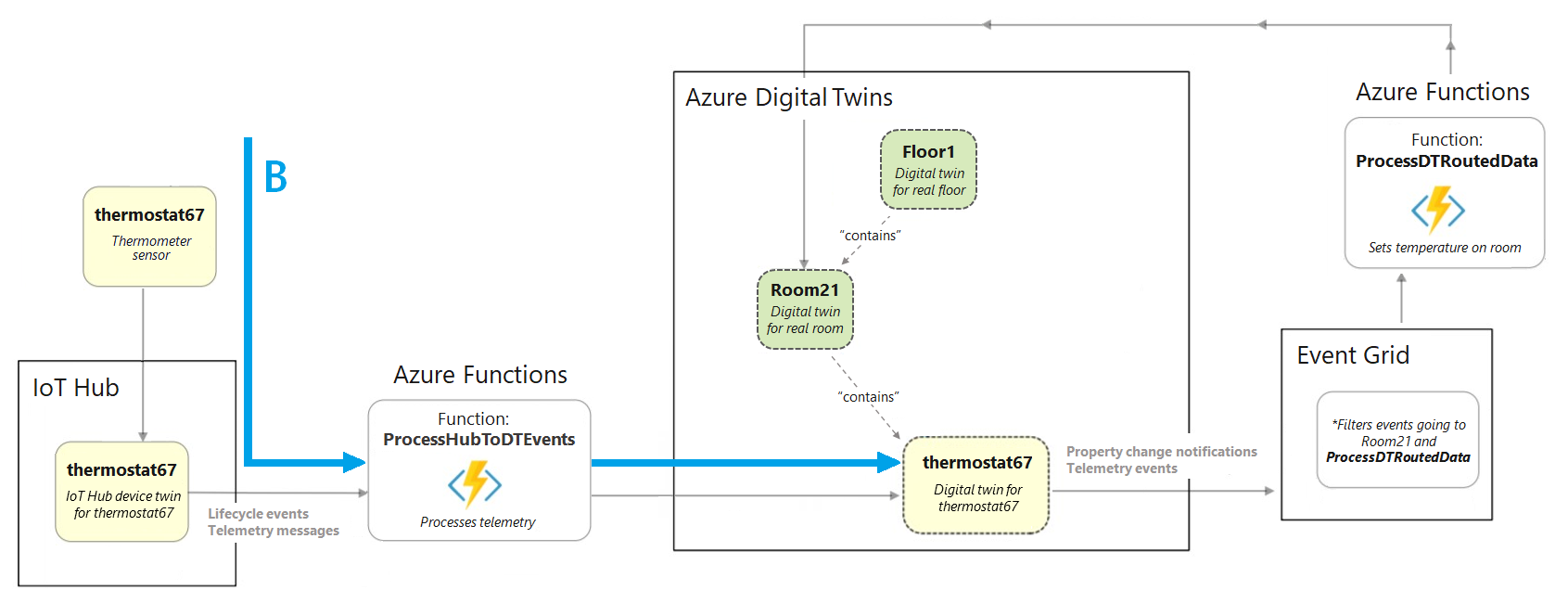

Diagram of an excerpt from the full building scenario diagram highlighting the section that shows elements before Azure Digital Twins.

Here are the actions you'll complete to set up this device connection:

  1. Create an IoT hub that will manage the simulated device
  2. Connect the IoT hub to the appropriate Azure function by setting up an event subscription
  3. Register the simulated device in IoT hub
  4. Run the simulated device and generate telemetry
  5. Query Azure Digital Twins to see the live results

Create an IoT Hub instance

Azure Digital Twins is designed to work alongside IoT Hub, an Azure service for managing devices and their data. In this step, you'll set up an IoT hub that will manage the sample device in this tutorial.

In the Azure CLI, use this command to create a new IoT hub:

az iot hub create --name <name-for-your-IoT-hub> --resource-group <your-resource-group> --sku S1

The output of this command is information about the IoT hub that was created.

Save the name that you gave to your IoT hub. You'll use it later.

Connect the IoT hub to the Azure function

Next, connect your IoT hub to the ProcessHubToDTEvents Azure function in the function app you published earlier, so that data can flow from the device in IoT Hub through the function, which updates Azure Digital Twins.

To do so, you'll create an event subscription on your IoT Hub, with the Azure function as an endpoint. This "subscribes" the function to events happening in IoT Hub.

Use the following CLI command to create the event subscription. There's a placeholder for you to enter a name for the event subscription, and there are also placeholders for you to enter your subscription ID, resource group, IoT hub name, and the name of your function app.

az eventgrid event-subscription create --name <name-for-hub-event-subscription> --event-delivery-schema eventgridschema --source-resource-id /subscriptions/<your-subscription-ID>/resourceGroups/<your-resource-group>/providers/Microsoft.Devices/IotHubs/<your-IoT-hub> --included-event-types Microsoft.Devices.DeviceTelemetry --endpoint-type azurefunction --endpoint /subscriptions/<your-subscription-ID>/resourceGroups/<your-resource-group>/providers/Microsoft.Web/sites/<your-function-app>/functions/ProcessHubToDTEvents

The output will show information about the event subscription that has been created. You can confirm that the operation completed successfully by verifying the provisioningState value in the result:

"provisioningState": "Succeeded",

Register the simulated device with IoT Hub

This section creates a device representation in IoT Hub with the ID thermostat67. The simulated device will connect into this representation, which is how telemetry events will go from the device into IoT Hub. The IoT hub is where the subscribed Azure function from the previous step is listening, ready to pick up the events and continue processing.

In the Azure CLI, create a device in IoT Hub with the following command:

az iot hub device-identity create --device-id thermostat67 --hub-name <your-IoT-hub-name> --resource-group <your-resource-group>

The output is information about the device that was created.

Configure and run the simulation

Next, configure the device simulator to send data to your IoT Hub instance.

Begin by getting the IoT hub connection string with this command:

az iot hub connection-string show --hub-name <your-IoT-hub-name>

Then, get the device connection string with this command:

az iot hub device-identity connection-string show --device-id thermostat67 --hub-name <your-IoT-hub-name>

Next, plug these values into the device simulator code in your local project to connect the simulator into this IoT hub and IoT hub device.

Navigate on your local machine to the downloaded sample folder, and into the digital-twins-samples-main\DeviceSimulator\DeviceSimulator folder. Open the AzureIoTHub.cs file for editing. Change the following connection string values to the values you gathered above:

iotHubConnectionString = <your-hub-connection-string>
deviceConnectionString = <your-device-connection-string>

Save the file.

Now, to see the results of the data simulation that you've set up, open a new local console window and navigate to digital-twins-samples-main\DeviceSimulator\DeviceSimulator.

Note

You should now have two open console windows: one that's open to the the DeviceSimulator\DeviceSimulator folder, and one from earlier that's still open to the AdtSampleApp\SampleClientApp folder.

Use the following dotnet command to run the device simulator project:

dotnet run

The project will start running and begin displaying simulated temperature telemetry messages. These messages are being sent to IoT Hub, where they're then picked up and processed by the Azure function.

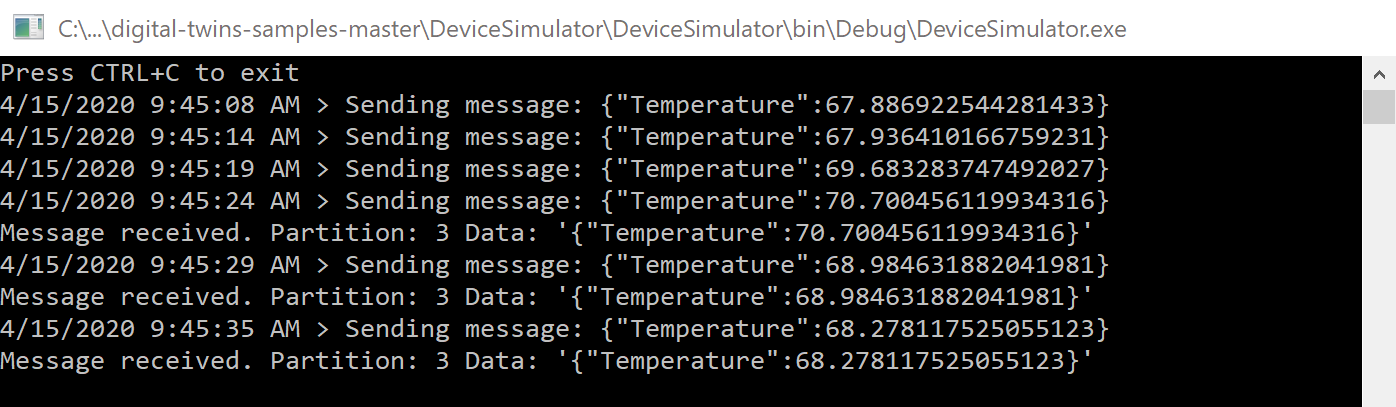

Screenshot of the console output of the device simulator showing temperature telemetry being sent.

You don't need to do anything else in this console, but leave it running while you complete the next steps.

See the results in Azure Digital Twins

The ProcessHubToDTEvents function you published earlier listens to the IoT Hub data, and calls an Azure Digital Twins API to update the Temperature property on the thermostat67 twin.

To see the data from the Azure Digital Twins side, switch to your other console window that's open to the AdtSampleApp\SampleClientApp folder. Run the SampleClientApp project with dotnet run.

Once the project is running and accepting commands, run the following command to get the temperatures being reported by the digital twin thermostat67:

ObserveProperties thermostat67 Temperature

You should see the live updated temperatures from your Azure Digital Twins instance being logged to the console every two seconds. They should reflect the values that the data simulator is generating (you can place the console windows side-by-side to verify that the values coordinate).

Note

It may take a few seconds for the data from the device to propagate through to the twin. The first few temperature readings may show as 0 before data begins to arrive.

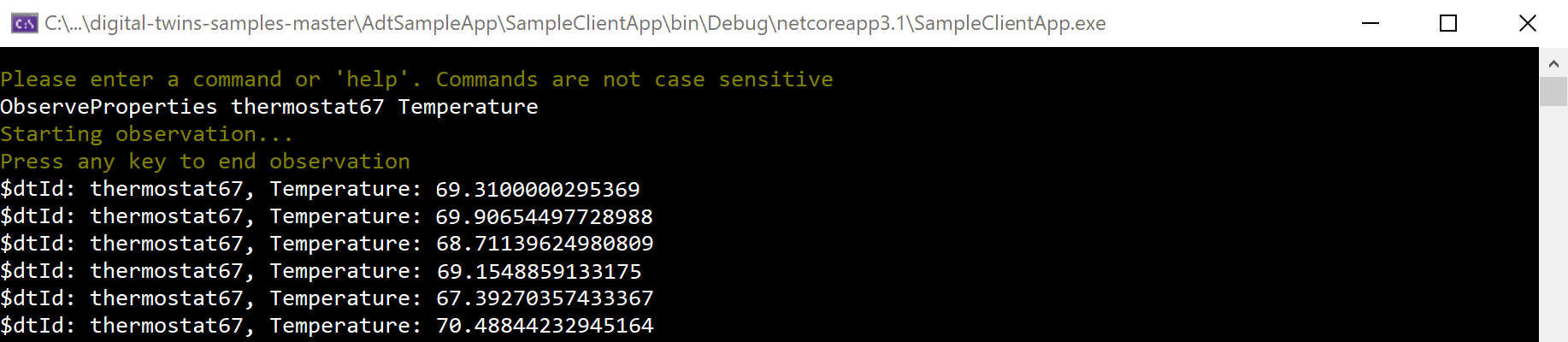

Screenshot of the console output showing log of temperature messages from digital twin thermostat67.

Once you've verified the live temperature logging is working successfully, you can stop running both projects. Keep the console windows open, as you'll use them again later in the tutorial.

Propagate Azure Digital Twins events through the graph

So far in this tutorial, you've seen how Azure Digital Twins can be updated from external device data. Next, you'll see how changes to one digital twin can propagate through the Azure Digital Twins graph—in other words, how to update twins from service-internal data.

To do so, you'll use the ProcessDTRoutedData Azure function to update a Room twin when the connected Thermostat twin is updated. The update functionality happens in this part of the end-to-end scenario (arrow C):

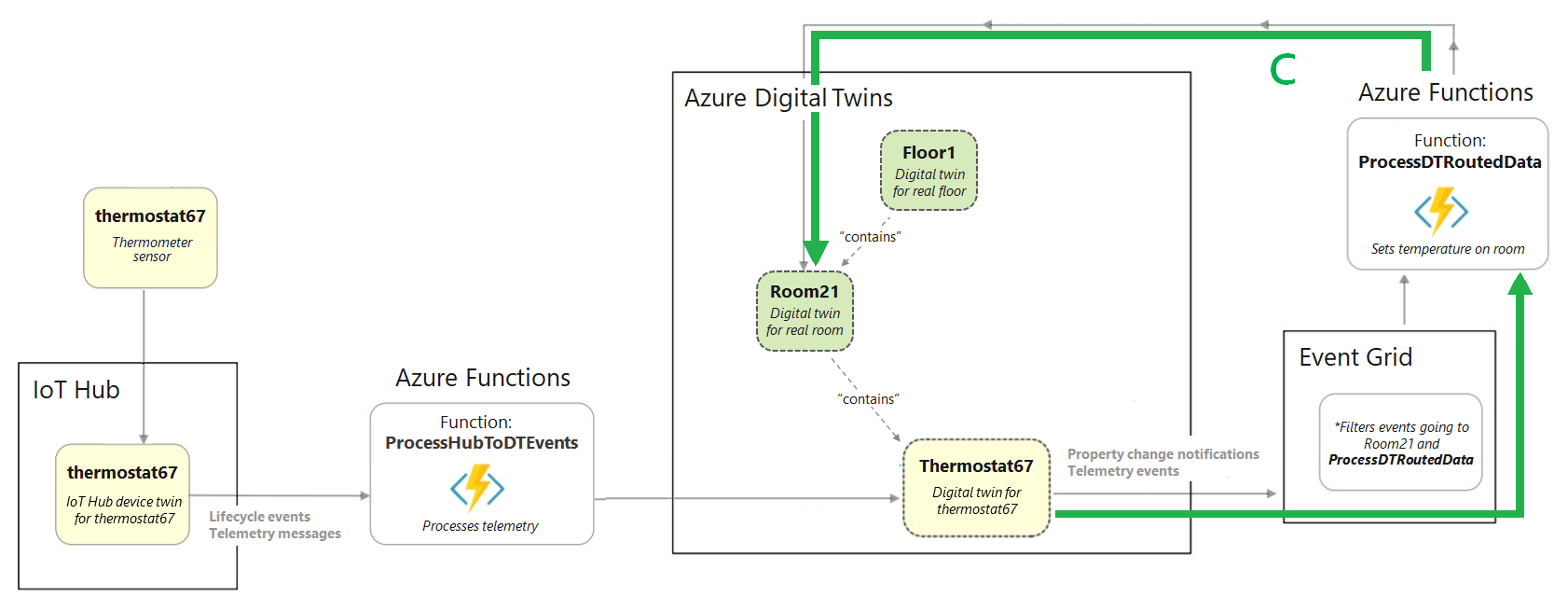

Diagram of an excerpt from the full building scenario diagram highlighting the section that shows the elements after Azure Digital Twins.

Here are the actions you'll complete to set up this data flow:

  1. Create an Event Grid topic to enable movement of data between Azure services
  2. Create an endpoint in Azure Digital Twins that connects the instance to the Event Grid topic
  3. Set up a route within Azure Digital Twins that sends twin property change events to the endpoint
  4. Set up an Azure function that listens on the Event Grid topic at the endpoint, receives the twin property change events that are sent there, and updates other twins in the graph accordingly

Create the Event Grid topic

Event Grid is an Azure service that helps route and deliver events from Azure services to other places within Azure. You can create an Event Grid topic to collect certain events from a source, and then subscribers can listen on the topic to receive the events as they come through.

In the Azure CLI, run the following command to create an Event Grid topic:

az eventgrid topic create --resource-group <your-resource-group> --name <name-for-your-event-grid-topic> --location <region>

The output from this command is information about the Event Grid topic you've created. Save the name that you gave to your Event Grid topic, because you'll use it later.

Create the endpoint

Next, create an Event Grid endpoint in Azure Digital Twins, which will connect your instance to your Event Grid topic. Use the command below, filling in the name of your Event Grid topic from the previous step and the other placeholder fields as needed.

az dt endpoint create eventgrid --dt-name <Azure-Digital-Twins-instance> --eventgrid-resource-group <your-resource-group> --eventgrid-topic <your-event-grid-topic> --endpoint-name <name-for-your-Azure-Digital-Twins-endpoint>

The output from this command is information about the endpoint you've created.

Look for the provisioningState field in the output, and check that the value is "Succeeded."

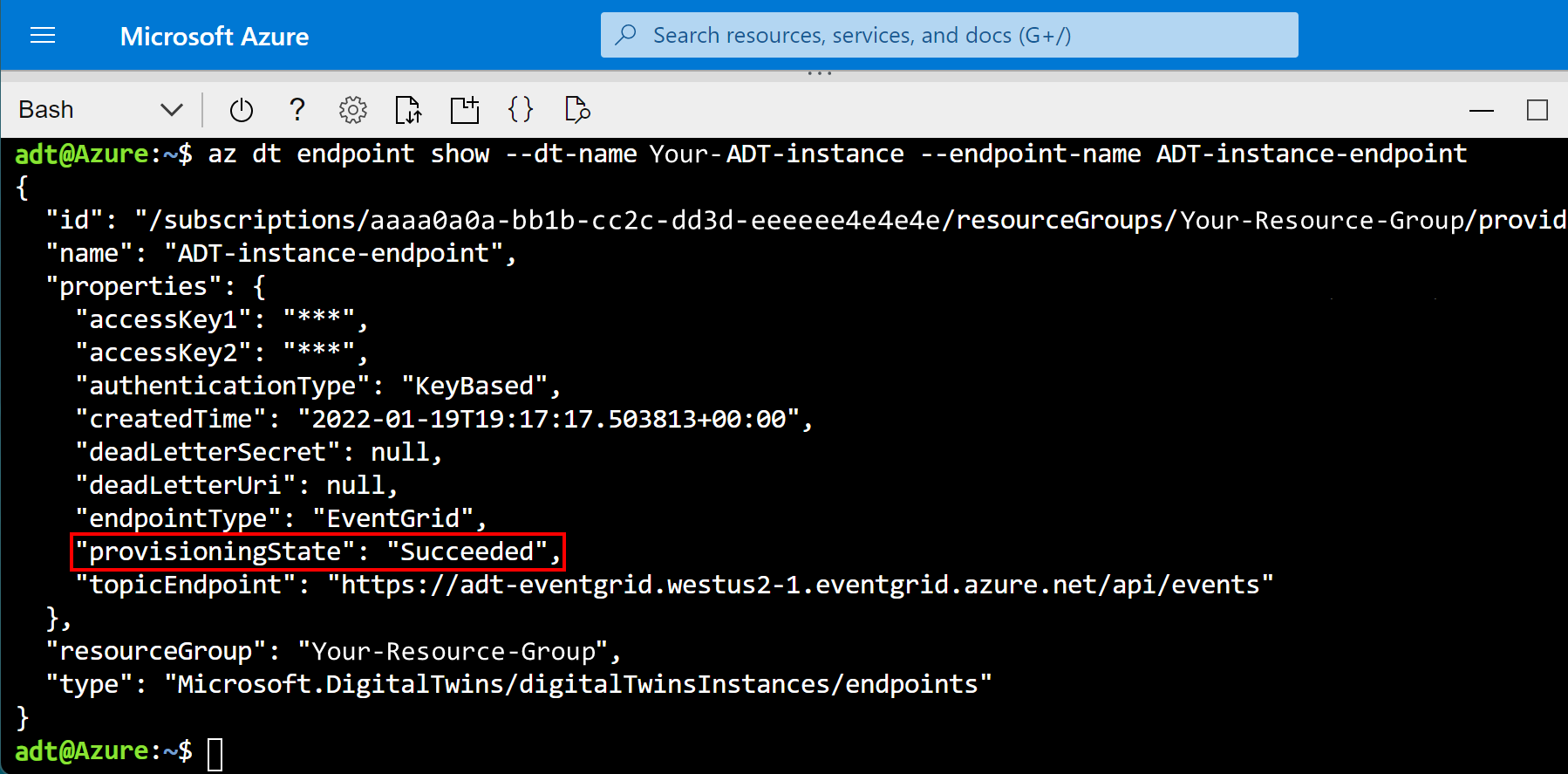

Screenshot of the result of the endpoint query in the Cloud Shell of the Azure portal, showing the endpoint with a provisioningState of Succeeded.

It may also say "Provisioning", meaning that the endpoint is still being created. If so, wait a few seconds and run the following command to check the status of the endpoint. Repeat until the provisioningState shows "Succeeded."

az dt endpoint show --dt-name <your-Azure-Digital-Twins-instance> --endpoint-name <your-Azure-Digital-Twins-endpoint>

Save the name of your endpoint, because you'll use it later.

Create the route

Next, create an Azure Digital Twins route that sends events to the Event Grid endpoint you created.

Use the following CLI command, filling in the name of your endpoint from the previous step and the other placeholder fields as needed. This command forwards all events that occur in the twin graph.

Tip

You can limit the events to only specific ones if you want, by using filters.

az dt route create --dt-name <your-Azure-Digital-Twins-instance> --endpoint-name <your-Azure-Digital-Twins-endpoint> --route-name <name-for-your-Azure-Digital-Twins-route>

The output from this command is some information about the route you've created.

Note

Endpoints (from the previous step) must be finished provisioning before you can set up an event route that uses them. If the route creation fails because the endpoints aren't ready, wait a few minutes and then try again.

Connect the Azure function

Next, subscribe the ProcessDTRoutedData Azure function to the Event Grid topic you created earlier, so that telemetry data can flow from the thermostat67 twin through the Event Grid topic to the function, which goes back into Azure Digital Twins and updates the room21 twin accordingly.

To do so, you'll create an Event Grid subscription that sends data from the Event Grid topic that you created earlier to your ProcessDTRoutedData Azure function.

Use the following CLI command to create the event subscription. There's a placeholder for you to enter a name for this event subscription, and there are also placeholders for you to enter your subscription ID, resource group, the name of your Event Grid topic, and the name of your function app.

az eventgrid event-subscription create --name <name-for-topic-event-subscription> --event-delivery-schema eventgridschema --source-resource-id /subscriptions/<your-subscription-ID>/resourceGroups/<your-resource-group>/providers/Microsoft.EventGrid/topics/<your-event-grid-topic> --endpoint-type azurefunction --endpoint /subscriptions/<your-subscription-ID>/resourceGroups/<your-resource-group>/providers/Microsoft.Web/sites/<your-function-app>/functions/ProcessDTRoutedData

Run the simulation and see the results

Now, events should have the capability to flow from the simulated device into Azure Digital Twins, and through the Azure Digital Twins graph to update twins as appropriate. In this section, you'll run the device simulator again to kick off the full event flow you've set up, and query Azure Digital Twins to see the live results

Go to your console window that's open to the DeviceSimulator\DeviceSimulator folder, and run the device simulator project with dotnet run.

Like the first time you ran the device simulator, the project will start running and display simulated temperature telemetry messages. These events are going through the flow you set up earlier to update the thermostat67 twin, and then going through the flow you set up recently to update the room21 twin to match.

Screenshot of the console output of the device simulator showing temperature telemetry being sent.

You don't need to do anything else in this console, but leave it running while you complete the next steps.

To see the data from the Azure Digital Twins side, go to your other console window that's open to the AdtSampleApp\SampleClientApp folder, and run the SampleClientApp project with dotnet run.

Once the project is running and accepting commands, run the following command to get the temperatures being reported by both the digital twin thermostat67 and the digital twin room21.

ObserveProperties thermostat67 Temperature room21 Temperature

You should see the live updated temperatures from your Azure Digital Twins instance being logged to the console every two seconds. Notice that the temperature for room21 is being updated to match the updates to thermostat67.

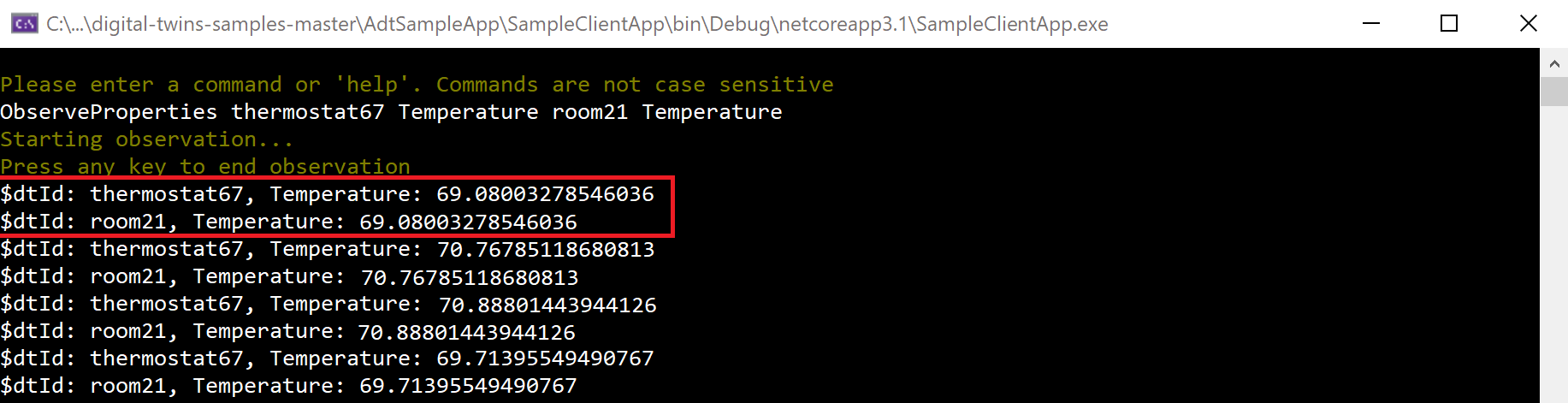

Screenshot of the console output showing a log of temperature messages, from a thermostat and a room.

Once you've verified the live temperatures logging from your instance is working successfully, you can stop running both projects. You can also close both console windows, as the tutorial is now complete.

Review

Here's a review of the scenario that you built in this tutorial.

  1. An Azure Digital Twins instance digitally represents a floor, a room, and a thermostat (represented by section A in the diagram below)
  2. Simulated device telemetry is sent to IoT Hub, where the ProcessHubToDTEvents Azure function is listening for telemetry events. The ProcessHubToDTEvents Azure function uses the information in these events to set the Temperature property on thermostat67 (arrow B in the diagram).
  3. Property change events in Azure Digital Twins are routed to an Event Grid topic, where the ProcessDTRoutedData Azure function is listening for events. The ProcessDTRoutedData Azure function uses the information in these events to set the Temperature property on room21 (arrow C in the diagram).

Diagram of the full building scenario, which shows the data flowing from a device into and out of Azure Digital Twins through various Azure services.

Clean up resources

After completing this tutorial, you can choose which resources you want to remove, depending on what you want to do next.

  • If you do not need any of the resources you created in this tutorial, you can delete the Azure Digital Twins instance and all other resources from this article with the az group delete CLI command. This deletes all Azure resources in a resource group, as well as the resource group itself.

    Important

    Deleting a resource group is irreversible. The resource group and all the resources contained in it are permanently deleted. Make sure that you don't accidentally delete the wrong resource group or resources.

    Open Azure Cloud Shell or a local CLI window, and run the following command to delete the resource group and everything it contains.

    az group delete --name <your-resource-group>

  • If you want to continue using the Azure Digital Twins instance you set up in this article, but clear out some or all of its models, twins, and relationships, you can use the az dt CLI commands to delete the elements you want to remove.

    This option won't remove any of the other Azure resources created in this tutorial (IoT Hub, Azure Functions app, and so on). You can delete these individually using the dt commands appropriate for each resource type.

You may also want to delete the project folder from your local machine.

Next steps

In this tutorial, you created an end-to-end scenario that shows Azure Digital Twins being driven by live device data.

Next, start looking at the concept documentation to learn more about elements you worked with in the tutorial:
