Create an enclave connection from the Azure portal

Enclave connections enable network traffic to flow into, out of, and between Azure Enclave communities and enclaves. In this how-to guide, you create an enclave connection in the Azure portal.

Prerequisites

• An Azure subscription. If needed, create a free Azure account.
• A community and an enclave.
• An existing enclave endpoint or community endpoint in the same community.

Sign in to Azure

Sign in to the Azure portal.

Create an enclave connection

1. Enter Azure Enclave in the search.

2. Under Services, select Azure Enclave.

3. In the Azure Enclave page, select Enclaves in the left menu.

4. On the Enclaves page, select your Enclave's name to open the enclave resource.

5. Select Enclave Connections on the left navigation and then select Create.

6. Enter the following information:

   • Enclave connection name: Enter a name for the enclave connection.
   • Community: Select the existing community from the list.

Configure an enclave source connection

If the connection source is Transit Hub, skip this section.

For connections where the source is Enclave, enter the required information:

1. Under Source Type, select Enclave.

2. Select the existing Source Enclave from the list.

3. Enter the Source IP addresses/CIDR range(s) for the enclave subnets that initiate traffic.

4. Under Destination Endpoint Type, select Enclave Endpoint or Community Endpoint.

5. Select the Destination Endpoint from the list.

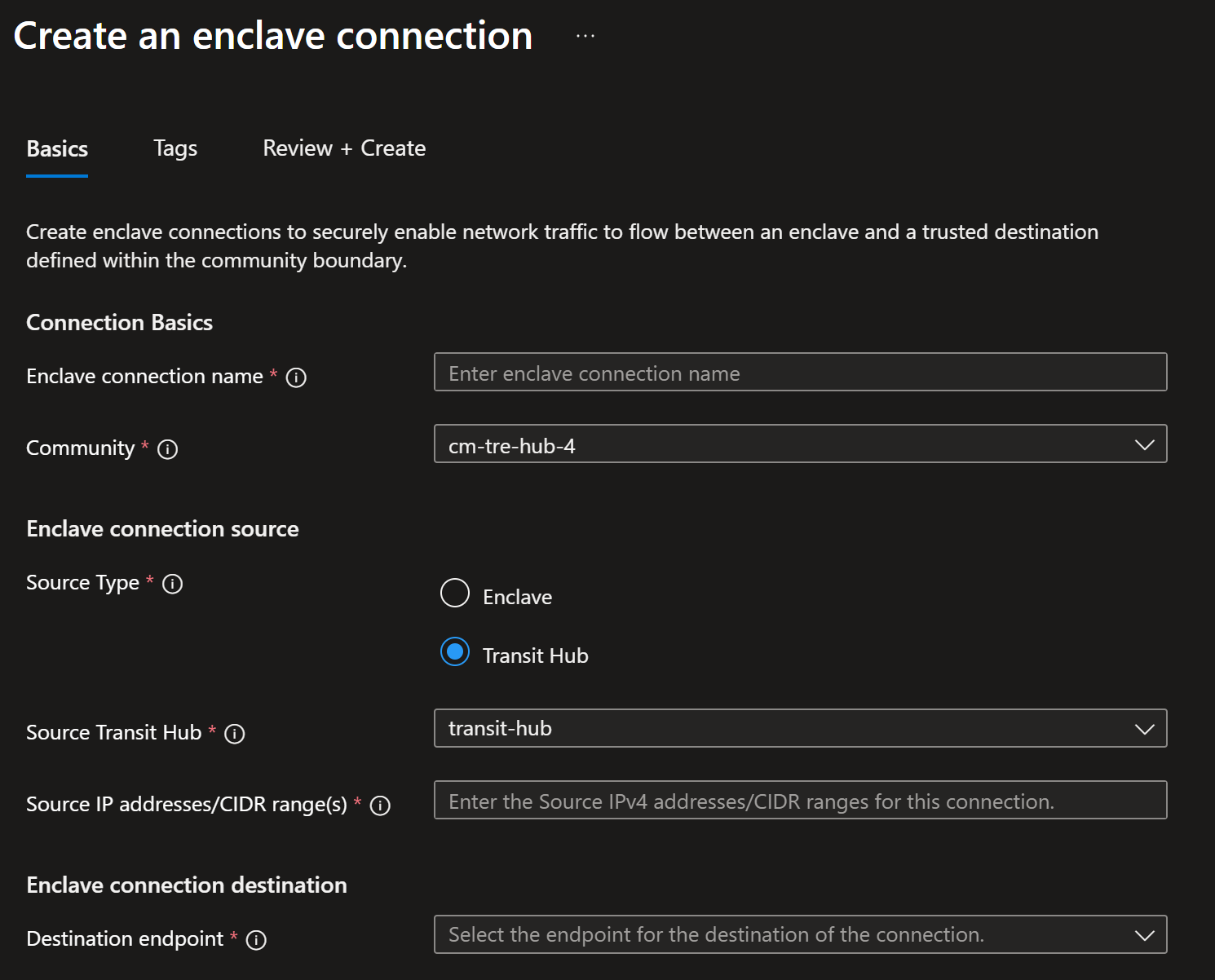

Configure a transit hub source connection

If the connection source is Enclave, skip this section.

For connections where the source is Transit Hub, enter the required information:

1. Under Source Type, select Transit Hub.

2. Select the Source transit hub from the list.

3. Enter the Source IP addresses/CIDR range(s) for this connection.

4. Select the Destination endpoint from the list.



5. Select Review + create, and then select Create.
