Analytics consumption zone (ACZ) concepts

The Analytics Consumption Zone (ACZ) exports selected entity data from Azure Data Manager for Energy to your Azure Data Lake Storage (ADLS) Gen2 account. ACZ writes Azure Data Manager for Energy data in open Delta Parquet format. Services like Microsoft Fabric and Azure Databricks can read this format directly.

Important

Analytics Consumption Zone is currently in preview. See the Supplemental Terms of Use for Microsoft Azure Previews for legal terms that apply to Azure features that are in beta, preview, or otherwise not yet released into general availability.

Note

During the preview, ACZ is only available on Developer Tier instances and requires allowlisting. Follow the guidance in How to enable the Analytics Consumption Zone (ACZ) and contact your Microsoft representative.

What is ACZ?

ACZ is a managed sync layer. It exports entity data from your Azure Data Manager for Energy instance to an ADLS Gen2 storage account that you own. You can then connect that data to analytics, reporting, and machine learning tools.

Key characteristics of ACZ:

• Customer-owned storage: Data goes to an ADLS Gen2 storage account that you create and manage. You're responsible for selecting an in-geo destination storage account if you have data residency requirements.
• Open format: Data exports in Delta Parquet format. Analytics engines widely support this format.
• Selective sync: You choose which entity types to sync. Options include catalog kinds and Wellbore Domain Data Management Service (DDMS) kinds.
• Historical and incremental sync: ACZ takes an initial snapshot of existing data, then synchronizes changes as they occur.
• API-driven: You configure and manage ACZ entirely through REST APIs.

Architecture

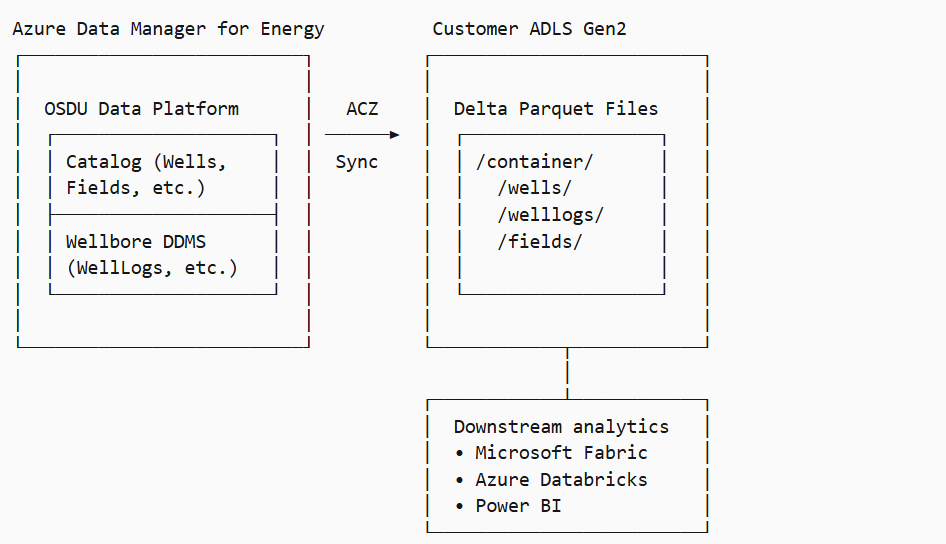

This diagram shows the ACZ data flow:

How ACZ works

Supported entity types

ACZ synchronizes two categories of Azure Data Manager for Energy entity types:

Category	Description	Example kinds
Catalog kinds	Primary data and reference data from the Storage service	osdu:wks:master-data--Well:*, osdu:wks:reference-data--UnitOfMeasure:*
Wellbore DDMS kinds	Entities from the Wellbore Domain Data Management Service	osdu:wks:work-product-component--WellLog:*

When you create an ACZ, you specify which entity types to synchronize by providing:

• catalogKinds: A list of catalog kind patterns (for example, osdu:wks:master-data--Well:*)
• wellboreDDMSKinds: A list of Wellbore DDMS kind patterns (for example, osdu:wks:work-product-component--WellLog:*)

These kind patterns act as filters that determine which Azure Data Manager for Energy records ACZ exports and keeps synchronized.

Version types

When you create an ACZ, you choose how to handle entity versions:

Type	Description
LATEST_VERSION	Exports only the latest version of each entity. Default and recommended.
ALL_VERSIONS	Exports all versions of each entity. Keeps the full version history.

Lifecycle states

Each ACZ goes through these states:

Status	Description
ACTIVE	Operational. ACZ synchronizes changes incrementally.
FAILED	An error stopped setup or sync.
ACCESS_DENIED	ACZ can't reach the destination ADLS storage account.

Historical snapshot

When you create a new ACZ, the service takes a historical snapshot. This snapshot exports all existing records that match the configured entity types (catalogKinds and wellboreDDMSKinds). The snapshot progresses through these states:

Status	Description
PROCESSING	Actively exporting data.
COMPLETED	All historical data exported.
FAILED	An error occurred.

After the snapshot finishes, ACZ switches to incremental mode. It captures new and updated records in near real-time.

How ACZ handles data changes

ACZ propagates created, updated, and deleted records from Azure Data Manager for Energy to the Delta tables.

• Creations and updates: When you create a record or change its data block, Azure Data Manager for Energy creates a new version. ACZ detects the change and writes a new row to the Delta table.
• Metadata-only updates: A PATCH operation can change the access control list (ACL), Legal, or Tags without creating a new version. ACZ detects this change and runs a merge-upsert on the existing row.
• Soft deletes: When you soft-delete a record in Azure Data Manager for Energy, ACZ sets the isActive field to False on the row instead of removing it. Soft deletes preserve history for auditing and time-travel queries.
• Purges: When you purge a record in Azure Data Manager for Energy, ACZ permanently removes the record from the Delta table. The row is deleted and can't be recovered from the ACZ data.

Warning

ACZ is a one-way, read-only sync from Azure Data Manager for Energy to ADLS Gen2.

• Data flows only from Azure Data Manager for Energy to ADLS Gen2
• Do not modify, delete, or add files directly in the ACZ folders in ADLS Gen2
• Manual changes to ACZ data corrupt the sync and cause data inconsistencies
• ACZ manages all Delta Lake operations (transaction logs, checkpoints, compaction)

For analytics and reporting, treat the exported data as read-only. All data modifications must occur in Azure Data Manager for Energy.

Data output format

ACZ writes data in Delta Lake format with Parquet-encoded files (DELTA_PARQUET). Delta Lake supports ACID transactions, time travel, and efficient incremental reads.

ADLS Gen2 folder structure

ACZ organizes data in your ADLS Gen2 storage account by folder. Each ACZ gets its own folder under the container or under the base path if you specified one. ACZ partitions catalog Delta Lake tables by kind. One folder per DDMS entity type and record ID.

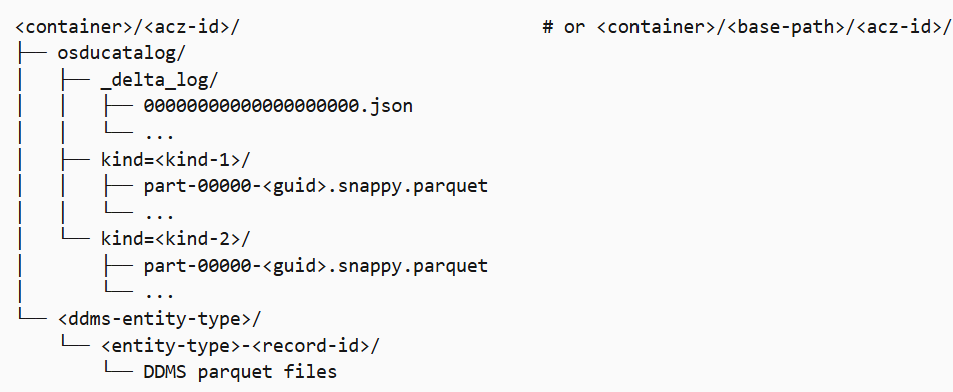

Folder layout

Key details

Element	Description
Top-level folder	Named <acz-id> under the container, or under <base-path> if specified. One folder per ACZ.
osducatalog/	One Delta table for all catalog kinds. Partitioned by kind (for example, kind=osdu:wks:master-data--Well:1.0.0).
_delta_log/	The Delta Lake transaction log. Tracks all table changes for ACID transactions and time travel.
DDMS entity folders	One folder per DDMS entity type (for example, work-product-component--WellLog). Holds DDMS-specific parquet files by entity type and record ID.
Parquet files	Snappy-compressed data files. Updates create new files. ACZ runs VACUUM and OPTIMIZE to compact small files and remove old ones.

Delta table schema

The Delta table has these fields:

Field	Type	Description
id	String	OSDU® record ID.
version	String	Version number.
kind	String	Fully qualified OSDU® kind.
data	String	Data block (JSON).
meta	String	Metadata (JSON).
acl	String	Access control list.
legal	String	Legal tags.
tags	String	User-defined tags.
createUser	String	User who created the record.
createTime	Timestamp	When the record was created
ingestTime	Timestamp	When ACZ ingested the record
isActive	Boolean	True if active. False if soft-deleted.

Note

Wellbore DDMS entities also have fileDownloadTime, fileDownloadState, and fileDownloadFolder fields for file tracking.

Limits and access

Preview limits

Constraint	Limit
Maximum ACZs per data partition	Three
ACZ name uniqueness	Must be unique within a data partition
Target format	Delta Parquet only
Storage type	ADLS Gen2 only
Instance tier support	Developer Tier only during preview

Authentication and authorization

ACZ requires:

• API access: You must belong to the users@{data-partition-id}.dataservices.energy group to call ACZ APIs.
• Storage access: The managed identity needs the Storage Blob Data Contributor role (or equivalent) on the ADLS Gen2 container. During preview, share the identity details with Microsoft to add the identity to the allow list.
• Azure Data Manager for Energy access: The managed identity needs to be assigned to the Azure Data Manager for Energy resource.
