Log compaction in Azure Event Hubs (Preview)

Log compaction is a way of retaining data in Event Hubs using event key based retention. By default, each event hub/Kafka topic is created with time-based retention or delete cleanup policy, where events are purged upon the expiration of the retention time. Rather using coarser-grained time based retention, you can use event key-based retention mechanism where Event Hubs retrains the last known value for each event key of an event hub or a Kafka topic.

Note

• This feature is currently in Preview.
• Log compaction feature is available only in premium and dedicated tiers.

Warning

Use of the Log Compaction feature is not eligible for product support through Microsoft Azure.

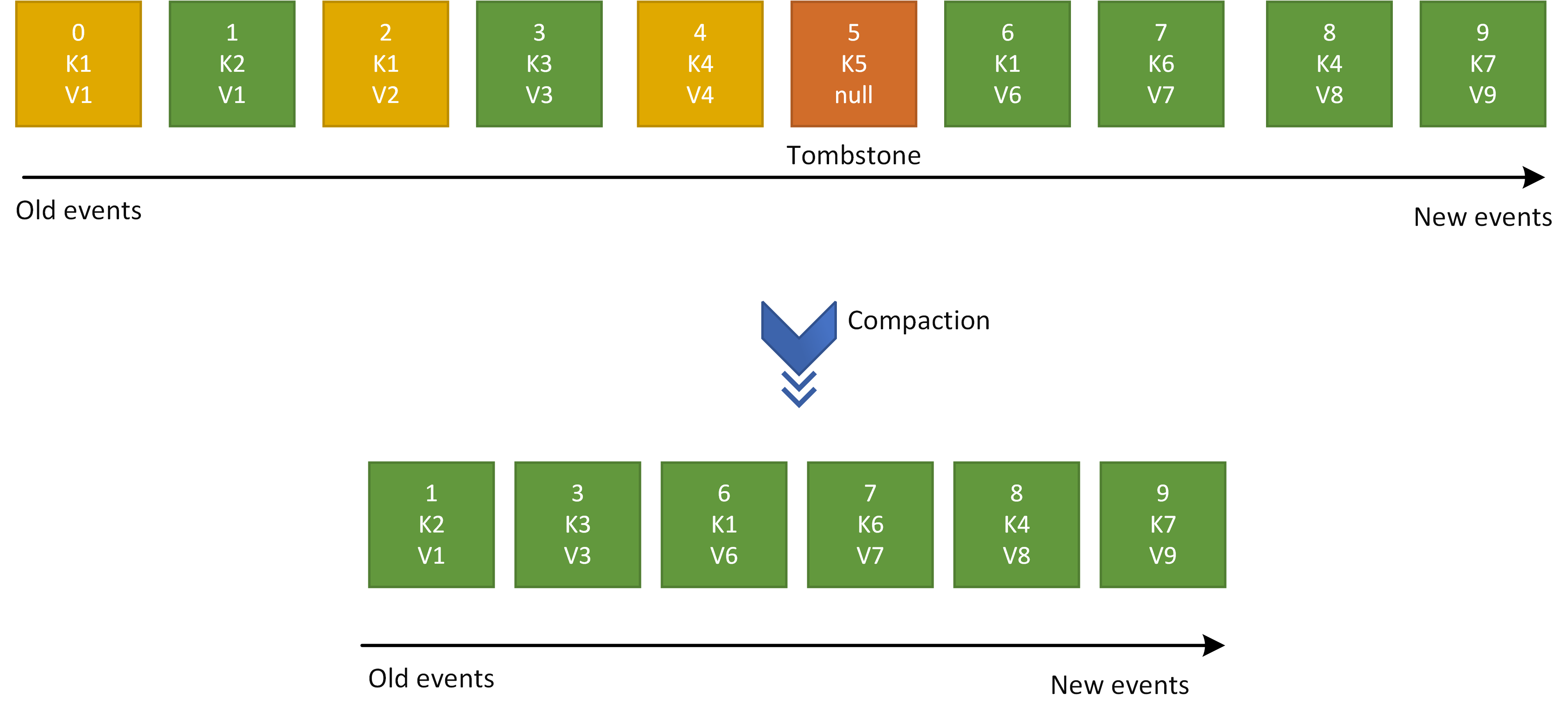

As shown below, an event log (of an event hub partition) may have multiple events with the same key. If you're using a compacted event hub, then Event Hubs service will take care of purging old events and only keeping the latest events of a given event key.

Compaction key

The partition key that you set with each event is used as the compaction key.

Tombstones

Client application can mark existing events of an event hub to be deleted during compaction job. These markers are known as Tombstones. Tombstones are set by the client applications by sending a new event with an existing key and a null event payload.

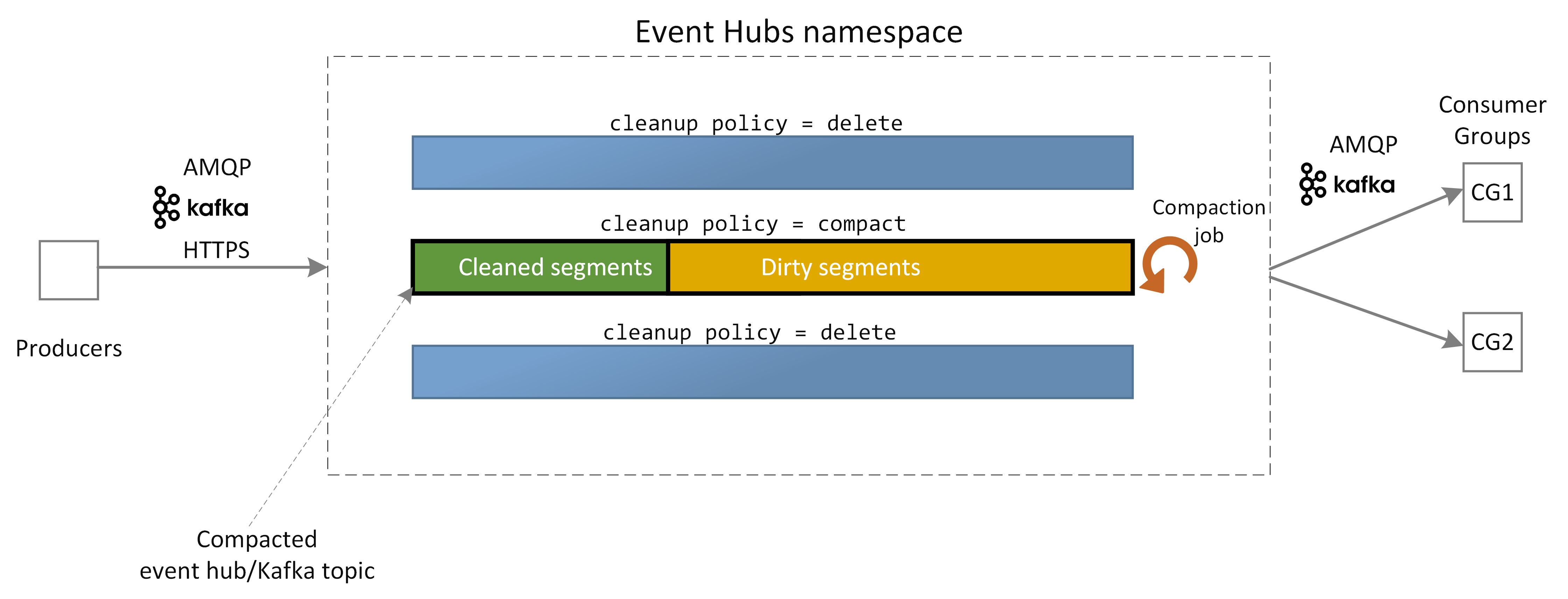

How log compaction works

You can enable log compaction at each event hub/Kafka topic level. You can ingest events to a compacted article from any support protocol. Azure Event Hubs service runs a compaction job for each compacted event hub. Compaction job cleans each event hub partition log by only retaining the latest event of a given event key.

At a given time the event log of a compacted event hub can have a cleaned portion and dirty portion. The clean portion contains the events that are compacted by the compaction job while the dirty portion comprises the events that are yet to be compacted.

The execution of the compaction job is managed by the Event Hubs service and user can't control it. Therefore, Event Hubs service determines when to start compaction and how fast it compact a given compacted event hub.

Compaction guarantees

Log compaction feature of Event Hubs provides the following guarantee:

• Ordering of the messages is always maintained at the key and partition level. Compaction job doesn't alter ordering of messages but it just discards the old events of the same key.
• The sequence number and offset of a message never changes.
• Any consumer progressing from the start of the event log will see at least the final state of all events in the order they were written.
• Events that the user mark to be deleted can still be seen by consumers for time defined by Tombstone Retention Time(hours).

Log compaction use cases

Log compaction can be useful in scenarios where you stream the same set of updatable events. As compacted event hubs only keep the latest events, users don't need to worry about the growth of the event storage. Therefore log compaction is commonly used in scenarios such as Change Data Capture(CDC), maintaining event in tables for stream processing applications and event caching.

Next steps

For instructions on how to use log compaction in Event Hubs, see Use log compaction
