Migrate Apache Kafka workloads to Azure HDInsight 5.1
Azure HDInsight 5.1 offers the latest open-source components with significant enhancements in performance, connectivity, and security. This document explains how to migrate Apache Kafka workloads from HDInsight 4.0 (Kafka 2.1) to HDInsight 5.1 (Kafka 3.2).
Apache Kafka versions
Apache Kafka 3.2.0
If you migrate to Kafka 3.2.0 (HDI 5.1), you can take advantage of the following new features:
- Support Automated consumer offsets sync across cluster in MM 2.0, making it easier to migrate or failover consumers across clusters KIP-545.
- Hint to the partition leader to recover the partition: A new feature that allows the controller to communicate to a newly elected topic partition leader whether it needs to recover its state KIP-704.
- Supports TLS 1.2 by default for secure communication.
- Zookeeper Dependency Removal: Producers and consumers no longer need the zookeeper parameter. Use the
--bootstrap-serveroption instead of--zookeeperwith CLI commands KIP-500. - Configurable backlog size for creating Acceptor: A new configuration that allows setting the size of the SYN backlog for TCP’s acceptor sockets on the brokers KIP-764.
- Top-level error code field to DescribeLogDirsResponse: A new error code that makes DescribeLogDirs API consistent with other APIs and allows returning other errors besides CLUSTER_AUTHORIZATION_FAILED KIP-784.
For a complete list of updates, see Apache Kafka 3.2.0 release notes.
Kafka client compatibility
New Kafka brokers support older clients. KIP-35 - Retrieving protocol version introduced a mechanism for dynamically determining the functionality of a Kafka broker and KIP-97: Improved Kafka Client RPC Compatibility Policy introduced a new compatibility policy and guarantees for the Java client. Previously, a Kafka client had to interact with a broker of the same version or a newer version. Now, newer versions of the Java clients and other clients that support KIP-35 such as librdkafka can fall back to older request types or throw appropriate errors if functionality isn't available.
Note
Recommended to use kafka client version same as the cluster versions. For more information, see Compatibility Matrix.
General migration process
The following migration guidance assumes an Apache Kafka 2.1.1 cluster deployed on HDInsight 4.0 in a single virtual network. The existing broker has some topics and is being actively used by producers and consumers. Upgrading the Kafka version on an existing cluster isn't supported. After you create a cluster with HDI 5.1, migrate your Kafka clients to use the new cluster.
To complete the migration, do the following steps:
Deploy a new HDInsight 5.1 cluster and clients for test. Deploy a new HDInsight 5.1 Kafka cluster. If multiple Kafka cluster versions can be selected, it's recommended to select the latest version. After deployment, set some parameters as needed and create a topic with the same name as your existing environment. Also, set TLS and bring-your-own-key (BYOK) encryption as needed. Then check if it works correctly with the new cluster.

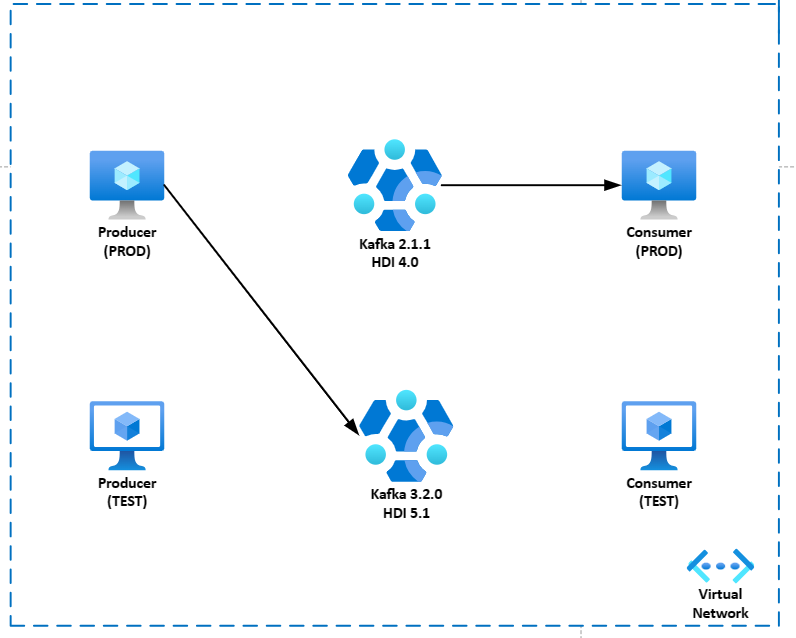

Switch the cluster for the producer application, and wait until all the queue data is consumed by the current consumers. When the new HDInsight 5.1 Kafka cluster is ready, switch the existing producer destination to the new cluster. Leave it as it is until the existing Consumer app has consumed all the data from the existing cluster.
Switch the cluster on the consumer application. After confirming that the existing consumer application has finished consuming all data from the existing cluster, switch the connection to the new cluster.
Remove the old cluster and test applications as needed. Once the switch is complete and working properly, remove the old HDInsight 4.0 Kafka cluster and the producers and consumers used in the test as needed.
