Tutorial: Deploy and walk through the in-store analytics application template

For many retailers, environmental conditions within their stores are a key differentiator from their competitors. Retailers want to maintain pleasant conditions within their stores for the benefit of their customers.

You can use the IoT Central in-store analytics checkout application template to build an end-to-end solution. The application template lets you digitally connect to and monitor a retail store environment using different kinds of sensor devices. These sensor devices generate telemetry that you can convert into business insights to help the retailer reduce operating costs and create a great experience for their customers.

Use the application template to:

  1. Connect different kinds of IoT sensors to an IoT Central application instance.
  2. Monitor and manage the health of the sensor network and any gateway devices in the environment.
  3. Create custom rules around the environmental conditions within a store to trigger alerts for store managers.
  4. Transform the environmental conditions within your store into insights that the retail store team can use to improve the customer experience.
  5. Export the aggregated insights into existing or new business applications to provide useful and timely information to retail staff.

The application template comes with a set of device templates and uses a set of simulated devices to populate the dashboard.

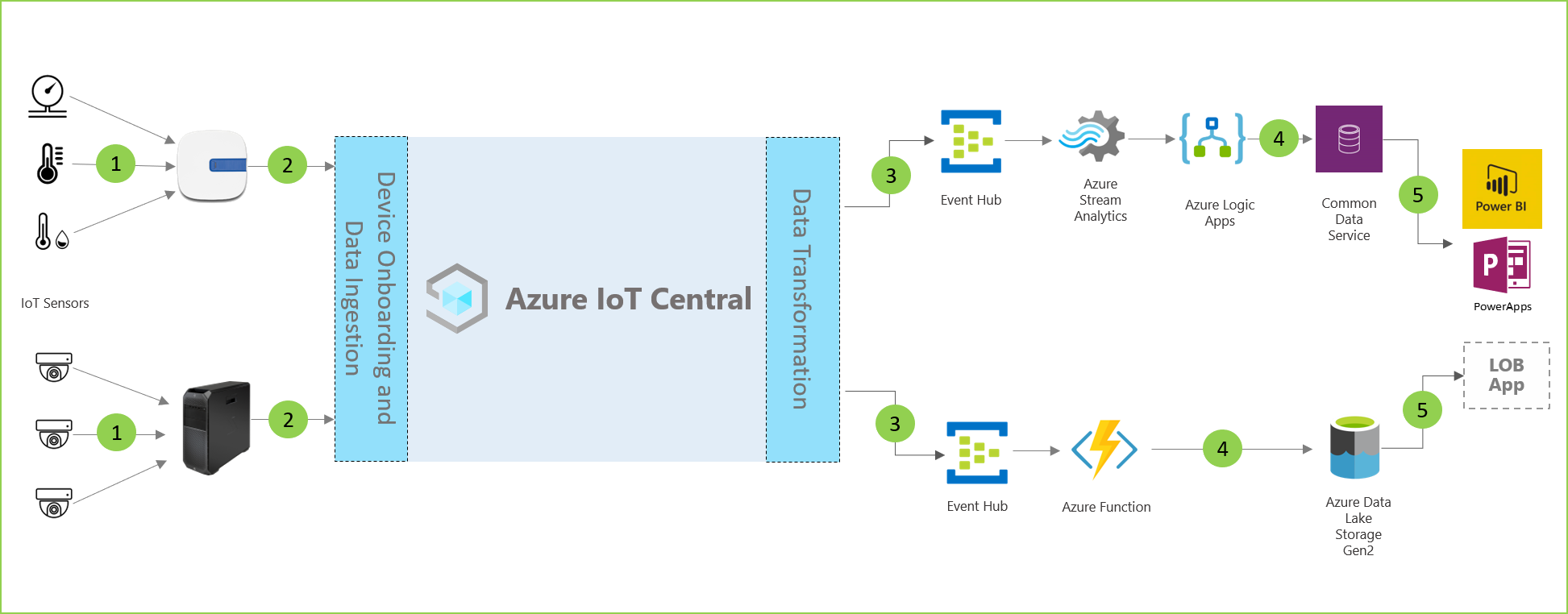

Diagram of the in-store analytics application architecture.

Condition monitoring sensors (1)

An IoT solution starts with a set of sensors capturing meaningful signals from within a retail store environment. It's reflected by different kinds of sensors on the far left of the architecture diagram above.

Gateway devices (2)

Many IoT sensors can feed raw signals directly to the cloud or to a gateway device located near them. The gateway device performs data aggregation at the edge before sending summary insights to an IoT Central application. The gateway devices are also responsible for relaying command and control operations to the sensor devices when applicable.

IoT Central application

The Azure IoT Central application ingests data from different kinds of IoT sensors and gateway devices within the retail store environment and generates a set of meaningful insights.

Azure IoT Central also provides a tailored experience to the store operator enabling them to remotely monitor and manage the infrastructure devices.

Data transform (3)

The Azure IoT Central application within a solution can be configured to export raw or aggregated insights to a set of Azure PaaS (Platform-as-a Service) services that can perform data manipulation and enrich these insights before landing them in a business application.

Business application (4)

The IoT data can be used to power different kinds of business applications deployed within a retail environment. A retail store manager or staff member can use these applications to visualize business insights and take meaningful actions in real time. To learn how to build a real-time Power BI dashboard for your retail team, follow the tutorial.

In this tutorial, you learn how to:

  • Use the Azure IoT Central In-store analytics - checkout template to create a retail store application
  • Customize the application settings
  • Create and customize IoT device templates
  • Connect devices to your application
  • Add rules and actions to monitor conditions

Prerequisites

An active Azure subscription. If you don't have an Azure subscription, create a free account before you begin.

Create in-store analytics application

Create the application using following steps:

  1. Navigate to the Azure IoT Central Build site. Then sign in with a Microsoft personal, work, or school account. Select Build from the left-hand navigation bar and then select the Retail tab.

  2. Select Create app under In-store analytics - checkout.

To learn more, see Create an IoT Central application.

Walk through the application

The following sections walk you through the key features of the application:

Customize application settings

You can change several settings to customize the user experience in your application. In this section, you'll select a predefined application theme. Optionally, you'll learn how to create a custom theme, and update the application image. A custom theme enables you to set the application browser colors, browser icon, and the application logo that appears in the masthead.

To select a predefined application theme:

  1. Select Settings on the masthead.

  2. Select a new Theme.

  3. Select Save.

Rather than use a predefined theme, you can create a custom theme. If you want to use a set of sample images to customize the application and complete the tutorial, download the Contoso sample images.

To create a custom theme:

  1. Expand the left pane, if not already expanded.

  2. Select Customization > Appearance.

  3. Use the Change button to choose an image to upload as the masthead logo. Optionally, specify a value for Logo alt text.

  4. Use the Change button to choose a Browser icon image that will appear on browser tabs.

  5. Optionally, replace the default Browser colors by adding HTML hexadecimal color codes. For the Header, add #008575. For the Accent, add #A1F3EA.

  6. Select Save. After you save, the application updates the browser colors, the logo in the masthead, and the browser icon.

To update the application image:

  1. Select Application > Management.

  2. Select Change to choose an image to upload as the application image. This image appears on the application tile in the My Apps page of the IoT Central application manager.

  3. Select Save.

  4. Optionally, navigate to the My Apps view on the Azure IoT Central application manager website. The application tile displays the updated application image.

Create device templates

You can create device templates that enable you and the application operators to configure and manage devices. You can create a template by building a custom one, by importing an existing template file, or by importing a template from the Azure IoT device catalog. After you create and customize a device template, use it to connect real devices to your application. Optionally, use a device template to generate simulated devices for testing.

The In-store analytics - checkout application template has device templates for several devices. There are device templates for two of the three devices you use in the application. The RuuviTag device template isn't included in the In-store analytics - checkout application template. In this section, you add a device template for RuuviTag sensors to your application.

To add a RuuviTag device template to your application:

  1. Select Device Templates in the left pane.

  2. Select + New to create a new device template.

  3. Find and select the RuuviTag Multisensor device template in the Azure IoT device catalog.

  4. Select Next: Review.

  5. Select Create. The application adds the RuuviTag device template.

  6. Select Device templates on the left pane. The page displays all device templates included in the application template, and the RuuviTag device template you just added.

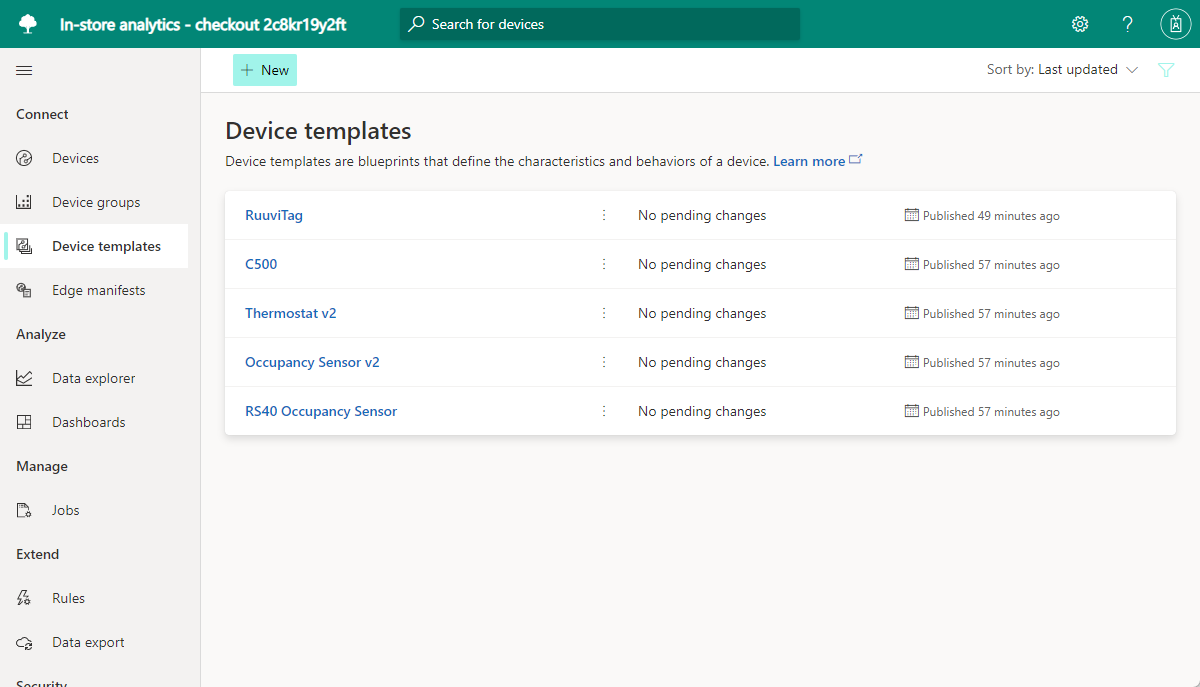

Screenshot showing the in-store analytics application device templates.

Customize device templates

You can customize the device templates in your application in three ways. First, you customize the native built-in interfaces in your devices by changing the device capabilities. For example, with a temperature sensor, you can change details such as the display name of the temperature interface, the data type, the units of measurement, and minimum and maximum operating ranges.

Second, customize your device templates by adding cloud properties. Cloud properties aren't part of the built-in device capabilities. Cloud properties are custom data that your Azure IoT Central application creates, stores, and associates with your devices. An example of a cloud property could be a calculated value, or metadata such as a location that you want to associate with a set of devices.

Third, customize device templates by building custom views. Views provide a way for operators to visualize telemetry and metadata for your devices, such as device metrics and health.

Here, you use the first two methods to customize the device template for your RuuviTag sensors.

To customize the built-in interfaces of the RuuviTag device template:

  1. Select Device Templates in the left pane.

  2. Select the template for RuuviTag sensors.

  3. Hide the left pane. The summary view of the template displays the device capabilities.

    Screenshot showing the in-store analytics application RuuviTag device template.

  4. Select RuvviTag model in the RuuviTag device template menu.

  5. Scroll in the list of capabilities and find the RelativeHumidity telemetry type. It's the row item with the editable Display name value of RelativeHumidity.

In the following steps, you customize the RelativeHumidity telemetry type for the RuuviTag sensors. Optionally, customize some of the other telemetry types.

For the RelativeHumidity telemetry type, make the following changes:

  1. Select the Expand control to expand the schema details for the row.

  2. Update the Display Name value from RelativeHumidity to a custom value such as Humidity.

  3. Change the Semantic Type option from Relative humidity to Humidity. Optionally, set schema values for the humidity telemetry type in the expanded schema view. Schema settings allow you to create detailed validation requirements for the data that your sensors track. For example, you could set minimum and maximum operating range values for a given interface.

  4. Select Save to save your changes.

To add a cloud property to a device template in your application:

Specify the following values to create a custom property to store the location of each device:

  1. Enter the value Location for the Display Name. This value is automatically copied to the Name field, which is a friendly name for the property. You can use the copied value or change it.

  2. Select Capability Type as Cloud Property.

  3. Select String in the Schema dropdown. A string type enables you to associate a location name string with any device based on the template. For instance, you could associate an area in a store with each device.

  4. Set Minimum Length to 2.

  5. Set Trim Whitespace to On.

  6. Select Save to save your custom cloud property.

  7. Select Publish.

    Publishing a device template makes it visible to application operators. After you've published a template, use it to generate simulated devices for testing, or to connect real devices to your application. If you already have devices connected to your application, publishing a customized template pushes the changes to the devices.

Add devices

After you have created and customized device templates, it's time to add devices.

For this tutorial, you use the following set of real and simulated devices to build the application:

  • A real Rigado C500 gateway.
  • Two real RuuviTag sensors.
  • A simulated Occupancy sensor. The simulated sensor is included in the application template, so you don't need to create it.

Note

If you don't have real devices, you can still complete this tutorial by creating simulated RuuviTag sensors. The following directions include steps to create a simulated RuuviTag. You don't need to create a simulated gateway.

Complete the steps in the following two articles to connect a real Rigado gateway and RuuviTag sensors. After you're done, return to this tutorial. Because you already created device templates in this tutorial, you don't need to create them again in the following set of directions.

Add rules and actions

As part of using sensors in your Azure IoT Central application to monitor conditions, you can create rules to run actions when certain conditions are met. A rule is associated with a device template and one or more devices, and contains conditions that must be met based on device telemetry or events. A rule also has one or more associated actions. The actions may include sending email notifications, or triggering a webhook action to send data to other services. The In-store analytics - checkout application template includes some predefined rules for the devices in the application.

In this section, you create a new rule that checks the maximum relative humidity level based on the RuuviTag sensor telemetry. You add an action to the rule so that if the humidity exceeds the maximum, the application sends an email.

To create a rule:

  1. Expand the left pane.

  2. Select Rules.

  3. Select + New.

  4. Enter Humidity level as the name of the rule.

  5. Choose the RuuviTag device template in Device template. The rule you define will apply to all sensors based on that template. Optionally, you could create a filter that would apply the rule only to a defined subset of the sensors.

  6. Choose RelativeHumidity as the Telemetry. It's the device capability that you customized in a previous step.

  7. Choose Is greater than as the Operator.

  8. Enter a typical upper range indoor humidity level for your environment as the Value. For example, enter 65. You've set a condition for your rule that occurs when relative humidity in any RuuviTag real or simulated sensor exceeds this value. You may need to adjust the value up or down depending on the normal humidity range in your environment.

To add an action to the rule:

  1. Select + Email.

  2. Enter High humidity notification as the friendly Display name for the action.

  3. Enter the email address associated with your account in To. If you use a different email, the address you use must be for a user who has been added to the application. The user also needs to sign in and out at least once.

  4. Optionally, enter a note to include in text of the email.

  5. Select Done to complete the action.

  6. Select Save to save and activate the new rule.

    Within a few minutes, the specified email account should begin to receive emails. The application sends email each time a sensor indicates that the humidity level exceeded the value in your condition.

Clean up resources

If you don't plan to complete any further IoT Central quickstarts or tutorials, you can delete your IoT Central application:

  1. In your IoT Central application, navigate to Application > Management.
  2. Select Delete and then confirm your action.

Next steps

In this tutorial, you learned how to:

  • Use the Azure IoT Central In-store analytics - checkout template to create a retail store application
  • Customize the application settings
  • Create and customize IoT device templates
  • Connect devices to your application
  • Add rules and actions to monitor conditions

Now that you've created an Azure IoT Central condition monitoring application, here's the suggested next step:
