Azure Kinect DK hardware specifications

This article provides details about how Azure Kinect hardware integrates Microsoft's latest sensor technology into a single, USB-connected accessory.

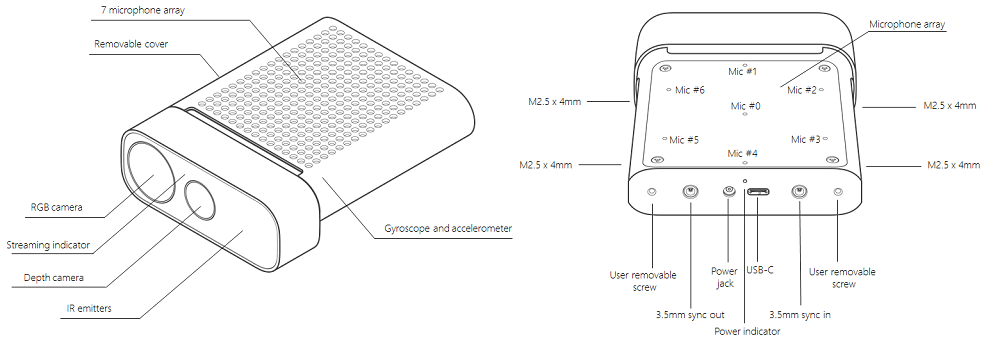

Azure Kinect DK


These abbreviated terms are used throughout this article.

  • NFOV (Narrow field-of-view depth mode)
  • WFOV (Wide field-of-view depth mode)
  • FOV (Field-of-view)
  • FPS (Frames-per-second)
  • IMU (Inertial Measurement Unit)
  • FoI (Field of Interest)

Product dimensions and weight

The Azure Kinect device consists of the following size and weight dimensions.

  • Dimensions: 103 x 39 x 126 mm
  • Weight: 440 g

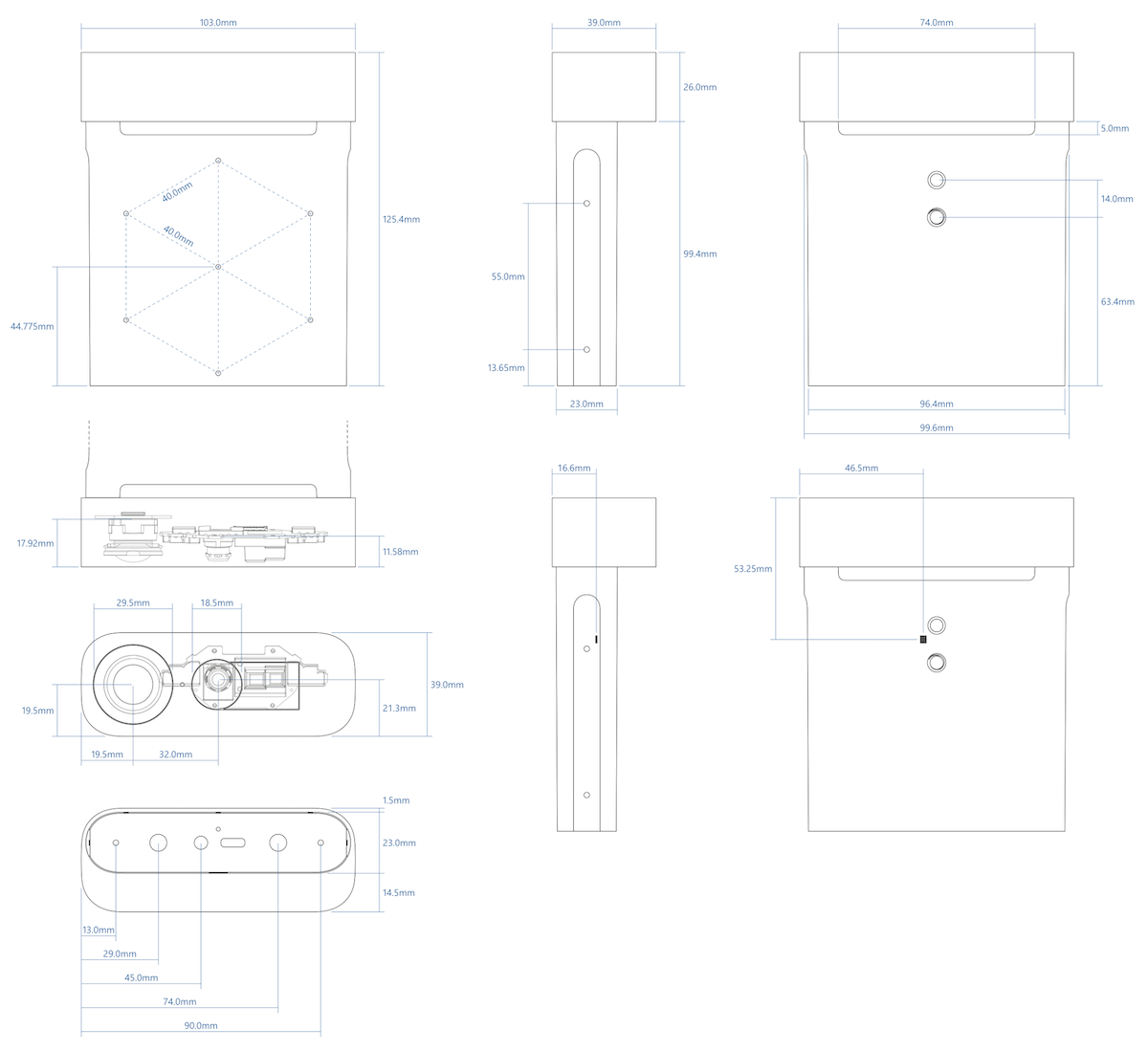

Azure Kinect DK dimensions

A STEP file for the Azure Kinect device is available here.

Operating environment

Azure Kinect DK is intended for developers and commercial businesses operating under the following ambient conditions:

  • Temperature: 10-250C
  • Humidity: 8-90% (non-condensing) Relative Humidity


Use outside of the ambient conditions could cause the device to fail and/or function incorrectly. These ambient conditions are applicable for the environment immediately around the device under all operational conditions. When used with an external enclosure, active temperature control and/or other cooling solutions are recommended to ensure the device is maintained within these ranges. The device design features a cooling channel in between the front section and rear sleeve. When you implement the device, make sure this cooling channel is not obstructed.

Refer to additional product safety information.

Depth camera supported operating modes

Azure Kinect DK integrates a Microsoft designed 1-Megapixel Time-of-Flight (ToF) depth camera using the image sensor presented at ISSCC 2018. The depth camera supports the modes indicated below:

Mode Resolution FoI FPS Operating range* Exposure time
NFOV unbinned 640x576 75°x65° 0, 5, 15, 30 0.5 - 3.86 m 12.8 ms
NFOV 2x2 binned (SW) 320x288 75°x65° 0, 5, 15, 30 0.5 - 5.46 m 12.8 ms
WFOV 2x2 binned 512x512 120°x120° 0, 5, 15, 30 0.25 - 2.88 m 12.8 ms
WFOV unbinned 1024x1024 120°x120° 0, 5, 15 0.25 - 2.21 m 20.3 ms
Passive IR 1024x1024 N/A 0, 5, 15, 30 N/A 1.6 ms

*15% to 95% reflectivity at 850nm, 2.2 μW/cm2/nm, random error std. dev. ≤ 17 mm, typical systematic error < 11 mm + 0.1% of distance without multi-path interference. Depth may be provided outside of the operating range indicated above. It depends on an object's reflectivity.

Color camera supported operating modes

Azure Kinect DK includes an OV12A10 12MP CMOS sensor rolling shutter sensor. The native operating modes are listed below:

RGB Camera Resolution (HxV) Aspect Ratio Format Options Frame Rates (FPS) Nominal FOV (HxV)(post-processed)
3840x2160 16:9 MJPEG 0, 5, 15, 30 90°x59°
2560x1440 16:9 MJPEG 0, 5, 15, 30 90°x59°
1920x1080 16:9 MJPEG 0, 5, 15, 30 90°x59°
1280x720 16:9 MJPEG/YUY2/NV12 0, 5, 15, 30 90°x59°
4096x3072 4:3 MJPEG 0, 5, 15 90°x74.3°
2048x1536 4:3 MJPEG 0, 5, 15, 30 90°x74.3°

The RGB camera is USB Video class-compatible and can be used without the Sensor SDK. The RGB camera color space: BT.601 full range [0..255]. The MJPEG chroma sub-sampling is 4:2:2.


The Sensor SDK can provide color images in the BGRA pixel format. This is not a native mode supported by the device and causes additional CPU load when used. The host CPU is used to convert from MJPEG images received from the device.

RGB camera exposure time values

Below is the mapping for the acceptable RGB camera manual exposure values:

exp 2^exp 50Hz 60Hz
-11 488 500 500
-10 977 1250 1250
-9 1953 2500 2500
-8 3906 10000 8330
-7 7813 20000 16670
-6 15625 30000 33330
-5 31250 40000 41670
-4 62500 50000 50000
-3 125000 60000 66670
-2 250000 80000 83330
-1 500000 100000 100000
0 1000000 120000 116670
1 2000000 130000 133330

Depth sensor raw timing

Depth Mode IR
Idle Time Exposure
NFOV Unbinned
NFOV 2xx Binned
WFOV 2x2 Binned
9 125 us 8 1450 us 12.8 ms
WFOV Unbinned 9 125 us 8 2390 us 20.3 ms

Camera field of view

The next image shows the depth and RGB camera field-of-view, or the angles that the sensors "see". This diagram shows the RGB camera in a 4:3 mode.

Camera FOV

This image demonstrates the camera's field-of-view as seen from the front at a distance of 2000 mm.

Camera FOV Front


When depth is in NFOV mode, the RGB camera has better pixel overlap in 4:3 than 16:9 resolutions.

Motion sensor (IMU)

The embedded Inertial Measurement Unit (IMU) is an LSM6DSMUS and includes both an accelerometer and a gyroscope. The accelerometer and gyroscope are simultaneously sampled at 1.6 kHz. The samples are reported to the host at a 208 Hz.

Microphone array

Azure Kinect DK embeds a high-quality, seven microphone circular array that identifies as a standard USB audio class 2.0 device. All 7 channels can be accessed. The performance specifications are:

  • Sensitivity: -22 dBFS (94 dB SPL, 1 kHz)
  • Signal to noise ratio > 65 dB
  • Acoustic overload point: 116 dB

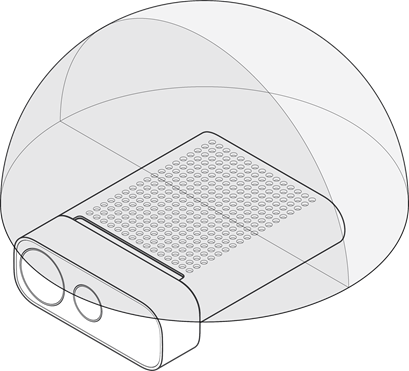

Microphone bubble


Azure Kinect DK is a USB3 composite device that exposes the following hardware endpoints to the operating system:

Vendor ID is 0x045E (Microsoft). Product ID table is shown below:

USB Interface PNP IP Notes
USB3.1 Gen2 Hub 0x097A The main hub
USB2.0 Hub 0x097B HS USB
Depth camera 0x097C USB3.0
Color camera 0x097D USB3.0
Microphones 0x097E HS USB


The device has a camera streaming indicator on the front of the device that can be disabled programmatically using the Sensor SDK.

The status LED behind the device indicates device state:

When the light is It means
Solid white Device is on and working properly.
Flashing white Device is on but doesn't have a USB 3.0 data connection.
Flashing amber Device doesn't have enough power to operate.
Amber flashing white Firmware update or recovery in progress

Power device

The device can be powered in two ways:

  1. Using the in-box power supply. The power connector is a 4.5mm OD with 3.0mm ID and a pin diameter of 0.6mm.
  2. Using a Type-C to Type-C cable for both power and data.

A Type-C to Type-C cable isn't included with the Azure Kinect DK.


  • The in-box power supply cable is a USB Type-A to single post barrel connector. Use the provided wall-power supply with this cable. The device is capable of drawing more power than two standard USB Type-A ports can provide.
  • USB cables do matter and we recommended to use high-quality cables and verify functionality before deploying the unit remotely.


To select a good Type-C to Type-C cable:

  • The USB certified cable must support both power and data.
  • A passive cable should be less than 1.5m in length. If longer, use an active cable.
  • The cable needs to support at least 1.5A. Otherwise you need to connect an external power supply.

Verify cable:

  • Connect device via the cable to the host PC.

  • Validate that all devices enumerate correctly in Windows device manager. Depth and RGB camera should appear as shown in the example below.

    Azure Kinect DK in Device Manager

  • Validate that cable can stream reliably on all sensors in the Azure Kinect Viewer, with the following settings:

    • Depth camera: NFOV unbinned
    • RGB Camera: 2160p
    • Microphones and IMU enabled

What does the light mean?

The power indicator is an LED on the back of your Azure Kinect DK. The color of the LED changes depending on the status of your device.

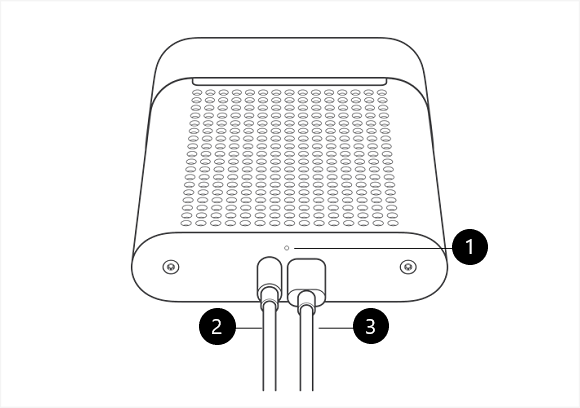

The image shows the back of the Azure Kinect DK. There are three numbered callouts: one for an LED indicator, and below it, two for cables.

This figure labels the following components:

  1. Power indicator
  2. Power cable (connected to the power source)
  3. USB-C data cable (connected to the PC)

Make sure that the cables are connected as shown. Then check the following table to learn what the various states of the power light indicate.

When the light is: It means that: And you should:
Solid white The device is powered on and working correctly. Use the device.
Not lit The device is not connected to the PC. Make sure that the round power connector cable is connected to the device and to the USB power adapter.

Make sure that the USB-C cable is connected to the device and to your PC.
Flashing white The device is powered on but doesn't have a USB 3.0 data connection. Make sure that the round power connector cable is connected to the device and to the USB power adapter.

Make sure that the USB-C cable is connected to the device and to a USB 3.0 port on your PC.

Connect the device to a different USB 3.0 port on the PC.

On your PC, open Device Manager (Start > Control Panel > Device Manager), and verify that your PC has a supported USB 3.0 host controller.
Flashing amber The device doesn't have enough power to operate. Make sure that the round power connector cable is connected to the device and to the USB power adapter.

Make sure that the USB-C cable is connected to the device and to your PC.
Amber, then flashing white The device is powered on and is receiving a firmware update, or the device is restoring the factory settings. Wait for the power indicator light to become solid white. For more information, see Reset Azure Kinect DK.

Power consumption

Azure Kinect DK consumes up to 5.9 W; specific power consumption is use-case dependent.


Azure Kinect DK is calibrated at the factory. The calibration parameters for visual and inertial sensors may be queried programmatically through the Sensor SDK.

Device recovery

Device firmware can be reset to original firmware using button underneath the lock pin.

Azure Kinect DK recovery button

To recover the device, see instructions here.
