Quickstart: Create an Azure Kubernetes Fleet Manager resource and join member clusters using Azure portal

  • Article

Get started with Azure Kubernetes Fleet Manager (Fleet) by using the Azure portal to create a Fleet resource and later connect Azure Kubernetes Service (AKS) clusters as member clusters.

Prerequisites

If you don't have an Azure subscription, create an Azure free account before you begin.

  • Read the conceptual overview of this feature, which provides an explanation of fleets and member clusters referenced in this document.

  • An Azure account with an active subscription. Create an account for free.

  • An identity (user or service principal) with the following permissions on the Fleet and AKS resource types for completing the steps listed in this quickstart:

    • Microsoft.ContainerService/fleets/read
    • Microsoft.ContainerService/fleets/write
    • Microsoft.ContainerService/fleets/members/read
    • Microsoft.ContainerService/fleets/members/write
    • Microsoft.ContainerService/fleetMemberships/read
    • Microsoft.ContainerService/fleetMemberships/write
    • Microsoft.ContainerService/managedClusters/read
    • Microsoft.ContainerService/managedClusters/write
    • Microsoft.ContainerService/managedClusters/listClusterUserCredential/action

  • The AKS clusters that you want to join as member clusters to the Fleet resource need to be within the supported versions of AKS. Learn more about AKS version support policy here.

Create a Fleet resource

  1. Sign in to the Azure portal.

  2. On the Azure portal home page, select Create a resource.

  3. In the search box, enter Kubernetes Fleet Manager and select Create > Kubernetes Fleet Manager from the search results.

  4. On the Basics tab, configure the following options:

    • Under Project details:
      • Subscription: Select the Azure subscription that you want to use.
      • Resource group: Select an existing resource group or select Create new to create a new resource group.
    • Under Fleet details:
      • Name: Enter a unique name for the Fleet resource.
      • Region: Select the region where you want to create the Fleet resource.
      • Hub cluster mode: Leave the default selection of With hub cluster if you want to use Fleet for Kubernetes object propagation and multi-cluster load balancing along with update orchestration. Select Without hub cluster if you want to use Fleet only for update orchestration.

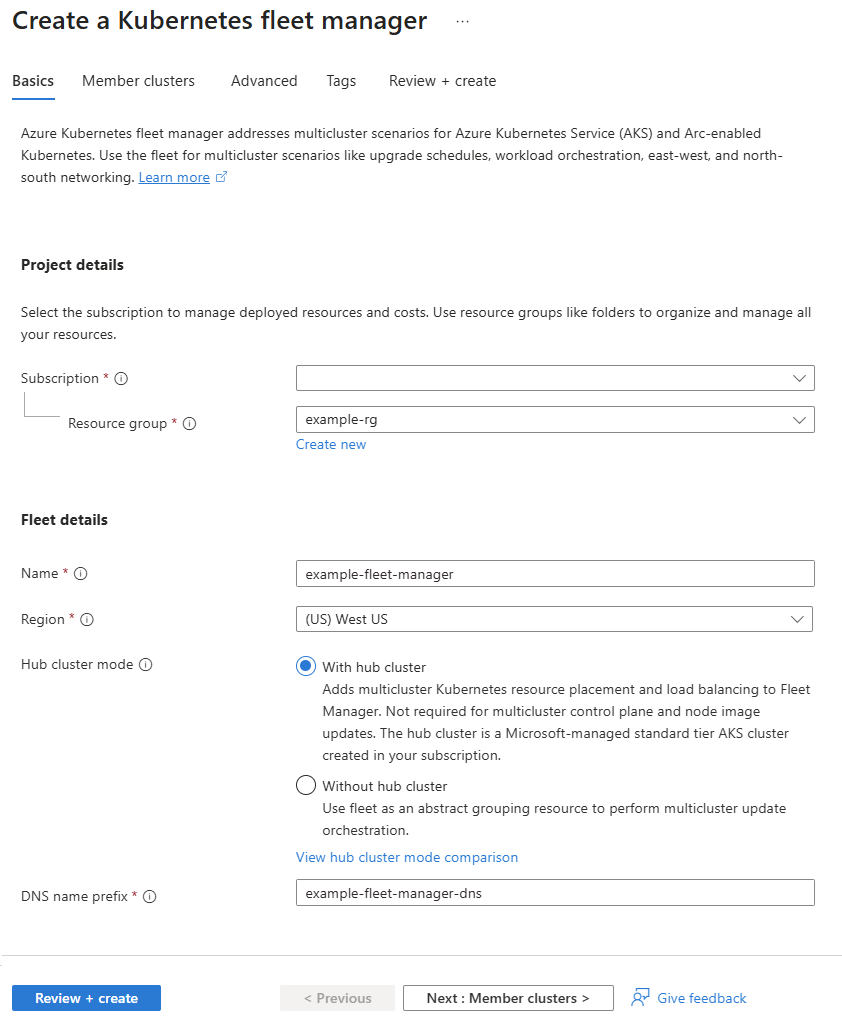

    Screenshot of the Create Fleet resource basics tab in the Azure portal.

  5. Select Next: Member clusters.

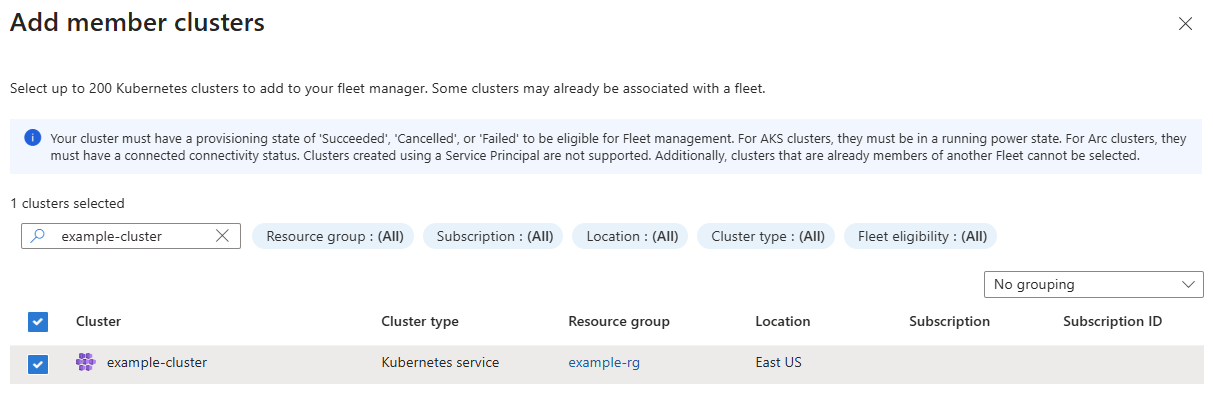

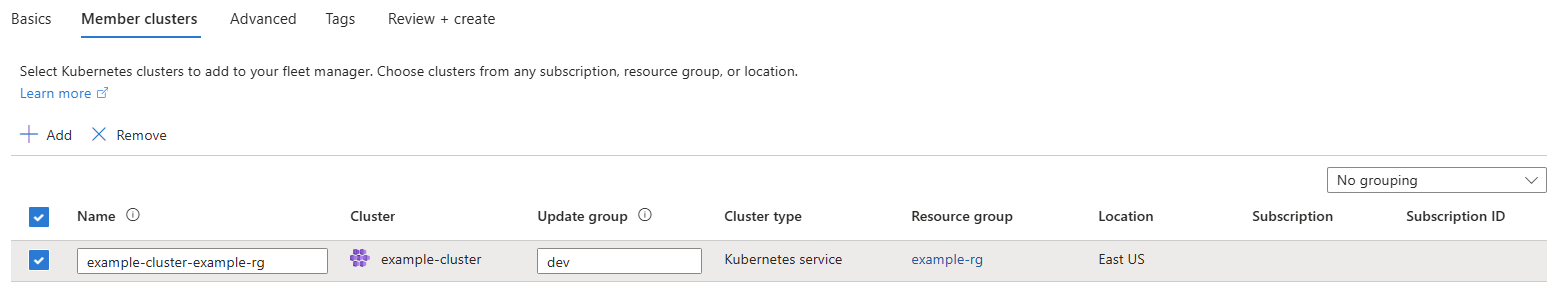

  6. On the Member clusters tab, select Add to add an existing AKS cluster as a member cluster to the Fleet resource. You can add multiple member clusters to the Fleet resource.

  7. Select Review + create > Create to create the Fleet resource.

    It takes a few minutes to create the Fleet resource. When your deployment is complete, you can navigate to your resource by selecting Go to resource.
