Create and manage tests in Azure Load Testing

Learn how to create and manage tests in your Azure Load Testing resource.

Prerequisites

  • An Azure account with an active subscription. If you don't have an Azure subscription, create a free account before you begin.
  • An Azure Load Testing resource. To create a Load Testing resource, see Create and run a load test.

Create a test

There are two options to create a load test for Azure Load Testing resource in the Azure portal:

  • Create a quick test by using a web application URL.
  • Create a test by uploading a JMeter test script (JMX).

Screenshot that shows the options to create a new test in the Azure portal.

Create a quick test by using a URL

To load test a single web endpoint, use the quick test experience in the Azure portal. Specify the application endpoint URL and basic load parameters to create and run a load test. For more information, see our quickstart for creating and running a test by using a URL.

  1. In the Azure portal, and go to your Azure Load Testing resource.

  2. Select Quick test on the Overview page.

    Alternately, select Tests in the left pane, select + Create, and then select Create a quick test.

  3. Enter the URL and load parameters.

    Screenshot that shows the page for creating a quick test in the Azure portal.

  4. Select Run test to start the load test.

    Azure Load Testing automatically generates a JMeter test script, and configures your test to scale across multiple test engines, based on your load parameters.

    You can edit the test configuration at time after creating it. For example to monitor server-side metrics, configure high scale load, or to edit the generated JMX file.

Create a test by using a JMeter script

To reuse an existing JMeter test script, or for more advanced test scenarios, create a test by uploading a JMX file. For example, to read data from a CSV input file, or to configure JMeter user properties. For more information, see Create a load test by using an existing JMeter script.

If you're not familiar with creating a JMeter script, see Getting started with Apache JMeter.

  1. In the Azure portal, and go to your Azure Load Testing resource.

  2. Select Create on the Overview page.

    Alternately, select Tests in the left pane, select + Create, and then select Upload a JMeter script.

  3. On the Basics page, enter the basic test information.

    If you select Run test after creation, the test will start automatically. You can start your test manually at any time, after creating it.

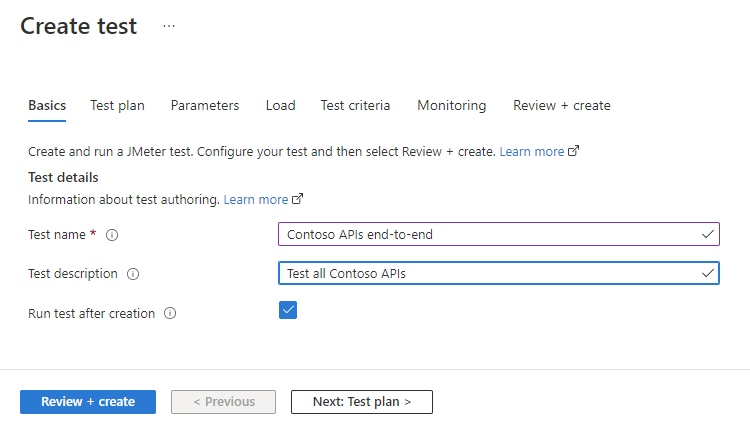

    Screenshot that shows the page for creating a test with a J Meter script in the Azure portal.

Test plan

The test plan contains all files that are needed for running your load test. At a minimum, the test plan should contain one *.jmx JMeter script. Azure Load Testing only supports one JMX file per load test. In addition, you can include a user property file, configuration files, or input data files.

  1. Go to the Test plan.

  2. Select all files from your local machine, and upload them to Azure.

    Screenshot that shows the test plan page for creating a test in the Azure portal, highlighting the upload functionality.

If you've previously created a quick test, you can edit the test plan at any time. You can add files to the test plan, or download and edit the generated JMeter script. Download a file by selecting the file name in the list.

Split CSV input data across test engines

By default, Azure Load Testing copies and processes your input files unmodified across all test engine instances. Azure Load Testing enables you to split the CSV input data evenly across all engine instances. If you have multiple CSV files, each file will be split evenly.

For example, if you have a large customer CSV input file, and the load test runs on 10 parallel test engines, then each instance will process 1/10th of the customers.

Azure Load Testing doesn't preserve the header row in your CSV file when splitting a CSV file. For more information about how to configure your JMeter script and CSV file, see Read data from a CSV file.

Screenshot that shows the checkbox to enable splitting input C S V files when configuring a test in the Azure portal.

Parameters

You can use parameters to make your test plan configurable. Specify key-value pairs in the load test configuration, and then reference their value in the JMeter script by using the parameter name.

There are two types of parameters:

  • Environment variables. For example, to specify the domain name of the web application.
  • Secrets, backed by Azure Key Vault. For example, to pass an authentication token in an HTTP request.

You can specify the managed identity to use for accessing your key vault.

For more information, see Parameterize a load test with environment variables and secrets.

Screenshot that shows how to configure parameters when creating a test in the Azure portal.

Load

Configure the number of test engine instances, and Azure Load Testing automatically scales your load test across all instances. You configure the number of virtual users, or threads, in the JMeter script and the engine instances then run the script in parallel. For more information, see Configure a test for high-scale load.

Screenshot that shows how to configure the number of test engine instances when creating a test in the Azure portal.

Test criteria

You can specify test failure criteria based on client metrics. When a load test surpasses the threshold for a metric, the load test has a Failed status. For more information, see Configure test failure criteria.

You can use the following client metrics:

  • Average Response time.
  • Error percentage.

Screenshot that shows how to configure test criteria when creating a test in the Azure portal.

Monitoring

For Azure-hosted applications, Azure Load Testing can capture detailed resource metrics for the Azure app components. These metrics enable you to analyze application performance bottlenecks.

When you edit a load test, you can select the Azure app component that you want to monitor. Azure Load Testing selects the most relevant resource metrics. You can add or remove resource metrics for each of the app components at any time.

Screenshot that shows how to configure the Azure app components to monitor when creating a test in the Azure portal.

When the load test finishes, the test result dashboard shows a graph for each of the Azure app components and resource metrics.

Screenshot that shows the test result dashboard in the Azure portal.

For more information, see Configure server-side monitoring.

Manage

If you already have a load test, you can start a new run, delete the load test, edit the test configuration, or compare test runs.

  1. In the Azure portal, go to your Azure Load Testing resource.
  2. On the left pane, select Tests to view the list of load tests, and then select your test.

Screenshot that shows the tests page in the Azure portal, highlighting the action bar.

You can perform the following actions:

  • Refresh the list of test runs.
  • Start a new test run. The run uses the current test configuration settings.
  • Delete the load test. All test runs for the load test are also deleted.
  • Configure the test configuration:
    • Configure the test plan. You can add or remove any of the files for the load test. If you want to update a file, first remove it and then add the updated version.
    • Add or remove Azure app components.
    • Configure resource metrics for the app components. Azure Load Testing automatically selects the relevant resource metrics for each app component. Add or remove metrics for any of the app components in the load test.
  • Compare test runs. Select two or more test runs in the list to visually compare them in the results dashboard.
