Workspace Managed Virtual Network Isolation

APPLIES TO: Azure CLI ml extension v2 (current) Python SDK azure-ai-ml v2 (current)

Azure Machine Learning provides support for managed virtual network (managed VNet) isolation. Managed VNet isolation streamlines and automates your network isolation configuration with a built-in, workspace-level Azure Machine Learning managed VNet. The managed VNet secures your managed Azure Machine Learning resources, such as compute instances, compute clusters, serverless compute, and managed online endpoints.

Securing your workspace with a managed network provides network isolation for outbound access from the workspace and managed computes. An Azure Virtual Network that you create and manage is used to provide network isolation inbound access to the workspace. For example, a private endpoint for the workspace is created in your Azure Virtual Network. Any clients connecting to the virtual network can access the workspace through the private endpoint. When running jobs on managed computes, the managed network restricts what the compute can access.

Managed Virtual Network Architecture

When you enable managed virtual network isolation, a managed VNet is created for the workspace. Managed compute resources you create for the workspace automatically use this managed VNet. The managed VNet can use private endpoints for Azure resources that are used by your workspace, such as Azure Storage, Azure Key Vault, and Azure Container Registry.

There are two different configuration modes for outbound traffic from the managed VNet:

Tip

Regardless of the outbound mode you use, traffic to Azure resources can be configured to use a private endpoint. For example, you may allow all outbound traffic to the internet, but restrict communication with Azure resources by adding outbound rules for the resources.

Outbound mode	Description	Scenarios
Allow internet outbound	Allow all internet outbound traffic from the managed VNet.	You want unrestricted access to machine learning resources on the internet, such as python packages or pretrained models.1
Allow only approved outbound	Outbound traffic is allowed by specifying service tags.	* You want to minimize the risk of data exfiltration, but you need to prepare all required machine learning artifacts in your private environment. * You want to configure outbound access to an approved list of services, service tags, or FQDNs.
Disabled	Inbound and outbound traffic isn't restricted or you're using your own Azure Virtual Network to protect resources.	You want public inbound and outbound from the workspace, or you're handling network isolation with your own Azure VNet.

1: You can use outbound rules with allow only approved outbound mode to achieve the same result as using allow internet outbound. The differences are:

• You must add rules for each outbound connection you need to allow.
• Adding FQDN outbound rules increase your costs as this rule type uses Azure Firewall. For more information, see Pricing
• The default rules for allow only approved outbound are designed to minimize the risk of data exfiltration. Any outbound rules you add may increase your risk.

The managed VNet is preconfigured with required default rules. It's also configured for private endpoint connections to your workspace, workspace's default storage, container registry and key vault if they're configured as private or the workspace isolation mode is set to allow only approved outbound. After choosing the isolation mode, you only need to consider other outbound requirements you may need to add.

The following diagram shows a managed VNet configured to allow internet outbound:

The following diagram shows a managed VNet configured to allow only approved outbound:

Note

In this configuration, the storage, key vault, and container registry used by the workspace are flagged as private. Since they are flagged as private, a private endpoint is used to communicate with them.

Note

Once a managed VNet workspace is configured to allow internet outbound, the workspace cannot be reconfigured to disabled. Similarily, once a managed VNet workspace is configured to allow only approved outbound, the workspace cannot be reconfigured to allow internet outbound. Please keep this in mind when selecting the isolation mode for managed VNet in your workspace.

Azure Machine Learning studio

If you want to use the integrated notebook or create datasets in the default storage account from studio, your client needs access to the default storage account. Create a private endpoint or service endpoint for the default storage account in the Azure Virtual Network that the clients use.

Part of Azure Machine Learning studio runs locally in the client's web browser, and communicates directly with the default storage for the workspace. Creating a private endpoint or service endpoint (for the default storage account) in the client's virtual network ensures that the client can communicate with the storage account.

For more information on creating a private endpoint or service endpoint, see the Connect privately to a storage account and Service Endpoints articles.

Prerequisites

Before following the steps in this article, make sure you have the following prerequisites:

Azure CLI

• An Azure subscription. If you don't have an Azure subscription, create a free account before you begin. Try the free or paid version of Azure Machine Learning.

• The Microsoft.Network resource provider must be registered for your Azure subscription. This resource provider is used by the workspace when creating private endpoints for the managed virtual network.

  For information on registering resource providers, see Resolve errors for resource provider registration.

• The Azure identity you use when deploying a managed network requires the following Azure role-based access control (Azure RBAC) actions to create private endpoints:

  • Microsoft.MachineLearningServices/workspaces/privateEndpointConnections/read
  • Microsoft.MachineLearningServices/workspaces/privateEndpointConnections/write

• The Azure CLI and the ml extension to the Azure CLI. For more information, see Install, set up, and use the CLI (v2).

  Tip

  Azure Machine Learning managed VNet was introduced on May 23rd, 2023. If you have an older version of the ml extension, you may need to update it for the examples in this article work. To update the extension, use the following Azure CLI command:

  az extension update -n ml


• The CLI examples in this article assume that you're using the Bash (or compatible) shell. For example, from a Linux system or Windows Subsystem for Linux.

• The Azure CLI examples in this article use ws to represent the name of the workspace, and rg to represent the name of the resource group. Change these values as needed when using the commands with your Azure subscription.

• With Azure CLI and managed VNet, SSH using public IP works, but SSH using private IP doesn't work.

Python SDK

• An Azure subscription. If you don't have an Azure subscription, create a free account before you begin. Try the free or paid version of Azure Machine Learning.

• The Microsoft.Network resource provider must be registered for your Azure subscription. This resource provider is used by the workspace when creating private endpoints for the managed virtual network.

  For information on registering resource providers, see Resolve errors for resource provider registration.

• The Azure identity you use when deploying a managed network requires the following Azure role-based access control (Azure RBAC) actions to create private endpoints:

  • Microsoft.MachineLearningServices/workspaces/privateEndpointConnections/read
  • Microsoft.MachineLearningServices/workspaces/privateEndpointConnections/write

• The Azure Machine Learning Python SDK v2. For more information on the SDK, see Install the Python SDK v2 for Azure Machine Learning.

  Tip

  Azure Machine learning managed VNet was introduced on May 23rd, 2023. If you have an older version of the SDK installed, you may need to update it for the examples in this article to work. To update the SDK, use the following command:

  pip install --upgrade azure-ai-ml azure-identity


• The examples in this article assume that your code begins with the following Python. This code imports the classes required when creating a workspace with managed VNet, sets variables for your Azure subscription and resource group, and creates the ml_client:

  from azure.ai.ml import MLClient
  from azure.ai.ml.entities import (
      Workspace,
      ManagedNetwork,
      IsolationMode,
      ServiceTagDestination,
      PrivateEndpointDestination,
      FqdnDestination
  )
  from azure.identity import DefaultAzureCredential

  # Replace with the values for your Azure subscription and resource group.
  subscription_id = "<SUBSCRIPTION_ID>"
  resource_group = "<RESOURCE_GROUP>"

  # get a handle to the subscription
  ml_client = MLClient(DefaultAzureCredential(), subscription_id, resource_group)


Azure portal

• An Azure subscription. If you don't have an Azure subscription, create a free account before you begin. Try the free or paid version of Azure Machine Learning.

• The Microsoft.Network resource provider must be registered for your Azure subscription. This resource provider is used by the workspace when creating private endpoints for the managed virtual network.

  For information on registering resource providers, see Resolve errors for resource provider registration.

• The Azure identity you use when deploying a managed network requires the following Azure role-based access control (Azure RBAC) actions to create private endpoints:

  • Microsoft.MachineLearningServices/workspaces/privateEndpointConnections/read
  • Microsoft.MachineLearningServices/workspaces/privateEndpointConnections/write

Note

If you are using UAI workspace please make sure to add the Network Contributor role to your identity. For more information, see User-assigned managed identity.

Configure a managed virtual network to allow internet outbound

Tip

The creation of the managed VNet is deferred until a compute resource is created or provisioning is manually started. When allowing automatic creation, it can take around 30 minutes to create the first compute resource as it is also provisioning the network. For more information, see Manually provision the network.

Important

If you plan to submit serverless Spark jobs, you must manually start provisioning. For more information, see the configure for serverless Spark jobs section.

Azure CLI

To configure a managed VNet that allows internet outbound communications, you can use either the --managed-network allow_internet_outbound parameter or a YAML configuration file that contains the following entries:

managed_network:
  isolation_mode: allow_internet_outbound

You can also define outbound rules to other Azure services that the workspace relies on. These rules define private endpoints that allow an Azure resource to securely communicate with the managed VNet. The following rule demonstrates adding a private endpoint to an Azure Blob resource.

managed_network:
  isolation_mode: allow_internet_outbound
  outbound_rules:
  - name: added-perule
    destination:
      service_resource_id: /subscriptions/<SUBSCRIPTION_ID>/resourceGroups/<RESOURCE_GROUP>/providers/Microsoft.Storage/storageAccounts/<STORAGE_ACCOUNT_NAME>
      spark_enabled: true
      subresource_target: blob
    type: private_endpoint

You can configure a managed VNet using either the az ml workspace create or az ml workspace update commands:

• Create a new workspace:

  The following example creates a new workspace. The --managed-network allow_internet_outbound parameter configures a managed VNet for the workspace:

  az ml workspace create --name ws --resource-group rg --managed-network allow_internet_outbound


  To create a workspace using a YAML file instead, use the --file parameter and specify the YAML file that contains the configuration settings:

  az ml workspace create --file workspace.yaml --resource-group rg --name ws


  The following YAML example defines a workspace with a managed VNet:

  name: myworkspace
  location: EastUS
  managed_network:
    isolation_mode: allow_internet_outbound


• Update an existing workspace:

  Warning

  Before updating an existing workspace to use a managed virtual network, you must delete all computing resources for the workspace. This includes compute instance, compute cluster, and managed online endpoints.

  The following example updates an existing workspace. The --managed-network allow_internet_outbound parameter configures a managed VNet for the workspace:

  az ml workspace update --name ws --resource-group rg --managed-network allow_internet_outbound


  To update an existing workspace using the YAML file, use the --file parameter and specify the YAML file that contains the configuration settings:

  az ml workspace update --file workspace.yaml --name ws --resource-group MyGroup


  The following YAML example defines a managed VNet for the workspace. It also demonstrates how to add a private endpoint connection to a resource used by the workspace; in this example, a private endpoint for a blob store:

  name: myworkspace
  managed_network:
    isolation_mode: allow_internet_outbound
    outbound_rules:
    - name: added-perule
      destination:
        service_resource_id: /subscriptions/<SUBSCRIPTION_ID>/resourceGroups/<RESOURCE_GROUP>/providers/Microsoft.Storage/storageAccounts/<STORAGE_ACCOUNT_NAME>
        spark_enabled: true
        subresource_target: blob
      type: private_endpoint


Python SDK

To configure a managed VNet that allows internet outbound communications, use the ManagedNetwork class to define a network with IsolationMode.ALLOW_INTERNET_OUTBOUND. You can then use the ManagedNetwork object to create a new workspace or update an existing one. To define outbound rules to Azure services that the workspace relies on, use the PrivateEndpointDestination class to define a new private endpoint to the service.

• Create a new workspace:

  The following example creates a new workspace named myworkspace, with an outbound rule named myrule that adds a private endpoint for an Azure Blob store:

  # Basic managed VNet configuration
  network = ManagedNetwork(IsolationMode.ALLOW_INTERNET_OUTBOUND)

  # Workspace configuration
  ws = Workspace(
      name="myworkspace",
      location="eastus",
      managed_network=network
  )

  # Example private endpoint outbound to a blob
  rule_name = "myrule"
  service_resource_id = "/subscriptions/<SUBSCRIPTION_ID>/resourceGroups/<RESOURCE_GROUP>/providers/Microsoft.Storage/storageAccounts/<STORAGE_ACCOUNT_NAME>"
  subresource_target = "blob"
  spark_enabled = True

  # Add the outbound
  ws.managed_network.outbound_rules = [PrivateEndpointDestination(
      name=rule_name,
      service_resource_id=service_resource_id,
      subresource_target=subresource_target,
      spark_enabled=spark_enabled)]

  # Create the workspace
  ws = ml_client.workspaces.begin_create(ws).result()


• Update an existing workspace:

  Warning

  Before updating an existing workspace to use a managed virtual network, you must delete all computing resources for the workspace. This includes compute instance, compute cluster, and managed online endpoints.

  The following example demonstrates how to create a managed VNet for an existing Azure Machine Learning workspace named myworkspace:

  # Get the existing workspace
  ml_client = MLClient(DefaultAzureCredential(), subscription_id, resource_group, "myworkspace")
  ws = ml_client.workspaces.get()

  # Basic managed VNet configuration
  ws.managed_network = ManagedNetwork(IsolationMode.ALLOW_INTERNET_OUTBOUND)

  # Example private endpoint outbound to a blob
  rule_name = "myrule"
  service_resource_id = "/subscriptions/<SUBSCRIPTION_ID>/resourceGroups/<RESOURCE_GROUP>/providers/Microsoft.Storage/storageAccounts/<STORAGE_ACCOUNT_NAME>"
  subresource_target = "blob"
  spark_enabled = True

  # Add the outbound
  ws.managed_network.outbound_rules = [PrivateEndpointDestination(
      name=rule_name,
      service_resource_id=service_resource_id,
      subresource_target=subresource_target,
      spark_enabled=spark_enabled)]

  # Create the workspace
  ml_client.workspaces.begin_update(ws)


Azure portal

• Create a new workspace:

  1. Sign in to the Azure portal, and choose Azure Machine Learning from Create a resource menu.

  2. Provide the required information on the Basics tab.

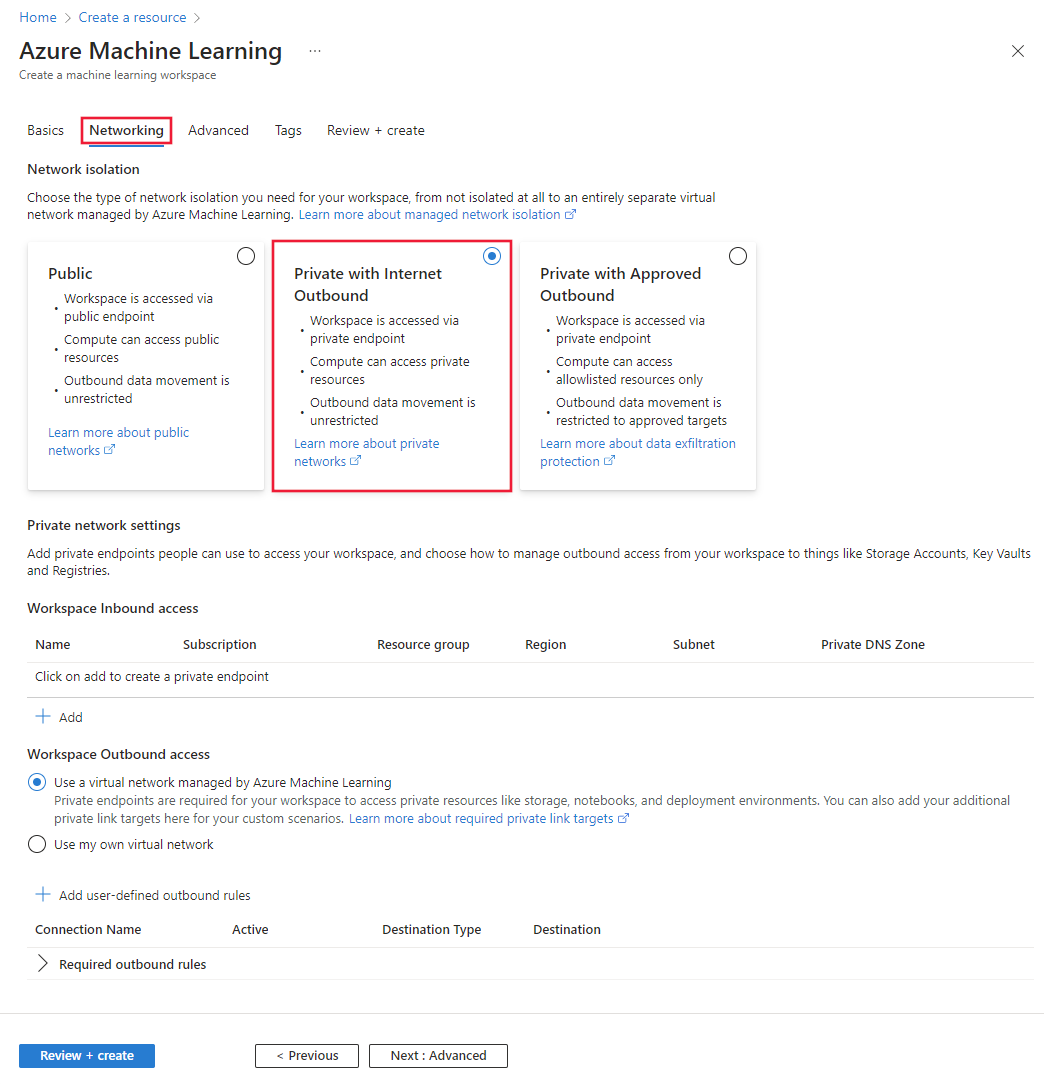

  3. From the Networking tab, select Private with Internet Outbound.

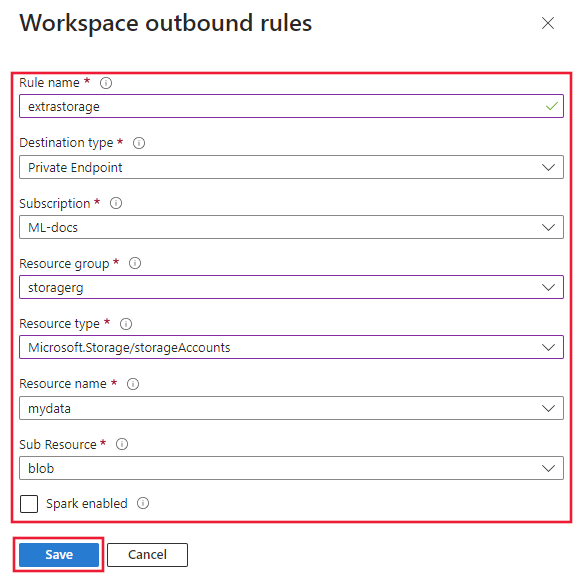

  4. To add an outbound rule, select Add user-defined outbound rules from the Networking tab. From the Workspace outbound rules sidebar, provide the following information:

     • Rule name: A name for the rule. The name must be unique for this workspace.
     • Destination type: Private Endpoint is the only option when the network isolation is private with internet outbound. Azure Machine Learning managed VNet doesn't support creating a private endpoint to all Azure resource types. For a list of supported resources, see the Private endpoints section.
     • Subscription: The subscription that contains the Azure resource you want to add a private endpoint for.
     • Resource group: The resource group that contains the Azure resource you want to add a private endpoint for.
     • Resource type: The type of the Azure resource.
     • Resource name: The name of the Azure resource.
     • Sub Resource: The sub resource of the Azure resource type.

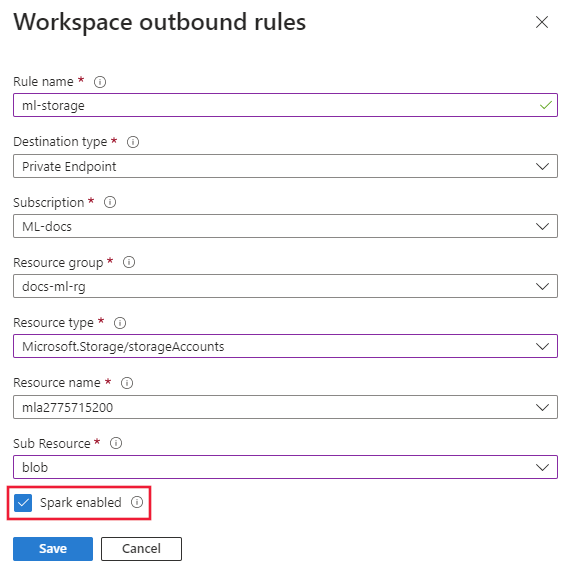

     • Spark enabled: Select this option if you want to enable serverless Spark jobs for the workspace. This option is only available if the resource type is Azure Storage.



     Select Save to save the rule. You can continue using Add user-defined outbound rules to add rules.

  5. Continue creating the workspace as normal.

• Update an existing workspace:

  Warning

  Before updating an existing workspace to use a managed virtual network, you must delete all computing resources for the workspace. This includes compute instance, compute cluster, and managed online endpoints.

  1. Sign in to the Azure portal, and select the Azure Machine Learning workspace that you want to enable managed VNet isolation for.

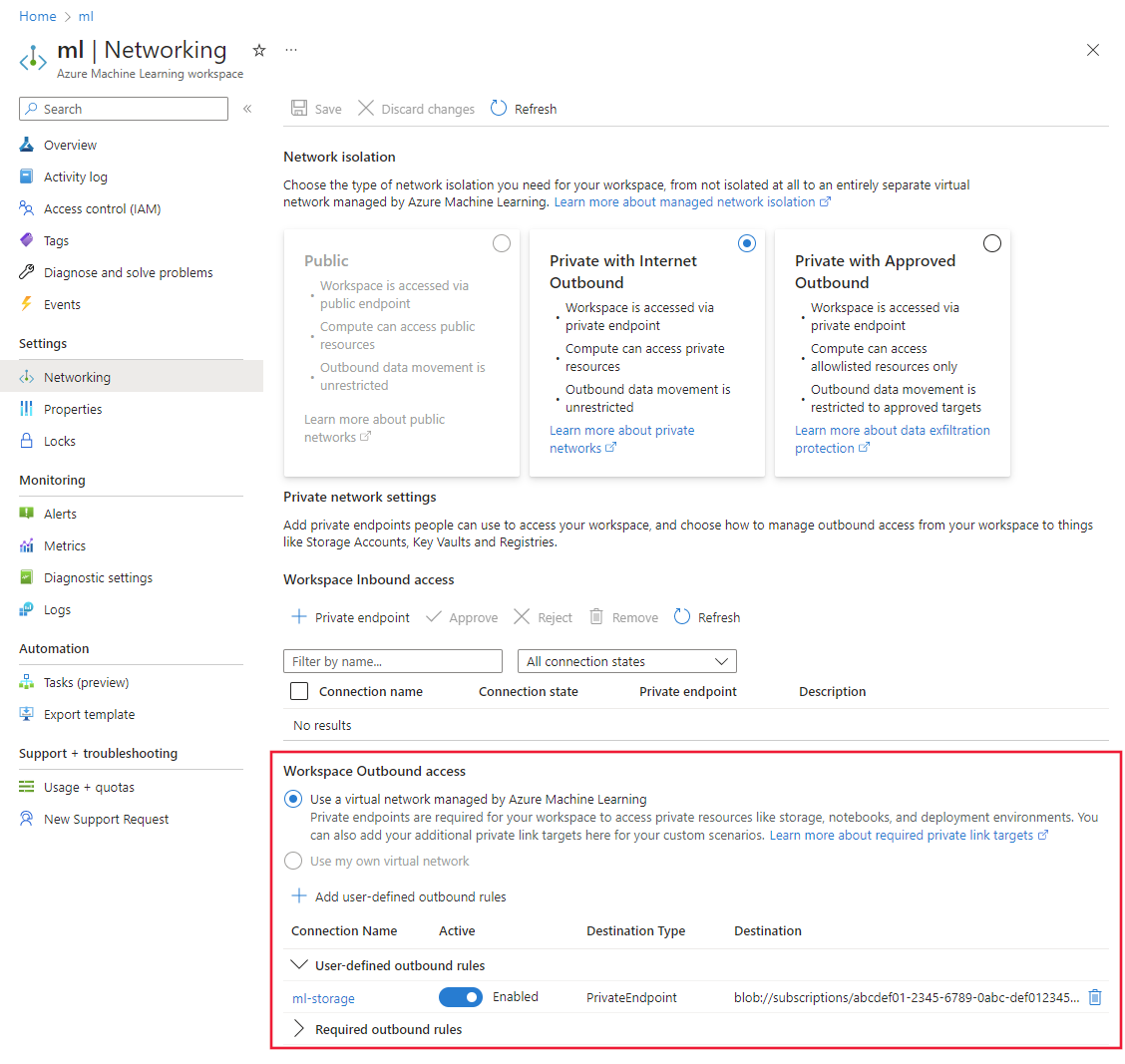

  2. Select Networking, then select Private with Internet Outbound.



     • To add an outbound rule, select Add user-defined outbound rules from the Networking tab. From the Workspace outbound rules sidebar, provide the same information as used when creating a workspace in the 'Create a new workspace' section.

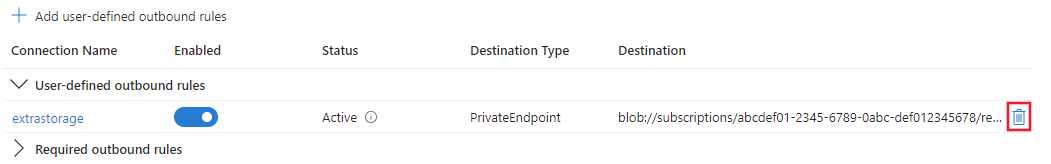

     • To delete an outbound rule, select delete for the rule.



  3. Select Save at the top of the page to save the changes to the managed VNet.

Configure a managed virtual network to allow only approved outbound

Tip

The managed VNet is automatically provisioned when you create a compute resource. When allowing automatic creation, it can take around 30 minutes to create the first compute resource as it is also provisioning the network. If you configured FQDN outbound rules, the first FQDN rule adds around 10 minutes to the provisioning time. For more information, see Manually provision the network.

Important

If you plan to submit serverless Spark jobs, you must manually start provisioning. For more information, see the configure for serverless Spark jobs section.

Azure CLI

To configure a managed VNet that allows only approved outbound communications, you can use either the --managed-network allow_only_approved_outbound parameter or a YAML configuration file that contains the following entries:

managed_network:
  isolation_mode: allow_only_approved_outbound

You can also define outbound rules to define approved outbound communication. An outbound rule can be created for a type of service_tag, fqdn, and private_endpoint. The following rule demonstrates adding a private endpoint to an Azure Blob resource, a service tag to Azure Data Factory, and an FQDN to pypi.org:

Important

• Adding an outbound for a service tag or FQDN is only valid when the managed VNet is configured to allow_only_approved_outbound.
• If you add outbound rules, Microsoft can't guarantee data exfiltration.

Warning

FQDN outbound rules are implemented using Azure Firewall. If you use outbound FQDN rules, charges for Azure Firewall are added to your billing. For more information, see Pricing.

managed_network:
  isolation_mode: allow_only_approved_outbound
  outbound_rules:
  - name: added-servicetagrule
    destination:
      port_ranges: 80, 8080
      protocol: TCP
      service_tag: DataFactory
    type: service_tag

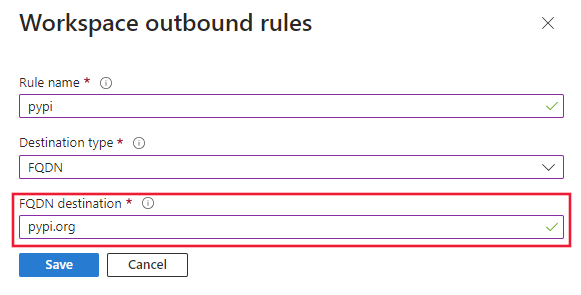

  - name: add-fqdnrule
    destination: 'pypi.org'
    type: fqdn
  - name: added-perule
    destination:
      service_resource_id: /subscriptions/<SUBSCRIPTION_ID>/resourceGroups/<RESOURCE_GROUP>/providers/Microsoft.Storage/storageAccounts/<STORAGE_ACCOUNT_NAME>
      spark_enabled: true
      subresource_target: blob
    type: private_endpoint

You can configure a managed VNet using either the az ml workspace create or az ml workspace update commands:

• Create a new workspace:

  The following example uses the --managed-network allow_only_approved_outbound parameter to configure the managed VNet:

  az ml workspace create --name ws --resource-group rg --managed-network allow_only_approved_outbound


  The following YAML file defines a workspace with a managed VNet:

  name: myworkspace
  location: EastUS
  managed_network:
    isolation_mode: allow_only_approved_outbound


  To create a workspace using the YAML file, use the --file parameter:

  az ml workspace create --file workspace.yaml --resource-group rg --name ws


• Update an existing workspace

  Warning

  Before updating an existing workspace to use a managed virtual network, you must delete all computing resources for the workspace. This includes compute instance, compute cluster, and managed online endpoints.

  The following example uses the --managed-network allow_only_approved_outbound parameter to configure the managed VNet for an existing workspace:

  az ml workspace update --name ws --resource-group rg --managed-network allow_only_approved_outbound


  The following YAML file defines a managed VNet for the workspace. It also demonstrates how to add an approved outbound to the managed VNet. In this example, an outbound rule is added for both a service tag:

  Warning

  FQDN outbound rules are implemented using Azure Firewall. If you use outbound FQDN rules, charges for Azure Firewall are added to your billing.For more information, see Pricing.

  name: myworkspace_dep
  managed_network:
    isolation_mode: allow_only_approved_outbound
    outbound_rules:
    - name: added-servicetagrule
      destination:
        port_ranges: 80, 8080
        protocol: TCP
        service_tag: DataFactory
      type: service_tag
    - name: add-fqdnrule
      destination: 'pypi.org'
      type: fqdn
    - name: added-perule
      destination:
        service_resource_id: /subscriptions/<SUBSCRIPTION_ID>/resourceGroups/<RESOURCE_GROUP>/providers/Microsoft.Storage/storageAccounts/<STORAGE_ACCOUNT_NAME>
        spark_enabled: true
        subresource_target: blob
      type: private_endpoint


Python SDK

To configure a managed VNet that allows only approved outbound communications, use the ManagedNetwork class to define a network with IsolationMode.ALLOw_ONLY_APPROVED_OUTBOUND. You can then use the ManagedNetwork object to create a new workspace or update an existing one. To define outbound rules, use the following classes:

Destination	Class
Azure service that the workspace relies on	PrivateEndpointDestination
Azure service tag	ServiceTagDestination
Fully qualified domain name (FQDN)	FqdnDestination

• Create a new workspace:

  The following example creates a new workspace named myworkspace, with several outbound rules:

  • myrule - Adds a private endpoint for an Azure Blob store.
  • datafactory - Adds a service tag rule to communicate with Azure Data Factory.

  Important

  • Adding an outbound for a service tag or FQDN is only valid when the managed VNet is configured to IsolationMode.ALLOW_ONLY_APPROVED_OUTBOUND.
  • If you add outbound rules, Microsoft can't guarantee data exfiltration.

  Warning

  FQDN outbound rules are implemented using Azure Firewall. If you use outbound FQDN rules, charges for Azure Firewall are added to your billing. For more information, see Pricing.

  # Basic managed VNet configuration
  network = ManagedNetwork(IsolationMode.ALLOW_ONLY_APPROVED_OUTBOUND)

  # Workspace configuration
  ws = Workspace(
      name="myworkspace",
      location="eastus",
      managed_network=network
  )

  # Append some rules
  ws.managed_network.outbound_rules = []
  # Example private endpoint outbound to a blob
  rule_name = "myrule"
  service_resource_id = "/subscriptions/<SUBSCRIPTION_ID>/resourceGroups/<RESOURCE_GROUP>/providers/Microsoft.Storage/storageAccounts/<STORAGE_ACCOUNT_NAME>"
  subresource_target = "blob"
  spark_enabled = True
  ws.managed_network.outbound_rules.append(
      PrivateEndpointDestination(
          name=rule_name,
          service_resource_id=service_resource_id,
          subresource_target=subresource_target,
          spark_enabled=spark_enabled
      )
  )

  # Example service tag rule
  rule_name = "datafactory"
  service_tag = "DataFactory"
  protocol = "TCP"
  port_ranges = "80, 8080-8089"
  ws.managed_network.outbound_rules.append(
      ServiceTagDestination(
          name=rule_name,
          service_tag=service_tag,
          protocol=protocol,
          port_ranges=port_ranges
      )
  )

  # Example FQDN rule
  ws.managed_network.outbound_rules.append(
      FqdnDestination(
          name="fqdnrule",
          destination="pypi.org"
      )
  )

  # Create the workspace
  ws = ml_client.workspaces.begin_create(ws).result()


• Update an existing workspace:

  Warning

  Before updating an existing workspace to use a managed virtual network, you must delete all computing resources for the workspace. This includes compute instance, compute cluster, and managed online endpoints.

  The following example demonstrates how to create a managed VNet for an existing Azure Machine Learning workspace named myworkspace. The example also adds several outbound rules for the managed VNet:

  • myrule - Adds a private endpoint for an Azure Blob store.
  • datafactory - Adds a service tag rule to communicate with Azure Data Factory.

  Tip

  Adding an outbound for a service tag or FQDN is only valid when the managed VNet is configured to IsolationMode.ALLOW_ONLY_APPROVED_OUTBOUND.

  Warning

  FQDN outbound rules are implemented using Azure Firewall. If you use outbound FQDN rules, charges for Azure Firewall are added to your billing. For more information, see Pricing.

  # Get the existing workspace
  ml_client = MLClient(DefaultAzureCredential(), subscription_id, resource_group, "myworkspace")
  ws = ml_client.workspaces.get()

  # Basic managed VNet configuration
  ws.managed_network = ManagedNetwork(IsolationMode.ALLOW_ONLY_APPROVED_OUTBOUND)

  # Append some rules
  ws.managed_network.outbound_rules = []
  # Example private endpoint outbound to a blob
  rule_name = "myrule"
  service_resource_id = "/subscriptions/<SUBSCRIPTION_ID>/resourceGroups/<RESOURCE_GROUP>/providers/Microsoft.Storage/storageAccounts/<STORAGE_ACCOUNT_NAME>"
  subresource_target = "blob"
  spark_enabled = True
  ws.managed_network.outbound_rules.append(
      PrivateEndpointDestination(
          name=rule_name,
          service_resource_id=service_resource_id,
          subresource_target=subresource_target,
          spark_enabled=spark_enabled
      )
  )

  # Example service tag rule
  rule_name = "datafactory"
  service_tag = "DataFactory"
  protocol = "TCP"
  port_ranges = "80, 8080-8089"
  ws.managed_network.outbound_rules.append(
      ServiceTagDestination(
          name=rule_name,
          service_tag=service_tag,
          protocol=protocol,
          port_ranges=port_ranges
      )
  )

  # Example FQDN rule
  ws.managed_network.outbound_rules.append(
      FqdnDestination(
          name="fqdnrule",
          destination="pypi.org"
      )
  )

  # Update the workspace
  ml_client.workspaces.begin_update(ws)


Azure portal

• Create a new workspace:

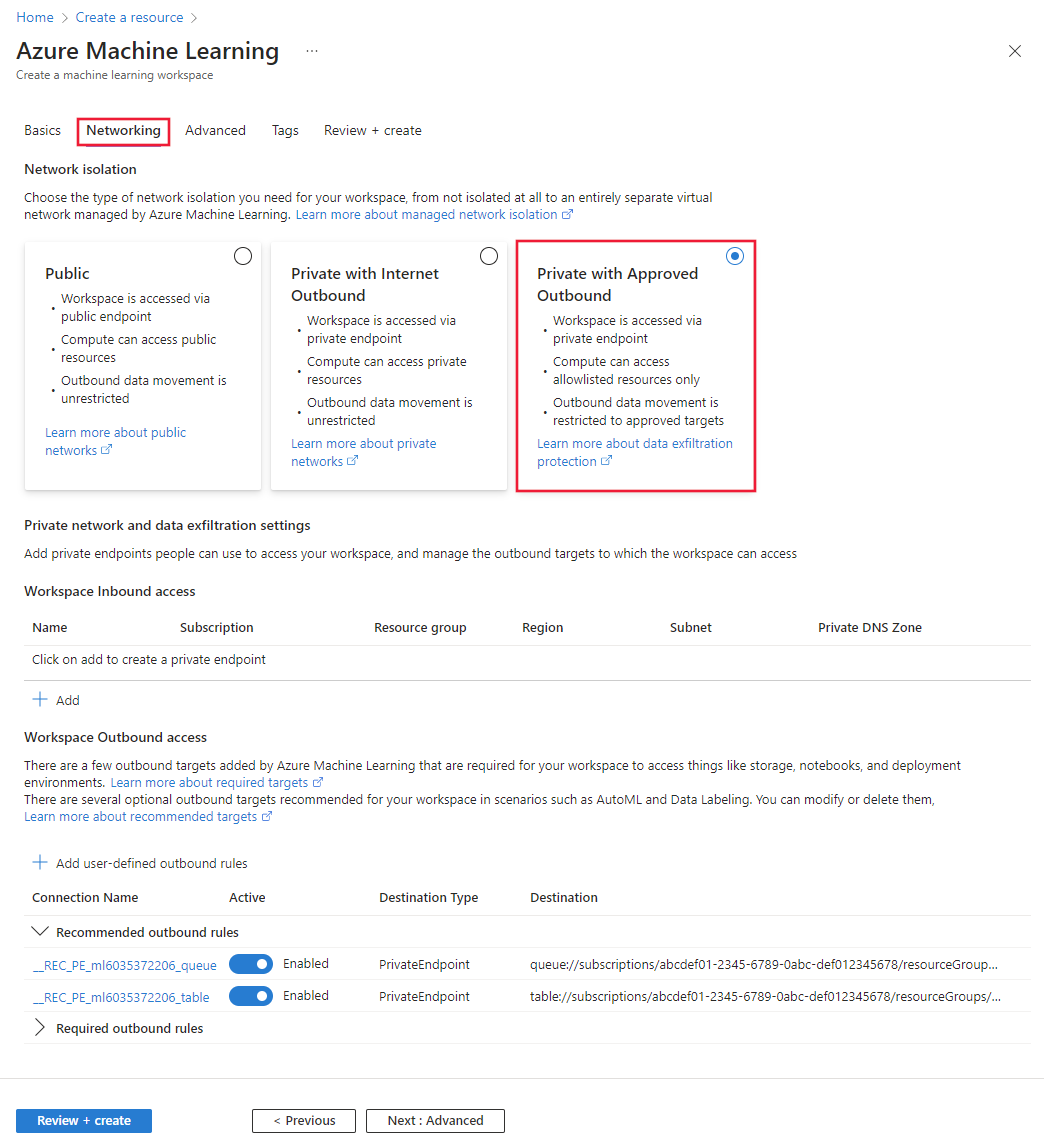

  1. Sign in to the Azure portal, and choose Azure Machine Learning from Create a resource menu.

  2. Provide the required information on the Basics tab.

  3. From the Networking tab, select Private with Approved Outbound.



  4. To add an outbound rule, select Add user-defined outbound rules from the Networking tab. From the Workspace outbound rules sidebar, provide the following information:

     • Rule name: A name for the rule. The name must be unique for this workspace.
     • Destination type: Private Endpoint, Service Tag, or FQDN. Service Tag and FQDN are only available when the network isolation is private with approved outbound.

     If the destination type is Private Endpoint, provide the following information:

     • Subscription: The subscription that contains the Azure resource you want to add a private endpoint for.
     • Resource group: The resource group that contains the Azure resource you want to add a private endpoint for.
     • Resource type: The type of the Azure resource.
     • Resource name: The name of the Azure resource.
     • Sub Resource: The sub resource of the Azure resource type.
     • Spark enabled: Select this option if you want to enable serverless Spark jobs for the workspace. This option is only available if the resource type is Azure Storage.

     Tip

     Azure Machine Learning managed VNet doesn't support creating a private endpoint to all Azure resource types. For a list of supported resources, see the Private endpoints section.



     If the destination type is Service Tag, provide the following information:

     • Service tag: The service tag to add to the approved outbound rules.
     • Protocol: The protocol to allow for the service tag.
     • Port ranges: The port ranges to allow for the service tag.



     If the destination type is FQDN, provide the following information:

     Warning

     FQDN outbound rules are implemented using Azure Firewall. If you use outbound FQDN rules, charges for Azure Firewall are added to your billing. For more information, see Pricing.

     • FQDN destination: The fully qualified domain name to add to the approved outbound rules.



     Select Save to save the rule. You can continue using Add user-defined outbound rules to add rules.

  5. Continue creating the workspace as normal.

• Update an existing workspace:

  Warning

  Before updating an existing workspace to use a managed virtual network, you must delete all computing resources for the workspace. This includes compute instance, compute cluster, and managed online endpoints.

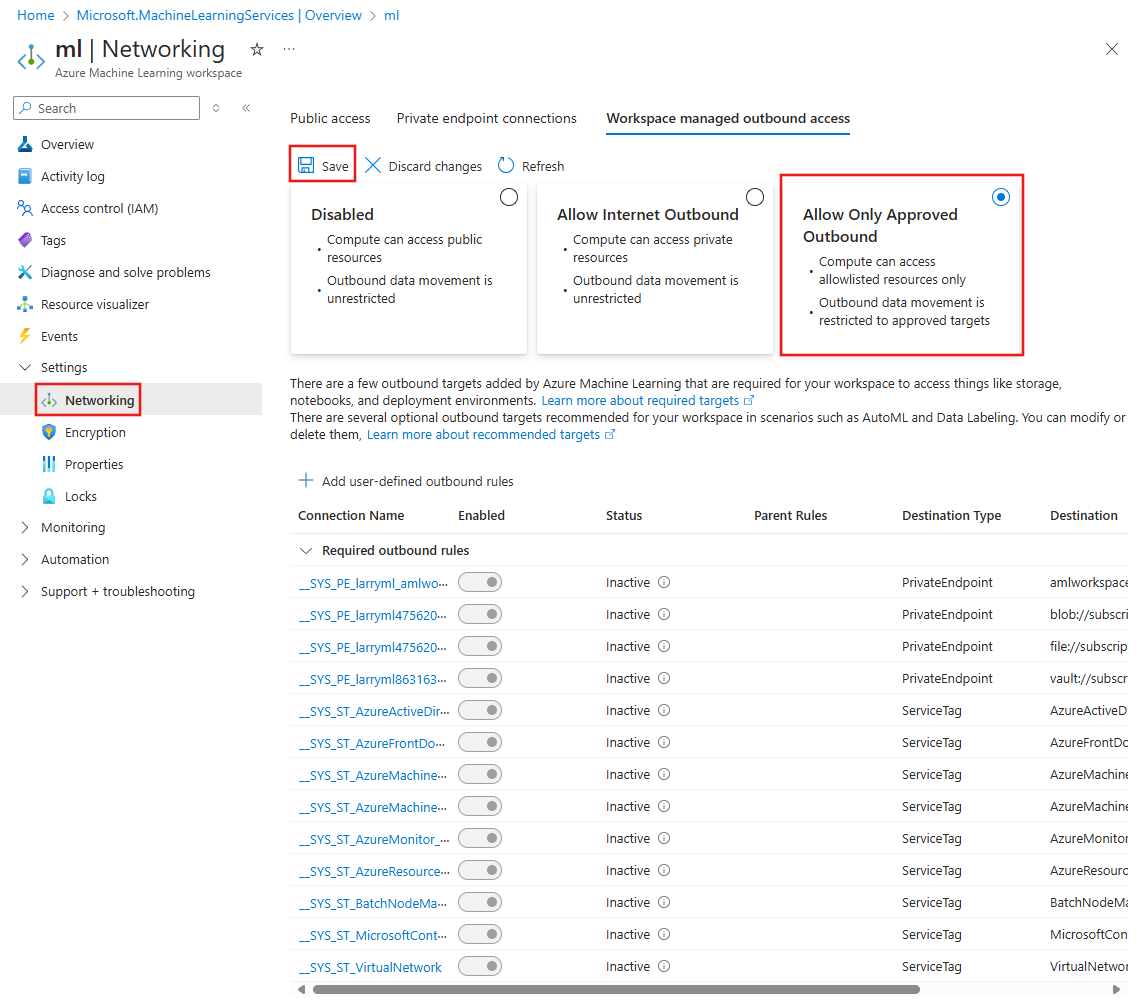

  1. Sign in to the Azure portal, and select the Azure Machine Learning workspace that you want to enable managed VNet isolation for.

  2. Select Networking, then select Private with Approved Outbound.



     • To add an outbound rule, select Add user-defined outbound rules from the Networking tab. From the Workspace outbound rules sidebar, provide the same information as when creating a workspace in the previous 'Create a new workspace' section.

     • To delete an outbound rule, select delete for the rule.



  3. Select Save at the top of the page to save the changes to the managed VNet.

Configure for serverless Spark jobs

Tip

The steps in this section are only needed if you plan to submit serverless Spark jobs. If you aren't going to be submitting serverless Spark jobs, you can skip this section.

To enable the serverless Spark jobs for the managed VNet, you must perform the following actions:

• Configure a managed VNet for the workspace and add an outbound private endpoint for the Azure Storage Account.
• After you configure the managed VNet, provision it and flag it to allow Spark jobs.

1. Configure an outbound private endpoint.

   Azure CLI

   Use a YAML file to define the managed VNet configuration and add a private endpoint for the Azure Storage Account. Also set spark_enabled: true:

   Tip

   This example is for a managed VNet configured using isolation_mode: allow_internet_outbound to allow internet traffic. If you want to allow only approved outbound traffic, use isolation_mode: allow_only_approved_outbound.

   name: myworkspace
   managed_network:
     isolation_mode: allow_internet_outbound
     outbound_rules:
     - name: added-perule
       destination:
         service_resource_id: /subscriptions/<SUBSCRIPTION_ID>/resourceGroups/<RESOURCE_GROUP>/providers/Microsoft.Storage/storageAccounts/<STORAGE_ACCOUNT_NAME>
         spark_enabled: true
         subresource_target: blob
       type: private_endpoint


   You can use a YAML configuration file with the az ml workspace update command by specifying the --file parameter and the name of the YAML file. For example, the following command updates an existing workspace using a YAML file named workspace_pe.yml:

   az ml workspace update --file workspace_pe.yml --resource_group rg --name ws


   Note

   When Allow Only Approved Outbound is enabled (isolation_mode: allow_only_approved_outbound), conda package dependencies defined in Spark session configuration will fail to install. To resolve this problem, upload a self-contained Python package wheel with no external dependencies to an Azure storage account and create private endpoint to this storage account. Use the path to Python package wheel as py_files parameter in your Spark job. Setting an FQDN outbound rule will not bypass this issue as FQDN rule propagation is not supported by Spark.

   Python SDK

   The following example demonstrates how to create a managed VNet for an existing Azure Machine Learning workspace named myworkspace. It also adds a private endpoint for the Azure Storage Account and sets spark_enabled=true:

   Tip

   The following example is for a managed VNet configured using IsolationMode.ALLOW_INTERNET_OUTBOUND to allow internet traffic. If you want to allow only approved outbound traffic, use IsolationMode.ALLOW_ONLY_APPROVED_OUTBOUND.

   # Get the existing workspace
   ml_client = MLClient(DefaultAzureCredential(), subscription_id, resource_group, "myworkspace")
   ws = ml_client.workspaces.get()

   # Basic managed VNet configuration
   ws.managed_network = ManagedNetwork(IsolationMode.ALLOW_INTERNET_OUTBOUND)

   # Example private endpoint outbound to a blob
   rule_name = "myrule"
   service_resource_id = "/subscriptions/<SUBSCRIPTION_ID>/resourceGroups/<RESOURCE_GROUP>/providers/Microsoft.Storage/storageAccounts/<STORAGE_ACCOUNT_NAME>"
   subresource_target = "blob"
   spark_enabled = True

   # Add the outbound
   ws.managed_network.outbound_rules = [PrivateEndpointDestination(
       name=rule_name,
       service_resource_id=service_resource_id,
       subresource_target=subresource_target,
       spark_enabled=spark_enabled)]

   # Create the workspace
   ml_client.workspaces.begin_update(ws)


   Note

   • When Allow Only Approved Outbound is enabled (isolation_mode: allow_only_approved_outbound), conda package dependencies defined in Spark session configuration will fail to install. To resolve this problem, upload a self-contained Python package wheel with no external dependencies to an Azure storage account and create private endpoint to this storage account. Use the path to Python package wheel as py_files parameter in the Spark job.
   • If the workspace was created with IsolationMode.ALLOW_INTERNET_OUTBOUND, it can not be updated later to use IsolationMode.ALLOW_ONLY_APPROVED_OUTBOUND.

   Azure portal

   1. Sign in to the Azure portal, and select the Azure Machine Learning workspace.

   2. Select Networking, then select Add user-defined outbound rules. Add a rule for the Azure Storage Account, and make sure that Spark enabled is selected.



   3. Select Save to save the rule, then select Save from the top of Networking to save the changes to the manged virtual network.

2. Provision the managed VNet.

   Note

   If your workspace is already configured for a public endpoint (for example, with an Azure Virtual Network), and has public network access enabled, you must disable it before provisioning the managed VNet. If you don't disable public network access when provisioning the managed VNet, the private endpoints for the managed endpoint may not be created successfully.

   Azure CLI

   The following example shows how to provision a managed VNet for serverless Spark jobs by using the --include-spark parameter.

   az ml workspace provision-network -g my_resource_group -n my_workspace_name --include-spark


   Python SDK

   The following example shows how to provision a managed VNet for serverless Spark jobs:

   # Connect to a workspace named "myworkspace"
   ml_client = MLClient(DefaultAzureCredential(), subscription_id, resource_group, workspace_name="myworkspace")

   # whether to provision Spark vnet as well
   include_spark = True

   provision_network_result = ml_client.workspaces.begin_provision_network(workspace_name=ws_name, include_spark=include_spark).result()


   Azure portal

   Use the Azure CLI or Python SDK tabs to learn how to manually provision the managed VNet with serverless Spark support.

Manually provision a managed VNet

The managed VNet is automatically provisioned when you create a compute resource. When you rely on automatic provisioning, it can take around 30 minutes to create the first compute resource as it is also provisioning the network. If you configured FQDN outbound rules (only available with allow only approved mode), the first FQDN rule adds around 10 minutes to the provisioning time. If you have a large set of outbound rules to be provisioned in the managed network, it can take longer for provisioning to complete. The increased provisioning time can cause your first compute creation, or your first managed online endpoint deployment, to time out.

To reduce the wait time and avoid potential timeout errors, we recommend manually provisioning the managed network. Then wait until the provisioning completes before you create a compute resource or managed online endpoint deployment.

Azure CLI

The following example shows how to provision a managed VNet.

Tip

If you plan to submit serverless Spark jobs, add the --include-spark parameter.

az ml workspace provision-network -g my_resource_group -n my_workspace_name

To verify that the provisioning has completed, use the following command:

az ml workspace show -n my_workspace_name -g my_resource_group --query managed_network

Python SDK

The following example shows how to provision a managed VNet:

# Connect to a workspace named "myworkspace"
ml_client = MLClient(DefaultAzureCredential(), subscription_id, resource_group, workspace_name="myworkspace")

# whether to provision Spark vnet as well
include_spark = True

provision_network_result = ml_client.workspaces.begin_provision_network(workspace_name=ws_name, include_spark=include_spark).result()

To verify that the workspace has been provisioned, use ml_client.workspaces.get() to get the workspace information. The managed_network property contains the status of the managed network.

ws = ml_client.workspaces.get()
print(ws.managed_network.status)

Azure portal

Use the Azure CLI or Python SDK tabs to learn how to manually provision the managed VNet with serverless Spark support.

Configure image builds

When the Azure Container Registry for your workspace is behind a virtual network, it can't be used to directly build Docker images. Instead, configure your workspace to use a compute cluster or compute instance to build images.

Important

The compute resource used to build Docker images needs to be able to access the package repositories that are used to train and deploy your models. If you're using a network configured to allow only approved outbound, you may need to add rules that allow access to public repos or use private Python packages.

Azure CLI

To update a workspace to use a compute cluster or compute instance to build Docker images, use the az ml workspace update command with the --image-build-compute parameter:

az ml workspace update --name ws --resource-group rg --image-build-compute mycompute

Python SDK

The following example demonstrates how to update a workspace to use a compute cluster to build images:

# import required libraries
from azure.ai.ml import MLClient
from azure.identity import DefaultAzureCredential

subscription_id = "<your subscription ID>"
resource_group = "<your resource group name>"
workspace = "<your workspace name>"

ml_client = MLClient(
    DefaultAzureCredential(), subscription_id, resource_group, workspace
)

# Get workspace info
ws=ml_client.workspaces.get(name=workspace)
# Update to use cpu-cluster for image builds
ws.image_build_compute="mycompute"
ml_client.workspaces.begin_update(ws)
# To switch back to using ACR to build (if ACR is not in the virtual network):
# ws.image_build_compute = ''
# ml_client.workspaces.begin_update(ws)

Azure portal

Currently there isn't a way to set the image build compute from the Azure portal. Use the Azure CLI or Python SDK tabs to learn how to manually configure image builds.

Manage outbound rules

Azure CLI

To list the managed VNet outbound rules for a workspace, use the following command:

az ml workspace outbound-rule list --workspace-name ws --resource-group rg

To view the details of a managed VNet outbound rule, use the following command:

az ml workspace outbound-rule show --rule rule-name --workspace-name ws --resource-group rg

To remove an outbound rule from the managed VNet, use the following command:

az ml workspace outbound-rule remove --rule rule-name --workspace-name ws --resource-group rg

Python SDK

The following example demonstrates how to manage outbound rules for a workspace named myworkspace:

# Connect to the workspace
ml_client = MLClient(DefaultAzureCredential(), subscription_id, resource_group, workspace_name="myworkspace")

# Specify the rule name
rule_name = "<some-rule-name>"

# Get a rule by name
rule = ml_client._workspace_outbound_rules.get(resource_group, ws_name, rule_name)

# List rules for a workspace
rule_list = ml_client._workspace_outbound_rules.list(resource_group, ws_name)

# Delete a rule from a workspace
ml_client._workspace_outbound_rules.begin_remove(resource_group, ws_name, rule_name).result()

Azure portal

1. Sign in to the Azure portal, and select the Azure Machine Learning workspace that you want to enable managed VNet isolation for.

2. Select Networking. The Workspace Outbound access section allows you to manage outbound rules.



• To add an outbound rule, select Add user-defined outbound rules from the Networking tab. From the Workspace outbound rules sidebar, provide the following information:

• To enable or disable a rule, use the toggle in the Active column.

• To delete an outbound rule, select delete for the rule.

List of required rules

Tip

These rules are automatically added to the managed VNet.

Private endpoints:

• When the isolation mode for the managed VNet is Allow internet outbound, private endpoint outbound rules are automatically created as required rules from the managed VNet for the workspace and associated resources with public network access disabled (Key Vault, Storage Account, Container Registry, Azure Machine Learning workspace).
• When the isolation mode for the managed VNet is Allow only approved outbound, private endpoint outbound rules are automatically created as required rules from the managed VNet for the workspace and associated resources regardless of public network access mode for those resources (Key Vault, Storage Account, Container Registry, Azure Machine Learning workspace).

Outbound service tag rules:

• AzureActiveDirectory
• AzureMachineLearning
• BatchNodeManagement.region
• AzureResourceManager
• AzureFrontDoor
• MicrosoftContainerRegistry
• AzureMonitor

Inbound service tag rules:

• AzureMachineLearning

List of scenario specific outbound rules

Scenario: Access public machine learning packages

To allow installation of Python packages for training and deployment, add outbound FQDN rules to allow traffic to the following host names:

Warning

FQDN outbound rules are implemented using Azure Firewall. If you use outbound FQDN rules, charges for Azure Firewall are added to your billing. For more information, see Pricing.

Note

This is not a complete list of the hosts required for all Python resources on the internet, only the most commonly used. For example, if you need access to a GitHub repository or other host, you must identify and add the required hosts for that scenario.

Host name	Purpose
anaconda.com *.anaconda.com	Used to install default packages.
*.anaconda.org	Used to get repo data.
pypi.org	Used to list dependencies from the default index, if any, and the index isn't overwritten by user settings. If the index is overwritten, you must also allow *.pythonhosted.org.
pytorch.org *.pytorch.org	Used by some examples based on PyTorch.
*.tensorflow.org	Used by some examples based on Tensorflow.

Scenario: Use Visual Studio Code desktop or web with compute instance

If you plan to use Visual Studio Code with Azure Machine Learning, add outbound FQDN rules to allow traffic to the following hosts:

Warning

FQDN outbound rules are implemented using Azure Firewall. If you use outbound FQDN rules, charges for Azure Firewall are added to your billing. For more information, see Pricing.

• *.vscode.dev
• vscode.blob.core.windows.net
• *.gallerycdn.vsassets.io
• raw.githubusercontent.com
• *.vscode-unpkg.net
• *.vscode-cdn.net
• *.vscodeexperiments.azureedge.net
• default.exp-tas.com
• code.visualstudio.com
• update.code.visualstudio.com
• *.vo.msecnd.net
• marketplace.visualstudio.com
• vscode.download.prss.microsoft.com

Scenario: Use batch endpoints

If you plan to use Azure Machine Learning batch endpoints for deployment, add outbound private endpoint rules to allow traffic to the following sub resources for the default storage account:

• queue
• table

Scenario: Use prompt flow with Azure OpenAI, content safety, and Azure AI Search

• Private endpoint to Azure AI Services
• Private endpoint to Azure AI Search

Scenario: Use HuggingFace models

If you plan to use HuggingFace models with Azure Machine Learning, add outbound FQDN rules to allow traffic to the following hosts:

Warning

FQDN outbound rules are implemented using Azure Firewall. If you use outbound FQDN rules, charges for Azure Firewall are added to your billing. For more information, see Pricing.

• docker.io
• *.docker.io
• *.docker.com
• production.cloudflare.docker.com
• cdn.auth0.com
• cdn-lfs.huggingface.co

Scenario: Enable access from selected IP Addresses

If you want to enable access from specific IP addresses, use the following actions:

1. Add an outbound private endpoint rule to allow traffic to the Azure Machine Learning workspace. This allows compute instances created in the managed virtual network to access the workspace.

   Tip

   You can't add this rule during workspace creation, as the workspace doesn't exist yet.

2. Enable public network access to the workspace. For more information, see public network access enabled.

3. Add your IP addresses to the firewall for Azure Machine Learning. For more information, see enable access only from IP ranges.

Private endpoints

Private endpoints are currently supported for the following Azure services:

• Azure Machine Learning
• Azure Machine Learning registries
• Azure Storage (all sub resource types)
• Azure Container Registry
• Azure Key Vault
• Azure AI services
• Azure AI Search (formerly Cognitive Search)
• Azure SQL Server
• Azure Data Factory
• Azure Cosmos DB (all sub resource types)
• Azure Event Hubs
• Azure Redis Cache
• Azure Databricks
• Azure Database for MariaDB
• Azure Database for PostgreSQL
• Azure Database for MySQL
• Azure SQL Managed Instance

When you create a private endpoint, you provide the resource type and subresource that the endpoint connects to. Some resources have multiple types and subresources. For more information, see what is a private endpoint.

When you create a private endpoint for Azure Machine Learning dependency resources, such as Azure Storage, Azure Container Registry, and Azure Key Vault, the resource can be in a different Azure subscription. However, the resource must be in the same tenant as the Azure Machine Learning workspace.

Important

When configuring private endpoints for an Azure Machine Learning managed VNet, the private endpoints are only created when created when the first compute is created or when managed VNet provisioning is forced. For more information on forcing the managed VNet provisioning, see Configure for serverless Spark jobs.

Pricing

The Azure Machine Learning managed VNet feature is free. However, you're charged for the following resources that are used by the managed VNet:

• Azure Private Link - Private endpoints used to secure communications between the managed VNet and Azure resources relies on Azure Private Link. For more information on pricing, see Azure Private Link pricing.

• FQDN outbound rules - FQDN outbound rules are implemented using Azure Firewall. If you use outbound FQDN rules, charges for Azure Firewall are added to your billing. The Azure Firewall (standard SKU) is provisioned by Azure Machine Learning.

  Important

  The firewall isn't created until you add an outbound FQDN rule. For more information on pricing, see Azure Firewall pricing and view prices for the standard version.

Limitations

• Once you enable managed VNet isolation of your workspace, you can't disable it.
• Managed VNet uses private endpoint connection to access your private resources. You can't have a private endpoint and a service endpoint at the same time for your Azure resources, such as a storage account. We recommend using private endpoints in all scenarios.
• The managed VNet is deleted when the workspace is deleted.
• Data exfiltration protection is automatically enabled for the only approved outbound mode. If you add other outbound rules, such as to FQDNs, Microsoft can't guarantee that you're protected from data exfiltration to those outbound destinations.
• Creating a compute cluster in a different region than the workspace isn't supported when using a managed VNet.
• Kubernetes and attached VMs aren't supported in an Azure Machine Learning managed VNet.
• Using FQDN outbound rules increases the cost of the managed VNet because FQDN rules use Azure Firewall. For more information, see Pricing.

Migration of compute resources

If you have an existing workspace and want to enable managed VNet for it, there's currently no supported migration path for existing manged compute resources. You'll need to delete all existing managed compute resources and recreate them after enabling the managed VNet. The following list contains the compute resources that must be deleted and recreated:

• Compute cluster
• Compute instance
• Kubernetes clusters
• Managed online endpoints

Next steps

• Troubleshoot managed VNet
• Configure managed computes in a managed VNet
