Run Jupyter notebooks in your workspace

This article shows how to run your Jupyter notebooks inside your workspace of Azure Machine Learning studio. There are other ways to run the notebook as well: Jupyter, JupyterLab, and Visual Studio Code. VS Code Desktop can be configured to access your compute instance. Or use VS Code for the Web, directly from the browser, and without any required installations or dependencies.

Tip

We recommend you try VS Code for the Web to take advantage of the easy integration and rich development environment it provides. VS Code for the Web gives you many of the features of VS Code Desktop that you love, including search and syntax highlighting while browsing and editing. For more information about using VS Code Desktop and VS Code for the Web, see Launch Visual Studio Code integrated with Azure Machine Learning and Work in VS Code remotely connected to a compute instance.

No matter which solution you use to run the notebook, you have access to all the files from your workspace. For information on how to create and manage files, including notebooks, see Create and manage files in your workspace.

This article shows the experience for running the notebook directly in studio.

Important

Features marked as (preview) are provided without a service level agreement, and it's not recommended for production workloads. Certain features might not be supported or might have constrained capabilities. For more information, see Supplemental Terms of Use for Microsoft Azure Previews.

Prerequisites

  • An Azure subscription. If you don't have an Azure subscription, create a free account before you begin.
  • A Machine Learning workspace. See Create workspace resources.
  • Your user identity must have access to your workspace's default storage account. Whether you can read, edit, or create notebooks depends on your access level to your workspace. For example, a Contributor can edit the notebook, while a Reader could only view it.

Access notebooks from your workspace

Use the Notebooks section of your workspace to edit and run Jupyter notebooks.

  1. Sign into Azure Machine Learning studio
  2. Select your workspace, if it isn't already open
  3. On the left, select Notebooks

Edit a notebook

To edit a notebook, open any notebook located in the User files section of your workspace. Select the cell you wish to edit. If you don't have any notebooks in this section, see Create and manage files in your workspace.

You can edit the notebook without connecting to a compute instance. When you want to run the cells in the notebook, select or create a compute instance. If you select a stopped compute instance, it will automatically start when you run the first cell.

When a compute instance is running, you can also use code completion, powered by Intellisense, in any Python notebook.

When a compute instance is running, you can launch Jupyter or JupyterLab from the notebook toolbar. Azure Machine Learning doesn't provide updates and fix bugs from Jupyter or JupyterLab as they're Open Source products outside of the boundary of Microsoft Support.

Focus mode

Use focus mode to expand your current view so you can focus on your active tabs. Focus mode hides the Notebooks file explorer.

  1. In the terminal window toolbar, select Focus mode to turn on focus mode. Depending on your window width, the tool may be located under the ... menu item in your toolbar.

  2. While in focus mode, return to the standard view by selecting Standard view.

    Toggle focus mode / standard view

Code completion (IntelliSense)

IntelliSense is a code-completion aid that includes many features: List Members, Parameter Info, Quick Info, and Complete Word. With only a few keystrokes, you can:

  • Learn more about the code you're using
  • Keep track of the parameters you're typing
  • Add calls to properties and methods

Share a notebook

Your notebooks are stored in your workspace's storage account, and can be shared with others, depending on their access level to your workspace. They can open and edit the notebook as long as they have the appropriate access. For example, a Contributor can edit the notebook, while a Reader could only view it.

Other users of your workspace can find your notebook in the Notebooks, User files section of Azure Machine Learning studio. By default, your notebooks are in a folder with your username, and others can access them there.

You can also copy the URL from your browser when you open a notebook, then send to others. As long as they have appropriate access to your workspace, they can open the notebook.

Since you don't share compute instances, other users who run your notebook will use their own compute instance.

Collaborate with notebook comments

Use a notebook comment to collaborate with others who have access to your notebook.

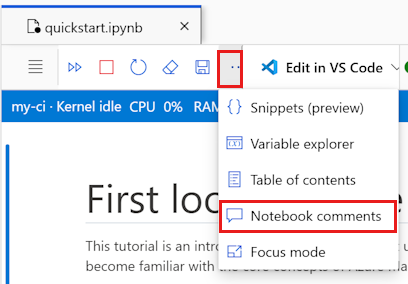

Toggle the comments pane on and off with the Notebook comments tool at the top of the notebook. If your screen isn't wide enough, find this tool by first selecting the ... at the end of the set of tools.

Screenshot of notebook comments tool in the top toolbar.

Whether the comments pane is visible or not, you can add a comment into any code cell:

  1. Select some text in the code cell. You can only comment on text in a code cell.

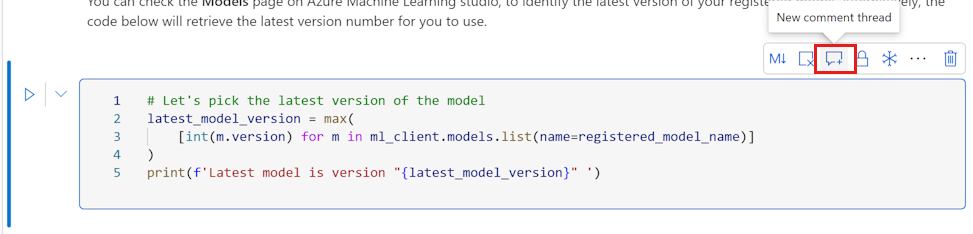

  2. Use the New comment thread tool to create your comment. Screenshot of add a comment to a code cell tool.
  3. If the comments pane was previously hidden, it opens now.
  4. Type your comment and post it with the tool or use Ctrl+Enter.
  5. Once a comment is posted, select ... in the top right to:
    • Edit the comment
    • Resolve the thread
    • Delete the thread

Commented text appears with a purple highlight in the code. When you select a comment in the comments pane, your notebook scrolls to the cell that contains the highlighted text.

Note

Comments are saved into the code cell's metadata.

Clean your notebook (preview)

Over the course of creating a notebook, you typically end up with cells you used for data exploration or debugging. The gather feature helps you produce a clean notebook without these extraneous cells.

  1. Run all of your notebook cells.
  2. Select the cell containing the code you wish the new notebook to run. For example, the code that submits an experiment, or perhaps the code that registers a model.

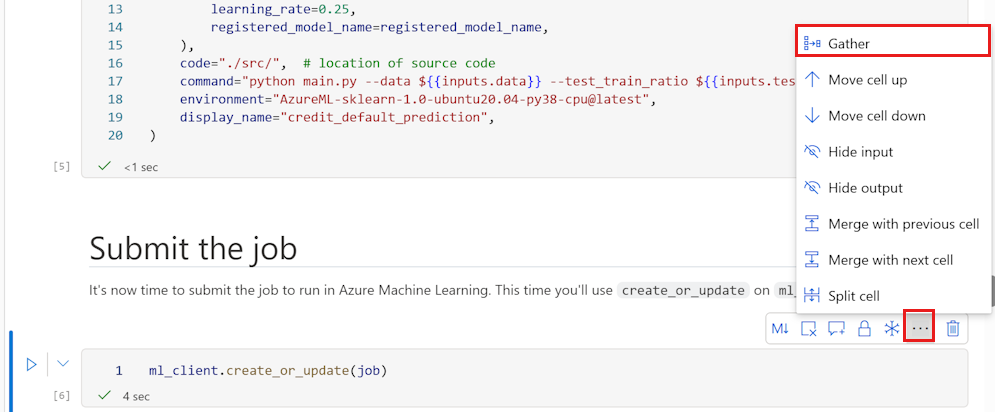

  3. Select the Gather icon that appears on the cell toolbar. Screenshot: select the Gather icon
  4. Enter the name for your new "gathered" notebook.

The new notebook contains only code cells, with all cells required to produce the same results as the cell you selected for gathering.

Save and checkpoint a notebook

Azure Machine Learning creates a checkpoint file when you create an ipynb file.

In the notebook toolbar, select the menu and then File>Save and checkpoint to manually save the notebook and it adds a checkpoint file associated with the notebook.

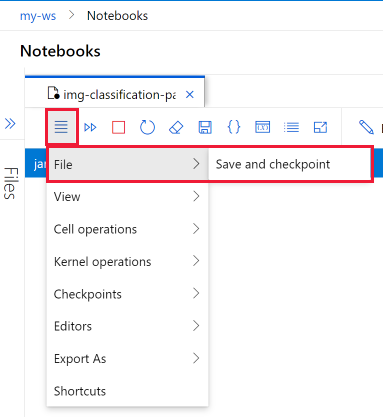

Screenshot of save tool in notebook toolbar

Every notebook is autosaved every 30 seconds. AutoSave updates only the initial ipynb file, not the checkpoint file.

Select Checkpoints in the notebook menu to create a named checkpoint and to revert the notebook to a saved checkpoint.

Export a notebook

In the notebook toolbar, select the menu and then Export As to export the notebook as any of the supported types:

  • Python
  • HTML
  • LaTeX

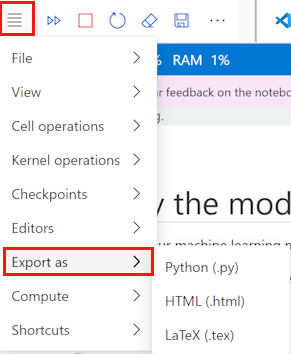

Export a notebook to your computer

The exported file is saved on your computer.

Run a notebook or Python script

To run a notebook or a Python script, you first connect to a running compute instance.

  • If you don't have a compute instance, use these steps to create one:

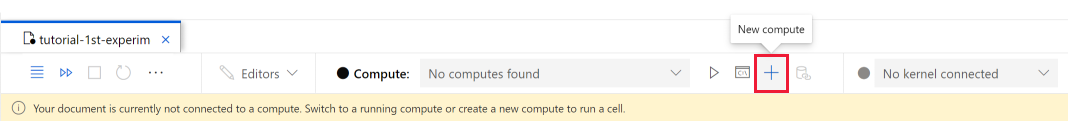

    1. In the notebook or script toolbar, to the right of the Compute dropdown, select + New Compute. Depending on your screen size, the control might be located under a ... menu. Create a new compute
    2. Name the Compute and choose a Virtual Machine Size.
    3. Select Create.
    4. The compute instance is connected to the file automatically. You can now run the notebook cells or the Python script using the tool to the left of the compute instance.
  • If you have a stopped compute instance, select Start compute to the right of the Compute dropdown. Depending on your screen size, the control might be located under a ... menu.

    Start compute instance

Once you're connected to a compute instance, use the toolbar to run all cells in the notebook, or Control + Enter to run a single selected cell.

Only you can see and use the compute instances you create. Your User files are stored separately from the machine and are shared among all compute instances in the workspace.

Explore variables in the notebook

On the notebook toolbar, use the Variable explorer tool to show the name, type, length, and sample values for all variables that have been created in your notebook.

Screenshot: Variable explorer tool

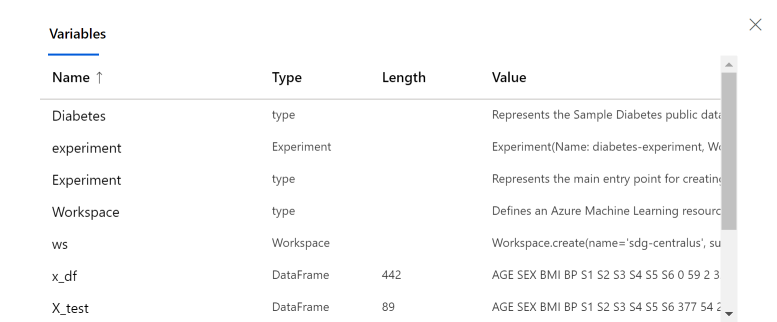

Select the tool to show the variable explorer window.

Screenshot: Variable explorer window

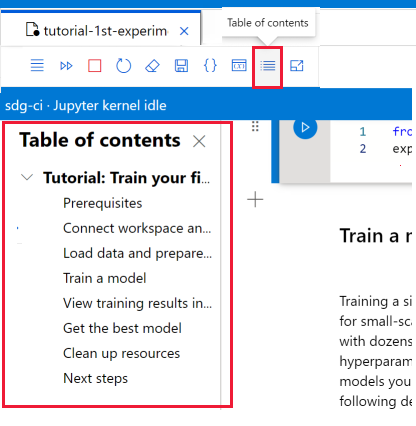

On the notebook toolbar, use the Table of contents tool to display or hide the table of contents. When you start a markdown cell with a heading, it is added to the table of contents. Select an entry in the table to scroll to that cell in the notebook.

Screenshot: Table of contents in the notebook

Change the notebook environment

The notebook toolbar allows you to change the environment on which your notebook runs.

These actions don't change the notebook state or the values of any variables in the notebook:

Action Result
Stop the kernel Stops any running cell. Running a cell automatically restarts the kernel.
Navigate to another workspace section Running cells are stopped.

These actions reset the notebook state and resets all variables in the notebook.

Action Result
Change the kernel Notebook uses new kernel
Switch compute Notebook automatically uses the new compute.
Reset compute Starts again when you try to run a cell
Stop compute No cells will run
Open notebook in Jupyter or JupyterLab Notebook opened in a new tab.

Add new kernels

Use the terminal to create and add new kernels to your compute instance. The notebook will automatically find all Jupyter kernels installed on the connected compute instance.

Change to any of the installed kernels using the kernel dropdown on the right.

Manage packages

Since your compute instance has multiple kernels, make sure use %pip or %conda magic functions, which install packages into the currently running kernel. Don't use !pip or !conda, which refers to all packages (including packages outside the currently running kernel).

Status indicators

An indicator next to the Compute dropdown shows its status. The status is also shown in the dropdown itself.

Color Compute status
Green Compute running
Red Compute failed
Black Compute stopped
Light Blue Compute creating, starting, restarting, setting Up
Gray Compute deleting, stopping

An indicator next to the Kernel dropdown shows its status.

Color Kernel status
Green Kernel connected, idle, busy
Gray Kernel not connected

Find compute details

Find details about your compute instances on the Compute page in studio.

Useful keyboard shortcuts

Similar to Jupyter Notebooks, Azure Machine Learning studio notebooks have a modal user interface. The keyboard does different things depending on which mode the notebook cell is in. Azure Machine Learning studio notebooks support the following two modes for a given code cell: command mode and edit mode.

Command mode shortcuts

A cell is in command mode when there's no text cursor prompting you to type. When a cell is in Command mode, you can edit the notebook as a whole but not type into individual cells. Enter command mode by pressing ESC or using the mouse to select outside of a cell's editor area.

Shortcut Description
Enter Enter edit mode
Shift + Enter Run cell, select below
Control/Command + Enter Run cell
Alt + Enter Run cell, insert code cell below
Control/Command + Alt + Enter Run cell, insert markdown cell below
Alt + R Run all
Y Convert cell to code
M Convert cell to markdown
Up/K Select cell above
Down/J Select cell below
A Insert code cell above
B Insert code cell below
Control/Command + Shift + A Insert markdown cell above
Control/Command + Shift + B Insert markdown cell below
X Cut selected cell
C Copy selected cell
Shift + V Paste selected cell above
V Paste selected cell below
D D Delete selected cell
O Toggle output
Shift + O Toggle output scrolling
I I Interrupt kernel
0 0 Restart kernel
Shift + Space Scroll up
Space Scroll down
Tab Change focus to next focusable item (when tab trap disabled)
Control/Command + S Save notebook
1 Change to h1
2 Change to h2
3 Change to h3
4 Change to h4
5 Change to h5
6 Change to h6

Edit mode shortcuts

Edit mode is indicated by a text cursor prompting you to type in the editor area. When a cell is in edit mode, you can type into the cell. Enter edit mode by pressing Enter or select a cell's editor area. You see the cursor prompt in the cell in Edit mode.

Using the following keystroke shortcuts, you can more easily navigate and run code in Azure Machine Learning notebooks when in Edit mode.

Shortcut Description
Escape Enter command mode
Control/Command + Space Activate IntelliSense
Shift + Enter Run cell, select below
Control/Command + Enter Run cell
Alt + Enter Run cell, insert code cell below
Control/Command + Alt + Enter Run cell, insert markdown cell below
Alt + R Run all cells
Up Move cursor up or previous cell
Down Move cursor down or next cell
Control/Command + S Save notebook
Control/Command + Up Go to cell start
Control/Command + Down Go to cell end
Tab Code completion or indent (if tab trap enabled)
Control/Command + M Enable/disable tab trap
Control/Command + ] Indent
Control/Command + [ Dedent
Control/Command + A Select all
Control/Command + Z Undo
Control/Command + Shift + Z Redo
Control/Command + Y Redo
Control/Command + Home Go to cell start
Control/Command + End Go to cell end
Control/Command + Left Go one word left
Control/Command + Right Go one word right
Control/Command + Backspace Delete word before
Control/Command + Delete Delete word after
Control/Command + / Toggle comment on cell

Troubleshooting

  • Connecting to a notebook: If you can't connect to a notebook, ensure that web socket communication is not disabled. For compute instance Jupyter functionality to work, web socket communication must be enabled. Ensure your network allows websocket connections to *.instances.azureml.net and *.instances.azureml.ms.

  • Private endpoint: When a compute instance is deployed in a workspace with a private endpoint, it can only be accessed from within virtual network. If you're using custom DNS or hosts file, add an entry for < instance-name >.< region >.instances.azureml.ms with the private IP address of your workspace private endpoint. For more information, see the custom DNS article.

  • Kernel crash: If your kernel crashed and was restarted, you can run the following command to look at Jupyter log and find more details: sudo journalctl -u jupyter. If kernel issues persist, consider using a compute instance with more memory.

  • Expired token: If you run into an expired token issue, sign out of your Azure Machine Learning studio, sign back in, and then restart the notebook kernel.

  • File upload limit: When uploading a file through the notebook's file explorer, you're limited files that are smaller than 5 TB. If you need to upload a file larger than this, we recommend that you use the SDK to upload the data to a datastore. For more information, see Create data assets.
