Set up authentication for Azure Machine Learning resources and workflows using SDK v1

  • Article

APPLIES TO: Python SDK azureml v1

Learn how to set up authentication to your Azure Machine Learning workspace. Authentication to your Azure Machine Learning workspace is based on Microsoft Entra ID for most things. In general, there are four authentication workflows that you can use when connecting to the workspace:

  • Interactive: You use your account in Microsoft Entra ID to either directly authenticate, or to get a token that is used for authentication. Interactive authentication is used during experimentation and iterative development. Interactive authentication enables you to control access to resources (such as a web service) on a per-user basis.

  • Service principal: You create a service principal account in Microsoft Entra ID, and use it to authenticate or get a token. A service principal is used when you need an automated process to authenticate to the service without requiring user interaction. For example, a continuous integration and deployment script that trains and tests a model every time the training code changes.

  • Azure CLI session: You use an active Azure CLI session to authenticate. Azure CLI authentication is used during experimentation and iterative development, or when you need an automated process to authenticate to the service using a pre-authenticated session. You can log in to Azure via the Azure CLI on your local workstation, without storing credentials in Python code or prompting the user to authenticate. Similarly, you can reuse the same scripts as part of continuous integration and deployment pipelines, while authenticating the Azure CLI with a service principal identity.

  • Managed identity: When using the Azure Machine Learning SDK on an Azure Virtual Machine, you can use a managed identity for Azure. This workflow allows the VM to connect to the workspace using the managed identity, without storing credentials in Python code or prompting the user to authenticate. Azure Machine Learning compute clusters and compute instances can also be configured to use a managed identity to access the workspace when training models.

Regardless of the authentication workflow used, Azure role-based access control (Azure RBAC) is used to scope the level of access (authorization) allowed to the resources. For example, an admin or automation process might have access to create a compute instance, but not use it, while a data scientist could use it, but not delete or create it. For more information, see Manage access to Azure Machine Learning workspace.

Microsoft Entra Conditional Access can be used to further control or restrict access to the workspace for each authentication workflow. For example, an admin can allow workspace access from managed devices only.

Prerequisites

Microsoft Entra ID

All the authentication workflows for your workspace rely on Microsoft Entra ID. If you want users to authenticate using individual accounts, they must have accounts in your Microsoft Entra ID. If you want to use service principals, they must exist in your Microsoft Entra ID. Managed identities are also a feature of Microsoft Entra ID.

For more on Microsoft Entra ID, see What is Microsoft Entra authentication.

Once you've created the Microsoft Entra accounts, see Manage access to Azure Machine Learning workspace for information on granting them access to the workspace and other operations in Azure Machine Learning.

Configure a service principal

To use a service principal (SP), you must first create the SP. Then grant it access to your workspace. As mentioned earlier, Azure role-based access control (Azure RBAC) is used to control access, so you must also decide what access to grant the SP.

Important

When using a service principal, grant it the minimum access required for the task it is used for. For example, you would not grant a service principal owner or contributor access if all it is used for is reading the access token for a web deployment.

The reason for granting the least access is that a service principal uses a password to authenticate, and the password may be stored as part of an automation script. If the password is leaked, having the minimum access required for a specific tasks minimizes the malicious use of the SP.

The easiest way to create an SP and grant access to your workspace is by using the Azure CLI. To create a service principal and grant it access to your workspace, use the following steps:

Note

You must be an admin on the subscription to perform all of these steps.

  1. Authenticate to your Azure subscription:

    az login

    If the CLI can open your default browser, it will do so and load a sign-in page. Otherwise, you need to open a browser and follow the instructions on the command line. The instructions involve browsing to https://aka.ms/devicelogin and entering an authorization code.

    If you have multiple Azure subscriptions, you can use the az account set -s <subscription name or ID> command to set the subscription. For more information, see Use multiple Azure subscriptions.

    For other methods of authenticating, see Sign in with Azure CLI.

  2. Create the service principal. In the following example, an SP named ml-auth is created:

    az ad sp create-for-rbac --json-auth --name ml-auth --role Contributor --scopes /subscriptions/<subscription id>

    The parameter --json-auth is available in Azure CLI versions >= 2.51.0. Versions prior to this use --sdk-auth.

    The output will be a JSON similar to the following. Take note of the clientId, clientSecret, and tenantId fields, as you'll need them for other steps in this article.

    {
    "clientId": "your-client-id",
    "clientSecret": "your-client-secret",
    "subscriptionId": "your-sub-id",
    "tenantId": "your-tenant-id",
    "activeDirectoryEndpointUrl": "https://login.microsoftonline.com",
    "resourceManagerEndpointUrl": "https://management.azure.com",
    "activeDirectoryGraphResourceId": "https://graph.windows.net",
    "sqlManagementEndpointUrl": "https://management.core.windows.net:5555",
    "galleryEndpointUrl": "https://gallery.azure.com/",
    "managementEndpointUrl": "https://management.core.windows.net"
}

  3. Retrieve the details for the service principal by using the clientId value returned in the previous step:

    az ad sp show --id your-client-id

    The following JSON is a simplified example of the output from the command. Take note of the objectId field, as you'll need its value for the next step.

    {
    "accountEnabled": "True",
    "addIns": [],
    "appDisplayName": "ml-auth",
    ...
    ...
    ...
    "objectId": "your-sp-object-id",
    "objectType": "ServicePrincipal"
}

  4. To grant access to the workspace and other resources used by Azure Machine Learning, use the information in the following articles:

    Important

    Owner access allows the service principal to do virtually any operation in your workspace. It is used in this document to demonstrate how to grant access; in a production environment Microsoft recommends granting the service principal the minimum access needed to perform the role you intend it for. For information on creating a custom role with the access needed for your scenario, see Manage access to Azure Machine Learning workspace.

Configure a managed identity

Important

Managed identity is only supported when using the Azure Machine Learning SDK from an Azure Virtual Machine or with an Azure Machine Learning compute cluster or compute instance.

Managed identity with a VM

  1. Enable a system-assigned managed identity for Azure resources on the VM.

  2. From the Azure portal, select your workspace and then select Access Control (IAM).

  3. Select Add, Add Role Assignment to open the Add role assignment page.

  4. Assign the following role. For detailed steps, see Assign Azure roles using the Azure portal.

    Setting Value
    Role The role you want to assign.
    Assign access to Managed Identity
    Members The managed identity you created earlier

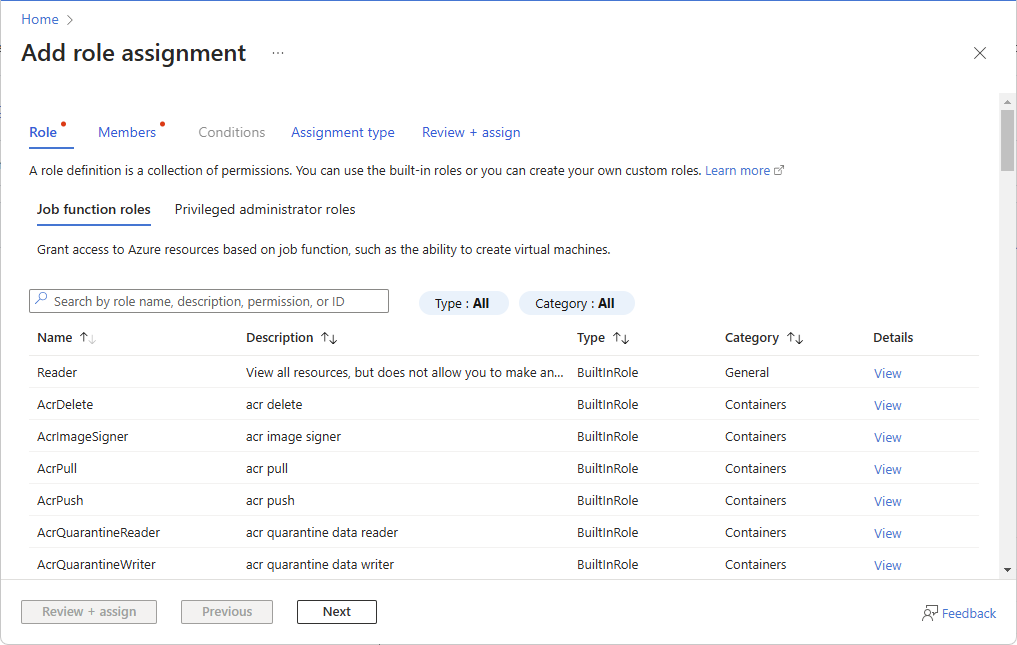

    Add role assignment page in Azure portal.

Managed identity with compute cluster

For more information, see Set up managed identity for compute cluster.

Use interactive authentication

Important

Interactive authentication uses your browser, and requires cookies (including 3rd party cookies). If you have disabled cookies, you may receive an error such as "we couldn't sign you in." This error may also occur if you have enabled Microsoft Entra multifactor authentication.

Most examples in the documentation and samples use interactive authentication. For example, when using the SDK there are two function calls that will automatically prompt you with a UI-based authentication flow:

  • Calling the from_config() function will issue the prompt.

    from azureml.core import Workspace
ws = Workspace.from_config()

    The from_config() function looks for a JSON file containing your workspace connection information.

  • Using the Workspace constructor to provide subscription, resource group, and workspace information, will also prompt for interactive authentication.

    ws = Workspace(subscription_id="your-sub-id",
              resource_group="your-resource-group-id",
              workspace_name="your-workspace-name"
              )

Tip

If you have access to multiple tenants, you may need to import the class and explicitly define what tenant you are targeting. Calling the constructor for InteractiveLoginAuthentication will also prompt you to login similar to the calls above.

from azureml.core.authentication import InteractiveLoginAuthentication
interactive_auth = InteractiveLoginAuthentication(tenant_id="your-tenant-id")

When using the Azure CLI, the az login command is used to authenticate the CLI session. For more information, see Get started with Azure CLI.

Tip

If you are using the SDK from an environment where you have previously authenticated interactively using the Azure CLI, you can use the AzureCliAuthentication class to authenticate to the workspace using the credentials cached by the CLI:

from azureml.core.authentication import AzureCliAuthentication
cli_auth = AzureCliAuthentication()
ws = Workspace(subscription_id="your-sub-id",
               resource_group="your-resource-group-id",
               workspace_name="your-workspace-name",
               auth=cli_auth
               )

Use service principal authentication

To authenticate to your workspace from the SDK, using a service principal, use the ServicePrincipalAuthentication class constructor. Use the values you got when creating the service provider as the parameters. The tenant_id parameter maps to tenantId from above, service_principal_id maps to clientId, and service_principal_password maps to clientSecret.

from azureml.core.authentication import ServicePrincipalAuthentication

sp = ServicePrincipalAuthentication(tenant_id="your-tenant-id", # tenantID
                                    service_principal_id="your-client-id", # clientId
                                    service_principal_password="your-client-secret") # clientSecret

The sp variable now holds an authentication object that you use directly in the SDK. In general, it's a good idea to store the ids/secrets used above in environment variables as shown in the following code. Storing in environment variables prevents the information from being accidentally checked into a GitHub repo.

import os

sp = ServicePrincipalAuthentication(tenant_id=os.environ['AML_TENANT_ID'],
                                    service_principal_id=os.environ['AML_PRINCIPAL_ID'],
                                    service_principal_password=os.environ['AML_PRINCIPAL_PASS'])

For automated workflows that run in Python and use the SDK primarily, you can use this object as-is in most cases for your authentication. The following code authenticates to your workspace using the auth object you created.

from azureml.core import Workspace

ws = Workspace.get(name="ml-example",
                   auth=sp,
                   subscription_id="your-sub-id",
                   resource_group="your-rg-name")
ws.get_details()

Use managed identity authentication

To authenticate to the workspace from a VM, compute cluster, or compute instance that is configured with a managed identity, use the MsiAuthentication class. The following example demonstrates how to use this class to authenticate to a workspace:

from azureml.core.authentication import MsiAuthentication

msi_auth = MsiAuthentication()

ws = Workspace(subscription_id="your-sub-id",
                resource_group="your-resource-group-id",
                workspace_name="your-workspace-name",
                auth=msi_auth
                )

Use Conditional Access

As an administrator, you can enforce Microsoft Entra Conditional Access policies for users signing in to the workspace. For example, you can require two-factor authentication, or allow sign in only from managed devices. To use Conditional Access for Azure Machine Learning workspaces specifically, assign the Conditional Access policy to the app named Azure Machine Learning. The app ID is 0736f41a-0425-bdb5-1563eff02385.
