Deploy a Java application with Red Hat JBoss Enterprise Application Platform (JBoss EAP) on an Azure Red Hat OpenShift (ARO) 4 cluster

This article shows you how to deploy a Red Hat JBoss Enterprise Application Platform (JBoss EAP) app to an Azure Red Hat OpenShift (ARO) 4 cluster. The application is a Jakarta EE application backed by an SQL database. The app is deployed using JBoss EAP Helm Charts.

The guide takes a traditional Jakarta EE application and walks you through the process of migrating it to a container orchestrator such as Azure Red Hat OpenShift. First, it describes how you can package your application as a Bootable JAR to run it locally. Finally, it shows you how you can deploy on OpenShift with three replicas of the JBoss EAP application by using Helm Charts.

The application is a stateful application that stores information in an HTTP Session. It makes use of the JBoss EAP clustering capabilities and uses the following Jakarta EE 8 and MicroProfile 4.0 technologies:

  • Jakarta Server Faces
  • Jakarta Enterprise Beans
  • Jakarta Persistence
  • MicroProfile Health

Important

This article deploys an application by using JBoss EAP Helm Charts. At the time of writing, this feature is still offered as a Technology Preview. Before choosing to deploy applications with JBoss EAP Helm Charts on production environments, ensure that this feature is a supported feature for your JBoss EAP/XP product version.

Important

While ARO is jointly engineered, operated, and supported by Red Hat and Microsoft to provide an integrated support experience, the software you run on top of ARO, including that described in this article, is subject to its own support and license terms. For details about support of ARO, see Support lifecycle for Azure Red Hat OpenShift 4. For details about support of the software described in this article, see the main pages for that software as listed in the article.

Prerequisites

Note

Azure Red Hat OpenShift requires a minimum of 40 cores to create and run an OpenShift cluster. The default Azure resource quota for a new Azure subscription does not meet this requirement. To request an increase in your resource limit, see Standard quota: Increase limits by VM series. Note that the free trial subscription isn't eligible for a quota increase, upgrade to a Pay-As-You-Go subscription before requesting a quota increase.

  1. Prepare a local machine with a Unix-like operating system that is supported by the various products installed (such as WSL on Windows).

  2. Install a Java SE implementation (for example, Oracle JDK 11).

  3. Install Maven 3.6.3 or higher.

  4. Install Azure CLI 2.29.2 or later.

  5. Clone the code for this demo application (todo-list) to your local system. The demo application is at GitHub.

  6. Follow the instructions in Create an Azure Red Hat OpenShift 4 cluster.

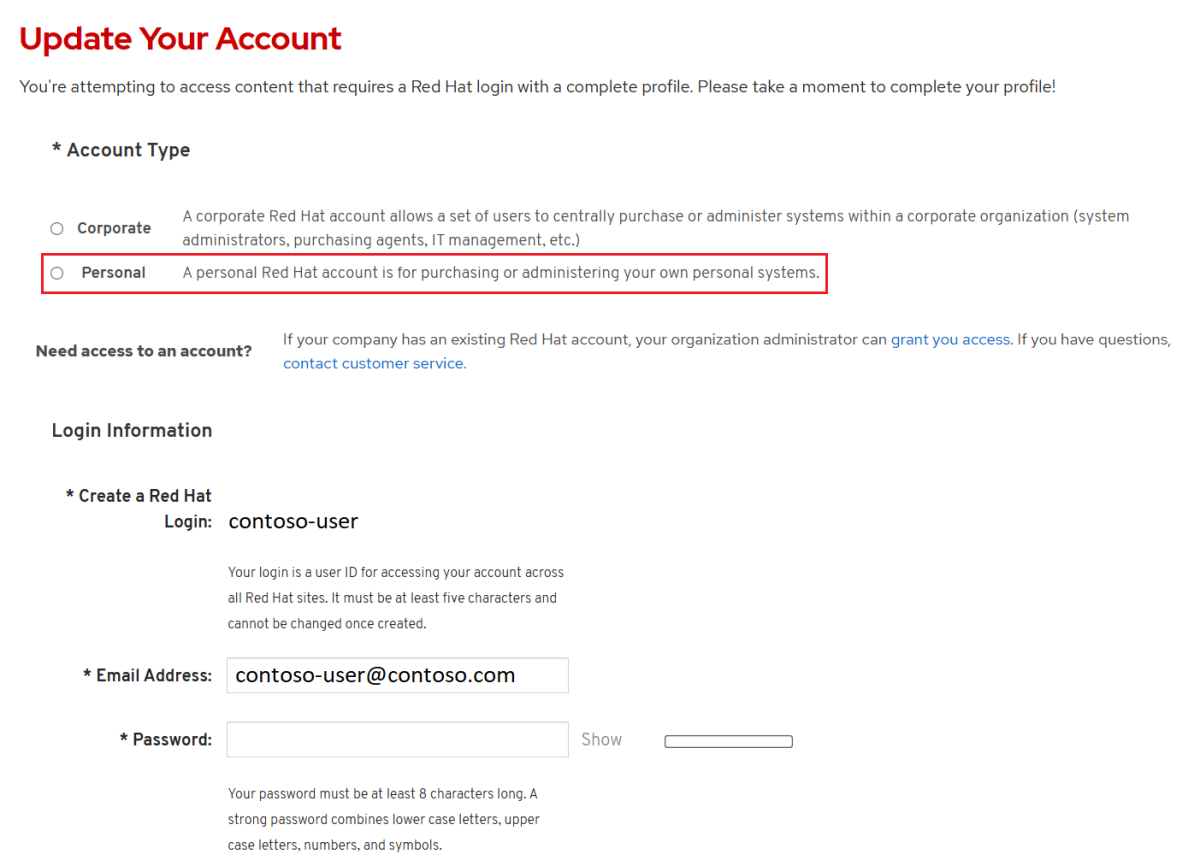

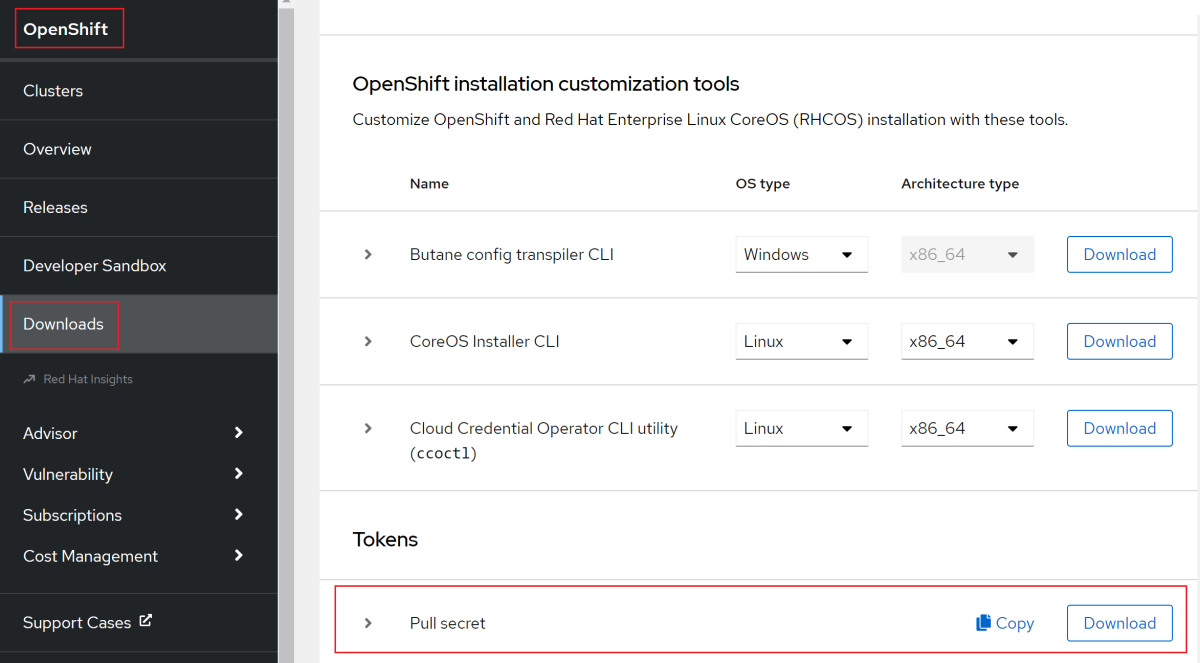

    Though the "Get a Red Hat pull secret" step is labeled as optional, it is required for this article. The pull secret enables your ARO cluster to find the JBoss EAP application images.

    If you plan to run memory-intensive applications on the cluster, specify the proper virtual machine size for the worker nodes using the --worker-vm-size parameter. For more information, see:

  7. Connect to the cluster by following the steps in Connect to an Azure Red Hat OpenShift 4 cluster.

    • Follow the steps in "Install the OpenShift CLI"
    • Connect to an Azure Red Hat OpenShift cluster using the OpenShift CLI with the user kubeadmin
  8. Execute the following command to create the OpenShift project for this demo application:

    oc new-project eap-demo

  9. Execute the following command to add the view role to the default service account. This role is needed so the application can discover other pods and form a cluster with them:

    oc policy add-role-to-user view system:serviceaccount:$(oc project -q):default -n $(oc project -q)


Prepare the application

At this stage, you have cloned the Todo-list demo application and your local repository is on the main branch. The demo application is a simple Jakarta EE 8 application that creates, reads, updates, and deletes records on a Microsoft SQL Server. This application can be deployed as it is on a JBoss EAP server installed in your local machine. You just need to configure the server with the required database driver and data source. You also need a database server accessible from your local environment.

However, when you are targeting OpenShift, you might want to trim the capabilities of your JBoss EAP server. For example, to reduce the security exposure of the provisioned server and reduce the overall footprint. You might also want to include some MicroProfile specs to make your application more suitable for running on an OpenShift environment. When using JBoss EAP, one way to accomplish this is by packaging your application and your server in a single deployment unit known as a Bootable JAR. Let's do that by adding the required changes to our demo application.

Navigate to your demo application local repository and change the branch to bootable-jar:

git checkout bootable-jar

Let's do a quick review of what we changed in this branch:

  • We have added the wildfly-jar-maven plugin to provision the server and the application in a single executable JAR file. The OpenShift deployment unit is our server with our application.
  • On the maven plugin, we have specified a set of Galleon layers. This configuration allows us to trim the server capabilities to only what we need. For complete documentation on Galleon, see the WildFly documentation.
  • Our application uses Jakarta Faces with Ajax requests, which means there will be information stored in the HTTP Session. We don't want to lose such information if a pod is removed. We could save this information on the client and send it back on each request. However, there are cases where you may decide not to distribute certain information to the clients. For this demo, we have chosen to replicate the session across all pod replicas. To do it, we have added <distributable /> to the web.xml. That, together with the server clustering capabilities will make the HTTP Session distributable across all pods.
  • We have added two MicroProfile Health Checks that allow identifying when the application is live and ready to receive requests.

Run the application locally

Before deploying the application on OpenShift, we are going to run it locally to verify how it works. The following steps assume you have a Microsoft SQL Server running and available from your local environment.

To create the database, follow the steps in Quickstart: Create an Azure SQL Database single database, but use the following substitutions.

  • For Database name use todos_db.
  • For Server admin login use azureuser.
  • For Password use Passw0rd!.
  • In the Firewall rules section, toggle the Allow Azure services and resources to access this server to Yes.

All of the other settings can be safely used from the linked article.

On the Additional settings page, you don't have to choose the option to pre-populate the database with sample data, but there is no harm in doing so.

Once the database has been created with the above database name, Server admin login and password, get the value for the server name from the overview page for the newly created database resource in the portal. Hover the mouse over the value of the Server name field and select the copy icon that appears beside the value. Save this aside for use later (we will set a variable named MSSQLSERVER_HOST to this value).

Note

To keep monetary costs low, the Quickstart directs the reader to select the serverless compute tier. This tier scales to zero when there is no activity. When this happens, the database is not immediately responsive. If, at any point when executing the steps in this article, you observe database problems, consider disabling Auto-pause. To learn how, search for Auto-pause in Azure SQL Database serverless.

Follow the next steps to build and run the application locally.

  1. Build the Bootable JAR. When we are building the Bootable JAR, we need to specify the database driver version we want to use:

    export MSSQLSERVER_DRIVER_VERSION=7.4.1.jre11
    mvn clean package

  2. Launch the Bootable JAR by using the following commands.

    You must ensure that the remote MSSQL database permits network traffic from the host on which this server is running. Because you selected Add current client IP address when performing the steps in Quickstart: Create an Azure SQL Database single database, if the host on which the server is running is the same host from which your browser is connecting to the Azure portal, the network traffic should be permitted. If host on which the server is running is some other host, you'll need to refer to Use the Azure portal to manage server-level IP firewall rules.

    When we are launching the application, we need to pass the required environment variables to configure the data source:

    export MSSQLSERVER_USER=azureuser
    export MSSQLSERVER_PASSWORD='Passw0rd!'
    export MSSQLSERVER_JNDI=java:/comp/env/jdbc/mssqlds
    export MSSQLSERVER_DATABASE=todos_db
    export MSSQLSERVER_HOST=<server name saved aside earlier>
    export MSSQLSERVER_PORT=1433
    mvn wildfly-jar:run


    If you want to learn more about the underlying runtime used by this demo, the Galleon Feature Pack for integrating datasources documentation has a complete list of available environment variables. For details on the concept of feature-pack, see the WildFly documentation.

    If you receive an error with text similar to the following:

    Cannot open server '<your prefix>mysqlserver' requested by the login. Client with IP address 'XXX.XXX.XXX.XXX' is not allowed to access the server.


    Your steps to ensure the network traffic is permitted above were ineffective. Ensure the IP address from the error message is included in the firewall rules.

    If you receive an message with text similar to the following:

    Caused by: com.microsoft.sqlserver.jdbc.SQLServerException: There is already an object named 'TODOS' in the database.


    This message indicates the sample data is already in the database. This message can be ignored.

  3. (Optional) If you want to verify the clustering capabilities, you can also launch more instances of the same application by passing to the Bootable JAR the jboss.node.name argument and, to avoid conflicts with the port numbers, shifting the port numbers by using jboss.socket.binding.port-offset. For example, to launch a second instance that will represent a new pod on OpenShift, you can execute the following command in a new terminal window:

    export MSSQLSERVER_USER=azureuser
    export MSSQLSERVER_PASSWORD='Passw0rd!'
    export MSSQLSERVER_JNDI=java:/comp/env/jdbc/mssqlds
    export MSSQLSERVER_DATABASE=todos_db
    export MSSQLSERVER_HOST=<server name saved aside earlier>
    export MSSQLSERVER_PORT=1433
    mvn wildfly-jar:run -Dwildfly.bootable.arguments="-Djboss.node.name=node2 -Djboss.socket.binding.port-offset=1000"


    If your cluster is working, you will see on the server console log a trace similar to the following one:

    INFO  [org.infinispan.CLUSTER] (thread-6,ejb,node) ISPN000094: Received new cluster view for channel ejb


    Note

    By default the Bootable JAR configures the JGroups subsystem to use the UDP protocol and sends messages to discover other cluster members to the 230.0.0.4 multicast address. To properly verify the clustering capabilities on your local machine, your Operating System should be capable of sending and receiving multicast datagrams and route them to the 230.0.0.4 IP through your ethernet interface. If you see warnings related to the cluster on the server logs, check your network configuration and verify it supports multicast on that address.

  4. Open http://localhost:8080/ in your browser to visit the application home page. If you have created more instances, you can access them by shifting the port number, for example http://localhost:9080/. The application will look similar to the following image:

    Screenshot of ToDo EAP demo Application.

  5. Check the liveness and readiness probes for the application. These endpoints will be used by OpenShift to verify when your pod is live and ready to receive user requests:

    To check the status of liveness, run:

    curl http://localhost:9990/health/live


    You should see this output:

    {"status":"UP","checks":[{"name":"SuccessfulCheck","status":"UP"}]}


    To check the status of readyness, run:

    curl http://localhost:9990/health/ready


    You should see this output:

     {"status":"UP","checks":[{"name":"deployments-status","status":"UP","data":{"todo-list.war":"OK"}},{"name":"server-state","status":"UP","data":{"value":"running"}},{"name":"boot-errors","status":"UP"},{"name":"DBConnectionHealthCheck","status":"UP"}]}

  6. Press Control-C to stop the application.

Deploy to OpenShift

To deploy the application, we are going to use the JBoss EAP Helm Charts already available in ARO. We also need to supply the desired configuration, for example, the database user, the database password, the driver version we want to use, and the connection information used by the data source. The following steps assume you have a Microsoft SQL database server running and accessible from your OpenShift cluster, and you have stored the database user name, password, hostname, port and database name in an OpenShift OpenShift Secret object named mssqlserver-secret.

Navigate to your demo application local repository and change the current branch to bootable-jar-openshift:

git checkout bootable-jar-openshift

Let's do a quick review about what we have changed in this branch:

  • We have added a new maven profile named bootable-jar-openshift that prepares the Bootable JAR with a specific configuration for running the server on the cloud. For example, it enables the JGroups subsystem to use TCP requests to discover other pods by using the KUBE_PING protocol.
  • We have added a set of configuration files in the jboss-on-aro-jakartaee/deployment directory. In this directory, you will find the configuration files to deploy the application.

Deploy the application on OpenShift

The next steps explain how you can deploy the application with a Helm chart using the OpenShift web console. Avoid hard coding sensitive values into your Helm chart using a feature called "secrets". A secret is simply a collection of name=value pairs, where the values are specified in some known place in advance of when they are needed. In our case, the Helm chart uses two secrets, with the following name=value pairs from each.

  • mssqlserver-secret

    • db-host conveys the value of MSSQLSERVER_HOST.
    • db-name conveys the value of MSSQLSERVER_DATABASE
    • db-password conveys the value of MSSQLSERVER_PASSWORD
    • db-port conveys the value of MSSQLSERVER_PORT.
    • db-user conveys the value of MSSQLSERVER_USER.
  • todo-list-secret

    • app-cluster-password conveys an arbitrary, user-specified password so that cluster nodes can form more securely.
    • app-driver-version conveys the value of MSSQLSERVER_DRIVER_VERSION.
    • app-ds-jndi conveys the value of MSSQLSERVER_JNDI.
  1. Create mssqlserver-secret.

    oc create secret generic mssqlserver-secret \
    --from-literal db-host=${MSSQLSERVER_HOST} \
    --from-literal db-name=${MSSQLSERVER_DATABASE} \
    --from-literal db-password=${MSSQLSERVER_PASSWORD} \
    --from-literal db-port=${MSSQLSERVER_PORT} \
    --from-literal db-user=${MSSQLSERVER_USER}

  2. Create todo-list-secret.

    oc create secret generic todo-list-secret \
    --from-literal app-cluster-password=mut2UTG6gDwNDcVW \
    --from-literal app-driver-version=${MSSQLSERVER_DRIVER_VERSION} \
    --from-literal app-ds-jndi=${MSSQLSERVER_JNDI}

  3. Open the OpenShift console and navigate to the developer view. Select the </> Developer perspective from the drop down menu at the top of the navigation pane.

    Screenshot of OpenShift console developer view.

  4. In the </> Developer perspective, select the eap-demo project from the Project drop down menu.

    Screenshot of OpenShift console project combo box.

  5. Select +Add. In the Developer Catalog section, select Helm Chart. You'll arrive at the Helm Chart catalog available on your ARO cluster. In the Filter by keyword box, type eap. You should see two options similar to this:

    Screenshot of OpenShift console EAP Helm Charts.

    Because our application uses MicroProfile capabilities, we'll select the Helm Chart for EAP Xp. The Xp stands for Expansion Pack. With the JBoss Enterprise Application Platform expansion pack, developers can use Eclipse MicroProfile application programming interfaces (APIs) to build and deploy microservices-based applications.

  6. Select the EAP Xp Helm Chart, and then select Install Helm Chart.

At this point, we need to configure the chart to build and deploy the application:

  1. Change the name of the release to eap-todo-list-demo.

  2. We can configure the Helm Chart either using a Form View or a YAML View. In the section labeled Configure via, select YAML View.

  3. Change the YAML content to configure the Helm Chart by copying and pasting the content of the Helm Chart file available at deployment/application/todo-list-helm-chart.yaml instead of the existing content:

    OpenShift console EAP Helm Chart YAML content

  4. Finally, select Install to start the application deployment. This will open the Topology view with a graphical representation of the Helm release (named eap-todo-list-demo) and its associated resources.

    Screenshot of OpenShift console topology.

    The Helm Release (abbreviated HR) is named eap-todo-list-demo. It includes a Deployment resource (abbreviated D) also named eap-todo-list-demo.

    If you select the icon with two arrows in a circle at the lower left of the D box, you will be taken to the Logs pane. Here you can observe the progress of the build. To return to the topology view, select Topology in the left navigation pane.

  5. When the build is finished (the bottom-left icon will display a green check) and the application is deployed (the circle outline is in dark blue), you can go to application the URL (using the top-right icon) from the route associated with the deployment.

    Screenshot of OpenShift console open application.

  6. The application is opened in your browser looking similar to the following image ready to be used:

    Screenshot of OpenShift application running.

  7. The application shows you the name of the pod which has served the information. To verify the clustering capabilities, you could add some Todos. Then delete the pod with the name indicated in the Server Host Name field that appears on the application (oc delete pod <pod name>), and once deleted, create a new Todo on the same application window. You will see that the new Todo is added via an Ajax request and the Server Host Name field now shows a different name. Behind the scenes, the new request has been dispatched by the OpenShift load balancer and delivered to an available pod. The Jakarta Faces view has been restored from the HTTP Session copy stored in the pod which is now processing the request. Indeed you will see that the Session ID field has not changed. If the session were not replicated across your pods, you would get a Jakarta Faces ViewExpiredException, and your application won't work as expected.

Clean up resources

Delete the application

If you only want to delete your application, you can open the OpenShift console and, at the developer view, navigate to the Helm menu option. On this menu, you will see all the Helm Chart releases installed on your cluster.

OpenShift uninstall application

Locate the eap-todo-list-demo Helm Chart and at the end of the row, select the tree vertical dots to open the action contextual menu entry.

Select Uninstall Helm Release to remove the application. Notice that the secret object used to supply the application configuration is not part of the chart. You need to remove it separately if you no longer need it.

Execute the following command if you want to delete the secret that holds the application configuration:

$ oc delete secrets/todo-list-secret
# secret "todo-list-secret" deleted

Delete the OpenShift project

You can also delete all the configuration created for this demo by deleting the eap-demo project. To do so, execute the following:

$ oc delete project eap-demo
# project.project.openshift.io "eap-demo" deleted

Delete the ARO cluster

Delete the ARO cluster by following the steps in Tutorial: Delete an Azure Red Hat OpenShift 4 cluster

Next steps

In this guide, you learned how to:

  • Prepare an JBoss EAP application for OpenShift.
  • Run it locally together with a containerized Microsoft SQL Server.
  • Deploy a Microsoft SQL Server on an ARO 4 by using the OpenShift CLI.
  • Deploy the application on an ARO 4 by using JBoss Helm Charts and OpenShift Web Console.

You can learn more from references used in this guide:
