Configure render settings for visualizing data in Microsoft Planetary Computer Pro

To visualize geospatial data using the Microsoft Planetary Computer Pro data explorer or the Tiler API, you must define render configurations for your SpatioTemporal Asset Catalog (STAC) collections. A render configuration specifies how the data assets within your STAC items should be combined, processed, and styled to create map tiles.

This guide walks you through the process of creating render configurations, from understanding prerequisites to configuring advanced options. Planetary Computer Pro's rendering capabilities are built upon the open-source TiTiler project.

Prerequisites

Before you can configure rendering, ensure the following prerequisite steps are complete:

1. STAC Collection Exists: You created a STAC collection in Planetary Computer Pro.
2. Data Ingested: You added STAC items containing the geospatial data assets you want to visualize into the collection.
3. item_assets Defined in Collection: Your STAC collection's JSON definition must include a well-defined item_assets section. These properties inform the rendering engine about the common data assets (and their properties like data type or bands) available across the items in the collection. Render configurations reference the asset keys defined here.

Process to build a Render Configuration

Step	Title	Description
1	Define item_assets in your Collection JSON	First, you need to ensure your STAC collection JSON includes a well-defined item_assets section that describes the common assets within your items.
2	Understand Your Data and Visualization Goal	Next, determine the type of data you're working with and decide how you want it to appear visually (single-band colormap, multi-band RGB).
3	Construct the Render Configuration Object	Now, create the basic JSON structure that holds one or more render configurations for the Explorer UI.
4	Define the options String - Core Parameters	Configure the essential TiTiler parameters within the options string to select the correct assets or bands and apply basic styling like colormaps or rescaling.
5	Add Advanced options Parameters (As Needed)	Optionally, enhance your visualization by adding advanced TiTiler features like expressions, algorithms, color correction, or custom colormaps using the options string.
6	Add the Render Configuration to Your Collection	Finally, apply the render configuration list you created to your STAC collection using either the web interface or the API.

Step 1: Define item_assets in your Collection JSON

The item_assets field in your collection JSON is essential for rendering because it provides a schema describing the assets contained within the collection's items. This schema allows the rendering engine and the Explorer web application to understand the available data for visualization without inspecting individual items. It declares the keys (names) of the assets, such as image, red, NIR, or elevation, which reference your render configurations. Additionally, item_assets can include metadata like eo:bands for multi-band assets, facilitating the selection of specific bands for rendering. The Explorer uses this information to populate menus and understand the overall data structure.

Example item_assets for a 4-band NAIP asset:

{
  "item_assets": {
    "image": {
      "type": "image/tiff; application=geotiff; profile=cloud-optimized",
      "roles": [
        "data"
      ],
      "title": "RGBIR COG tile",
      "eo:bands": [
        {
          "name": "Red",
          "common_name": "red",
          "description": "Red band, 610-680 nm"
        },
        {
          "name": "Green",
          "common_name": "green",
          "description": "Green band, 510-600 nm"
        },
        {
          "name": "Blue",
          "common_name": "blue",
          "description": "Blue band, 420-530 nm"
        },
        {
          "name": "NIR",
          "common_name": "nir",
          "description": "Near-infrared band, 830-920 nm"
        }
      ]
    }
  },
  // ... other collection properties ...
}

For more information about item_assets, see the Item Assets section in the STAC Overview. Also refer to the official STAC Item Assets Extension specification.

Ensure your STAC collection JSON includes this section before proceeding. You can update your collection definition via the API or the web interface.

Step 2: Understand Your Data and Visualization Goal

Before building the configuration, determine how you want to visualize your data:

Data Type	Description	Example	Visualization Goal
Single-Band Data	Each pixel has one value.	elevation, temperature, land cover classification, calculated index	Map these single values to a color range or discrete colors using a colormap.
Multi-Band Data	Data has multiple bands per pixel.	RGB satellite imagery, multi-spectral data	Combine three specific bands to represent the Red, Green, and Blue channels of the output image.
Derived Data (Expressions)	Calculate a new value from one or more bands/assets.	NDVI from Red and NIR bands	Define a mathematical expression and visualize the result (single-band with colormap or multi-band directly).
Derived Data (Algorithms)	Calculate a new value across pixels.	Hillshade shows contours of elevation data	Use a mathematical algorithm to transform data into a visualization.
Data Cubes (GRIB/NetCDF)	Data stored in GRIB or NetCDF formats with multiple variables and dimensions.	time, pressure levels	Select a specific variable and potentially a slice through other dimensions (like time) for 2D visualization.

Step 3: Construct the Render Configuration Object

Render configurations are defined as a list of JSON objects (or Python dictionaries if using the API). Each object in the list represents one visualization option that will appear in the Explorer dropdown.

Basic Structure:

[
  {
    "id": "unique-render-id",
    "name": "Human-Readable Name for UI",
    "description": "Optional: More details about this render.",
    "type": "raster-tile", // Usually "raster-tile"
    "options": "key1=value1&key2=value2...", // The core TiTiler parameters
    "minZoom": 8 // Optional: Minimum map zoom level to display this layer
  },
  {
    // ... another render configuration object ...
  }
]

• id: A unique machine-readable identifier for this render option within the collection.
• name: The display name shown in the Explorer UI.
• description: Optional text providing more context.
• type: Typically "raster-tile".
• options: A string containing URL query parameters (key=value pairs separated by &) that control the TiTiler rendering engine. This is where most customization happens.
• minZoom: Optional integer specifying the minimum map zoom level at which this layer becomes visible. Useful for managing performance with high-resolution data.

Using the same structure, it's possible to have multiple render configurations for the same data so data can be visualized in multiple ways.

Step 4: Define the options String - Core Parameters

The options string is the heart of the render configuration. It uses a key=value&key=value format. Here are the most common parameters:

1. Identifying Assets/Bands

Parameter	Description	Use Case	Example
assets={asset_key}	Specifies the asset(s) to use, where {asset_key} matches a key defined in your collection's item_assets.	Single-band rendering using one asset	assets=elevation
		Three-band rendering using three separate single-band assets (order determines R, G, B)	assets=B04&assets=B03&assets=B02
		Rendering using a single multi-band asset	assets=image (often used with asset_bidx)
asset_bidx={asset_key}\|{band_index1},{band_index2},...	Selects specific band indexes from within a single multi-band asset specified by assets. Band indexes are typically 1-based.	Three-band RGB from bands 1, 2, 3 of asset image	assets=image&asset_bidx=image\|1,2,3
		Three-band False Color Infrared (NIR, Red, Green) from bands 4, 1, 2 of asset image	assets=image&asset_bidx=image\|4,1,2
		Single-band rendering using only band 4 of asset image	assets=image&asset_bidx=image\|4

2. Styling Single-Band Data

Parameter	Description	Example

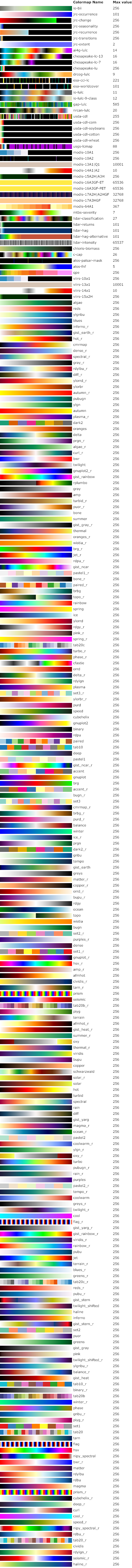

colormap_name={name}	Applies a predefined named colormap. Common examples: viridis, plasma, gray, rdylgn. See available named colormaps.	assets=elevation&colormap_name=viridis
rescale={min_val},{max_val}	Stretches or compresses the data values to fit the full range of the colormap. Values outside this range are clamped to the min/max colors.	Map elevation values from 100 m to 1500 m across the full colormap: assets=elevation&colormap_name=viridis&rescale=100,1500

3. Styling Multi-Band (RGB) Data

Parameter	Description	Example
RGB bands order	RGB bands are implicitly defined by the order in assets (for separate assets) or asset_bidx (for bands within an asset).	See examples in the Identifying Assets/Bands table
rescale={min_val},{max_val}	(Optional) Can be used to scale the input values of the R, G, B bands before mapping them to the 0-255 display range. Useful if your source data isn't already 8-bit.	assets=B04&assets=B03&assets=B02&rescale=0,3000
color_formula={formula_string}	(Optional) Applies color correction formulas.	See advanced options in next section.

Step 5: Add Advanced options Parameters (As Needed)

Beyond the basics, TiTiler offers many advanced parameters via the options string:

1. Expressions

Parameter	Description	Format/Values	Example
expression={formula}	Define a mathematical formula using asset keys as variables	Standard operators (+, -, *, /) and parentheses	expression=(B08-B04)/(B08+B04)
asset_as_band=true	Required when expression uses multiple single-band assets	true or false	expression=(B08-B04)/(B08+B04)&asset_as_band=true

Other details:

• Single-band result example: expression=(B08-B04)/(B08+B04)&asset_as_band=true&colormap_name=rdylgn&rescale=-1,1
• Multi-band expressions use semicolons: expression=B04*1.5;B03*1.1;B02*1.3&asset_as_band=true
• When using expression, you generally don't need assets or asset_bidx

2. Algorithms

Parameter	Description	Format/Values	Example
algorithm={name}	Apply a predefined pixel processing algorithm	hillshade, contours, terrarium, terrainrgb, normalizedIndex	algorithm=hillshade
algorithm_params={json_string}	Parameters for the algorithm (URL-encoded JSON)	Varies by algorithm	algorithm_params=%7B%22azimuth%22%3A%20315%2C%20%22angle_altitude%22%3A%2045%7D
buffer={integer}	Add pixel buffer around tiles (often needed for algorithms)	Integer value	buffer=3

Full example: assets=elevation&algorithm=hillshade&colormap_name=gray&buffer=3&algorithm_params=%7B%22azimuth%22%3A%20315%2C%20%22angle_altitude%22%3A%2045%7D

For details on specific algorithms, see the TiTiler Algorithm documentation and Mapbox algorithms

3. Color Correction (for RGB / Three-band output)

Parameter	Description	Format	Example
color_formula={formula_string}	Apply color adjustments	Space-separated string with Gamma, Saturation, and/or Sigmoidal adjustments	color_formula=Gamma RGB 2.5 Saturation 1.4 Sigmoidal RGB 15 0.35

Format details:

• Gamma {BANDS} {VALUE} - Adjust brightness
• Saturation {PROPORTION} - Adjust color intensity
• Sigmoidal {BANDS} {CONTRAST} {BIAS} - Adjust contrast

For more information about color correction, see the TiTiler documentation.

4. Custom Colormaps (for single-band output)

Parameter	Description	Format	Example
colormap={json_string}	Define a custom colormap	URL-encoded JSON mapping data values to RGBA lists [R,G,B,Alpha]	colormap={\"1\":[54,124,20,255],\"2\":[28,67,0,255],\"3\":[94, 91, 32, 255],\"4\":[234, 99, 32, 255],\"5\":[237, 232, 60, 255],\"6\":[236, 31, 175, 255],\"7\":[19, 0,239, 255], \"8\":[209, 3, 0, 255]}

Example decodes to: Maps value 1 to dark green, 2 to very dark green, 3 to olive green, 4 to orange-red, 5 to yellow, 6 to pink/magenta, 7 to blue-violet, and 8 to red.

5. Data Handling

Parameter	Description	Example
nodata={value}	Specify pixel value to make transparent	nodata=0 or nodata=-9999 or nodata=nan
unscale={true\|false}	Apply scale/offset from GeoTIFF metadata	unscale=true

6. Performance / Tiling Behavior

Parameter	Description	Format	Example
maxItemsPerTile={integer}	Limit number of STAC items per tile	Integer	maxItemsPerTile=20
skipcovered={true\|false}	Skip items covered by others	true or false	skipcovered=true
exitwhenfull={true\|false}	Stop processing when tile is fully covered	true or false	exitwhenfull=true
time_limit={seconds}	Maximum time for rendering a tile	Integer (seconds)	time_limit=10

7. Data Cube Parameters (GRIB/NetCDF)

Parameter	Data Type	Description	Example
subdataset_bands={band_index}	GRIB	Select specific message/band	assets=grib_data&subdataset_bands=1&colormap_name=jet&rescale=273,300
subdataset_name={variable_name}	NetCDF	Select variable to visualize	assets=netcdf_data&subdataset_name=temperature
datetime={timestamp}	NetCDF	Select time slice (ISO 8601)	datetime=2023-10-26T12:00:00Z

Full NetCDF example: assets=netcdf_data&subdataset_name=temperature&datetime=2023-10-26T12:00:00Z&colormap_name=viridis&rescale=0,30

Step 6: Add the Render Configuration to Your Collection

Once you construct your render configuration list (one or more JSON objects), add it to your STAC collection:

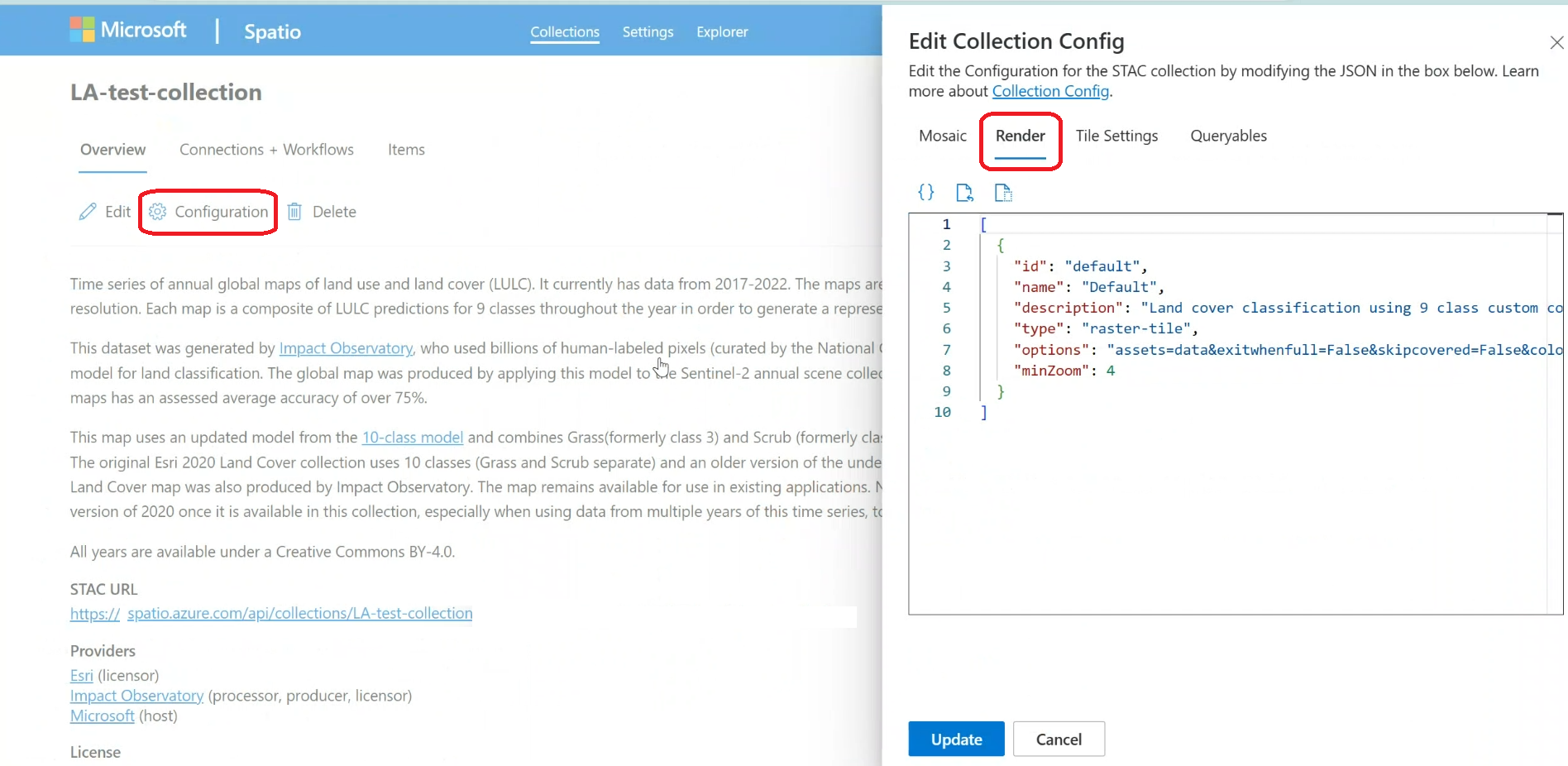

Using the Web Interface:

1. Navigate to your collection in the Planetary Computer Pro portal.
2. Select the Configuration button.
3. Go to the Render tab.
4. Paste your JSON list into the editor or use the UI fields to build it.
5. Save the changes.

For more information on configuring collections, see Configure a collection with the web interface.

Using the API:

Use an HTTP POST request to the collection's render options endpoint.

import requests
import json
import azure.identity

geocatalog_url = <your geocatalog url>
collection_id = <your collection id>

credential = azure.identity.AzureCliCredential()
token = credential.get_token("https://geocatalog.spatio.azure.com")
headers = {
    "Authorization": f"Bearer {token.token}"
}

response = requests.post(
    f"{geocatalog_url}/stac/collections/{collection_id}/configurations/render-options",
    json=render_config, # Your list of render config dicts
    headers=headers,
    params={"api-version": "2025-04-30-preview"} # Use the appropriate API version
)

if response.status_code == 200:
    print("Render configuration updated successfully.")
    print(response.json())
else:
    print(f"Error updating render configuration: {response.status_code}")
    print(response.text)

For more information on using the STAC Collection API, see Create a STAC collection (API examples).

Examples

Here are various examples of the options string and the full render configuration object:

1. Single-Band Biomass Change with Colormap and Rescale:

 {
    "id": "biomass-change",
    "name": "Biomass Change from prior year (tonnes)",
    "description": "Annual estimates of changes (gains and losses) in aboveground woody biomass.",
    "type": "raster-tile",
    "options": 'assets=biomass_change_wm&colormap_name=spectral&rescale=-5000,5000',
    "minZoom": 2
  }

2. Three-Band Natural Color (RGB) from separate assets:

 {
    "id": "natural-color",
    "name": "Natural color",
    "description": "True color composite of visible bands (B04, B03, B02)",
    "type": "raster-tile",
    "options": "assets=B04&assets=B03&assets=B02&nodata=0&color_formula=Gamma RGB 3.2 Saturation 0.8 Sigmoidal RGB 25 0.35",
    "minZoom": 9
  }

3. Three-Band False Color (NIR, R, G) from bands within a single asset:

{
    "id": "color-infrared",
    "name": "Color infrared",
    "description": "Highlights healthy (red) and unhealthy (blue/gray) vegetation.",
    "type": "raster-tile",
    "options": "assets=image&asset_bidx=image|4,1,2&color_formula=Sigmoidal RGB 15 0.35",
    "minZoom": 12
  }

4. NDVI Calculation using Expression:

{
    "id": "normalized-difference-veg-inde",
    "name": "Normalized Difference Veg. Index (NDVI)",
    "description": "Normalized Difference Vegetation Index (B08-B04)/(B08+B04), darker green indicates healthier vegetation.",
    "type": "raster-tile",
    "options": "nodata=0&expression=(B08-B04)/(B08+B04)&rescale=-1,1&colormap_name=rdylgn&asset_as_band=true",
    "minZoom": 9
  }

5. Hillshade Algorithm:

{
    "id": "hillshade",
    "name": "Hillshade",
    "description": "Terrain visualization based on elevation.",
    "type": "raster-tile",
    "options": "assets=data&colormap_name=gray&algorithm=hillshade&buffer=3&algorithm_params=%7B%22azimuth%22%3A%20315%2C%20%22angle_altitude%22%3A%2045%7D",
    "minZoom": 7
  }

6. NetCDF Temperature Visualization:

{
    "id": "pr-1950-07-07",
    "name": "Precipitation (1950-07-07)",
    "description": "Precipitation from NetCDF data.",
    "type": "raster-tile",
    "options": "assets=cmip&rescale=0,0.01&colormap_name=viridis&subdataset_name=pr&datetime=1950-07-07T00:00:00",
    "minZoom": 4
  }

Reference: All options Parameters

The options string accepts the following key-value pairs (refer to TiTiler documentation for the most up-to-date details):

Parameter	Type	Description	Example Usage
assets	str	Asset key(s) from item_assets. Repeat key for multiple assets.	assets=B04&assets=B03&assets=B02
expression	str	Math expression using asset keys.	expression=(B08-B04)/(B08+B04)
asset_bidx	str	Band indexes for a multi-band asset. Format: {asset_key}|{idx1},{idx2},...	asset_bidx=image|4,1,2
asset_as_band	bool	Treat assets in expression as single bands. Required when expression uses multiple assets.	asset_as_band=true
colormap_name	str	Predefined TiTiler colormap name.	colormap_name=viridis
colormap	str	URL-encoded JSON defining a custom colormap.	colormap=%7B%221%22%3A%5B...%5D%7D
rescale	str	Comma-separated min, max values for data scaling.	rescale=0,3000
color_formula	str	Space-separated color correction formula (Gamma, Saturation, Sigmoidal).	color_formula=Gamma RGB 2.2 Saturation 1.1
nodata	str/float/int	Pixel value to treat as no data (transparent).	nodata=0 or nodata=-9999.0 or nodata=nan
unscale	bool	Apply scale/offset from GeoTIFF metadata.	unscale=true
algorithm	str	Name of a TiTiler processing algorithm.	algorithm=hillshade
algorithm_params	str	URL-encoded JSON string with parameters for the algorithm.	algorithm_params=%7B%22azimuth%22%3A315%7D
buffer	float	Pixel buffer around tiles (often needed for algorithms).	buffer=3
maxItemsPerTile	int	Max STAC items to process per tile.	maxItemsPerTile=20
skipcovered	bool	Skip items fully obscured by others.	skipcovered=true
exitwhenfull	bool	Stop processing a tile once fully covered.	exitwhenfull=true
time_limit	int	Max processing time (seconds) per tile.	time_limit=10
subdataset_bands	int	Band/message index for GRIB data.	subdataset_bands=1
subdataset_name	str	Variable name for NetCDF data.	subdataset_name=temperature
datetime	str	ISO 8601 timestamp for selecting time slice in NetCDF.	datetime=2023-10-26T12:00:00Z
resampling	str	Resampling method (nearest, bilinear).	resampling=nearest

Related content

• Configure a collection with the Microsoft Planetary Computer Pro web interface
• Mosaic configurations for collections
• Tile settings for collections
• Queryables for custom search filters
• Visualize data cube assets (GRIB/NetCDF)
• STAC Overview
• TiTiler Documentation
