Oracle to PostgreSQL migration

The PostgreSQL extension for Visual Studio Code provides an end-to-end workflow for migrating Oracle databases to PostgreSQL. A guided wizard walks you through connecting to your Oracle source, selecting schemas, configuring a Microsoft Foundry model for AI-assisted DDL conversion, and choosing a PostgreSQL scratch database for validation. After the project is created, a dashboard tracks extraction, conversion, export, and review in a single view.

Important

The Oracle to PostgreSQL migration workflow is available in Visual Studio Code only.

Prerequisites

Before you begin, ensure you have:

  • Visual Studio Code installed.
  • The PostgreSQL extension installed.
  • Access to an Oracle source database with read permissions for schema extraction.
  • A PostgreSQL instance to use as a scratch validation database (for example, an Azure Database for PostgreSQL flexible server).
  • A Microsoft Foundry resource with a deployed gpt-5.2 model. You need the endpoint URL and either an API key or a Microsoft Entra ID account with access.

Verify the migrations feature is enabled

The pgsql.enableMigrations setting controls the Migrations (Preview) view and all migration commands. This setting is enabled by default.

If the Migrations (Preview) view doesn't appear in the sidebar, verify the setting:

  1. Open VS Code settings (Ctrl+, on Windows/Linux, Cmd+, on macOS).
  2. Search for pgsql.enableMigrations.
  3. Confirm the value is true.

Create a migration project

A migration project is a four-step wizard that collects your source, target, and AI configuration before creating the project workspace.

Step 1: Project setup

  1. Open the Migrations (Preview) view in the sidebar.

  2. Select the + button in the view toolbar, or right-click a workspace folder in Explorer and select Create Migration Project.

    The New Oracle to Azure Database for PostgreSQL migration project page opens, listing what you need:

    • Connection details for the source database
    • Name of the schema(s) to convert
    • Endpoint URL and key for a Microsoft Foundry resource
    • Connection name for an existing PostgreSQL instance

  3. Enter a name in the Project Name field.

  4. Select Next: Oracle Connection.

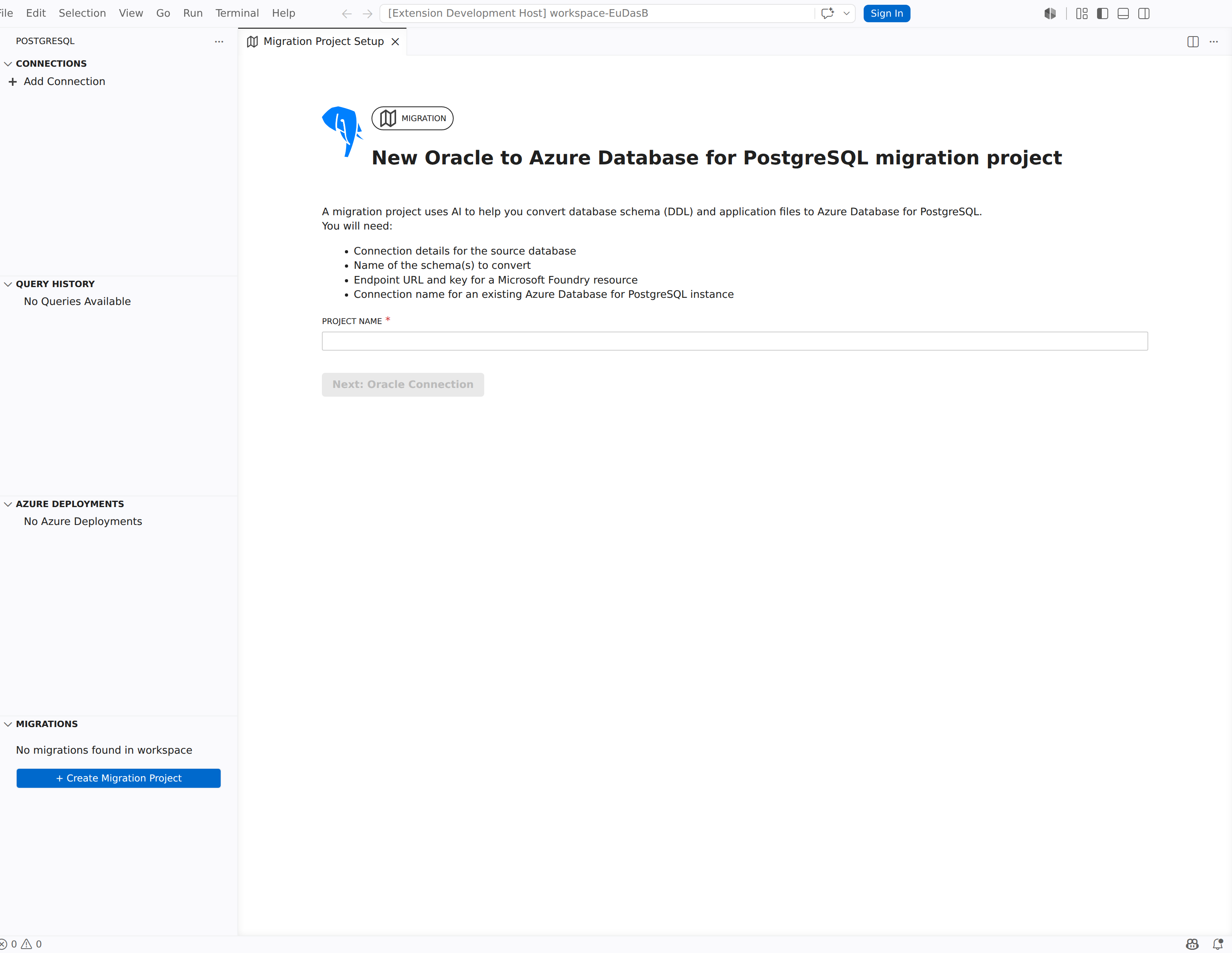

Screenshot of new migration project page with Project Name field.

Step 2: Connect to Oracle

The Connect to Oracle page collects your Oracle source database credentials and lets you load schemas.

  1. Complete the Oracle connection fields:

    Field Description
    Oracle Hostname Hostname or IP address of the Oracle database server.
    Oracle Port Listener port (default: 1521).
    Oracle SID or Service Name Oracle SID or service name for the database instance.
    Oracle Username Database user with read access to schema objects.
    Oracle Password Password for the Oracle user.

  2. Select Load Schemas to connect and retrieve the list of available schemas.

  3. In the Schemas dropdown list, select one or more schemas to migrate.

  4. Select Next: PostgreSQL Connection.

Step 3: Choose an Azure Database for PostgreSQL scratch database

The Choose an Azure Database for PostgreSQL scratch database page selects the PostgreSQL instance that the AI model uses to validate converted DDL files.

Note

Use a dedicated scratch database for validation. The extension might execute converted DDL against this database during the conversion process.

  1. In the PostgreSQL Connection dropdown list, select an existing connection profile. If the connection you need isn't listed, select Refresh Profiles to reload available profiles, or create a new connection in the Connections and identity view first.
  2. In the PostgreSQL Database dropdown list, select the target database. Select Load Databases if the list is empty.
  3. After you select a database, the extension automatically verifies that recommended PostgreSQL extensions are installed. You can also select Verify Extensions to run the check manually. If any extensions are missing, the page lists them and provides guidance on allowlisting and installing them through the Azure Database for PostgreSQL flexible server documentation.
  4. Select Next: Microsoft Foundry Model Configuration.

Step 4: Configure the Microsoft Foundry model

The Choose a Microsoft Foundry Model page configures the Microsoft Foundry deployment that powers schema and code conversion.

  1. Complete the language model fields:

    Field Description
    Model Name gpt-5.2.
    Microsoft Foundry Endpoint Microsoft Foundry resource endpoint URL (for example, https://<resource>.openai.azure.com/).
    Authentication Method Choose API Key or Microsoft Entra Id.
    Microsoft Foundry API Key API key for the Microsoft Foundry resource (shown when Authentication Method is API Key).
    Azure Account Microsoft account with access to the resource (shown when Authentication Method is Microsoft Entra Id).
    Tenant Azure AD tenant for the account (shown when Authentication Method is Microsoft Entra Id).
    Deployment Name Name of the deployed model in your Microsoft Foundry resource.

  2. Select Test Microsoft Foundry Connection to verify connectivity.

  3. Select Create Migration Project.

Tip

Microsoft Foundry recommends 500,000 TPM (Tokens Per Minute) for optimal migration performance.

Run schema migration

After the project is created, the Oracle Migration dashboard opens. The dashboard displays Schema Migration and Schema Review cards, along with a Settings accordion that summarizes your project configuration.

Extract and convert schemas

The Schema Migration card (Step 1) runs extraction, conversion, and export as a continuous pipeline.

  1. On the Schema Migration card, select Migrate.

    The button label updates as the pipeline progresses:

    Status Button label
    Extraction running Extracting ...
    Extraction complete, conversion pending Resume Migration
    Conversion running Converting ...
    All phases complete Migration Complete

  2. Monitor progress in the expanded card:

    • Extraction shows the count of extracted objects (for example, "15 of 42 objects extracted") and the current schema and object being processed.
    • Conversion shows the count of converted chunks (for example, "3 of 8 Chunks converted") and the current chunk being processed.

  3. After export completes, select View Migration Report to open the generated migration report.

Review migration tasks

The Schema Review card (Step 2) displays items that require manual attention after conversion. A Grouped / Tasks switcher at the top of the review area lets you choose how to work through the list.

Grouped view

The Grouped view organizes review tasks into collapsible accordion groups by category. Use this view when you want to process related issues together.

  1. On the Schema Review card, select Review to expand the review surface, then select Grouped.

  2. Use the Pending and Resolved tabs to switch between tasks that still need attention and tasks you have already approved.

  3. Expand a group to see its metadata (schemas, object types, criticality) and the individual task cards inside it.

  4. Use the group-level actions to process tasks in bulk:

    Action Description
    Run all Open every pending task in the group in Copilot Agent Mode for AI-assisted review.
    Resolve all Mark all tasks in the group as resolved. A confirmation dialog shows the group name and task count before proceeding.
    Reset all Return all resolved tasks in the group to the pending state. Available on the Resolved tab.
    View in Tasks Switch to the flat Tasks view filtered to this group.

  5. To act on a single task inside the group, select Run Task to open it in Copilot Agent Mode, or select Resolve to mark it complete. Select Reset on a resolved task to return it to the pending state.

Note

Resolve all and Reset all are disabled when a group contains more than 800 tasks.

Tasks view

The Tasks view shows all review tasks in a flat table. Use this view when you want to sort, filter, or search across all tasks regardless of group.

  1. Select Tasks in the switcher.
  2. Use the filter dropdowns (Status, Criticality, Object Type, Schema) to narrow the task list.
  3. Select Run Task on a pending item to open it in Copilot Agent Mode for AI-assisted review and correction.
  4. After fixing an item, select Resolve to mark it complete.

Tip

Select View Logs in the dashboard to inspect extraction and conversion log files for troubleshooting.

Migrate application code

After schema migration, convert Oracle-specific application code (SQL scripts, stored procedures, loader control files, shell scripts, or Java files) to PostgreSQL-compatible equivalents. Application migration is a Preview feature.

Choose a migration method

The extension offers two paths for application code migration:

  • Full app modernization — If the GitHub Copilot app modernization extension is installed, select Migrate using app modernization to continue the migration with coding notes from the schema conversion. Select View coding notes to review the generated guidance before proceeding.
  • Database-only option — To convert only database-related application code within this extension, select Migrate using PostgreSQL extension.

Convert application code within the extension

  1. On the Application Migration card, select Migrate Data (or Select Method if the app modernization extension is detected).
  2. In the Convert Application page, select Select Oracle Application to Convert and choose the folder that contains Oracle application code.
  3. Select a PostgreSQL Connection and PostgreSQL Database for conversion context.
  4. Select Load Databases if the database list is empty.
  5. Select Convert Application to start the conversion.

Use Copilot tools for application migration

The extension registers two Copilot language model tools for migration assistance:

  • Oracle Client Code Application Converter (pgsql_migration_oracle_app) — Converts Oracle client application code to PostgreSQL equivalents using prompt templates and coding guidance from the schema migration analysis. Accepts the following parameters:

    • Application Codebase Folder (required) — Location of the code to convert.
    • Coding Notes Location Path (optional) — Path to coding notes from the schema migration.
    • Postgres DB Name (optional) — Name of the PostgreSQL database for conversion context.
    • Postgres DB Connection (optional) — Connection name for the PostgreSQL database.

  • Show Oracle to Postgres Migration Report (pgsql_migration_show_report) — Displays the migration report generated by the schema conversion. Requires a Path to Report File parameter.

For more information on using Copilot tools, see Copilot integration.

Compare converted files

After conversion, review changes side by side using the built-in diff commands.

  1. In Explorer, right-click a converted SQL file under the oracle or postgres folder in the migration project and select Compare DDL Migration File Pairs.
  2. For converted application code files (.sql, .ctl, .sh, .load, or .java), right-click the file and select Compare Application Migration File Pairs.

The side-by-side diff view shows the original Oracle source alongside the converted PostgreSQL output, so you can identify any artifacts that require manual adjustment.

Note

DDL files must follow the structure folder/oracle|postgres/SCHEMA_NAME/DDL-TYPE/filename.sql for the compare command to locate the matching file pair.

Manage migration projects

Use the Migrations (Preview) view in the sidebar to manage your projects:

Action Description
Open Migration Project Open an existing migration project in the dashboard.
Reveal in Explorer Show the project folder in the Explorer view.
Delete Remove a migration project. You're prompted to confirm before deletion.
Refresh Reload the list of migration projects in the current workspace.
