Azure Confidential Computing for Azure Database for PostgreSQL (Preview)

Azure Confidential Computing (ACC) enables organizations to securely process and collaborate on sensitive data, such as personal data or protected health information (PHI). ACC provides built-in protection against unauthorized access by securing data in use through Trusted Execution Environments (TEEs). This allows for secure real-time analytics and collaborative machine learning across organizational boundaries.

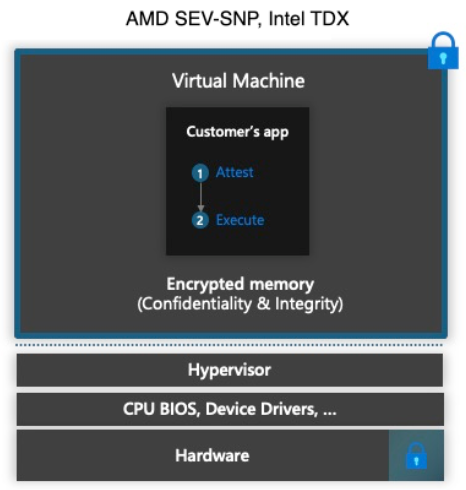

Understanding the architecture

Azure Database for PostgreSQL supports Azure Confidential Computing through Trusted Execution Environments (TEEs), which are hardware-based, isolated memory regions within the CPU. Data processed inside the TEE is protected from access by the operating system, hypervisor, or other applications.

  • Code runs in plaintext within the TEE but remains encrypted outside the enclave.
  • Data is encrypted at rest, in transit, and use.
  • Protected from access by the OS, hypervisor, or other applications.

Processors

Azure Confidential Computing is supported in Azure Database for PostgreSQL by selecting a supported confidential virtual machine (VM) SKU when creating a new server. There are two processors to choose from:

  • AMD SEV-SNP
  • Intel TDX

Screenshot of Azure Confidential Computing options.

Virtual machine SKUs

The SKUs supporting Azure Confidential Computing (ACC) for Azure Database for PostgreSQL are:

SKU Name Processor vCores Memory (GiB) Max IOPS Max I/O Bandwidth (MBps)
Dcadsv5 AMD SEV-SNP 2-96 8-384 3750-80000 48-1200
Dcedsv5 Intel TDX 2-96 8-384 3750-80000 85-2600
Ecadsv5 AMD SEV-SNP 2-96 16-672 3750-80000 48-1200
Ecedsv5 Intel TDX 2-128 16-1024 3750-80000 48-1200

Deployment

You can deploy Azure Database for PostgreSQL with ACC using various methods, such as the Azure portal, Azure CLI, ARM templates, Bicep, Terraform, Azure PowerShell, REST API, etc.

For this example, we're using the Azure portal.

  1. Go to Azure portal to deploy an Azure Database for PostgreSQL.

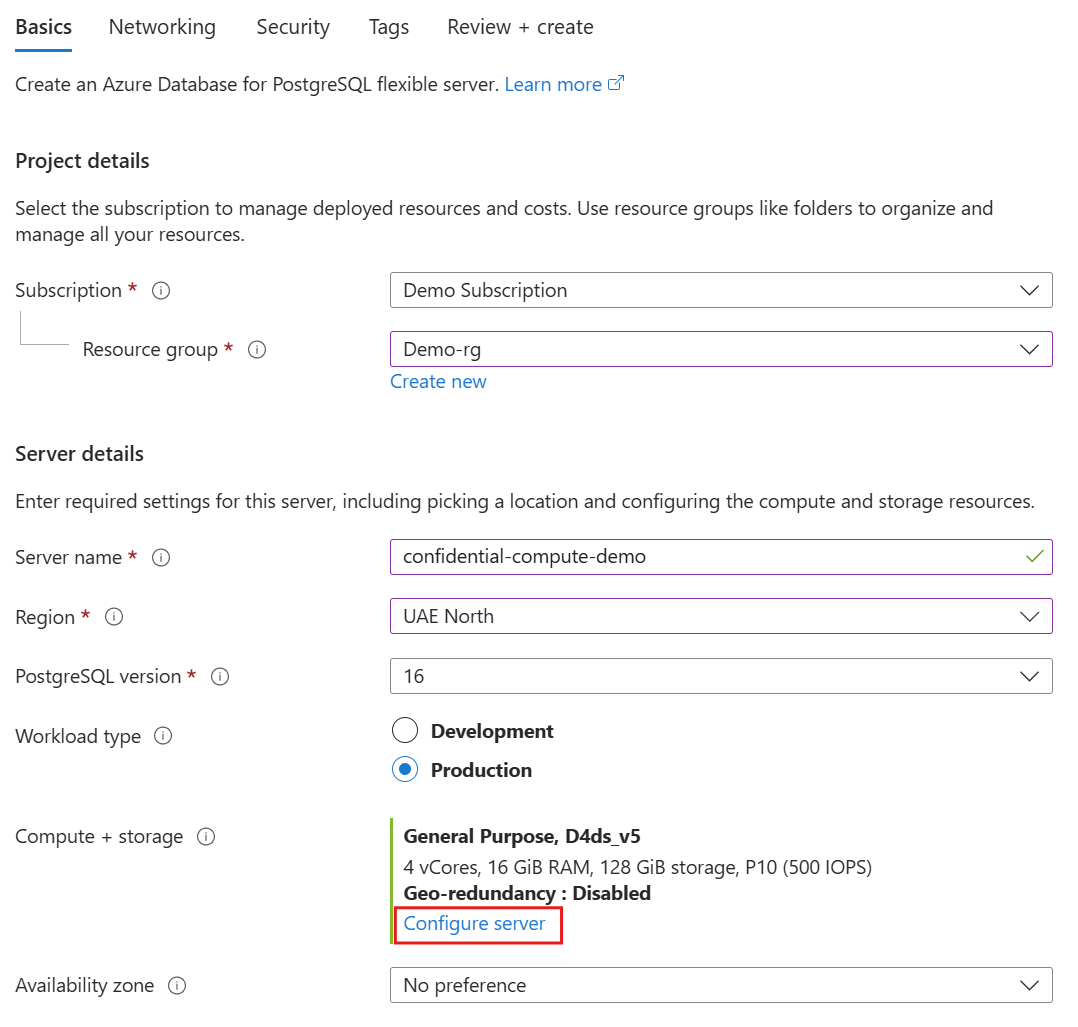

  2. On the Basics tab,

    1. Enter your details.
    2. Select UAE North as the region.
    3. Select Configure Server under Compute + Storage.

    Screenshot of Azure Confidential Computing portal deployment basics page.

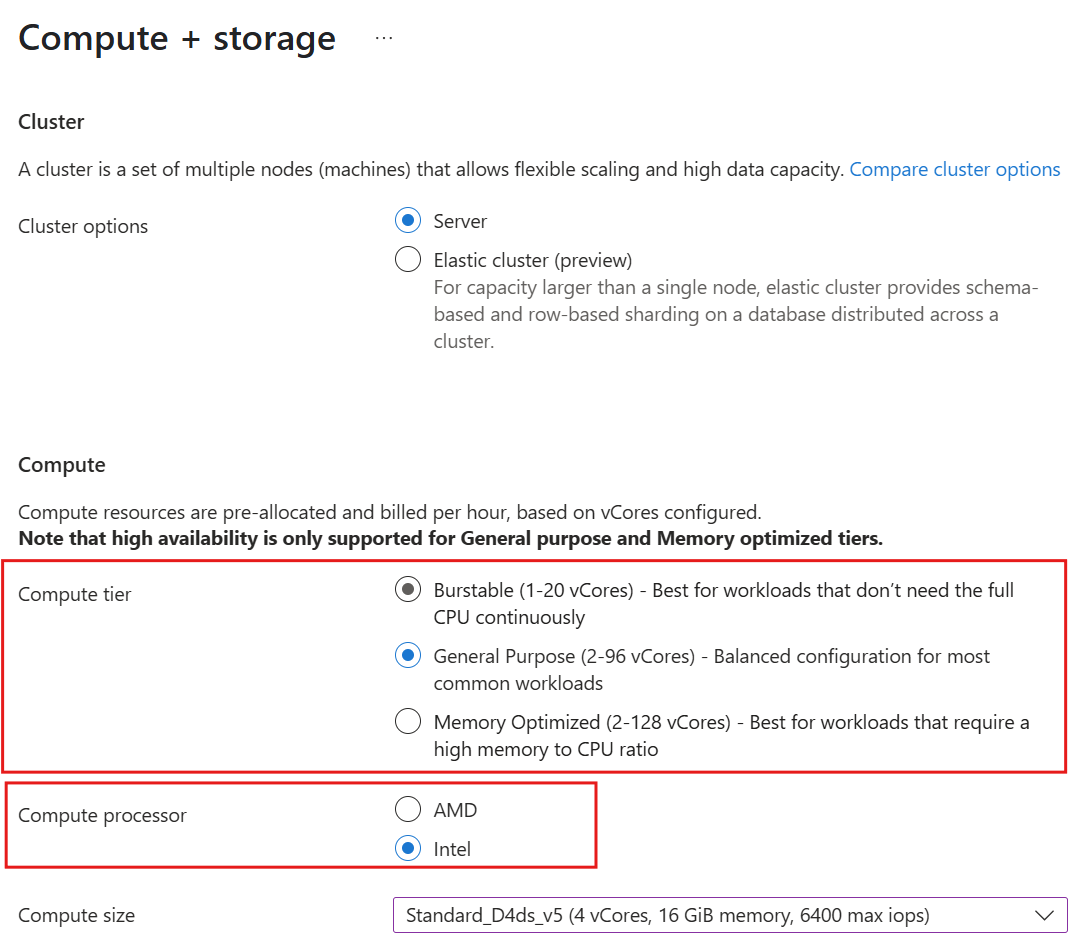

  3. On the Compute and Storage tab,

    • Select your Compute Tier and Compute Processor.

    Screenshot of Azure Confidential Computing portal deployment compute and storage page.

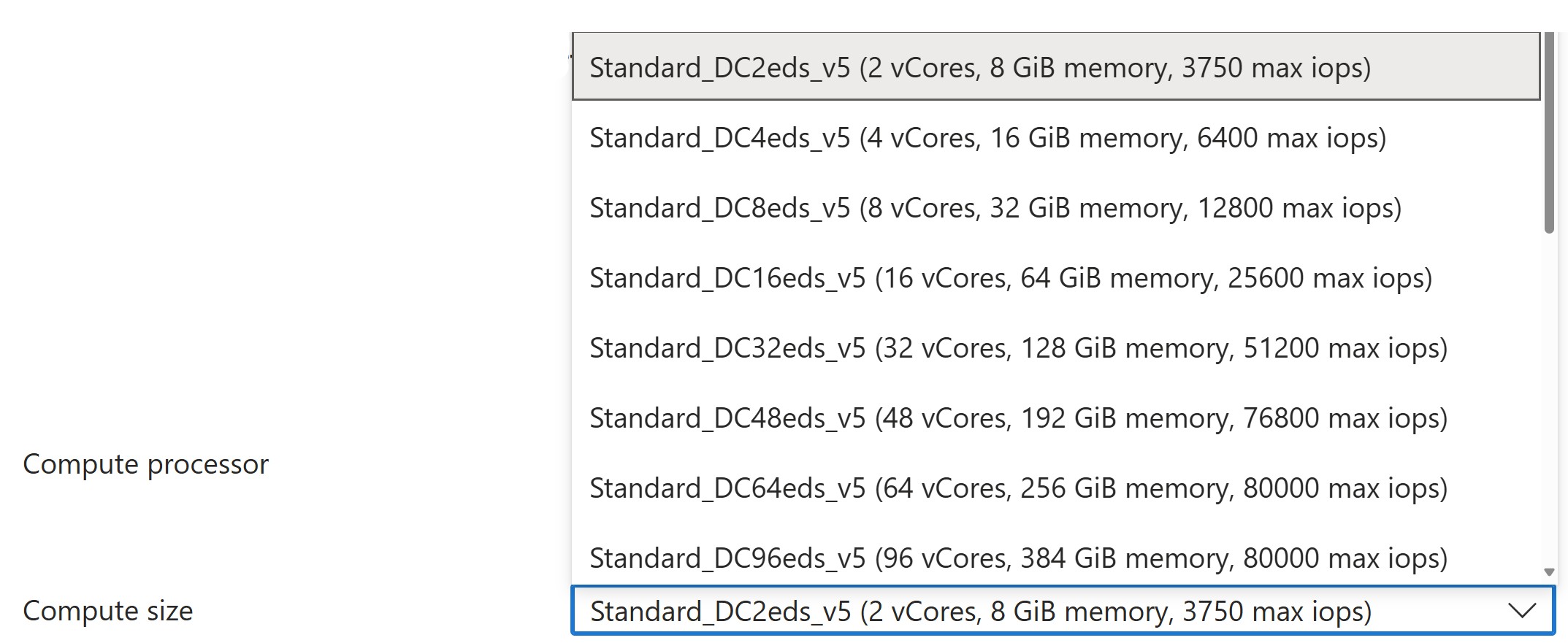

  4. Select Compute Size and select a confidential compute SKU and the size based on your needs.

    Screenshot of Azure Confidential Computing portal deployment list of compute sizes.

  5. Deploy your server.

Compare

Let's compare Azure Confidential Compute virtual machines vs. Azure Confidential Computing.

Feature Confidential Compute VMs ACC for Azure Database for PostgreSQL
Hardware root of trust Yes Yes
Trusted launch Yes Yes
Memory isolation and encryption Yes Yes
Secure key management Yes Yes
Remote attestation Yes No

Limitations and considerations

Be sure to evaluate the limitations carefully before deploying in a production environment.

  • Confidential Computing is only available in the UAE North.
  • High Availability isn't supported for Confidential Compute SKUs.
  • Point-in-time Restore (PITR) from nonconfidential compute SKUs to confidential ones isn't allowed.
  • Compute scaling operation between confidential and nonconfidential compute options.
