Connect Azure Database for PostgreSQL to Microsoft Foundry with MCP

The Azure Database for PostgreSQL MCP (Model Context Protocol) server enables AI agents in Microsoft Foundry to interact with PostgreSQL databases through natural language queries. This integration supports SQL operations, vector search, schema discovery, and data analysis with enterprise-grade security.

This article shows you how to set up and configure the Azure PostgreSQL Server MCP with Foundry agents for natural language database interactions.

What is MCP and how does it work?

Model Context Protocol (MCP) is an open standard that enables AI applications to securely connect to external data sources and tools. The Azure PostgreSQL MCP Server acts as a bridge between Foundry agents and your PostgreSQL database.

The system uses three main components:

Microsoft Foundry Agent (Client): Authenticates to the Azure PostgreSQL MCP Server by using its managed identity
Azure PostgreSQL MCP Server (Server): Runs in Azure Container Apps, using managed identity for PostgreSQL access
PostgreSQL Database (Target): Azure Database for PostgreSQL with Microsoft Entra ID authentication

This architecture ensures proper security isolation with separate managed identities for client authentication and database access.

Features and capabilities

The Azure PostgreSQL MCP Server provides comprehensive database integration capabilities:

SQL Operations - Execute queries and manage data. Perform analytics through natural language
Vector Search - Use AI-powered embeddings for similarity search
Schema Discovery - Automatic table and column analysis with relationship mapping
Enterprise Security - Azure managed identity and Microsoft Entra ID authentication
Natural Language - Query databases by using conversational AI without SQL knowledge
Easy Deployment - Easy Azure deployment with complete infrastructure setup

Example use cases

With the MCP integration, your AI agents can handle queries like:

"List all customers who placed orders in the last 30 days"
"Show me the top five best-selling products by quantity"
"What's the schema of the orders table?"
"Calculate average order value by customer segment"
"Find tables that contain customer information"

Prerequisites

Before you begin, make sure you have the required tools, accounts, and permissions in place to deploy and configure the MCP PostgreSQL Server. Having these prerequisites ready minimizes interruptions and helps ensure a smooth integration with Foundry.

Azure CLI (latest version)
Azure Database for PostgreSQL Flexible Server with Microsoft Entra ID authentication enabled
Foundry project
Microsoft .NET
An Azure subscription with appropriate permissions to create resources

Quick start deployment

Deploy the complete Azure MCP PostgreSQL Server infrastructure by using Azure Developer CLI (azd):

Step 1: Deploy with azd up

The fastest way to get started is by using the automated deployment script.

First, clone the repo:

# Clone the repository
git clone https://github.com/Azure-Samples/azure-postgres-mcp-demo
cd azure-postgres-mcp-demo

Open infra/main.parameters.json and update these 2 values

Parameter	Description
`postgresResourceId`	Resource ID of the Azure Database for PostgreSQL Flexible Server you want to connect to
`aifProjectResourceId`	Resource ID of the Azure Foundry project you want to use

a. Update the postgresResourceId variable to match the Postgres DB you want to access.

"postgresResourceId": {
  "value": "/subscriptions/<subscription-id>/resourceGroups/<postgres-resource-group>/providers/Microsoft.DBforPostgreSQL/flexibleServers/<postgres-server-name>"
}

Note

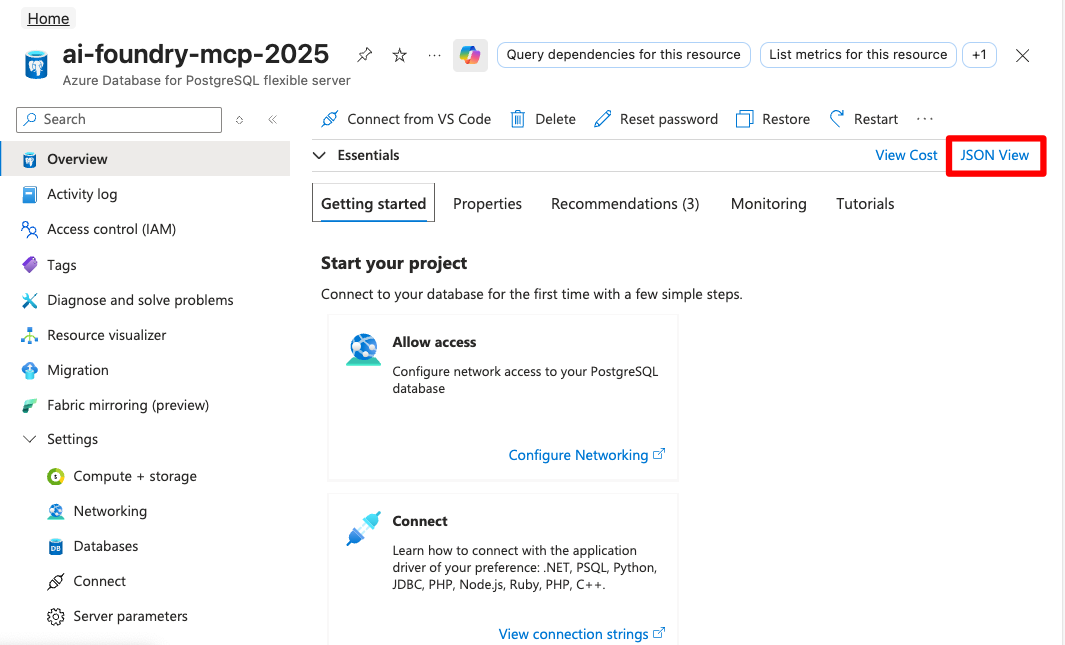

Find your Azure Database for PostgreSQL Resource ID in your Azure portal. JSON View → Resource ID: Screenshot of Azure details page.

b. Update the aifProjectResourceId variable to match the Foundry project resource you want to use

"aifProjectResourceId": {
  "value": "/subscriptions/<subscription-id>/resourceGroups/<aifoundry-resource-group>/providers/Microsoft.CognitiveServices/accounts/<aifoundry-resource-name>/projects/<aifoundry-project-name>"
}

Note

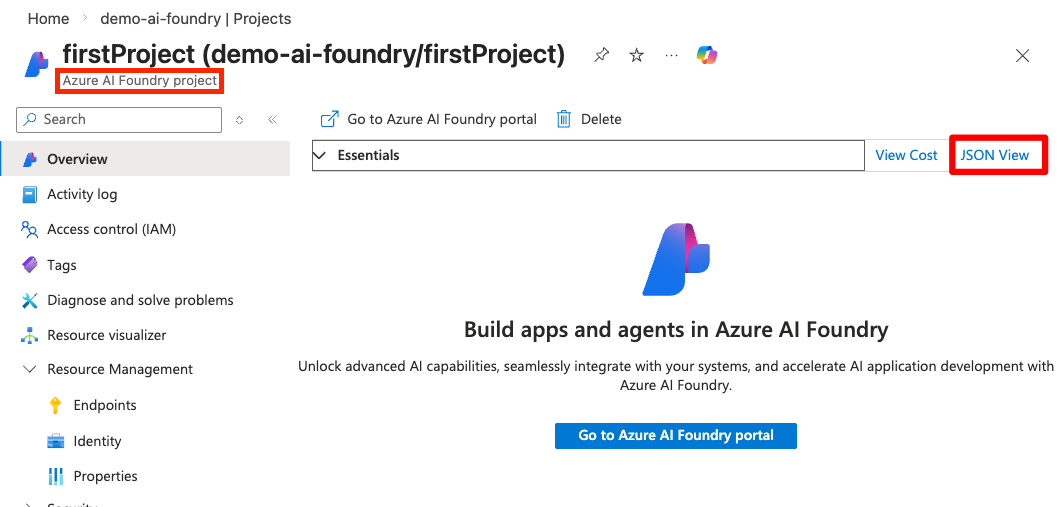

Find your Foundry project Resource ID in your Azure portal. JSON View → Resource ID: Screenshot of Foundry details.

Create a new azd environment and deploy. Make sure you are in the main directory (azure-postgres-mcp-demo):
```
azd env new
```
```
azd up
```
The deployment usually takes 5-8 mins. After deployment completes, azd will output the MCP server URL + Managed Identity info you'll use in the next steps.

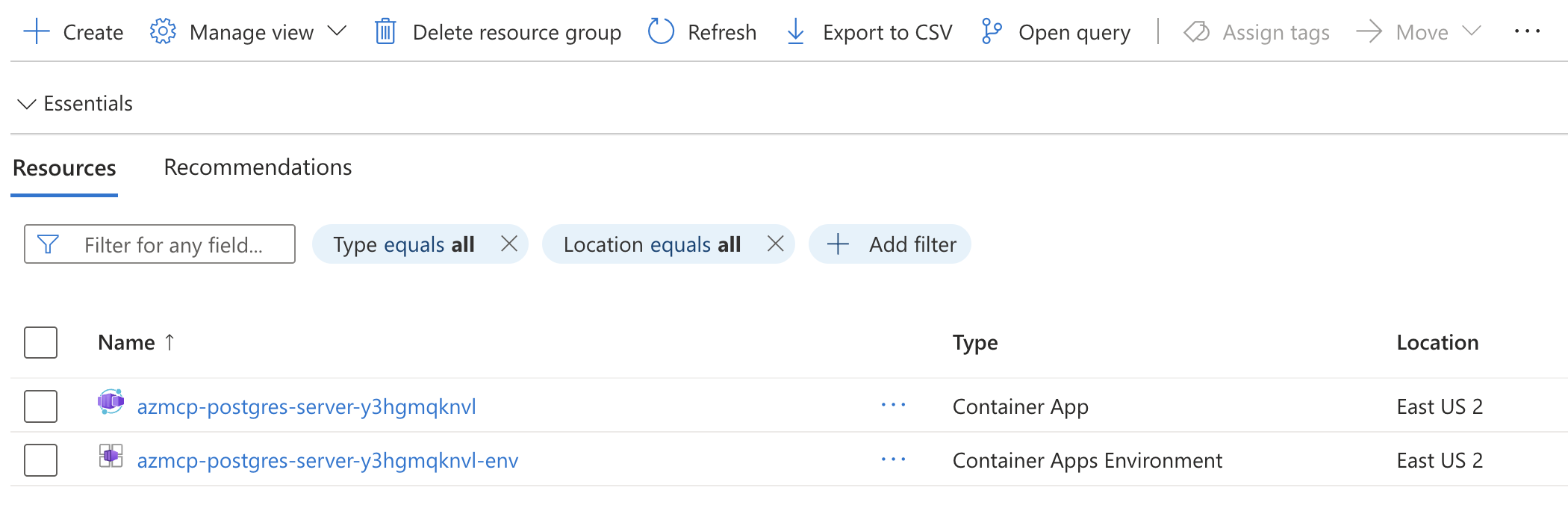

This deployment creates:

Azure Container App running the MCP server with Managed Identity (Reader access to your PostgreSQL server)
Entra ID App Registration for MCP server authentication
Entra ID Role assignment for Foundry to authenticate to the MCP server

Step 2: Configure database access

After deployment completes, grant the MCP server access to your PostgreSQL database:

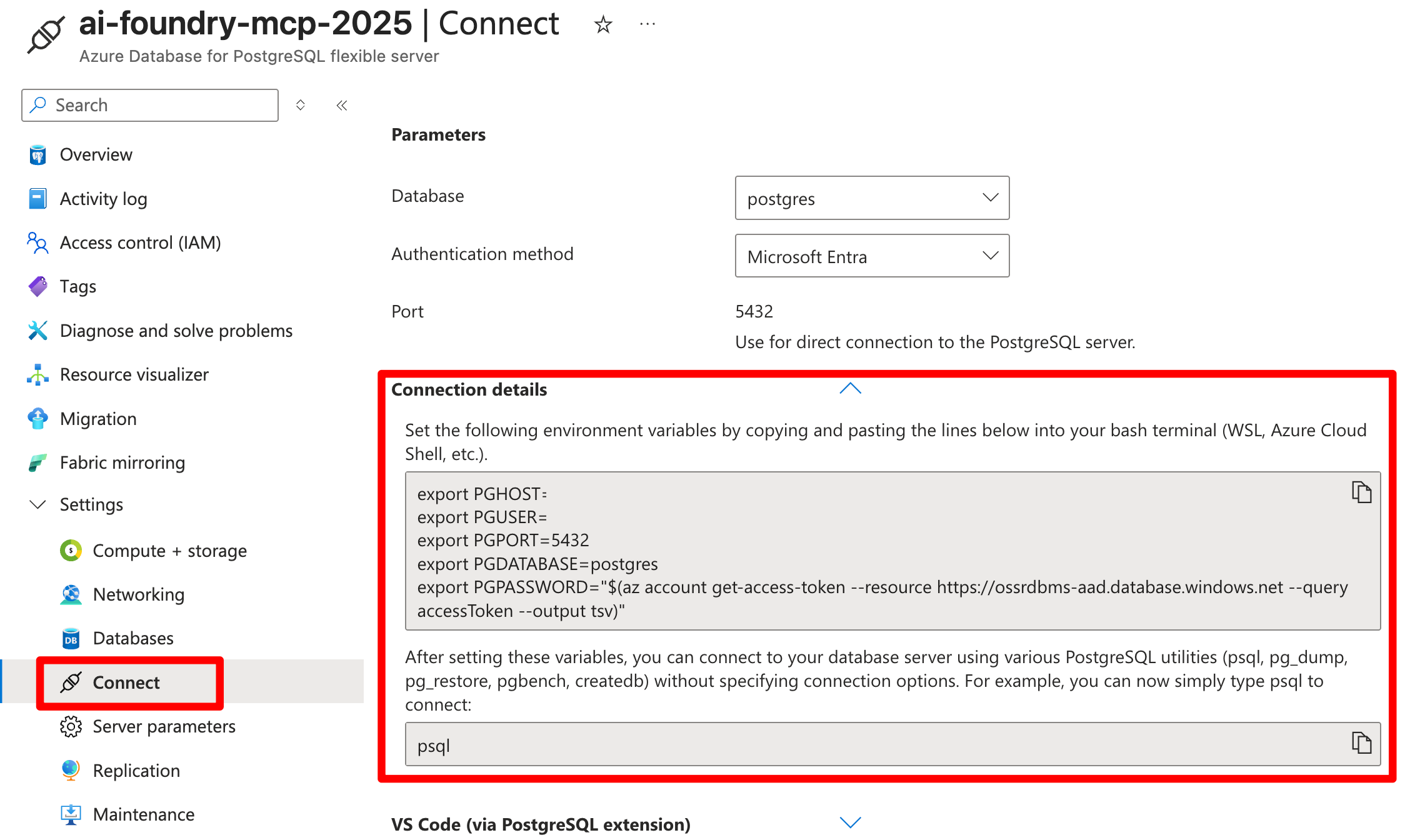

Connect to your PostgreSQL server using psql or your preferred PostgreSQL client:

Set the following environment variables by copying and pasting the lines below into your bash terminal (WSL, Azure Cloud Shell, etc.). Find details for your connection in the Connect Tab in your Postgres Resource in the Azure portal:
```
export PGHOST=<your-database-host-name>
export PGUSER=<your-admin-username>
export PGPORT=5432
export PGDATABASE=<your-database-name>
export PGPASSWORD="$(az account get-access-token --resource https://ossrdbms-aad.database.windows.net --query accessToken --output tsv)"
```
Then run:
```
psql
```
Alternatively, you can connect via the Connect and query a database with the PostgreSQL extension for Visual Studio Code.
Create the database principal for the MCP server's managed identity:
```
SELECT * FROM pgaadauth_create_principal('<CONTAINER_APP_IDENTITY_NAME>', false, false);
```
Replace <CONTAINER_APP_IDENTITY_NAME> with the managed identity name from your deployment output (e.g., azmcp-postgres-server-nc3im7asyw).

Tip

Use azd env get-values command to find the CONTAINER_APP_IDENTITY_NAME value

Grant appropriate permissions to the managed identity:

-- Grant SELECT on a specific table
GRANT SELECT ON TABLE_NAME TO "<CONTAINER_APP_IDENTITY_NAME>";

To grant permissions to all future and existing tables

-- Grant SELECT on all existing tables
GRANT SELECT ON ALL TABLES IN SCHEMA public TO "<CONTAINER_APP_IDENTITY_NAME>";

-- Grant SELECT on all future tables
ALTER DEFAULT PRIVILEGES IN SCHEMA public GRANT SELECT ON TABLES TO "<CONTAINER_APP_IDENTITY_NAME>";

Configure Foundry integration

After you deploy your MCP server, connect it to Foundry:

Connect via Foundry portal

Go to your Foundry project in the Azure portal.
Go to Build → Create agent.

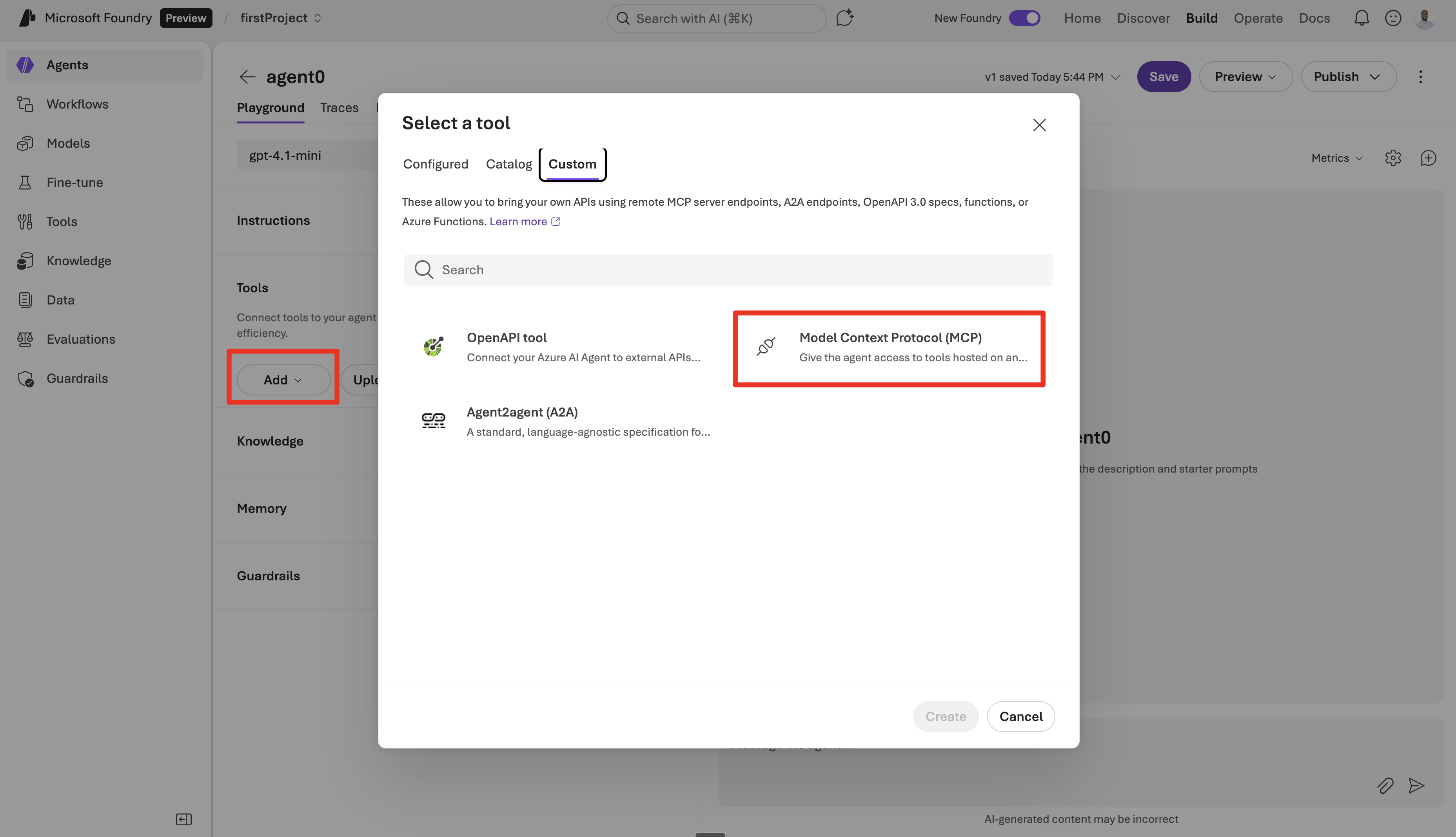

In the tools section, select + Add.
Select the Custom tab and choose Model Context Protocol.
Select Microsoft Entra → Project Managed Identity as the authentication method.
Enter your ENTRA_APP_CLIENT_ID as the audience (from your deployment output).

Tip

Use azd env get-values to find the ENTRA_APP_CLIENT_ID value.

Add instructions to your agent:

You are a helpful agent that can use MCP tools to assist users. Use the available MCP tools to answer questions and perform tasks.

Use these parameters when calling PostgreSQL MCP tools:
- database: <YOUR_DATABASE_NAME>
- resource-group: <YOUR_RESOURCE_GROUP>
- server: <YOUR_SERVER_NAME>
- subscription: <YOUR_SUBSCRIPTION_ID>
- user: <CONTAINER_APP_IDENTITY_NAME>

Test the integration

After you connect, test your MCP integration with natural language queries.

You can discover tables.

List all tables in my PostgreSQL database

You can retrieve records with natural language.

Show me the latest 10 records from the orders table

Find customers who placed orders in the last 30 days

You can do vector search and specify example queries to improve accuracy.

Do a vector search for "product for customer that love to hike"

This is an example of a vector search.

- `SELECT id, name, price, embedding <=> azure_openai.create_embeddings(
'text-embedding-3-small',
'query example'
)::vector AS similarity
FROM public.products
ORDER BY similarity
LIMIT 10;

The AI agent automatically translates these requests into appropriate database operations through the MCP server.

Connect via Foundry SDK

For programmatic access, use the following MCP configuration in your Python code:

Create a .env file from the .env.example:
```
cd client
cp .env.example .env
```

Update all the values to run your agent. All values can be found in your Foundry Project.

Variable Name	Example Value	Description
`PROJECT_ENDPOINT`	`https://example-endpoint.services.ai.azure.com/api/projects/example-project`	Foundry project endpoint
`MODEL_DEPLOYMENT_NAME`	`example-model`	Name of the deployed AI model
`MCP_SERVER_URL`	`https://example-mcp-server.azurecontainerapps.io`	MCP server endpoint URL
`MCP_SERVER_LABEL`	`example-label`	Label for the MCP server
`AZURE_OPENAI_API_KEY`	`your-azure-openai-api-key`	Azure OpenAI service API key
`AZURE_OPENAI_ENDPOINT`	`https://example-openai-endpoint.openai.azure.com/`	Azure OpenAI service endpoint
`AZURE_OPENAI_API_VERSION`	`your-api-version`	API version for Azure OpenAI
`AZURE_SUBSCRIPTION_ID`	`your-azure-subscription-id`	Azure subscription identifier
`CONNECTION_NAME`	`your-connection-name`	Name for the database connection
`POSTGRES_SERVER`	`your-postgres-server`	PostgreSQL server name
`POSTGRES_DATABASE`	`your-postgres-database`	PostgreSQL database name
`POSTGRES_TABLE`	`your-postgres-table`	Target PostgreSQL table
`POSTGRES_USER`	`your-postgres-user`	PostgreSQL user for authentication, use CONTAINER_APP_IDENTITY_NAME here
`AZURE_RESOURCE_GROUP`	`your-azure-resource-group`	Azure resource group name

Run the Full SDK sample in the client folder in GitHub Repo.

Example use of MCP Tools and Config in the sample code.

mcp_tool_config = {
   "type": "mcp",
   "server_url": "<MCP_SERVER_URL>",
   "server_label": "<MCP_SERVER_LABEL>",
   "server_authentication": {
      "type": "connection",
      "connection_name": "<CONNECTION_NAME>",
   }
}

mcp_tool_resources = {
   "mcp": [
      {
            "server_label": "<MCP_SERVER_LABEL>",
            "require_approval": "never"
      }
   ]
}

Security

When using the Azure MCP PostgreSQL Server, be aware of the following security considerations:

Data access and exposure

Connected AI agents can potentially access any data accessible to the MCP server
The server can execute SQL queries on accessible databases and tables, however the MCP server is restricted to read only operations.
Connected agents can request and receive data through natural language queries

Security features

You can use the following security features to protect your data:

Managed Identity: No credentials stored in container images.
Microsoft Entra ID Authentication: Secure database authentication.
RBAC: Role-based access control for database operations.
Row Level Security: Fine-grained access control at the row level.

Best practices

Grant database permissions ONLY to specific schemas and tables needed for AI agents.
Use principle of least privilege - don't grant broad database access.
Regularly review and audit permissions granted to the MCP server's managed identity.
Consider using dedicated databases or schemas for AI agent access.
Start with a test database containing only nonsensitive sample data.

Troubleshoot

If you encounter problems with the MCP PostgreSQL Server integration, this troubleshooting section helps you quickly identify root causes and remediate common issues. Begin with the health check and logs, then verify managed identity authentication, network connectivity, and database permission.

Health check

# Check MCP server status
ping https://your-mcp-server.azurecontainerapps.io

If MCP is up and running:

64 bytes from X.XXX.XXX.X: icmp_seq=0 ttl=108 time=92.748 ms

If MCP is not running:

ping: cannot resolve https://your-mcp-server.azurecontainerapps.io: Unknown host

You will need to re-run azd up.

Limitations and considerations

Cannot validate Microsoft Entra ID ... name isn't unique in the tenant

Error: Someone in your tenant already deployed a Postgres MCP server with the name azure-mcp-postgres-server

postgres=> SELECT * FROM pgaadauth_create_principal('azure-mcp-postgres-server', false, false);
ERROR:  Cannot validate Microsoft Entra ID user "azure-mcp-postgres-server" because its name isn't unique in the tenant.
Make sure it's correct and retry.
CONTEXT:  SQL statement "SECURITY LABEL for "pgaadauth" on role "azure-mcp-postgres-server" is 'aadauth'"
PL/pgSQL function pgaadauth_create_principal(text,boolean,boolean) line 23 at EXECUTE

Solution: Update the acaName in infra/main.parameter.json to a different name, and rerun deployment with azd up

Authentication errors

Error: Unauthorized or Forbidden
Solution: Verify managed identity configuration and PostgreSQL access permissions

Connection issues

Error: Connection timeout or Cannot connect to server
Solution: Check PostgreSQL firewall rules and network configuration

Permission errors

Error: Permission denied for relation
Solution: Grant appropriate permissions to the MCP server's managed identity:
```
GRANT SELECT ON my_table TO "<CONTAINER_APP_IDENTITY_NAME>";
```

Debug with logs

View Container Apps logs for troubleshooting:

# Stream Container Apps logs
az containerapp logs show -n your-mcp-container-name -g your-resource-group

# Check deployment status
az containerapp show -n your-mcp-container-name -g your-resource-group
