Diagnostic logs for Network Security Perimeter

In this article, you learn about the diagnostic logs for Network Security Perimeter and how to enable logging. You learn access logs categories used. Then, you discover the options for storing diagnostic logs and how to enable logging through the Azure portal.

Important

Network Security Perimeter is in public preview and available in all Azure public cloud regions. This preview version is provided without a service level agreement, and it's not recommended for production workloads. Certain features might not be supported or might have constrained capabilities. For more information, see Supplemental Terms of Use for Microsoft Azure Previews.

Access logs categories

Access logs categories for a network security perimeter are based on the results of access rules evaluation. The log categories chosen in the diagnostic settings are sent to the customer chosen storage location. The following are the descriptions for each of the access log categories including the modes in which they're applicable:

Log category	Description	Applicable to Modes
NspPublicInboundPerimeterRulesAllowed	Inbound access is allowed based on network security perimeter access rules.	Transition/Enforced
NspPublicInboundPerimeterRulesDenied	Public inbound access denied by network security perimeter.	Enforced
NspPublicOutboundPerimeterRulesAllowed	Outbound access is allowed based on network security perimeter access rules.	Transition/Enforced
NspPublicOutboundPerimeterRulesDenied	Public outbound access denied by network security perimeter.	Enforced
NspOutboundAttempt	Outbound attempt within network security perimeter.	Transition/Enforced
NspIntraPerimeterInboundAllowed	Inbound access within perimeter is allowed.	Transition/Enforced
NspPublicInboundResourceRulesAllowed	When network security perimeter rules deny, inbound access is allowed based on PaaS resource rules.	Transition
NspPublicInboundResourceRulesDenied	When network security perimeter rules deny, inbound access denied by PaaS resource rules.	Transition
NspPublicOutboundResourceRulesAllowed	When network security perimeter rules deny, outbound access allowed based on PaaS resource rules.	Transition
NspPublicOutboundResourceRulesDenied	When network security perimeter rules deny, outbound access denied by PaaS resource rules.	Transition
NspPrivateInboundAllowed	Private endpoint traffic is allowed.	Transition/Enforced

Note

The available access modes for a network security perimeter are Transition and Enforced. The Transition mode was previously named Learning mode. You may continue to see references to Learning mode in some instances.

Access log schema

Every PaaS resource associated with the network security perimeter, generates access log(s) with unified log schema when enabled.

Note

Network security perimeter access logs may have been aggregated. If the fields 'count' and 'timeGeneratedEndTime' are missing, consider the aggregation count as 1.

Value	Description
time	The timestamp (UTC) of the first event in log aggregation window.
timeGeneratedEndTime	The timestamp (UTC) of the last event in the log aggregation window.
count	Number of logs aggregated.
resourceId	The resource Id of the network security perimeter.
location	The region of network security perimeter.
operationName	The name of the PaaS resource operation represented by this event.
operationVersion	The api-version associated with the operation.
category	Log categories defined for Access logs.
properties	Network security perimeter specific extended properties related to this category of events.
resultDescription	The static text description of this operation on the PaaS resource, e.g. “Get storage file.”

Network security perimeter specific properties

This section describes the network security perimeter specific properties in the log schema.

Note

Application of the properties is subjected to log category type. Do refer respective log category schemas for applicability.

Value	Description
serviceResourceId	Resource ID of PaaS resource emitting network security perimeter access logs.
serviceFqdn	Fully Qualified Domain Name of PaaS resource emitting network security perimeter access logs.
profile	Name of the network security perimeter profile associated to the resource.
parameters	List of optional PaaS resource properties in JSON string format. E.g., { {Param1}: {value1}, {Param2}: {value2}, ...}.
appId	Unique GUID representing the app ID of resource in the Azure Active Directory.
matchedRule	JSON property bag containing matched accessRule name, {"accessRule" : "{ruleName}"}. It can be either network security perimeter access rule Name or resource rule name (not the ArmId).
source	JSON property bag describing source of the inbound connection.
destination	JSON property bag describing destination of the outbound connection.
accessRulesVersion	JSON property bag containing access rule version of the resource.

Source properties

Properties describing source of inbound connection.

Value	Description
resourceId	Resource ID of source PaaS resource for an inbound connection. Will exist if applicable.
ipAddress	IP address of source making inbound connection. Will exist if applicable.
port	Port number of inbound connection. May not exist for all resource types.
protocol	Application & transport layer protocols for inbound connection in format {AppProtocol}:{TptProtocol}. E.g., HTTPS:TCP. May not exist for all resource types.
perimeterGuids	List of perimeter GUIDs of source resource. It should be specified only if allowed based on perimeter GUID.
appId	Unique GUID representing the app ID of source in the Azure Active Directory.
parameters	List of optional source properties in JSON string format. E.g., { {Param1}: {value1}, {Param2}: {value2}, ...}.

Destination properties

Properties describing destination of outbound connection.

Value	Description
resourceId	Resource ID of destination PaaS resource for an outbound connection. Will exist if applicable.
fullyQualifiedDomainName	Fully Qualified Domain (FQDN) name of the destination.
parameters	List of optional destination properties in JSON string format. E.g., { {Param1}: {value1}, {Param2}: {value2}, ...}.
port	Port number of outbound connection. May not exist for all resource types.
protocol	Application & transport layer protocols for outbound connection in the format {AppProtocol}:{TptProtocol}. E.g., HTTPS:TCP. May not exist for all resource types.

Sample log entry For inbound categories

{
  "time" : "{timestamp}",
  "timeGeneratedEndTime" : "{timestamp}",
  "count" : "{countOfAggregatedLogs}",
  "resourceId" : "/SUBSCRIPTIONS/{subsId}/RESOURCEGROUPS/{resourceGroupName}/PROVIDERS/MICROSOFT.NETWORK/NETWORKSECURITYPERIMETERS/{perimeterName}",
  "operationName" : "{PaaSOperationName}" ,
  "operationVersion" : "{api-version}",
  "category" : "{inboundCategory}",
  "location" : "{networksecurityperimeterRegion}",
  "properties" : {
    "serviceResourceId" : "/subscriptions/{paasSubsId}/resourceGroups/{paasResourceGroupName}/providers/{provider}/{resourceType}/{resourceName}",
    "serviceFqdn": "{PaaSResourceFQDN}",
    "accessRulesVersion" : "{accessRulesVersion}",
    "profile" : "{networksecurityperimeterProfileName}",
    "appId" : "{resourceAppId}",
    "parameters" : "{ {ParameterType1}: {value1}, {ParameterType2}: {value2}, ...}", // Parsable JSON
    "matchedRule" : {
      "accessRule" : "{matchedRuleName}",
      },
    "source" : {
      "resourceId" : "/subscriptions/{sourceSubscriptionId}/resourceGroups/{sourceResourceGroupName}/providers/{sourceProvider}/{sourceResourceType}/{sourceResourceName}",
      "ipAddress": "{sourceIPAddress}",
      "perimeterGuids" : ["{sourcePerimeterGuid}"], // Only included if request comes from perimeter
      "appId" : "{sourceAppId}",
      "port" : "{Port}",
      "protocol" : "{Protocol}",
      "parameters" : "{ {ParameterType1}: {value1}, {ParameterType2}: {value2}, ...}", // Parsable JSON
    },
  },
  "resultDescription" : "The static text description of this operation on the PaaS resource. For example, \"Get storage file.\""
}

Sample log entry for outbound categories

{
  "time" : "{timestamp}",
  "timeGeneratedEndTime" : "{timestamp}",
  "count" : "{countOfAggregatedLogs}",
  "resourceId" : "/SUBSCRIPTIONS/{subsId}/RESOURCEGROUPS/{resourceGroupName}/PROVIDERS/MICROSOFT.NETWORK/NETWORKSECURITYPERIMETERS/{perimeterName}",
  "operationName" : "{PaaSOperationName}" ,
  "operationVersion" : "{api-version}",
  "category" : "{outboundCategory}",
  "location" : "{networksecurityperimeterRegion}",
  "properties" : {
    "serviceResourceId" : "/subscriptions/{paasSubsId}/resourceGroups/{paasResourceGroupName}/providers/{provider}/{resourceType}/{resourceName}",
    "serviceFqdn": "{PaaSResourceFQDN}",
    "accessRulesVersion" : "{accessRulesVersion}",
    "profile" : "{networksecurityperimeterProfileName}",
    "appId" : "{resourceAppId}",
    "parameters" : "{{ParameterType1}: {value1}, {ParameterType2}: {value2}, ...}", // Parsable JSON
    "matchedRule" : {
      "accessRule" : "{matchedRuleName}",
      },
    "destination" : {
      "resourceId" : "/subscriptions/{destSubsId}/resourceGroups/{destResourceGroupName}/providers/{destProvider}/{destResourceType}/{destResourceName}",
      "fullyQualifiedDomainName" : "{destFQDN}",
      "appId" : "{destAppId}",
      "port" : "{Port}",
      "protocol" : "{Protocol}",
      "parameters" : "{ {ParameterType1}: {value1}, {ParameterType2}: {value2}, ...}", // Parsable JSON
    },
  },
  "resultDescription" : "The static text description of this operation on the PaaS resource. For example, \"Get storage file.\""
}

Logging destination options for access logs

The destinations for storing diagnostic logs for a network security perimeter include services like Log Analytic workspace (Table name: NSPAccessLogs), Azure Storage account, and Azure Event Hubs. For the full list and details of supported destinations, see Supported destinations for diagnostic logs.

Enable logging through the Azure portal

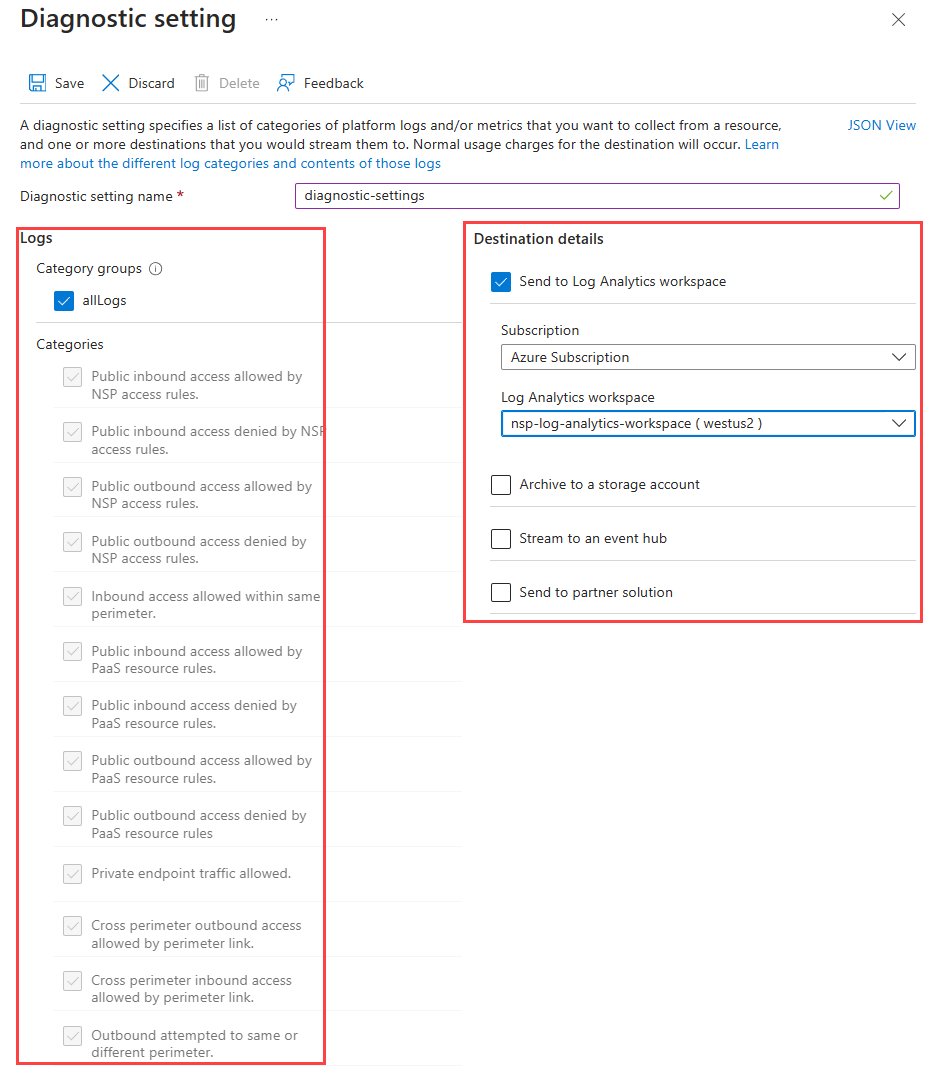

You can enable diagnostic logging for a network security perimeter by using the Azure portal under Diagnostic settings. When adding a diagnostic setting, you can choose the log categories you want to collect and the destination where you want to deliver the logs.

Note

When using Azure Monitor with a network security perimeter, the Log Analytics workspace to be associated with the network security perimeter needs to be located in one of the Azure Monitor supported regions.

Warning

The log destinations must be within the same network security perimeter as the PaaS resource to ensure the proper flow of PaaS resource logs. Configuring/already configured Diagnostic Settings for resources not included in the list of Onboarded private link resources, will result in the cessation of log flow for those resources.
