Tutorial: Connect to an Azure SQL server using an Azure Private Endpoint - Azure portal

Azure Private endpoint is the fundamental building block for Private Link in Azure. It enables Azure resources, like virtual machines (VMs), to privately and securely communicate with Private Link resources such as Azure SQL server.

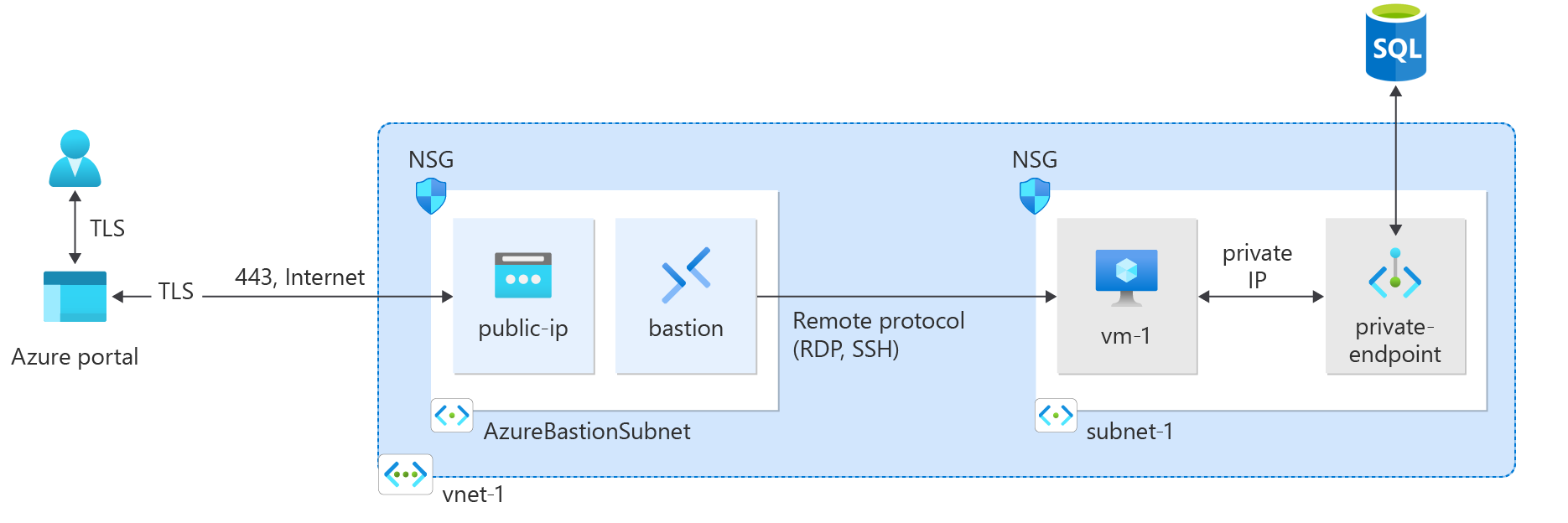

In this tutorial, you learn how to:

  • Create a virtual network and bastion host.
  • Create a virtual machine.
  • Create an Azure SQL server and private endpoint.
  • Test connectivity to the SQL server private endpoint.

If you don't have an Azure subscription, create a free account before you begin.

Prerequisites

  • An Azure subscription

Sign in to Azure

Sign in to the Azure portal.

Create a virtual network and bastion host

In this section, you'll create a virtual network, subnet, and bastion host.

The bastion host will be used to connect securely to the virtual machine for testing the private endpoint.

  1. On the upper-left side of the screen, select Create a resource > Networking > Virtual network or search for Virtual network in the search box.

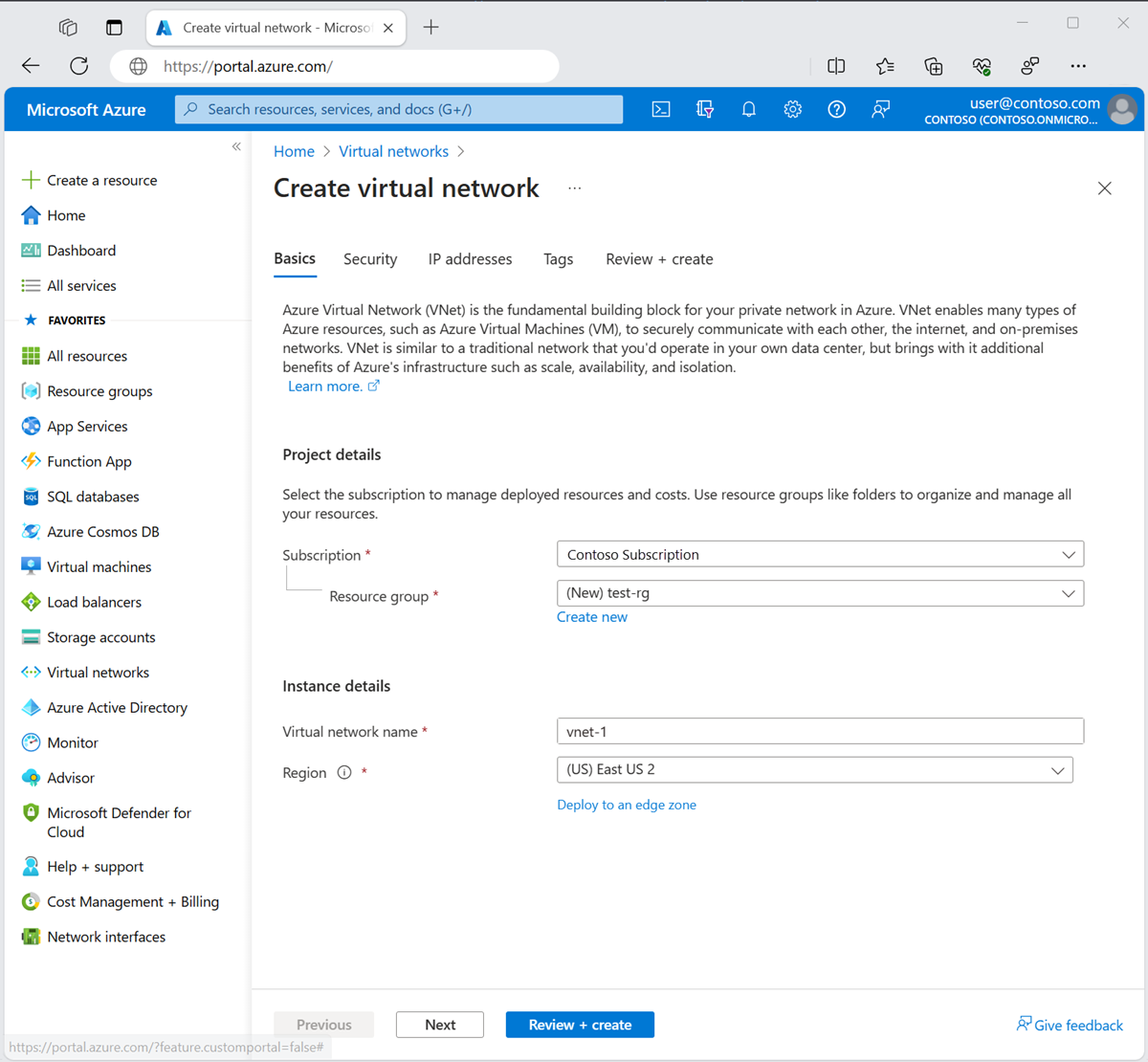

  2. In Create virtual network, enter or select this information in the Basics tab:

    Setting Value
    Project Details
    Subscription Select your Azure subscription.
    Resource Group Select Create new.
    Enter CreateSQLEndpointTutorial in Name.
    Select OK.
    Instance details
    Name Enter myVNet.
    Region Select East US.
  3. Select the IP Addresses tab or select the Next: IP Addresses button at the bottom of the page.

  4. In the IP Addresses tab, enter this information:

    Setting Value
    IPv4 address space Enter 10.1.0.0/16.
  5. Under Subnet name, select the word default.

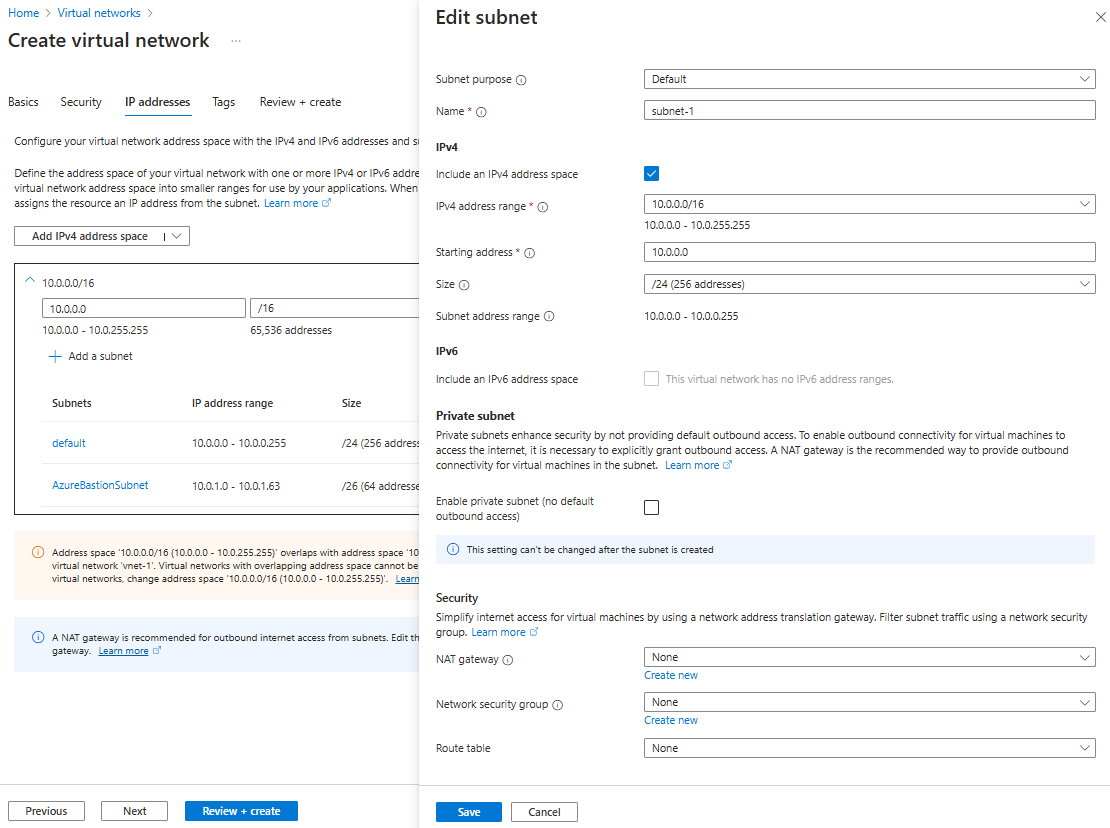

  6. In Edit subnet, enter this information:

    Setting Value
    Subnet name Enter mySubnet.
    Subnet address range Enter 10.1.0.0/24.
  7. Select Save.

  8. Select the Security tab.

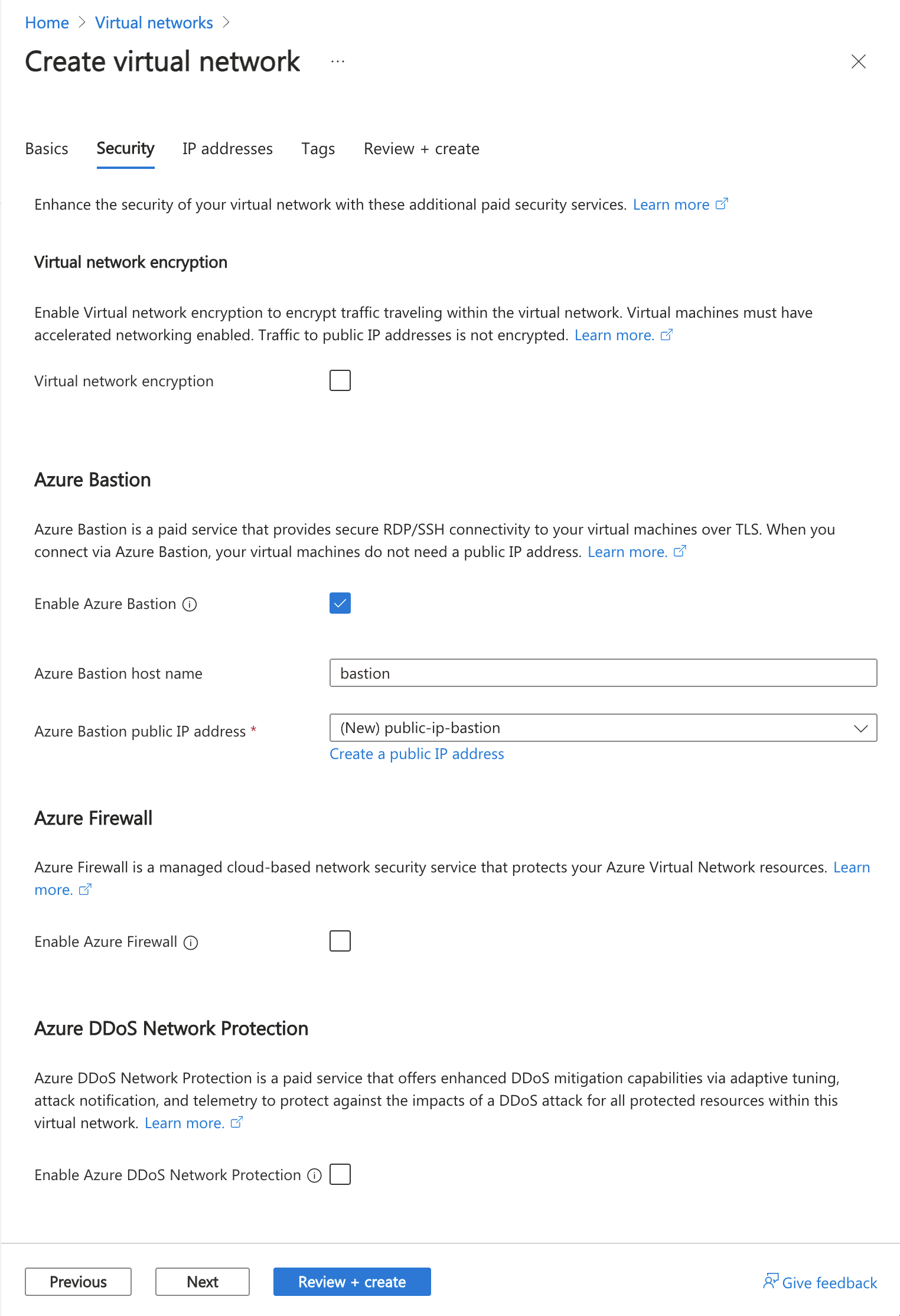

  9. Under BastionHost, select Enable. Enter this information:

    Setting Value
    Bastion name Enter myBastionHost.
    AzureBastionSubnet address space Enter 10.1.1.0/24.
    Public IP Address Select Create new.
    For Name, enter myBastionIP.
    Select OK.
  10. Select the Review + create tab or select the Review + create button.

  11. Select Create.

Create a virtual machine

In this section, you'll create a virtual machine that will be used to test the private endpoint.

  1. On the upper-left side of the portal, select Create a resource > Compute > Virtual machine or search for Virtual machine in the search box.

  2. In Create a virtual machine, enter or select the values in the Basics tab:

    Setting Value
    Project Details
    Subscription Select your Azure subscription.
    Resource Group Select CreateSQLEndpointTutorial.
    Instance details
    Virtual machine name Enter myVM.
    Region Select (US) East US.
    Availability Options Select No infrastructure redundancy required.
    Security type Select Standard.
    Image Select Windows Server 2019 Datacenter - Gen2.
    Azure Spot instance Select No.
    Size Choose VM size or take default setting.
    Administrator account
    Username Enter a username.
    Password Enter a password.
    Confirm password Reenter password.
  3. Select the Networking tab, or select Next: Disks, then Next: Networking.

  4. In the Networking tab, enter or select this information:

    Setting Value
    Network interface
    Virtual network Select myVNet.
    Subnet Select mySubnet.
    Public IP Select None.
    NIC network security group Select Basic.
    Public inbound ports Select None.
  5. Select Review + create.

  6. Review the settings, and then select Create.

Note

Azure provides a default outbound access IP for VMs that either aren't assigned a public IP address or are in the back-end pool of an internal basic Azure load balancer. The default outbound access IP mechanism provides an outbound IP address that isn't configurable.

The default outbound access IP is disabled when a public IP address is assigned to the VM, the VM is placed in the back-end pool of a standard load balancer, with or without outbound rules, or if an Azure Virtual Network NAT gateway resource is assigned to the subnet of the VM.

VMs that are created by virtual machine scale sets in flexible orchestration mode don't have default outbound access.

For more information about outbound connections in Azure, see Default outbound access in Azure and Use source network address translation (SNAT) for outbound connections.

Create an Azure SQL server and private endpoint

In this section, you'll create a SQL server in Azure.

  1. On the upper-left side of the screen in the Azure portal, select Create a resource > Databases > SQL database.

  2. In the Basics tab of Create SQL database, enter or select this information:

    Setting Value
    Project details
    Subscription Select your subscription.
    Resource group Select CreateSQLEndpointTutorial. You created this resource group in the previous section.
    Database details
    Database name Enter mysqldatabase.
    Server Select Create new.
  3. In Create SQL Database Server, enter or select this information:

    Setting Value
    Server details
    Server name Enter mysqlserver. If this name is taken, create a unique name.
    Location Select (US) East US.
    Authentication
    Authentication method Select Use SQL authentication.
    Server admin login Enter an administrator name of your choosing.
    Password Enter a password of your choosing. The password must be at least eight characters long and meet the defined requirements.
    Confirm password Reenter password.
  4. Select OK.

  5. In the Basics tab, enter or select this information after creating the SQL database server:

    Setting Value
    Database details
    Want to use SQL elastic pool? Select No.
    Compute + Storage Take default settings or select Configure database to configure compute and storage settings.
    Backup storage redundancy
    Backup storage redundancy Select Locally-redundant backup storage.

    Screenshot of Create S Q L Database page showing the settings used.

  6. Select the Networking tab or select the Next: Networking button.

  7. In the Networking tab, enter or select this information:

    Setting Value
    Network connectivity
    Connectivity method Select Private endpoint.
  8. Select + Add private endpoint in Private endpoints.

  9. In Create private endpoint, enter or select this information:

    Setting Value
    Subscription Select your subscription.
    Resource group Select CreateSQLEndpointTutorial.
    Location Select East US.
    Name Enter myPrivateSQLendpoint.
    Target sub-resource Select SqlServer.
    Networking
    Virtual network Select myVNet.
    Subnet Select mySubnet.
    Private DNS integration
    Integrate with private DNS zone Leave the default Yes.
    Private DNS Zone Leave the default (New) privatelink.database.windows.net.
  10. Select OK.

    Screenshot of Create private endpoint page showing the settings used.

  11. Select Review + create.

  12. Select Create.

Important

When adding a Private endpoint connection, public routing to your Azure SQL server is not blocked by default. The setting "Deny public network access" under the "Firewall and virtual networks" blade is left unchecked by default. To disable public network access ensure this is checked.

Disable public access to Azure SQL logical server

For this scenario, assume you would like to disable all public access to your Azure SQL server, and only allow connections from your virtual network.

  1. In the Azure portal search box, enter mysqlserver or the server name you entered in the previous steps.

  2. On the Networking page, select Public access tab, then select Disable for Public network access.

    Screenshot of the S Q L server Networking page showing how to disable public access.

  3. Select Save.

Test connectivity to private endpoint

In this section, you'll use the virtual machine you created in the previous steps to connect to the SQL server across the private endpoint.

  1. Select Resource groups in the left-hand navigation pane.

  2. Select CreateSQLEndpointTutorial.

  3. Select myVM.

  4. On the overview page for myVM, select Connect then Bastion.

  5. Enter the username and password that you entered during the virtual machine creation.

  6. Select Connect button.

  7. Open Windows PowerShell on the server after you connect.

  8. Enter nslookup <sqlserver-name>.database.windows.net. Replace <sqlserver-name> with the name of the SQL server you created in the previous steps. You'll receive a message similar to what is displayed below:

    Server:  UnKnown
    Address:  168.63.129.16

    Non-authoritative answer:
    Name:    mysqlserver.privatelink.database.windows.net
    Address:  10.1.0.5
    Aliases:  mysqlserver.database.windows.net


    A private IP address of 10.1.0.5 is returned for the SQL server name. This address is in mySubnet subnet of myVNet virtual network you created previously.

  9. Install SQL Server Management Studio on myVM.

  10. Open SQL Server Management Studio.

  11. In Connect to server, enter or select this information:

    Setting Value
    Server type Select Database Engine.
    Server name Enter <sqlserver-name>.database.windows.net.
    Authentication Select SQL Server Authentication.
    User name Enter the username you entered during server creation.
    Password Enter the password you entered during server creation.
    Remember password Select Yes.
  12. Select Connect.

  13. Browse databases from left menu.

  14. (Optionally) Create or query information from mysqldatabase.

  15. Close the remote desktop connection to myVM.

Clean up resources

When you're done using the private endpoint, SQL server, and the VM, delete the resource group and all of the resources it contains:

  1. Enter CreateSQLEndpointTutorial in the Search box at the top of the portal and select CreateSQLEndpointTutorial from the search results.
  2. Select Delete resource group.
  3. Enter CreateSQLEndpointTutorial for TYPE THE RESOURCE GROUP NAME and select Delete.

Next steps

In this tutorial, you learned how to create:

  • Virtual network and bastion host.
  • Virtual machine.
  • Azure SQL server with private endpoint.

You used the virtual machine to test connectivity privately and securely to the SQL server across the private endpoint.

As a next step, you may also be interested in the Web app with private connectivity to Azure SQL Database architecture scenario, which connects a web application outside of the virtual network to the private endpoint of a database.
