Azure Quota Groups

Azure Quota Groups allow you to share quota among a group of subscriptions, reducing the number of quota transactions. This feature elevates the quota construct from a subscription level to a Quota Group Azure Resource Management (ARM) object, enabling customers to self-manage their procured quota within a group without needing approvals.

Key benefits

  • Quota sharing across subscriptions: Share procured quotas within a group of subscriptions.
  • Self-service management: Distribute or reallocate unused quota without Microsoft intervention.
  • Fewer support requests: Avoid filing support tickets when reallocating quota or managing new subscriptions.
  • Group quota requests: Request quota at the group level and allocate it across subscriptions as needed.

Supported scenarios

The transfer of unused quota between subscriptions is done via Quota Group object created. At the moment of creating a Quota group object, the group limit is set to 0. Customers must update the group limit themselves, either by transferring quota from a subscription in the group or by submitting a Quota group limit increase request and getting approved. When deploying resources the quota check at runtime is done against the subscription quota.

  • Deallocation: Transfer unused quota from your subscriptions to Group Quota.
  • Allocation: Transfer quota from group to target subscriptions.
  • Submit Quota Group increase request for a given region and Virtual Machine (VM) family. Once your request is approved, transfer quota from group to target subscriptions.
  • Quota Group increase requests are subject to the same checks as subscription quota increase requests. If capacity is low, then the request is rejected.

Prerequisites

Before you can use the Quota Group feature, you must:

  • Register the Microsoft.Quota and Microsoft.Compute resource provider on all relevant subscriptions before adding to a Quota Group. For more information, see Registering the Microsoft Quota resource provider
  • A Management Group (MG) is needed to create a Quota Group. Your group inherits quota write and or read permissions from the Management Group. Subscriptions belonging to another MG can be added to the Quota Group.
  • Certain permissions are required to create Quota Groups and to add subscriptions.

Limitations

  • Available only for Enterprise Agreement or Microsoft Customer Agreement and Internal subscriptions.
  • Supports IaaS compute resources only.
  • Available in public cloud regions only.
  • Management Group deletion results in the loss of access to the Quota Group limit. To clear out the group limit, allocate cores to subscriptions, delete subscriptions, then the Quota Group object before deletion of Management Group. In the even that the MG is deleted, access your Quota Group limit by recreating the MG with the same ID as before.
  • A subscription can belong to a single Quota group at a time.
  • Quota Groups addresses the quota management pain point, it does not address the regional and or zonal access pain point. To get region and or zonal access on subscriptions, see region access request process. Quota transfers between subscriptions and deployments will fail unless regional and or zonal access is provided on the subscription.

Quota Group is an ARM object

Quota Group is a global ARM object created under a Management Group to logically group subscriptions for quota management. While it is tied to the Management Group for permissions, it doesn't auto-sync subscription membership. This means you have full flexibility to include subscriptions from different Management Groups. Quota Groups are:

  • Quota Groups are created at the Management Group scope.
  • Quota Groups are inherit permissions from its parent Management Group.
  • Quota Groups are designed as an orthogonal grouping mechanism. They're independent of subscription placement in the Management Group hierarchy.
  • Subscription lists are not auto-synced from Management Groups, giving you flexibility to organize quotas separately from policy or role management.

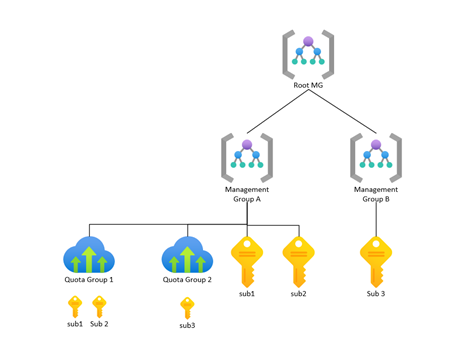

The following diagram shows and existing MG hierarchy set up with subscription 1 and subscription 2 being part of Management Group A, and subscription 3 being part of Management Group B. In this example, the customer chose to create all quota groups under the single Management Group A.

Diagram of Management Group hierarchy with sample Quota Groups created under Management Group.

A single Quota Group object manages quotas across multiple regions and VM families. Design your quota group structure with access control in mind. Access is inherited from the Management Group, so consider creating a tiered Management Group structure to ensure proper role assignments.

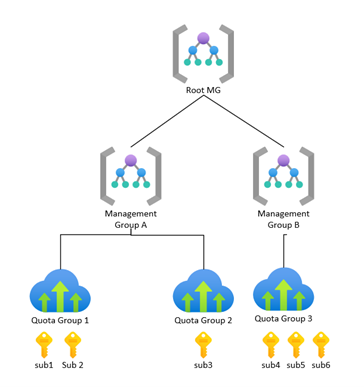

Example hierarchy:

  • Management Group A owns Quota Groups 1 & 2.
  • Management Group B owns Quota Group 3.
  • Each quota group may be used to manage different applications, departments, and or regions.
  • Quota Group operations such as quota transfers or increase requests, actions are scoped to specific regions and VM families.

Diagram of Management Group hierarchy with multiple Quota Groups created under Management Group.

Permissions

Certain permissions are required to create Quota Groups and to add subscriptions. For more information, see Assign Azure roles using Azure CLI or Assign Azure roles using the Azure portal.

  • Assign the GroupQuota Request Operator role on the Management Group where the Quota Group is created.
  • Assign the Quota Request Operator role on all participating subscriptions to the relevant users or applications managing quota operations.
  • Assign the Reader role on all participating subscriptions to the relevant users or applications managing quota operations to view quota group resources in portal.

Quota Group APIs

This section covers the supported Quota Group operations via API and portal.

Use Quota Group APIs to:

  • Create or delete a Quota Group.
  • Add or remove subscriptions from a Quota Group.
  • Transfer or deallocate unused quota from subscriptions to a Quota Group.
  • Submit a Quota Group limit increase request.
  • Submit a support ticket via portal if Quota Group limit request is rejected.
  • View Group limit.

Use the below links to download the latest supported SDKs for Quota Group operations

Create a Quota Group

  • Create a Quota Group object to be able to do quota transfers between subscriptions and submit Quota Group increase requests.
  • Requires the GroupQuota Request Operator role on the Management Group used to create Quota group

To create a Quota Group using the REST API, make a PUT request to the following endpoint:

PUT https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}?api-version=2025-03-01

Request body:

{
  "properties": {
    "displayName": "allocationGroupTest"
  }
}

Example using az rest: Sample response:

az rest --method put --url https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}?api-version=2025-03-01 --body '{
  "properties": {
    "displayName": "allocationGroupTest"
  }
}'
{
  "id": "/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}",
  "name": "{groupquota}",
  "properties": {
    "provisioningState": "ACCEPTED"
  },
  "type": "Microsoft.Quota/groupQuotas"
}

Delete a Quota Group

To delete a Quota Group

  • Requires the GroupQuota Request Operator role on the Management Group used to DELETE a Quota group
  • All subscriptions must be removed from Quota Group before deletion
DELETE https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupQuotaName}?api-version=2025-03-01

Add or remove subscriptions from a Quota Group

This section covers how to add subscriptions after the Quota group is created. When added to the group, subscriptions carry their existing quota and usage. The subscriptions' quota is not manipulated when added to a group. Subscription quota remains separate from the group limit.

To add subscriptions from the Quota Group using the REST API, make a PUT request to the following endpoint:

PUT https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/subscriptions/{subscriptionId}?api-version=2025-03-01

This section covers how to remove subscriptions from the Quota Group. At the moment of removal, subscriptions carry its existing quota and usage. The group limit is not manipulated based on subscription removal.

To remove subscriptions from the Quota Group using the REST API, make a DELETE request to the following endpoint:

DELETE https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/subscriptions/{subscriptionId}?api-version=2025-03-01

Transfer quota within Quota Group

  • Transfer unused quota from your subscription to a Quota Group or from a Quota Group to a subscription.
  • Once your quota group is created and subscriptions are added, you can transfer quota between subscriptions by transferring quota from source subscription to group. First, deallocate quota from the source subscription and return it to the group. Then, allocate that quota from the group to the target subscription.
  • To allocate or transfer quota from group to target subscription, update subID to target subscription, then set the limit property to the new desired subscription limit. If your current subscription quota is 10 and you want to transfer 10 cores from group to target subscription, set the new limit to 20. This applies to a specific region and VM family.
  • You can view quota allocation snapshot for subscription in Quota Group or view group limit to validate transfer and stamping of cores at group level
  • To view your existing subscription usage for a given region, please use the Compute Usages API.
PATCH https://management.azure.com/"providers/Microsoft.Management/managementGroups/{managementGroupId}/subscriptions/{subscriptionId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/resourceProviders/Microsoft.Compute/quotaAllocations/{location}?api-version=2025-03-01"
{
  "properties": {
    "value": [{
        "properties": {
          "limit": 50,
          "resourceName": "standardddv4family"
        }
      }]
  }
}

Example using az rest: I transfer 10 cores of standarddv4family in centralus from subscription to group by setting limit to 50

az rest –method patch –url "https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/subscriptions/{subscriptionId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/resourceProviders/Microsoft.Compute/quotaAllocations/{location}?api-version=2025-03-01" –body ‘{
  "properties": {
    "value": [
      {
        "properties": {
          "limit": 50,
          "resourceName": "standardddv4family"
        }
      }
    ]
  }
}’ –debug

View quota allocation snapshot for subscription in Quota Group

  • Limit = current subscription limit
  • Shareable quota = how many cores have been deallocated/transferred from sub to group ‘-5’ = 5 cores were given from sub to group
GET https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/subscriptions/{subscriptionId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/resourceProviders/Microsoft.Compute/quotaAllocations/{location}?api-version=2025-03-01

Example using az rest: My new subscription limit is 50 cores for standarddv4family in centralus and my shareable quota is -10 because I gave 10 cores to my Quota group.

az rest --method get --url "https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/subscriptions/075216c4-f88b-4a82-b9f8-cdebf9cc097a/providers/Microsoft.Quota/groupQuotas/{groupquota}/resourceProviders/Microsoft.Compute/quotaAllocations/eastus?api-version=2025-03-01&\$filter=resourceName eq 'standardddv4family'" --debug
Response content

{
  "id": "/providers/Microsoft.Management/managementGroups/{managementGroupId}/subscriptions/075216c4-f88b-4a82-b9f8-cdebf9cc097a/providers/Microsoft.Quota/groupQuotas/{groupquota}/resourceProviders/Microsoft.Compute/quotaAllocations/eastus",
  "name": "eastus",
  "provisioningState": "Succeeded",
  "type": "Microsoft.Quota/groupQuotas/quotaAllocations",
  "value": [
    {
      "properties": {
        "limit": 50,
        "name": {
          "localizedValue": "standardddv4family",
          "value": "standardddv4family"
        },
        "resourceName": "standardddv4family",
        "shareableQuota": -10
      }
    }
  ]
}

Submit Quota Group Limit increase request

One of the key benefits of Quota Group offering is the ability to submit Quota Group Limit increase requests rather than at the per subscription level. If your group limit request is approved you can then follow steps to allocate/transfer quota from group to target subscriptions for a given region x VM family.

  • Require GroupQuota Request Operator role on the Management Group to submit Quota Group limit increase request.
  • Customers can submit Quota Group limit increase requests for a region x VM family combination, and if approved, quota will be stamped on the specified Quota GroupID.
  • Quota Group Limit increase requests undergo the same checks as subscription level requests. Value should be absolute value of the new desired amount.
  • If Quota Group Limit request is rejected then customer must submit support ticket via the self-serve Quota group request blade.
  • Support tickets for Quota Groups will be created based on a preselected subscriptionID within the group, the customer has the ability to edit the subID when updating request details.
PATCH https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/resourceProviders/Microsoft.Compute/groupQuotaLimits/{location}?api-version=2025-03-01
{
  "properties": {
    "value": [
      {
        "properties": {
          "resourceName": "standardddv4family",
          "limit": 50,
          "comment": "comments"
        }
      }
    ]
  }
}

Example using az rest

  • I submit PATCH Quota Group limit increase request of 50 cores for standardddv4family in centralus
  • Use the groupQuotaOperationsStatus ID in my response header to validate the status of request in next section
az rest --method patch --uri "https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/resourceProviders/Microsoft.Compute/groupQuotaLimits/centralus?api-version=2025-03-01" --body '{"properties":{"value":[{"properties":{"resourceName":"standardddv4family","limit":20,"comment":"comments"}}]}}' --verbose
{
  "properties": {
    "value": [
      {
        "properties": {
          "resourceName": "standardddv4family",
          "limit": 50,
          "comment": "comments"
        }
      }
    ]
  }
}

Example response Quota Group increase request

Status code: 202
Response header:
Location: https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/groupQuotaOperationsStatus/6c1cdfb8-d1ba-4ade-8a5f-2496f0845ce2?api-version=2025-03-01
Retry-After: 30
Response Content

GET groupQuotaLimit request status

Since groupQuotaLimit request is async operation, capture status of request using groupQuotaOperationsStatus ID from response header when submitting limit increase request

GET https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/groupQuotaRequests/{requestId}?api-version=2025-03-01

Example using az rest I used the groupQuotaOperationsStatus ID from my PATCH Quota Group Limit increase request of 50 cores for standardddv4family in centralus succeeded

az rest --method get --uri "https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/groupQuotaRequests/6c1cdfb8-d1ba-4ade-8a5f-2496f0845ce2?api-version=2025-03-01"

Sample response of approved Quota Group increase request

{
  "id": "/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/groupQuotaRequests/6c1cdfb8-d1ba-4ade-8a5f-2496f0845ce2",
  "name": "6c1cdfb8-d1ba-4ade-8a5f-2496f0845ce2",
  "properties": {
    "provisioningState": "Succeeded",
    "requestProperties": {
      "requestSubmitTime": "2025-05-06T17:57:00.0001431+00:00"
    },
    "requestedResource": {
      "properties": {
        "limit": 20,
        "name": {
          "localizedValue": "STANDARDDDV4FAMILY",
          "value": "STANDARDDDV4FAMILY"
        },
        "provisioningState": "Succeeded",
        "region": "centralus"
      }
    }
  },
  "type": "Microsoft.Quota/groupQuotas/groupQuotaRequests"
}

GET groupQuotaLimits

Validate that the correct number of cores were transferred from source subscription to group or that your group limit increase request was approved. Consider the below when interpreting the API response.

  • Available limit = how many cores do I have at group level to distribute
  • Limit = how many cores have been explicitly requested and approved/stamped on your group via quota increase requests
  • Quota allocated = how many cores the sub has been allocated from group, ‘-‘ value indicates cores have been de-allocated from sub to group
GET https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/resourceProviders/Microsoft.Compute/groupQuotaLimits/{location}?api-version=2025-03-01&$filter=resourceName eq standarddv4family" -verbose

Example using az rest:

GET https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/resourceProviders/Microsoft.Compute/groupQuotaLimits/{location}?api-version=2025-03-01&$filter=resourceName eq standarddv4family" -verbose

Example using az rest: I do a GET group limit for my quota group in centralus.

  • For the resource standardddv4family my availableLimit = 50 cores which match the number of cores I requested and got approved at the group level
  • The Limit = 40 because even though I submitted an increase for 50 I already had 10 cores at the group level from quota transfer example, and Azure only stamped an additional 40 cores
  • The quotaAllocated = -10 because I transferred 10 cores from source sub to group from previous section
az rest --method get --url https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/resourceProviders/Microsoft.Compute/groupQuotaLimits/centralus?api-version=2025-03-01&$filter=resourceName eq standardddv4family

Az rest sample response:

az rest --method get --url "https://management.azure.com/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/resourceProviders/Microsoft.Compute/groupQuotaLimits/centralus?api-version=2025-03-01&$filter=resourceName eq 'standardddv4family'"
{
  "id": "/providers/Microsoft.Management/managementGroups/{managementGroupId}/providers/Microsoft.Quota/groupQuotas/{groupquota}/resourceProviders/Microsoft.Compute/groupQuotaLimits/eastus",
  "name": "eastus",
  "properties": {
    "nextLink": "",
    "provisioningState": "Succeeded",
        "value": [
      {
        "properties": {
          "allocatedToSubscriptions": {
            "value": [
              {
                "quotaAllocated": -10,
                "subscriptionId": "226818a0-4fa2-4c2d-be7f-03b9b92ab3a2"
              }
            ]
          },
          "availableLimit": 50,
          "limit": 40,
          "name": {
            "localizedValue": "standardddv4family",
            "value": "standardddv4family"
          },
          "resourceName": "standardddv4family",
          "unit": "Count"
        }
      }
    ]
  },
  "type": "Microsoft.Quota/groupQuotas/groupQuotaLimits"
}

Submit Quota Group Limit increase and file support ticket if request fails

The below covers how to submit Quota Group Limit increase via portal and file support ticket if request fails.

  • If Quota Group Limit request is rejected via API or portal; then customer must submit support ticket via the self-serve Quota group request portal blade.
  • Support tickets for Quota Groups will be created based on a preselected subscriptionID within the group, the customer has the ability to edit the subID when updating request details. Even though ticket is created using subID, if approved the quota will be stamped at the group level.
  • User requires at a minimum the Support request contributor role to create support ticket on subscription in the group.
  • Quota Groups addresses the quota management pain point, it does not address the regional and or zonal access pain point. To get region and or zonal access on subscriptions, see region access request process. Quota transfers between subscriptions and deployments will fail unless regional and or zonal access is provided on the subscription.
  1. To view the Quotas page, sign in to the Azure portal and enter "quotas" into the search box, then select Quotas.
  2. Under settings in left hand side, select Quota groups.
  3. To view existing Quota group, select Management Group filter and select management group used to create Quota Group
  4. Select Quota group from list of Quota Group(s)
  5. In the Quota Group resources view there will be the list of Quota group resources by region by Group quota (limit)
  6. Use the filters to select Region and or VM Family, you can also search for region and or VM family in the search bar
  7. Select the checkbox to the desired Quota group resource, then select the Increase group quota button at the top of page
  8. On right side view the New quota request blade with selected region(s) at the top with details on the selected Quota group resource, the Current group quota value, and under New group quota column enter the absolute value of desired net new group limit. I.e., I want 20 cores assigned at group for DSv3 in Australia Central, I will enter 20 under New group quota
  9. Select Submit button, notification We are reviewing your request to adjust the quota this may take up to ~3 minutes to complete
  10. If successful the New quota request view will show the selected Quota Group resource by location status of request, the Increase value and New limit
  11. Refresh the Quota Group resources view to view latest Group quota / group limit
  12. If Quota Group limit increase was rejected notification We were unable to adjust your quota will surface
  13. Select the Generate a support ticket button to start process of creating support ticket
  14. In the Request details view Deployment model as Resource Manager, request details view will surface the Quota Group name, Management GroupID, Quota Group resource, Location selected, and the Desired increase value, select Save and Continue button
  15. In Additional details view select required options Advance diagnostic information and Preferred contact method and select Next
  16. Review details in Review + Create view and select Create button, notification New Support Request in top right corner will ticketID and link
  17. To view request details return to Quotas blade and select the Request tab under the Overview page, see the list of quota requests, you may also search and go to Help + Support blade and view request under Recent support requests table
