Outline rendering

  • Article

Selected objects can be highlighted visually by adding outline rendering via the Hierarchical state override component. This chapter explains how global parameters for outline rendering are changed through the client API.

Outline properties are a global setting. All objects that use outline rendering use the same setting - it isn't possible to use a per-object outline color.

Note

The outline rendering effect can't be applied to point clouds.

Parameters for OutlineSettings

Class OutlineSettings holds the settings related to global outline properties. It exposes the following members:

Parameter Type Description
Color Color4Ub The color that is used for drawing the outline. The alpha portion is ignored.
PulseRateHz float The rate at which the outline oscillates per second
PulseIntensity float The intensity of the outline pulse effect. Must be between 0.0 for no pulsing and 1.0 for full pulsing. Intensity implicitly sets the minimum opacity of the outline as MinOpacity = 1.0 - PulseIntensity.
MaskTexture 2D texture If specified, the color of the outline will be tinted by this texture. The texture is sampled in screen-space coordinates and various parameters (MaskScale, MaskScaleToFit, MaskOffset, MaskScrollSpeed, MaskRotationCenter, MaskRotationAngle, MaskRotationSpeed) affect the stretching, rotation, and scrolling of that mapping. This feature can be used to achieve effects like a color gradient or dashed outlines. See second example image below.

An object rendered three times with different outline parameters The effect of changing the color parameter from yellow (left) to magenta (center) and pulseIntensity from 0 to 0.8 (right).

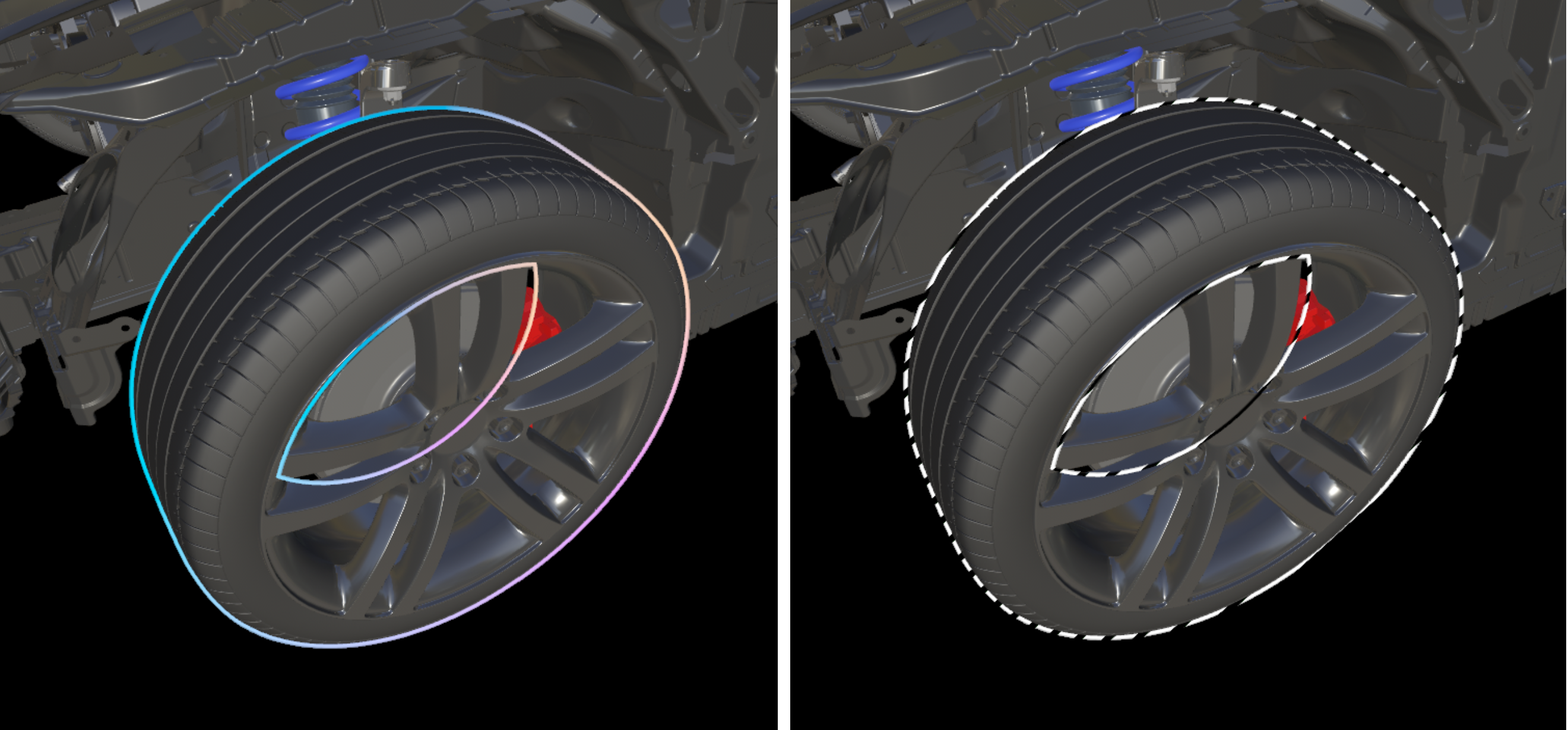

An object rendered two times showing distinct use cases for outline texture masks The effect of applying a mask texture to the outlines: Screen aligned color gradients (left) or dashed outlines simulated by using a tiling texture with stripes (right).

Example

The following code shows an example for setting outline parameters via the API:

void SetOutlineParameters(RenderingSession session)
{
    OutlineSettings outlineSettings = session.Connection.OutlineSettings;
    outlineSettings.Color = new Color4Ub(255, 255, 0, 255);
    outlineSettings.PulseRateHz = 2.0f;
    outlineSettings.PulseIntensity = 0.5f;
}

void SetOutlineParameters(ApiHandle<RenderingSession> session)
{
    ApiHandle<OutlineSettings> outlineSettings = session->Connection()->GetOutlineSettings();
    Color4Ub outlineColor;
    outlineColor.channels = { 255, 255, 0, 255 };
    outlineSettings->SetColor(outlineColor);
    outlineSettings->SetPulseRateHz(2.0f);
    outlineSettings->SetPulseIntensity(0.5f);
}

Performance

Outline rendering may have a significant impact on rendering performance. This impact varies based on screen-space spatial relation between selected and nonselected objects for a given frame.
