Visualize collected data


Azure Sentinel is now called Microsoft Sentinel, and we’ll be updating these pages in the coming weeks. Learn more about recent Microsoft security enhancements.

In this article, you will learn how to quickly be able to view and monitor what's happening across your environment using Microsoft Sentinel. After you connected your data sources to Microsoft Sentinel, you get instant visualization and analysis of data so that you can know what's happening across all your connected data sources. Microsoft Sentinel gives you workbooks that provide you with the full power of tools already available in Azure as well as tables and charts that are built in to provide you with analytics for your logs and queries. You can either use built-in workbooks or create a new workbook easily, from scratch or based on an existing workbook.

Get visualization

To visualize and get analysis of what's happening on your environment, first, take a look at the overview dashboard to get an idea of the security posture of your organization. You can click on each element of these tiles to drill down to the raw data from which they are created. To help you reduce noise and minimize the number of alerts you have to review and investigate, Microsoft Sentinel uses a fusion technique to correlate alerts into incidents. Incidents are groups of related alerts that together create an actionable incident that you can investigate and resolve.

  • In the Azure portal, select Microsoft Sentinel and then select the workspace you want to monitor.

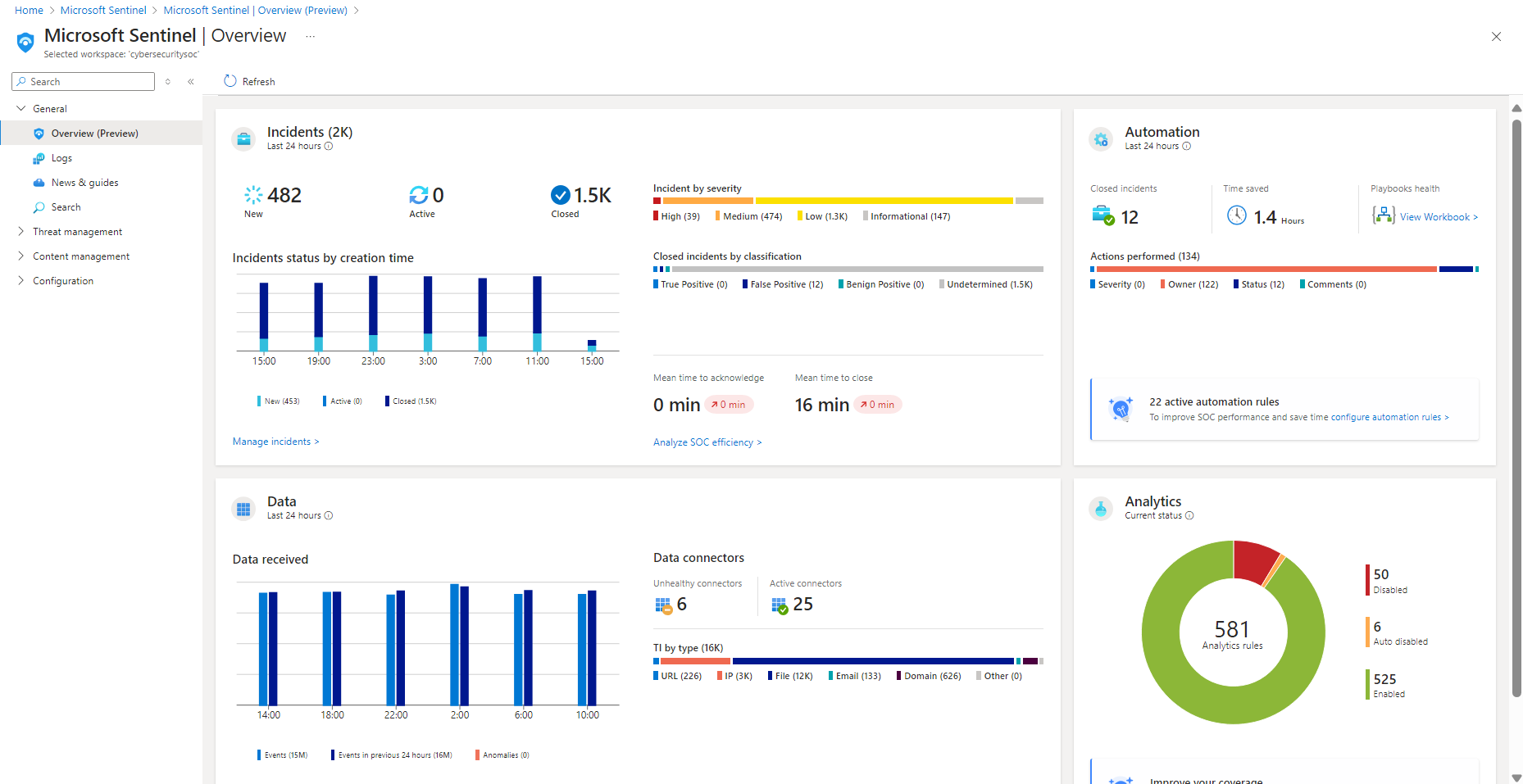

    Microsoft Sentinel overview

  • The toolbar across the top tells you how many events you got over the time period selected, and it compares it to the previous 24 hours. The toolbar tells you from these events, the alerts that were triggered (the small number represents change over the last 24 hours), and then it tells you for those events, how many are open, in progress, and closed. Check to see that there isn't a dramatic increase or drop in the number of events. If there is a drop, it could be that a connection stopped reporting to Microsoft Sentinel. If there is an increase, something suspicious may have happened. Check to see if you have new alerts.

    Microsoft Sentinel counters

The main body of the overview page gives insight at a glance into the security status of your workspace:

  • Events and alerts over time: Lists the number of events and how many alerts were created from those events. If you see a spike that's unusual, you should see alerts for it - if there's something unusual where there is a spike in events but you don't see alerts, it might be cause for concern.

  • Potential malicious events: When traffic is detected from sources that are known to be malicious, Microsoft Sentinel alerts you on the map. If you see orange, it is inbound traffic: someone is trying to access your organization from a known malicious IP address. If you see Outbound (red) activity, it means that data from your network is being streamed out of your organization to a known malicious IP address.

    Malicious traffic map

  • Recent incidents: To view your recent incidents, their severity and the number of alerts associated with the incident. If you see a sudden peak in a specific type of alert, it could mean that there is an active attack currently running. For example, if you have a sudden peak of 20 Pass-the-hash events from Microsoft Defender for Identity (formerly Azure ATP), it's possible that someone is currently trying to attack you.

  • Data source anomalies: Microsoft's data analysts created models that constantly search the data from your data sources for anomalies. If there aren't any anomalies, nothing is displayed. If anomalies are detected, you should deep dive into them to see what happened. For example, click on the spike in Azure Activity. You can click on Chart to see when the spike happened, and then filter for activities that occurred during that time period to see what caused the spike.

    Anomalous data sources

Use built-in workbooks

Built-in workbooks provide integrated data from your connected data sources to let you deep dive into the events generated in those services. The built-in workbooks include Azure AD, Azure activity events, and on-premises, which can be data from Windows Events from servers, from first party alerts, from any third-party including firewall traffic logs, Office 365, and insecure protocols based on Windows events. The workbooks are based on Azure Monitor Workbooks to provide you with enhanced customizability and flexibility in designing your own workbook. For more information, see Workbooks.

  1. Under Settings, select Workbooks. Under Installed, you can see all your installed workbook. Under All, you can see the whole gallery of built-in workbooks that are available for installation.
  2. Search for a specific workbook to see the whole list and description of what each offers.
  3. Assuming you use Azure AD, to get up and running with Microsoft Sentinel, we recommend that you install at least the following workbooks:
    • Azure AD: Use either or both of the following:

      • Azure AD sign-ins analyzes sign-ins over time to see if there are anomalies. This workbooks provides failed sign-ins by applications, devices, and locations so that you can notice, at a glance if something unusual happens. Pay attention to multiple failed sign-ins.
      • Azure AD audit logs analyzes admin activities, such as changes in users (add, remove, etc.), group creation, and modifications.
    • Add a workbook for your firewall. For example, add the Palo Alto workbook. The workbook analyzes your firewall traffic, providing you with correlations between your firewall data and threat events, and highlights suspicious events across entities. Workbooks provide you with information about trends in your traffic and let you drill down into and filter results.

      Palo Alto dashboard

You can customize the workbooks either by editing the main query query edit button. You can click the button Log Analytics button to go to Log Analytics to edit the query there, and you can select the ellipsis (...) and select Customize tile data, which enables you to edit the main time filter, or remove the specific tiles from the workbook.

For more information on working with queries, see Tutorial: Visual data in Log Analytics

Add a new tile

If you want to add a new tile, you can add it to an existing workbook, either one that you create or a Microsoft Sentinel built-in workbook.

  1. In Log Analytics, create a tile using the instructions found in Tutorial: Visual data in Log Analytics.
  2. After the tile is created, under Pin, select the workbook in which you want the tile to appear.

Create new workbooks

You can create a new workbook from scratch or use a built-in workbook as the basis for your new workbook.

  1. To create a new workbook from scratch, select Workbooks and then +New workbook.
  2. Select the subscription the workbook is created in and give it a descriptive name. Each workbook is an Azure resource like any other, and you can assign it roles (Azure RBAC) to define and limit who can access.
  3. To enable it to show up in your workbooks to pin visualizations to, you have to share it. Click Share and then Manage users.
  4. Use the Check access and Role assignments as you would for any other Azure resource. For more information, see Share Azure workbooks by using Azure RBAC.

New workbook examples

The following sample query enables you to compare trends of traffic across weeks. You can easily switch which device vendor and data source you run the query on. This example uses SecurityEvent from Windows, you can switch it to run on AzureActivity or CommonSecurityLog on any other firewall.

// week over week query
| where TimeGenerated > ago(14d)
| summarize count() by bin(TimeGenerated, 1d)
| extend Week = iff(TimeGenerated>ago(7d), "This Week", "Last Week"), TimeGenerated = iff(TimeGenerated>ago(7d), TimeGenerated, TimeGenerated + 7d)

You might want to create a query that incorporates data from multiples sources. You can create a query that looks at Azure Active Directory audit logs for new users that were just created, and then checks your Azure logs to see if the user started making role assignment changes within 24 hours of creation. That suspicious activity would show up on this dashboard:

| where OperationName == "Add user"
| project AddedTime = TimeGenerated, user = tostring(TargetResources[0].userPrincipalName)
| join (AzureActivity
| where OperationName == "Create role assignment"
| project OperationName, RoleAssignmentTime = TimeGenerated, user = Caller) on user
| project-away user1

You can create different workbooks based on role of person looking at the data and what they're looking for. For example, you can create a workbook for your network admin that includes the firewall data. You can also create workbooks based on how frequently you want to look at them, whether there are things you want to review daily, and others items you want to check once an hour, for example, you might want to look at your Azure AD sign-ins every hour to search for anomalies.

Create new detections

Generate detections on the data sources that you connected to Microsoft Sentinel to investigate threats in your organization.

When you create a new detection, leverage the built-in detections crafted by Microsoft security researchers that are tailored to the data sources you connected.

To view all the out-of-the-box detections, go to Analytics and then Rule templates. This tab contains all the Microsoft Sentinel built-in rules.

Use built-in detections to find threats with Microsoft Sentinel

For more information about getting out-of-the-box detections, see Get built-in-analytics.

Next steps

In this quickstart, you learned how to get started using Microsoft Sentinel. Continue to the article for how to detect threats.

Create custom threat detection rules to automate your responses to threats.
