Create and manage a storage task assignment

An assignment identifies a storage account and a subset of objects in that account that the task will target. An assignment also defines when the task runs and where execution reports are stored.

This article helps you create an assignment, and then enable that assignment to run.

Important

Azure Storage Actions is currently in PREVIEW and is available these regions. See the Supplemental Terms of Use for Microsoft Azure Previews for legal terms that apply to Azure features that are in beta, preview, or otherwise not yet released into general availability.

Create an assignment

Create an assignment for each storage account you want to target. A storage task can contain up to 50 assignments.

Note

During the public preview, you can target only storage accounts that are in the same region as the storage tasks.

Create an assignment from the storage task menu

You can create an assignment in the context of a storage task. This option can be convenient if you're the task author and you want to target multiple storage accounts. For each assignment you'll identify the storage account that you want to target.

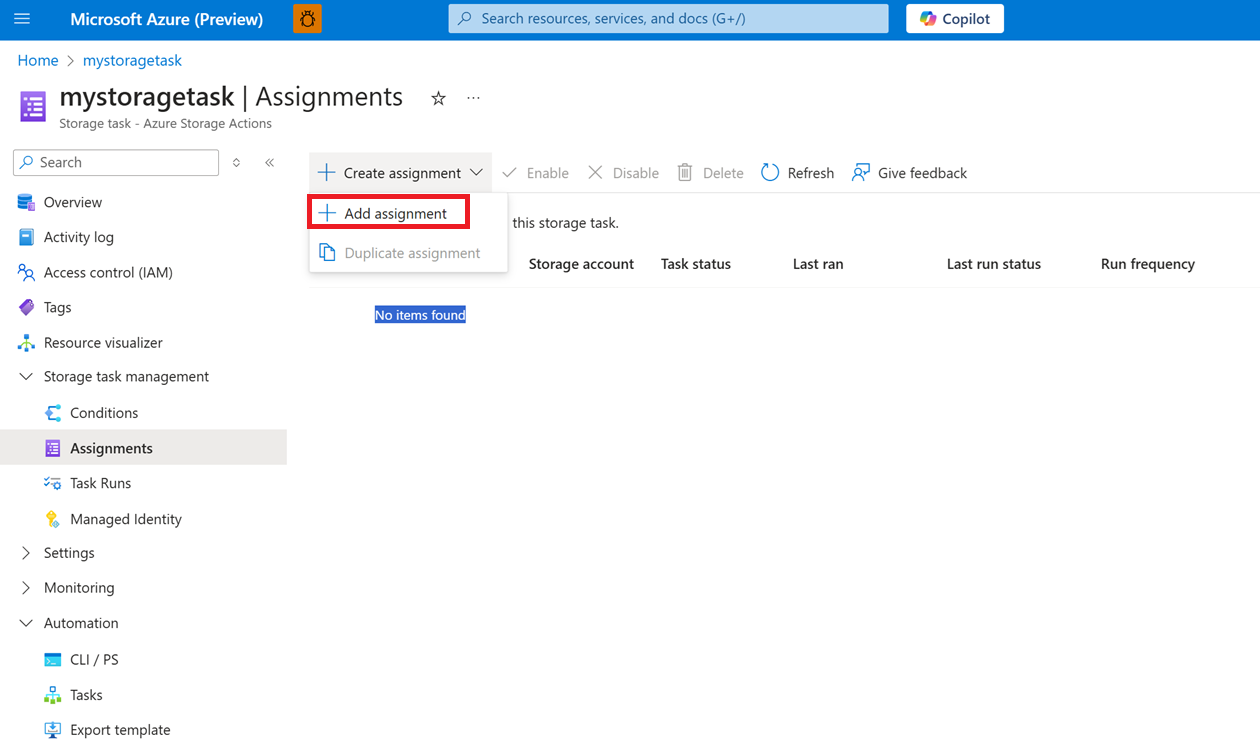

Navigate to the storage task in the Azure portal and then under Storage task management, select Assignments, and then select Configure assignments.

In the Assignments page, select + Add assignment and the Add assignment pane will appear.

Create an assignment from the storage account menu

You can also create an assignment in the context of a storage account. This option can be convenient if you want to use an existing task to process objects in your storage account. For each assignment you'll identify the storage task that you want to assign to your account.

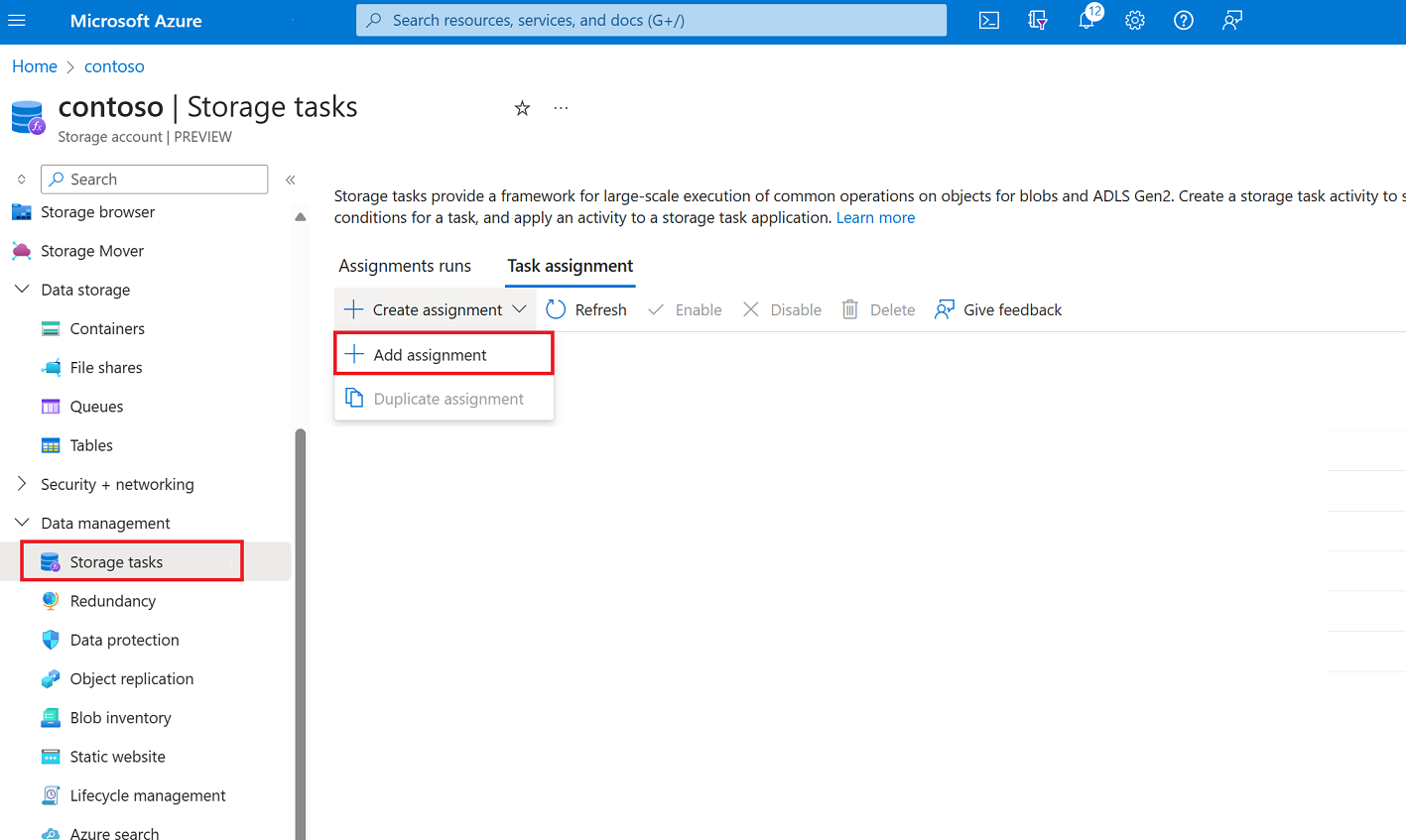

Navigate to the storage account in the Azure portal and then under Data management, select Storage tasks.

In the Storage tasks page, select the Task assignment tab, select + Create assignment, and then select + Add assignment.

The Add assignment pane appears.

Select a scope

In the Select scope section, select a subscription and name the assignment. Then, select the storage account that you want to target.

If you opened the Add assignment pane in the context of the storage account, you'll select a storage task instead of the storage account.

The following table describes each field in the Select Scope section:

Section	Field	Required or optional	Description
Select scope	Subscription	Required	The subscription of the storage account that you want to add to this assignment.
Select scope	Select a storage account	Required	The storage account that you want to add to this assignment. You must be an owner of the storage account. This field appears only if you create the assignment in the context of a storage task.
Select scope	Select a storage task	Required	The storage task to which you would like to assign your storage account. This field appears only if you create the assignment in the context of a storage account.
Select scope	Assignment name	Required	The name of the assignment. Assignment names must be between 2 and 62 characters in length and may contain only letters and numbers.

Add a role assignment

In the Role assignment section, in the Role drop-down list, select the role that you want to assign to the system-assigned managed identity of the storage task. To ensure a successful task assignment, use roles that have the Blob Data Owner permissions. To learn more, see Azure roles for storage tasks

Add a filter

In the Filter objects section, choose whether you want to target a subset of blobs based on a filter. Filters help you narrow the scope of execution. If you want the task to evaluate all of the containers and blobs in an account, then you can select the Do not filter option. The following example uses a filter to target only blobs that exist in a container that is named mycontainer.

The following table describes each field:

Section	Field	Required or optional	Description
Filter objects	Filter by	Required	Option to either filter objects by using a prefix or to run the task against the entire storage account.
Filter objects	Blob prefixes	Optional	The string prefix that is used to narrow the scope of blobs that are evaluated by the task. This field is required only if you choose to filter by using a blob prefix.

Define the trigger

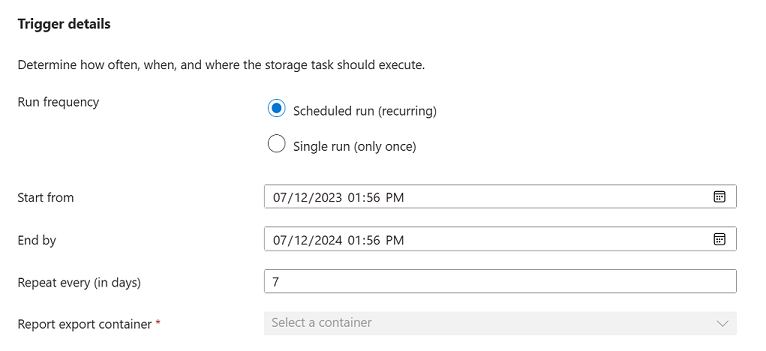

In the Trigger details section, select how often you'd like this task to run. You can choose to run this task only once, or run the task recurring. If you decide to run this task on a recurring basis, choose a start and end time and specify the number of days in between each run. You can also specify where you'd like to store the execution reports.

The following table describes each field:

Section	Field	Required or optional	Description
Trigger details	Run frequency	Required	Option to either run the task one time or multiple times.
Trigger details	Start from	Required	The date and time to begin running the task.
Trigger details	End by	Required	The date and time stop running the task.
Trigger details	Repeat very (in days)	Required	The interval in days between each run.
Trigger details	Report export container	Required	The container where task execution reports are stored.

Save the assignment

Select the Add button to create the assignment.

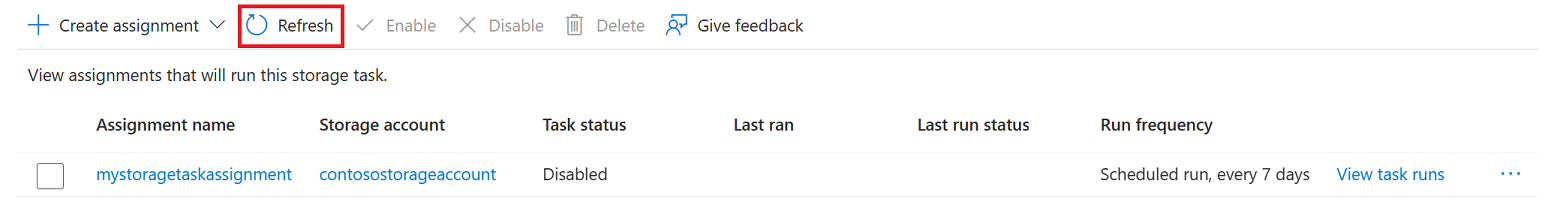

The Add assignment pane closes. When deployment is complete, the assignment appears in the Assignments page. If you don't see the assignment in that page, then select the Refresh button.

Enable an assignment

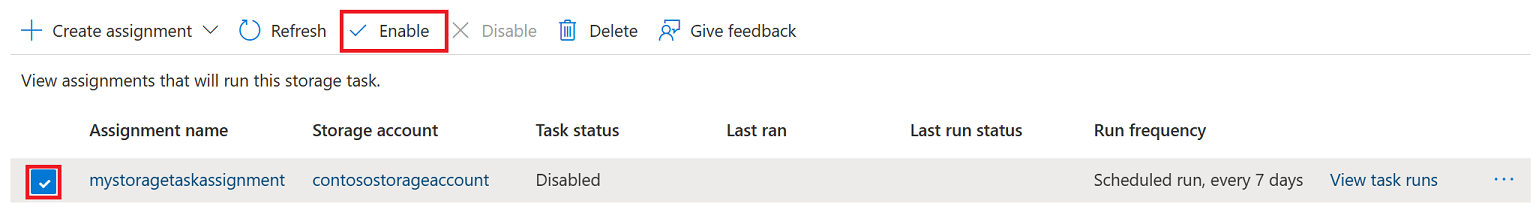

The assignment is disabled by default. To enable the assignment so that it will be scheduled to run, select the checkbox that appears beside the assignment, and then select Enable.

After the task runs, an execution report is generated and then stored in the container that you specified when you created the assignment. For more information about that report as well as how to view metrics that capture the number of objects targeted, the number of operations attempted, and the number of operations that succeeded, see Analyze storage task runs.

Edit an assignment

An assignment becomes a sub resource of the targeted storage account. Therefore, after you create the assignment, you can edit only it's run frequency. The other fields of an assignment become read only. The Single run (only once) option becomes read only as well.

• To edit the run frequency of an assignment in the context of a storage task, navigate to the storage task in the Azure portal and then under Storage task management, select Assignments.

• To edit the run frequency of an assignment in the context of a storage account, navigate to the storage account in the Azure portal and then under Data management, select Storage tasks.
