Tutorial: Extract, transform, and load data by using Azure HDInsight

In this tutorial, you perform an ETL operation: extract, transform, and load data. You take a raw CSV data file, import it into an Azure HDInsight cluster, transform it with Apache Hive, and load it into Azure SQL Database with Apache Sqoop.

In this tutorial, you learn how to:

  • Extract and upload the data to an HDInsight cluster.
  • Transform the data by using Apache Hive.
  • Load the data to Azure SQL Database by using Sqoop.

If you don't have an Azure subscription, create a free account before you begin.


Download, extract and then upload the data

In this section, you'll download sample flight data. Then, you'll upload that data to your HDInsight cluster and then copy that data to your Data Lake Storage Gen2 account.

  1. Download the On_Time_Reporting_Carrier_On_Time_Performance_1987_present_2016_1.zip file. This file contains the flight data.

  2. Open a command prompt and use the following Secure Copy (Scp) command to upload the .zip file to the HDInsight cluster head node:

    scp <file-name>.zip <ssh-user-name>@<cluster-name>-ssh.azurehdinsight.net:<file-name.zip>
    • Replace the <file-name> placeholder with the name of the .zip file.
    • Replace the <ssh-user-name> placeholder with the SSH login for the HDInsight cluster.
    • Replace the <cluster-name> placeholder with the name of the HDInsight cluster.

    If you use a password to authenticate your SSH login, you're prompted for the password.

    If you use a public key, you might need to use the -i parameter and specify the path to the matching private key. For example, scp -i ~/.ssh/id_rsa <file_name>.zip <user-name>@<cluster-name>-ssh.azurehdinsight.net:.

  3. After the upload has finished, connect to the cluster by using SSH. On the command prompt, enter the following command:

    ssh <ssh-user-name>@<cluster-name>-ssh.azurehdinsight.net
  4. Use the following command to unzip the .zip file:

    unzip <file-name>.zip

    The command extracts a .csv file.

  5. Use the following command to create the Data Lake Storage Gen2 container.

    hadoop fs -D "fs.azure.createRemoteFileSystemDuringInitialization=true" -ls abfs://<container-name>@<storage-account-name>.dfs.core.windows.net/

    Replace the <container-name> placeholder with the name that you want to give your container.

    Replace the <storage-account-name> placeholder with the name of your storage account.

  6. Use the following command to create a directory.

    hdfs dfs -mkdir -p abfs://<container-name>@<storage-account-name>.dfs.core.windows.net/tutorials/flightdelays/data
  7. Use the following command to copy the .csv file to the directory:

    hdfs dfs -put "<file-name>.csv" abfs://<container-name>@<storage-account-name>.dfs.core.windows.net/tutorials/flightdelays/data/

    Use quotes around the file name if the file name contains spaces or special characters.

Transform the data

In this section, you use Beeline to run an Apache Hive job.

As part of the Apache Hive job, you import the data from the .csv file into an Apache Hive table named delays.

  1. From the SSH prompt that you already have for the HDInsight cluster, use the following command to create and edit a new file named flightdelays.hql:

    nano flightdelays.hql
  2. Modify the following text by replace the <container-name> and <storage-account-name> placeholders with your container and storage account name. Then copy and paste the text into the nano console by using pressing the SHIFT key along with the right-mouse click button.

    DROP TABLE delays_raw;
    -- Creates an external table over the csv file
    CREATE EXTERNAL TABLE delays_raw (
        YEAR string,
        FL_DATE string,
        UNIQUE_CARRIER string,
        CARRIER string,
        FL_NUM string,
        ORIGIN_AIRPORT_ID string,
        ORIGIN string,
        ORIGIN_CITY_NAME string,
        ORIGIN_CITY_NAME_TEMP string,
        ORIGIN_STATE_ABR string,
        DEST_AIRPORT_ID string,
        DEST string,
        DEST_CITY_NAME string,
        DEST_CITY_NAME_TEMP string,
        DEST_STATE_ABR string,
        DEP_DELAY_NEW float,
        ARR_DELAY_NEW float,
        CARRIER_DELAY float,
        WEATHER_DELAY float,
        NAS_DELAY float,
        SECURITY_DELAY float,
        LATE_AIRCRAFT_DELAY float)
    -- The following lines describe the format and location of the file
    LOCATION 'abfs://<container-name>@<storage-account-name>.dfs.core.windows.net/tutorials/flightdelays/data';
    -- Drop the delays table if it exists
    DROP TABLE delays;
    -- Create the delays table and populate it with data
    -- pulled in from the CSV file (via the external table defined previously)
    CREATE TABLE delays
    LOCATION 'abfs://<container-name>@<storage-account-name>.dfs.core.windows.net/tutorials/flightdelays/processed'
    SELECT YEAR AS year,
        FL_DATE AS flight_date,
        substring(UNIQUE_CARRIER, 2, length(UNIQUE_CARRIER) -1) AS unique_carrier,
        substring(CARRIER, 2, length(CARRIER) -1) AS carrier,
        substring(FL_NUM, 2, length(FL_NUM) -1) AS flight_num,
        ORIGIN_AIRPORT_ID AS origin_airport_id,
        substring(ORIGIN, 2, length(ORIGIN) -1) AS origin_airport_code,
        substring(ORIGIN_CITY_NAME, 2) AS origin_city_name,
        substring(ORIGIN_STATE_ABR, 2, length(ORIGIN_STATE_ABR) -1)  AS origin_state_abr,
        DEST_AIRPORT_ID AS dest_airport_id,
        substring(DEST, 2, length(DEST) -1) AS dest_airport_code,
        substring(DEST_CITY_NAME,2) AS dest_city_name,
        substring(DEST_STATE_ABR, 2, length(DEST_STATE_ABR) -1) AS dest_state_abr,
        DEP_DELAY_NEW AS dep_delay_new,
        ARR_DELAY_NEW AS arr_delay_new,
        CARRIER_DELAY AS carrier_delay,
        WEATHER_DELAY AS weather_delay,
        NAS_DELAY AS nas_delay,
        SECURITY_DELAY AS security_delay,
        LATE_AIRCRAFT_DELAY AS late_aircraft_delay
    FROM delays_raw;
  3. Save the file by using use CTRL+X and then type Y when prompted.

  4. To start Hive and run the flightdelays.hql file, use the following command:

    beeline -u 'jdbc:hive2://localhost:10001/;transportMode=http' -f flightdelays.hql
  5. After the flightdelays.hql script finishes running, use the following command to open an interactive Beeline session:

    beeline -u 'jdbc:hive2://localhost:10001/;transportMode=http'
  6. When you receive the jdbc:hive2://localhost:10001/> prompt, use the following query to retrieve data from the imported flight delay data:

    INSERT OVERWRITE DIRECTORY '/tutorials/flightdelays/output'
    SELECT regexp_replace(origin_city_name, '''', ''),
    FROM delays
    WHERE weather_delay IS NOT NULL
    GROUP BY origin_city_name;

    This query retrieves a list of cities that experienced weather delays, along with the average delay time, and saves it to abfs://<container-name>@<storage-account-name>.dfs.core.windows.net/tutorials/flightdelays/output. Later, Sqoop reads the data from this location and exports it to Azure SQL Database.

  7. To exit Beeline, enter !quit at the prompt.

Create a SQL database table

You need the server name from SQL Database for this operation. Complete these steps to find your server name.

  1. Go to the Azure portal.

  2. Select SQL Databases.

  3. Filter on the name of the database that you choose to use. The server name is listed in the Server name column.

  4. Filter on the name of the database that you want to use. The server name is listed in the Server name column.

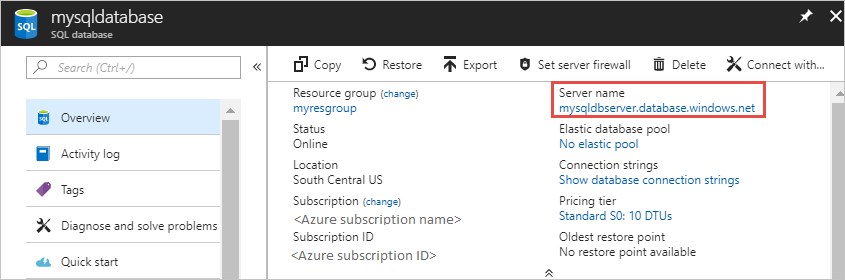

    Get Azure SQL server details

    There are many ways to connect to SQL Database and create a table. The following steps use FreeTDS from the HDInsight cluster.

  5. To install FreeTDS, use the following command from an SSH connection to the cluster:

    sudo apt-get --assume-yes install freetds-dev freetds-bin
  6. After the installation completes, use the following command to connect to SQL Database.

    TDSVER=8.0 tsql -H '<server-name>.database.windows.net' -U '<admin-login>' -p 1433 -D '<database-name>'
    • Replace the <server-name> placeholder with the logical SQL server name.

    • Replace the <admin-login> placeholder with the admin login for SQL Database.

    • Replace the <database-name> placeholder with the database name

    When you're prompted, enter the password for the SQL Database admin login.

    You receive output similar to the following text:

    locale is "en_US.UTF-8"
    locale charset is "UTF-8"
    using default charset "UTF-8"
    Default database being set to sqooptest
  7. At the 1> prompt, enter the following statements:

    CREATE TABLE [dbo].[delays](
    [OriginCityName] [nvarchar](50) NOT NULL,
    [WeatherDelay] float,
    ([OriginCityName] ASC))
  8. When the GO statement is entered, the previous statements are evaluated.

    The query creates a table named delays, which has a clustered index.

  9. Use the following query to verify that the table is created:

    SELECT * FROM information_schema.tables

    The output is similar to the following text:

    databaseName       dbo             delays        BASE TABLE
  10. Enter exit at the 1> prompt to exit the tsql utility.

Export and load the data

In the previous sections, you copied the transformed data at the location abfs://<container-name>@<storage-account-name>.dfs.core.windows.net/tutorials/flightdelays/output. In this section, you use Sqoop to export the data from abfs://<container-name>@<storage-account-name>.dfs.core.windows.net/tutorials/flightdelays/output to the table you created in the Azure SQL Database.

  1. Use the following command to verify that Sqoop can see your SQL database:

    sqoop list-databases --connect jdbc:sqlserver://<SERVER_NAME>.database.windows.net:1433 --username <ADMIN_LOGIN> --password <ADMIN_PASSWORD>

    The command returns a list of databases, including the database in which you created the delays table.

  2. Use the following command to export data from the hivesampletable table to the delays table:

    sqoop export --connect 'jdbc:sqlserver://<SERVER_NAME>.database.windows.net:1433;database=<DATABASE_NAME>' --username <ADMIN_LOGIN> --password <ADMIN_PASSWORD> --table 'delays' --export-dir 'abfs://<container-name>@.dfs.core.windows.net/tutorials/flightdelays/output' --fields-terminated-by '\t' -m 1

    Sqoop connects to the database that contains the delays table, and exports data from the /tutorials/flightdelays/output directory to the delays table.

  3. After the sqoop command finishes, use the tsql utility to connect to the database:

    TDSVER=8.0 tsql -H <SERVER_NAME>.database.windows.net -U <ADMIN_LOGIN> -P <ADMIN_PASSWORD> -p 1433 -D <DATABASE_NAME>
  4. Use the following statements to verify that the data was exported to the delays table:

    SELECT * FROM delays

    You should see a listing of data in the table. The table includes the city name and the average flight delay time for that city.

  5. Enter exit to exit the tsql utility.

Clean up resources

All resources used in this tutorial are preexisting. No cleanup is necessary.
