Configuring Azure Files network endpoints
Azure Files provides two main types of endpoints for accessing Azure file shares:
- Public endpoints, which have a public IP address and can be accessed from anywhere in the world.
- Private endpoints, which exist within a virtual network and have a private IP address from within the address space of that virtual network.
Public and private endpoints exist on the Azure storage account. A storage account is a management construct that represents a shared pool of storage in which you can deploy multiple file shares, as well as other storage resources, such as blob containers or queues.
This article focuses on how to configure a storage account's endpoints for accessing the Azure file share directly. Most of the detail provided within this document also applies to how Azure File Sync interoperates with public and private endpoints for the storage account, however for more information about networking considerations for an Azure File Sync deployment, see configuring Azure File Sync proxy and firewall settings.
We recommend reading Azure Files networking considerations prior to reading this how to guide.
|File share type||SMB||NFS|
|Standard file shares (GPv2), LRS/ZRS|
|Standard file shares (GPv2), GRS/GZRS|
|Premium file shares (FileStorage), LRS/ZRS|
- This article assumes that you have already created an Azure subscription. If you don't already have a subscription, then create a free account before you begin.
- This article assumes that you have already created an Azure file share in a storage account that you would like to connect to from on-premises. To learn how to create an Azure file share, see Create an Azure file share.
- If you intend to use Azure PowerShell, install the latest version.
- If you intend to use the Azure CLI, install the latest version.
You can configure your endpoints to restrict network access to your storage account. There are two approaches to restricting access to a storage account to a virtual network:
- Create one or more private endpoints for the storage account and restrict all access to the public endpoint. This ensures that only traffic originating from within the desired virtual networks can access the Azure file shares within the storage account.
- Restrict the public endpoint to one or more virtual networks. This works by using a capability of the virtual network called service endpoints. When you restrict the traffic to a storage account via a service endpoint, you are still accessing the storage account via the public IP address, but access is only possible from the locations you specify in your configuration.
Create a private endpoint
Creating a private endpoint for your storage account will result in the following Azure resources being deployed:
- A private endpoint: An Azure resource representing the storage account's private endpoint. You can think of this as a resource that connects a storage account and a network interface.
- A network interface (NIC): The network interface that maintains a private IP address within the specified virtual network/subnet. This is the exact same resource that gets deployed when you deploy a virtual machine, however instead of being assigned to a VM, it's owned by the private endpoint.
- A private DNS zone: If you've never deployed a private endpoint for this virtual network before, a new private DNS zone will be deployed for your virtual network. A DNS A record will also be created for the storage account in this DNS zone. If you've already deployed a private endpoint in this virtual network, a new A record for the storage account will be added to the existing DNS zone. Deploying a DNS zone is optional, however highly recommended, and required if you are mounting your Azure file shares with an AD service principal or using the FileREST API.
This article uses the storage account DNS suffix for the Azure Public regions,
core.windows.net. This commentary also applies to Azure Sovereign clouds such as the Azure US Government cloud and the Azure China cloud - just substitute the the appropriate suffixes for your environment.
Navigate to the storage account for which you would like to create a private endpoint. In the table of contents for the storage account, select Networking, Private endpoint connections, and then + Private endpoint to create a new private endpoint.
The resulting wizard has multiple pages to complete.

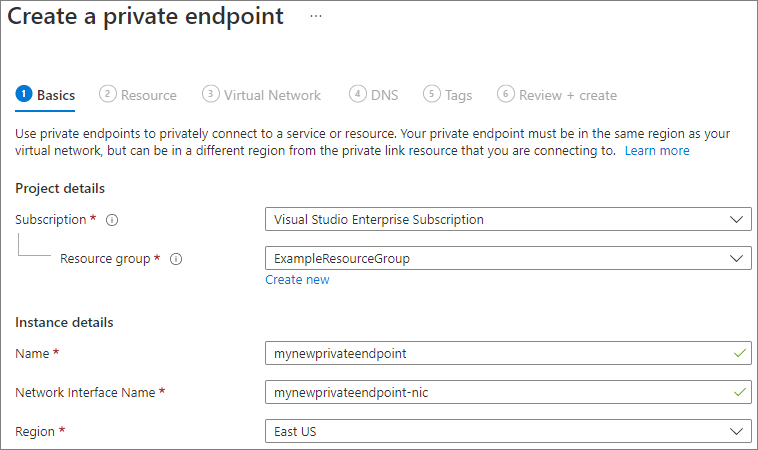

In the Basics blade, select the desired subscription, resource group, name, network interface name, and region for your private endpoint. These can be whatever you want, they don't have to match the storage account in any way, although you must create the private endpoint in the same region as the virtual network you wish to create the private endpoint in. Then select Next: Resource.

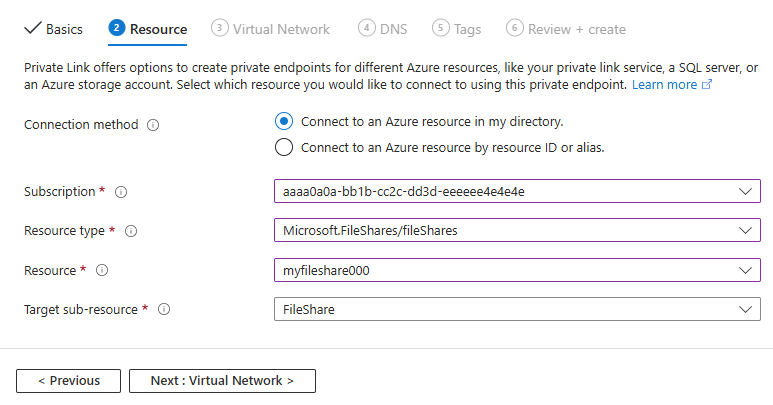

In the Resource blade, select file for the target sub-resource. Then select Next: Virtual Network.

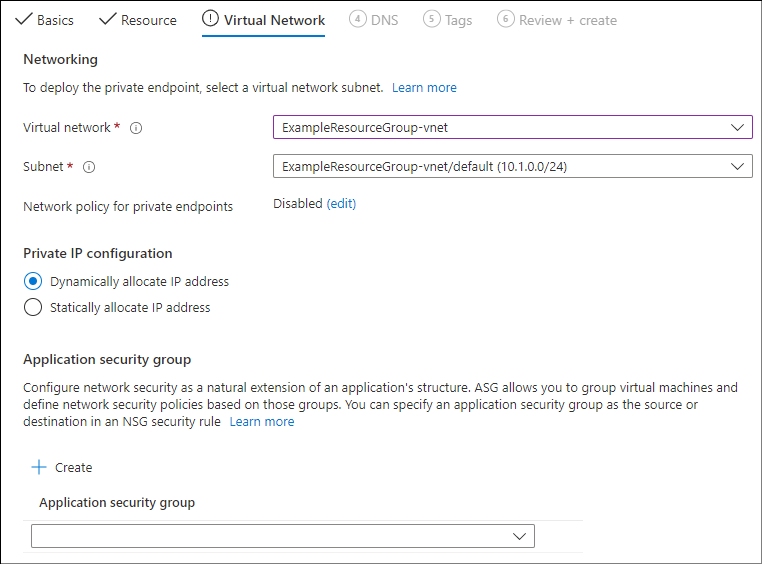

The Virtual Network blade allows you to select the specific virtual network and subnet you would like to add your private endpoint to. Select dynamic or static IP address allocation for the new private endpoint. If you select static, you'll also need to provide a name and a private IP address. You can also optionally specify an application security group. When you're finished, select Next: DNS.
The DNS blade contains the information for integrating your private endpoint with a private DNS zone. Make sure the subscription and resource group are correct, then select Next: Tags.
You can optionally apply tags to categorize your resources, such as applying the name Environment and the value Test to all testing resources. Enter name/value pairs if desired, and then select Next: Review + create.
Click Review + create to create the private endpoint.
If you have a virtual machine inside of your virtual network, or you've configured DNS forwarding as described in Configuring DNS forwarding for Azure Files, you can test that your private endpoint has been set up correctly by running the following commands from PowerShell, the command line, or the terminal (works for Windows, Linux, or macOS). You must replace
<storage-account-name> with the appropriate storage account name:
If everything has worked successfully, you should see the following output, where
192.168.0.5 is the private IP address of the private endpoint in your virtual network (output shown for Windows):
Server: UnKnown Address: 10.2.4.4 Non-authoritative answer: Name: storageaccount.privatelink.file.core.windows.net Address: 192.168.0.5 Aliases: storageaccount.file.core.windows.net
Restrict public endpoint access
Limiting public endpoint access first requires you to disable general access to the public endpoint. Disabling access to the public endpoint does not impact private endpoints. After the public endpoint has been disabled, you can select specific networks or IP addresses that may continue to access it. In general, most firewall policies for a storage account restrict networking access to one or more virtual networks.
Disable access to the public endpoint

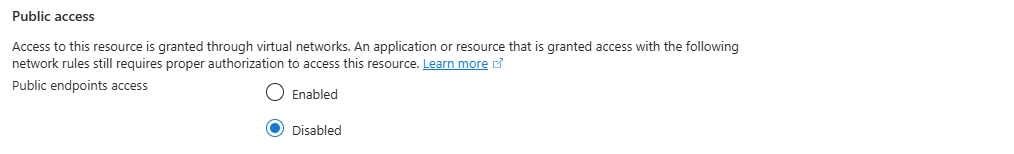

When access to the public endpoint is disabled, the storage account can still be accessed through its private endpoints. Otherwise valid requests to the storage account's public endpoint will be rejected, unless they are from a specifically allowed source.
Navigate to the storage account for which you would like to restrict all access to the public endpoint. In the table of contents for the storage account, select Networking.
At the top of the page, select the Enabled from selected virtual networks and IP addresses radio button. This will un-hide a number of settings for controlling the restriction of the public endpoint. Select Allow Azure services on the trusted services list to access this storage account to allow trusted first party Microsoft services such as Azure File Sync to access the storage account.
Restrict access to the public endpoint to specific virtual networks
When you restrict the storage account to specific virtual networks, you are allowing requests to the public endpoint from within the specified virtual networks. This works by using a capability of the virtual network called service endpoints. This can be used with or without private endpoints.
Navigate to the storage account for which you would like to restrict the public endpoint to specific virtual networks. In the table of contents for the storage account, select Networking.

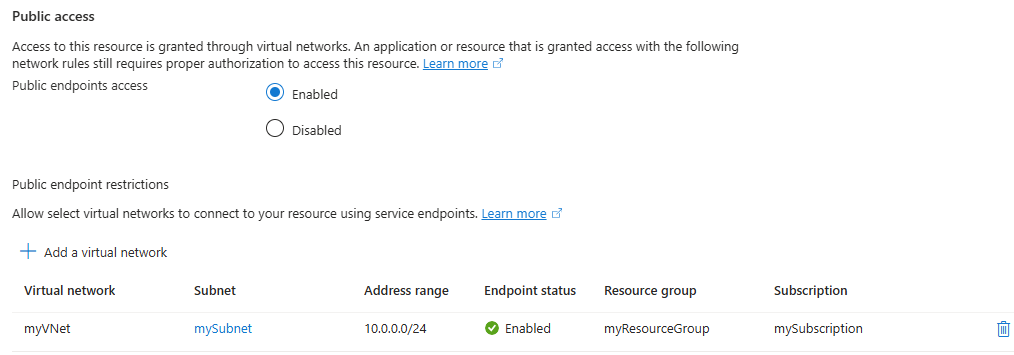

At the top of the page, select the Enabled from selected virtual networks and IP addresses radio button. This will un-hide a number of settings for controlling the restriction of the public endpoint. Select +Add existing virtual network to select the specific virtual network that should be allowed to access the storage account via the public endpoint. Select a virtual network and a subnet for that virtual network, and then select Enable.
Select Allow Azure services on the trusted services list to access this storage account to allow trusted first party Microsoft services such as Azure File Sync to access the storage account.
