Azure Synapse Analytics connectivity settings

This article will explain connectivity settings in Azure Synapse Analytics and how to configure them where applicable.

Public network access

You can use the public network access feature to allow incoming public network connectivity to your Azure Synapse workspace.

  • When public network access is disabled, you can connect to your workspace only using private endpoints.
  • When public network access is enabled, you can connect to your workspace also from public networks. You can manage this feature both during and after your workspace creation.

Important

This feature is only available to Azure Synapse workspaces associated with Azure Synapse Analytics Managed Virtual Network. However, you can still open your Synapse workspaces to the public network regardless of its association with managed VNet.

Selecting the Disable option will not apply any firewall rules that you may configure. Additionally, your firewall rules will appear greyed out in the Network setting in Synapse portal. Your firewall configurations will be reapplied when you enable public network access again.

Tip

When you revert to enable, allow some time before editing the firewall rules.

Configure public network access when you create your workspace

  1. Select the Networking tab when you create your workspace in Azure portal.

  2. Under Managed virtual network, select Enable to associate your workspace with managed virtual network and permit public network access.

    Create Synapse workspace, networking tab, Managed virtual network setting

  3. Under Public network access, select Disable to deny public access to your workspace. Select Enable if you want to allow public access to your workspace.

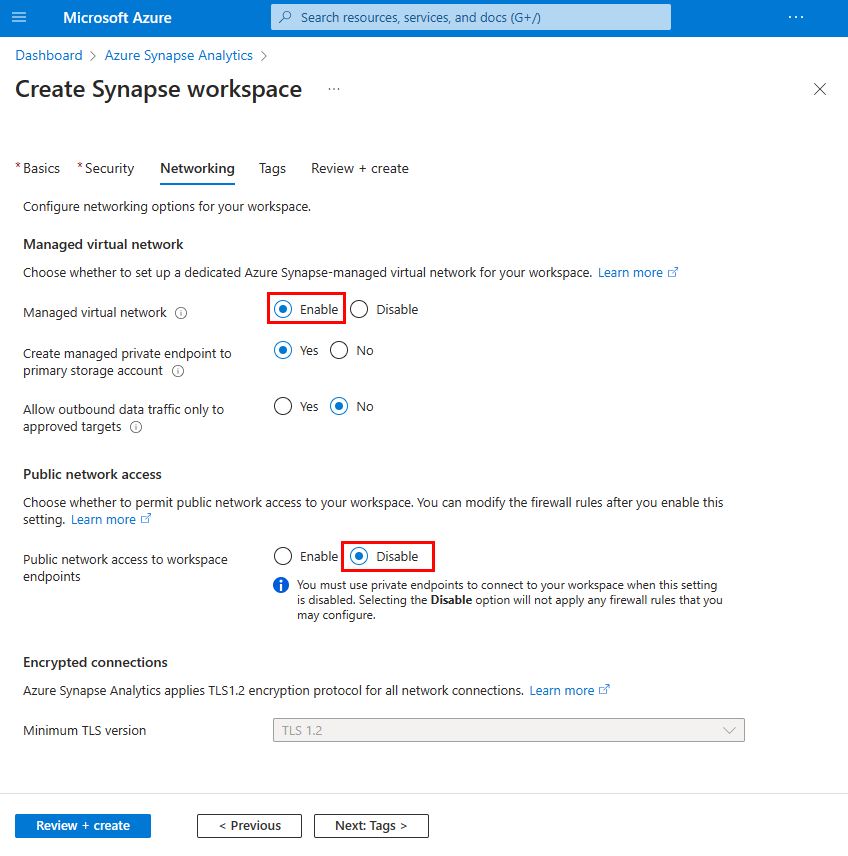

    Create Synapse workspace, networking tab, public network access setting

  4. Complete the rest of the workspace creation flow.

Configure public network access after you create your workspace

  1. Select your Synapse workspace in Azure portal.

  2. Select Networking from the left navigation.

  3. Select Disabled to deny public access to your workspace. Select Enabled if you want to allow public access to your workspace.

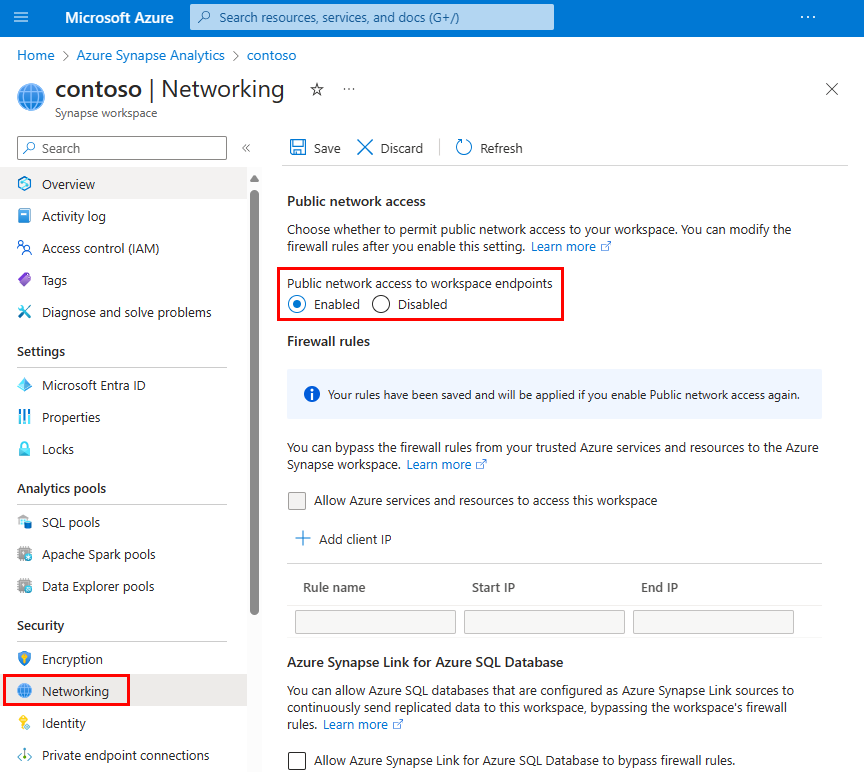

    In an existing Synapse workspace, networking tab, public network access setting is enabled

  4. When disabled, the Firewall rules gray out to indicate that firewall rules are not in effect. Firewall rule configurations will be retained.

    In an existing Synapse workspace, networking tab, public network access setting is disabled, attention to the firewall rules

  5. Select Save to save the change. A notification will confirm that the network setting was successfully saved.

Connection policy

The connection policy for Synapse SQL in Azure Synapse Analytics is set to Default. You cannot change this in Azure Synapse Analytics. You can learn more about how that affects connections to Synapse SQL in Azure Synapse Analytics here.

Minimal TLS version

The serverless SQL endpoint and development endpoint only accept TLS 1.2 and above.

Starting in December 2021, a requirement for TLS 1.2 has been implemented for workspace-managed dedicated SQL pools in new Synapse workspaces. Login attempts from connections using a TLS version lower than 1.2 will fail. Customers can raise or lower the minimal TLS version using the API, for both new Synapse workspaces or existing workspaces, so users who need to use a lower client version in the workspaces can connect. Customers can also raise the minimum TLS version to meet their security needs. Learn more by reading minimal TLS REST API.
