Use Azure Active Directory Authentication for authentication with Synapse SQL

Azure Active Directory authentication is a mechanism that connects to Azure Synapse Analytics by using identities in Azure Active Directory (Azure AD).

With Azure AD authentication, you can centrally manage user identities that have access to Azure Synapse to simplify permission management. Benefits include the following:

  • It provides an alternative to regular username and password authentication.
  • Helps stop the proliferation of user identities across servers.
  • Allows password rotation in a single place.
  • Customers can manage permissions using external (Azure AD) groups.
  • It can eliminate storing passwords by enabling integrated Windows authentication and other forms of authentication supported by Azure Active Directory.
  • Azure AD supports token-based authentication for applications connecting to Azure Synapse.
  • Azure AD authentication supports ADFS (domain federation) or native user/password authentication for a local Azure Active Directory without domain synchronization.
  • Azure AD supports connections from SQL Server Management Studio that use Active Directory Universal Authentication, which includes multi-factor authentication (MFA). MFA includes strong authentication with a range of easy verification options, including phone call, text message, smart cards with pin, or mobile app notification. For more information, see SSMS support for Azure AD MFA with Synapse SQL.
  • Azure AD supports similar connections from SQL Server Data Tools (SSDT) that use Active Directory Interactive Authentication. For more information, see Azure Active Directory support in SQL Server Data Tools (SSDT).

The configuration steps include the following procedures to configure and use Azure Active Directory authentication.

  1. Create and populate Azure AD.
  2. Create an Azure Active Directory identity
  3. Assign role to created Azure Active Directory identity in Synapse workspace
  4. Connect to Synapse Studio by using Azure AD identities.

Azure AD pass-through in Azure Synapse Analytics

Azure Synapse Analytics enables you to access the data in the data lake using your Azure Active Directory identity.

Defining access rights on the files and data that is respected in different data engines enables you to simplify your data lake solutions by having a single place where the permissions are defined instead of having to define them in multiple places.

Trust architecture

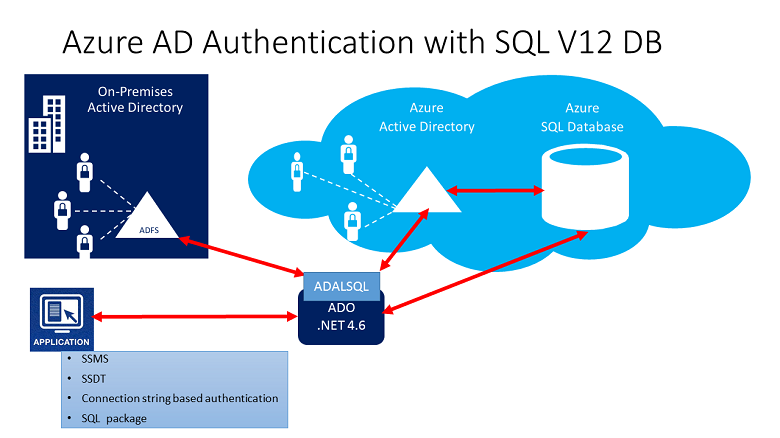

The following high-level diagram summarizes the solution architecture of using Azure AD authentication with Synapse SQL. To support Azure AD native user password, only the Cloud portion and Azure AD/Synapse Synapse SQL is considered. To support Federated authentication (or user/password for Windows credentials), the communication with ADFS block is required. The arrows indicate communication pathways.

azure ad auth diagram

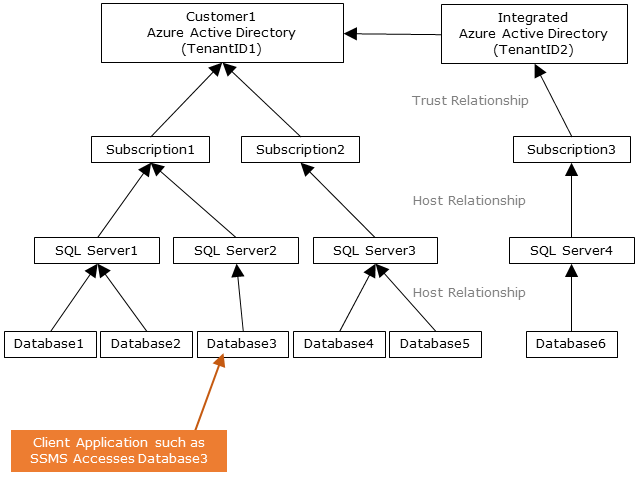

The following diagram indicates the federation, trust, and hosting relationships that allow a client to connect to a database by submitting a token. The token is authenticated by an Azure AD, and is trusted by the database.

Customer 1 can represent an Azure Active Directory with native users or an Azure AD with federated users. Customer 2 represents a possible solution including imported users; in this example coming from a federated Azure Active Directory with ADFS being synchronized with Azure Active Directory.

It's important to understand that access to a database using Azure AD authentication requires that the hosting subscription is associated to the Azure AD. The same subscription must be used to create the SQL Server hosting the Azure SQL Database or dedicated SQL pool.

subscription relationship

Administrator structure

When using Azure AD authentication, there are two Administrator accounts for the Synapse SQL; the original SQL administrator (using SQL authentication) and the Azure AD administrator. Only the administrator based on an Azure AD account can create the first Azure AD contained database user in a user database.

The Azure AD administrator login can be an Azure AD user or an Azure AD group. When the administrator is a group account, it can be used by any group member, enabling multiple Azure AD administrators for the Synapse SQL instance.

Using group account as an administrator enhances manageability by allowing you to centrally add and remove group members in Azure AD without changing the users or permissions in Azure Synapse Analytics workspace. Only one Azure AD administrator (a user or group) can be configured at any time.

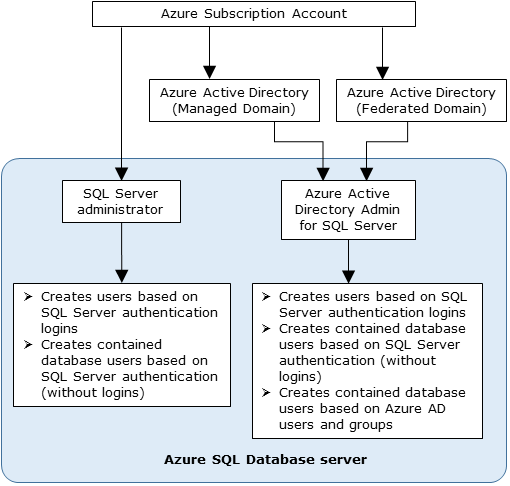

admin structure

Permissions

To create new users, you must have the ALTER ANY USER permission in the database. The ALTER ANY USER permission can be granted to any database user. The ALTER ANY USER permission is also held by the SQL administrator and Azure AD administrator accounts, and database users with the CONTROL ON DATABASE or ALTER ON DATABASE permission for that database, and by members of the db_owner database role.

To create a contained database user in Synapse SQL, you must connect to the database or instance using an Azure AD identity. To create the first contained database user, you must connect to the database by using an Azure AD administrator (who is the owner of the database).

Any Azure AD authentication is only possible if the Azure AD admin was created for Synapse SQL. If the Azure Active Directory admin was removed from the server, existing Azure Active Directory users created previously inside Synapse SQL can no longer connect to the database using their Azure Active Directory credentials.

Disable local authentication

By allowing only Azure Active Directory authentication, centrally manage access to Azure Synapse resources, such as SQL pools. To disable local authentication in Synapse during workspace creation, select Use only Azure Active Directory (Azure AD) authentication as the authentication method. A SQL Administrator login will still be created but it will be disabled. Local authentication can be enabled later by an Azure Owner or Contributor of the Synapse workspace.

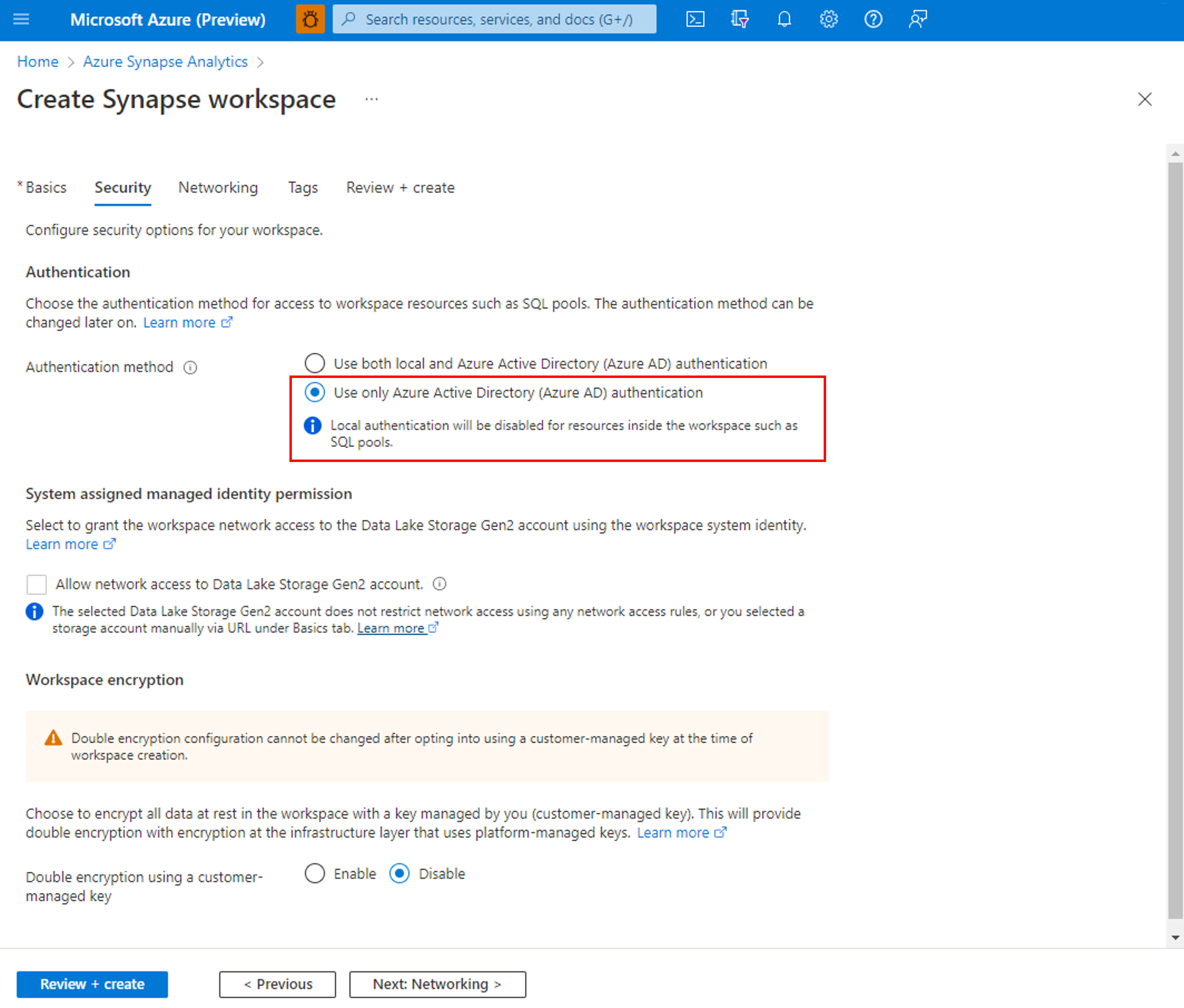

Azure AD-only auth configuration during workspace creation

You can also disable local authentication after a workspace is created through the Azure portal. Local authentication cannot be disabled until an Azure Active Directory admin is created for the Azure Synapse workspace.

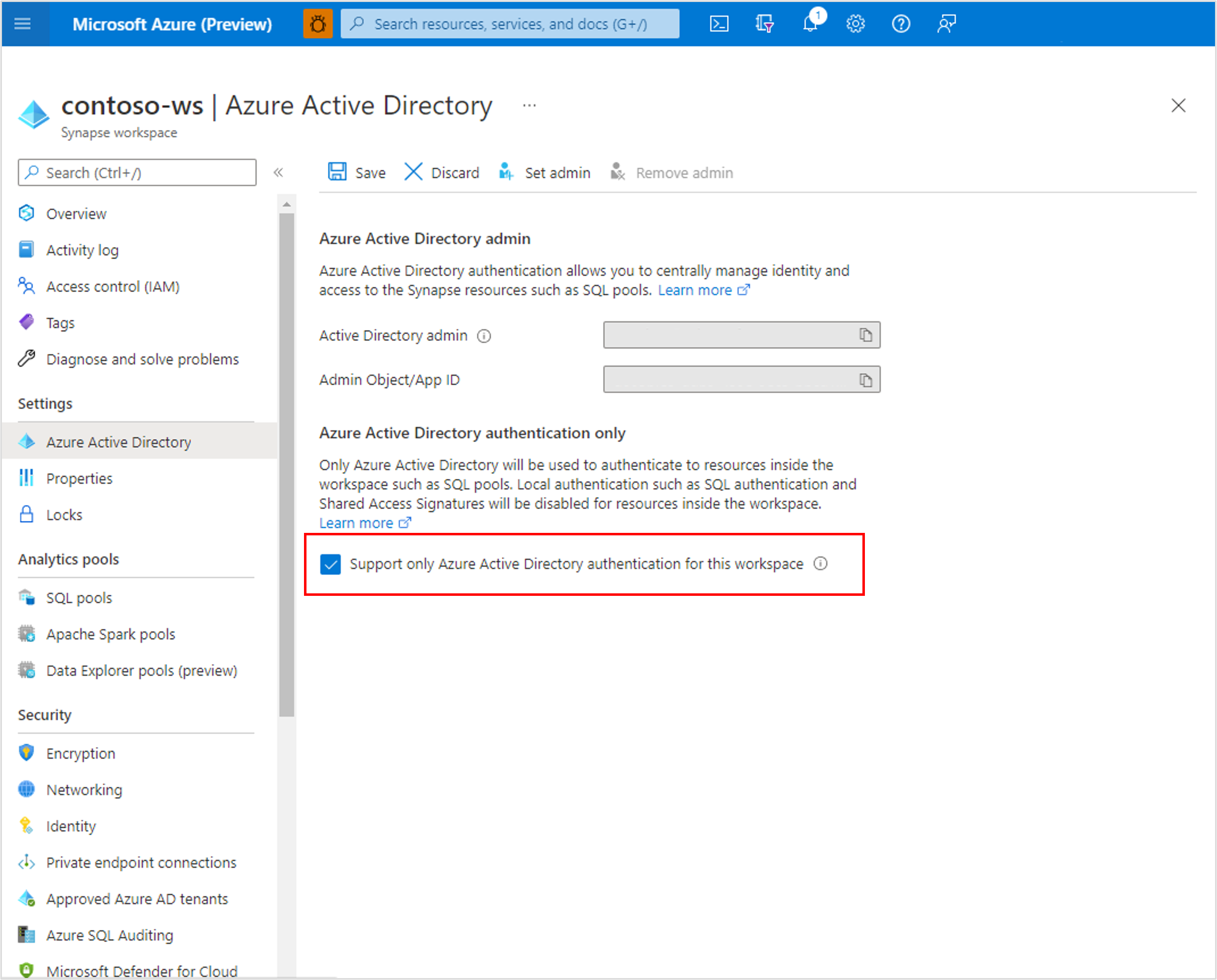

Azure AD-only auth configuration after workspace creation

Azure AD features and limitations

  • The following members of Azure AD can be provisioned in Synapse SQL:

  • Azure AD users that are part of a group that has db_owner server role can't use the CREATE DATABASE SCOPED CREDENTIAL syntax in Synapse SQL. You will see the following error:

    SQL Error [2760] [S0001]: The specified schema name 'user@mydomain.com' either does not exist or you do not have permission to use it.

    Grant the db_owner role directly to the individual Azure AD user to mitigate the CREATE DATABASE SCOPED CREDENTIAL issue.

  • These system functions return NULL values when executed under Azure AD principals:

    • SUSER_ID()
    • SUSER_NAME(<admin ID>)
    • SUSER_SNAME(<admin SID>)
    • SUSER_ID(<admin name>)
    • SUSER_SID(<admin name>)

Connect using Azure AD identities

Azure Active Directory authentication supports the following methods of connecting to a database using Azure AD identities:

  • Azure Active Directory Password
  • Azure Active Directory Integrated
  • Azure Active Directory Universal with MFA
  • Using Application token authentication

The following authentication methods are supported for Azure AD server principals (logins):

  • Azure Active Directory Password
  • Azure Active Directory Integrated
  • Azure Active Directory Universal with MFA

Additional considerations

  • To enhance manageability, we recommend you provision a dedicated Azure AD group as an administrator.
  • Only one Azure AD administrator (a user or group) can be configured for Synapse SQL pool at any time.
    • The addition of Azure AD server principals (logins) for Synapse SQL allows the possibility of creating multiple Azure AD server principals (logins) that can be added to the sysadmin role.
  • Only an Azure AD administrator for Synapse SQL can initially connect to Synapse SQL using an Azure Active Directory account. The Active Directory administrator can configure subsequent Azure AD database users.
  • We recommend setting the connection timeout to 30 seconds.
  • SQL Server 2016 Management Studio and SQL Server Data Tools for Visual Studio 2015 (version 14.0.60311.1April 2016 or later) support Azure Active Directory authentication. (Azure AD authentication is supported by the .NET Framework Data Provider for SqlServer; at least version .NET Framework 4.6). So, the newest versions of these tools and data-tier applications (DAC and .BACPAC) can use Azure AD authentication.
  • Beginning with version 15.0.1, sqlcmd utility and bcp utility support Active Directory Interactive authentication with MFA.
  • SQL Server Data Tools for Visual Studio 2015 requires at least the April 2016 version of the Data Tools (version 14.0.60311.1). Currently, Azure AD users aren't shown in SSDT Object Explorer. As a workaround, view the users in sys.database_principals.
  • Microsoft JDBC Driver 6.0 for SQL Server supports Azure AD authentication. Also, see Setting the Connection Properties.
  • The Azure Active Directory admin account controls access to dedicated SQL pools, while Synapse RBAC roles are used to control access to serverless pools, for example, the Synapse Administrator role. Configure Synapse RBAC roles via Synapse Studio, for more information, see How to manage Synapse RBAC role assignments in Synapse Studio.
  • If a user is configured as an Azure Active Directory administrator and Synapse Administrator, and then removed from the Azure Active Directory administrator role, then the user will lose access to the dedicated SQL pools in Synapse. They must be removed and then added to the Synapse Administrator role to regain access to dedicated SQL pools.
