HX-series virtual machine overview

Caution

This article references CentOS, a Linux distribution that is nearing End Of Life (EOL) status. Please consider your use and plan accordingly. For more information, see the CentOS End Of Life guidance.

Applies to: ✔️ Linux VMs ✔️ Windows VMs ✔️ Flexible scale sets ✔️ Uniform scale sets

An HX-series server features 2 * 96-core EPYC 9V33X CPUs for a total of 192 physical "Zen4" cores with AMD 3D-V Cache. Simultaneous Multithreading (SMT) is disabled on HX. These 192 cores are divided into 24 sections (12 per socket), each section containing 8 processor cores with uniform access to a 96 MB L3 cache. Azure HX servers also run the following AMD BIOS settings:

Nodes per Socket (NPS) = 2
L3 as NUMA = Disabled
NUMA domains within VM OS = 4
C-states = Enabled

As a result, the server boots with 4 NUMA domains (2 per socket) each 48-cores in size. Each NUMA has direct access to 6 channels of physical DRAM.

To provide room for the Azure hypervisor to operate without interfering with the VM, we reserve 16 physical cores per server.

VM topology

The following diagram shows the topology of the server. We reserve these 16 hypervisor host cores (yellow) symmetrically across both CPU sockets, taking the first 2 cores from specific Core Complex Dies (CCDs) in each NUMA domain, with the remaining cores for the HX-series VM (green).

The CCD boundary is different from a NUMA boundary. On HX, a group of six (6) consecutive CCDs is configured as a NUMA domain, both at the host server level and within a guest VM. Thus, all HX VM sizes expose 4 uniform NUMA domains that will appear to an OS and application as shown below, each with different number of cores depending on the specific HX VM size.

Each HX VM size is similar in physical layout, features, and performance of a different CPU from the AMD EPYC 9004-series, as follows:

HX-series VM size	NUMA domains	Cores per NUMA domain	Similarity with AMD EPYC
Standard_HX176rs	4	44	Dual-socket EPYC 9V33X
Standard_HX176-144rs	4	36	Dual-socket EPYC 9V33X
Standard_HX176-96rs	4	24	Dual-socket EPYC 9V33X
Standard_HX176-48rs	4	12	Dual-socket EPYC 9V33X
Standard_HX176-24rs	4	6	Dual-socket EPYC 9V33X

Note

The constrained cores VM sizes only reduce the number of physical cores exposed to the VM. All global shared assets (RAM, memory bandwidth, L3 cache, GMI and xGMI connectivity, InfiniBand, Azure Ethernet network, local SSD) stay constant. This allows a customer to pick a VM size best tailored to a given set of workload or software licensing needs.

The virtual NUMA mapping of each HX VM size is mapped to the underlying physical NUMA topology. There is no potential misleading abstraction of the hardware topology.

The exact topology for the various HX VM size appears as follows using the output of lstopo:

lstopo-no-graphics --no-io --no-legend --of txt

Click to view lstopo output for Standard_HX176rs

Click to view lstopo output for Standard_HX176-144rs

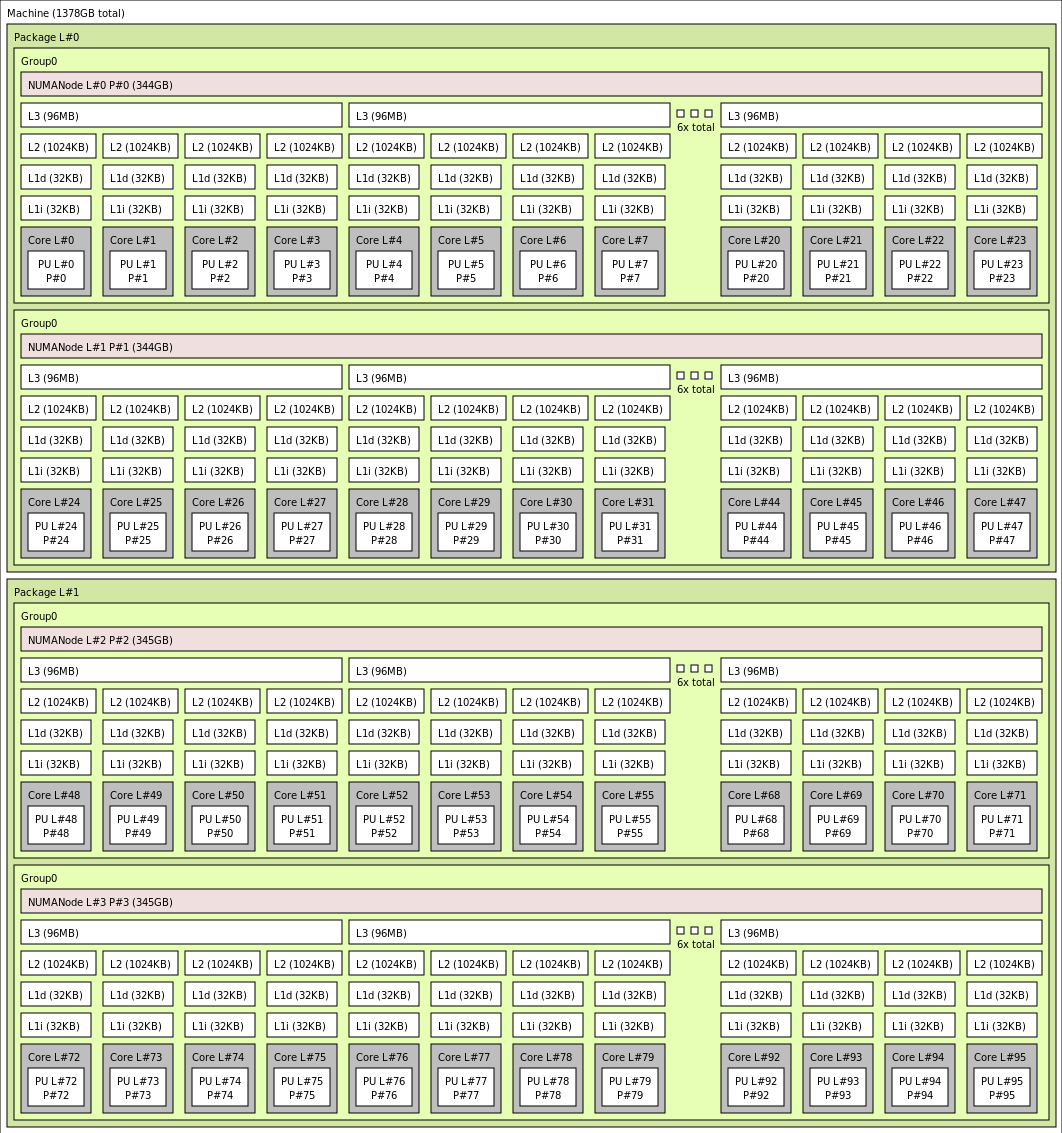

Click to view lstopo output for Standard_HX176-96rs

Click to view lstopo output for Standard_HX176-48rs

Click to view lstopo output for Standard_HX176-24rs

InfiniBand networking

HX VMs also feature NVIDIA Mellanox NDR InfiniBand network adapters (ConnectX-7) operating at up to 400 Gigabits/sec. The NIC is passed through to the VM via SRIOV, enabling network traffic to bypass the hypervisor. As a result, customers load standard Mellanox OFED drivers on HX VMs as they would a bare metal environment.

HX VMs support Adaptive Routing, Dynamic Connected Transport (DCT, in addition to standard RC and UD transports), and hardware-based offload of MPI collectives to the onboard processor of the ConnectX-7 adapter. These features enhance application performance, scalability, and consistency, and usage of them is recommended.

Temporary storage

HX VMs feature 3 physically local SSD devices. One device is preformatted to serve as a page file and it appeared within your VM as a generic "SSD" device.

Two other, larger SSDs are provided as unformatted block NVMe devices via NVMeDirect. As the block NVMe device bypasses the hypervisor, it has higher bandwidth, higher IOPS, and lower latency per IOP.

When paired in a striped array, the NVMe SSD provides up to 12 GB/s reads and 7 GB/s writes, and up to 186,000 IOPS (reads) and 201,000 IOPS (writes) for deep queue depths.

Hardware specifications

Hardware specifications	HX-series VMs
Cores	176, 144, 96, 48, or 24 (SMT disabled)
CPU	AMD EPYC 9V33X
CPU Frequency (non-AVX)	2.4 GHz base, 3.7 GHz peak boost
Memory	1.4 TB (RAM per core depends on VM size)
Local Disk	2 * 1.8 TB NVMe (block), 480 GB SSD (page file)
InfiniBand	400 Gb/s Mellanox ConnectX-7 NDR InfiniBand
Network	80 Gb/s Ethernet (40 Gb/s usable) Azure second Gen SmartNIC

Software specifications

Software specifications	HX-series VMs
Max MPI Job Size	52,800 cores (300 VMs in a single virtual machine scale set with singlePlacementGroup=true)
MPI Support	HPC-X (2.13 or higher), Intel MPI (2021.7.0 or higher), OpenMPI (4.1.3 or higher), MVAPICH2 (2.3.7 or higher), MPICH (4.1 or higher)
Additional Frameworks	UCX, libfabric, PGAS, or other InfiniBand based runtimes
Azure Storage Support	Standard and Premium Disks (maximum 32 disks), Azure NetApp Files, Azure Files, Azure HPC Cache, Azure Managed Lustre File System
Supported and Validated OS	AlmaLinux 8.6, 8.7, Ubuntu 20.04+
Recommended OS for Performance	AlmaLinux HPC 8.7, Ubuntu-HPC 20.04+
Orchestrator Support	Azure CycleCloud, Azure Batch, AKS; cluster configuration options

Note

• These VMs support only Generation 2.
• There is no official kernel level support from AMD on CentOS. Support starts at RHEL 8.6 and a derivative of RHEL which is Alma Linux 8.6.
• Windows Server 2012 R2 is not supported on HX and other VMs with more than 64 (virtual or physical) cores. For more information, see Supported Windows guest operating systems for Hyper-V on Windows Server. Windows Server 2022 is required for 144 and 176 core sizes, Windows Server 2016 also works for 24, 48, and 96 core sizes, Windows Server works for only 24 and 48 core sizes.

Important

Recommended image URN: almalinux:almalinux-hpc:8_7-hpc-gen2:8.7.2023060101, To deploy this image over Azure CLI, ensure the following parameters are included --plan 8_7-hpc-gen2 --product almalinux-hpc --publisher almalinux. For scaling tests please use the recommended URN along with the new HPC-X tarball.

Note

• NDR support is added in UCX 1.13 or later. Older UCX versions will report the above runtime error. UCX Error: Invalid active speed [1677010492.951559] [updsb-vm-0:2754 :0] ib_iface.c:1549 UCX ERROR Invalid active_speed on mlx5_ib0:1: 128.
• Ibstat shows low speed (SDR): Older Mellanox OFED (MOFED) versions do not support NDR and it may report slower IB speeds. Please use MOFED versions MOFED 5.6-1.0.3.3 or above.
