Install AMD GPU drivers on Azure ND MI300X v5 Linux VMs

Applies to: ✔️ Linux VMs

This document outlines the steps for installing and upgrading the AMD Linux Driver on an Azure ND MI300X v5 VM instance.Three key scenarios are covered:

Version Requirements

Note

AMD's ROCm drivers currently only support MI300X on Ubuntu 22.04 with the 5.15 Kernel and ROCm 6.2.2.

  • OS: Ubuntu 22.04
  • Kernel: 5.15
  • ROCm: 6.2.2
  • Secure Boot: Disabled

Using the AzureHPC Marketplace Image is the recommended approach. The image already has the AMD and Infiniband drivers preinstalled. You can deploy either via the CLI or the Azure portal.

Via the CLI (az vm create) specify the image with --image microsoft-dsvm:ubuntu-hpc:2204-rocm:latest.

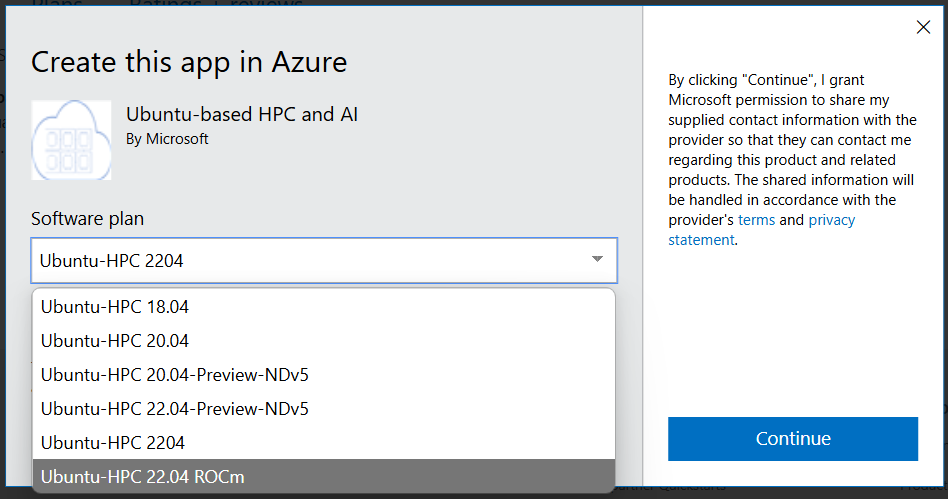

Follow this link to deploy via the Azure portal. Click "Get It Now" and choose "Ubuntu HPC 22.04 ROCm."

Marketplace Image

Installing ROCm in Ubuntu 22.04

Verify Linux Distro

Confirm the system has a supported Linux version. To obtain the Linux distribution information, use the following command:

cat /etc/issue

Output is similar to the following example

# Ubuntu 22.04.5 LTS \n \l

Downgrade Linux Kernel

To check the kernel version of your Linux system, use the following command:

uname -srmv

Output is similar to the following example

# Linux 6.8.0-1026-azure #31~22.04.1-Ubuntu SMP Thu Mar 20 04:12:50 UTC 2025 x86_64

Downgrade to the 5.15 version of the Linux kernel

 sudo apt install -y linux-headers-5.15.0-1073-azure
 sudo apt install -y linux-image-5.15.0-1073-azure

Upgrade the default grub menu option. The HASH is tied to the kernel revision count (XXXX in 5.15.0-XXXX-azure). It can be found in /boot/grub/grub.cfg

sudo sed -i "s|GRUB_DEFAULT=.*|GRUB_DEFAULT='gnulinux-advanced-5cec22f9-d9ef-44de-8258-c171f96f3dc4>gnulinux-5.15.0-1073-azure-advanced-5cec22f9-d9ef-44de-8258-c171f96f3dc4'|g" /etc/default/grub

sudo sed -i 's/^GRUB_CMDLINE_LINUX=.*/GRUB_CMDLINE_LINUX="panic=0 nowatchdog msr.allow_writes=on nokaslr amdgpu.noretry=1 pci=realloc=off console=ttyS0,115200n8 video=astdrmfb video=efifb:off ibt=off"/' /etc/default/grub

sudo update-grub
sudo reboot

*** Important: *** Confirm the downgraded version of your Linux kernel

uname -srmv
# Linux 5.15.0-1073-azure #82-Ubuntu SMP Mon Sep 2 11:36:34 UTC 2024 x86_64

Remove the old kernels

sudo apt purge -y linux-headers-6.*-azure linux-image-6.*-azure

Install the AMDGPU drivers

Device driver installation instructions are provided here

wget https://repo.radeon.com/amdgpu-install/6.2.2/ubuntu/jammy/amdgpu-install_6.2.60202-1_all.deb
sudo apt install ./amdgpu-install_6.2.60202-1_all.deb
sudo amdgpu-install --usecase=rocm

Confirm the AMDGPU driver version

cat /opt/rocm/.info/version
# 6.2.2-116

Load the AMDGPU driver

Add yourself to the render and video group using the following command

sudo modprobe -r hyperv_drm
sudo modprobe  amdgpu ip_block_mask=0x7f

Verify the GPU driver installation with rocm-smi:

============================================ ROCm System Management Interface ============================================
====================================================== Concise Info ======================================================
Device  Node  IDs              Temp        Power     Partitions          SCLK    MCLK    Fan  Perf  PwrCap  VRAM%  GPU%
              (DID,     GUID)  (Junction)  (Socket)  (Mem, Compute, ID)
==========================================================================================================================
0       2     0x74b5,   65402  49.0°C      160.0W    NPS1, N/A, 0        131Mhz  900Mhz  0%   auto  750.0W  0%     0%
1       3     0x74b5,   27175  50.0°C      160.0W    NPS1, N/A, 0        132Mhz  900Mhz  0%   auto  750.0W  0%     0%
2       4     0x74b5,   16561  47.0°C      155.0W    NPS1, N/A, 0        131Mhz  900Mhz  0%   auto  750.0W  0%     0%
3       5     0x74b5,   54764  47.0°C      160.0W    NPS1, N/A, 0        131Mhz  900Mhz  0%   auto  750.0W  0%     0%
4       6     0x74b5,   10760  46.0°C      160.0W    NPS1, N/A, 0        131Mhz  900Mhz  0%   auto  750.0W  0%     0%
5       7     0x74b5,   48981  49.0°C      163.0W    NPS1, N/A, 0        132Mhz  900Mhz  0%   auto  750.0W  0%     0%
6       8     0x74b5,   32548  45.0°C      156.0W    NPS1, N/A, 0        131Mhz  900Mhz  0%   auto  750.0W  0%     0%
7       9     0x74b5,   60025  50.0°C      160.0W    NPS1, N/A, 0        131Mhz  900Mhz  0%   auto  750.0W  0%     0%
==========================================================================================================================
================================================== End of ROCm SMI Log ===================================================

Upgrading ROCm in Ubuntu 22.04

Remove the amdgpu kernel module and uninstall rocm.

modprobe -r amdgpu
sudo amdgpu-uninstall

Follow the instructions to install the AMDGPU drivers to install the new drivers.
