This article describes common issues with Azure Virtual Network Manager (AVNM) and provides solutions to help you quickly troubleshoot and resolve them.
Configuration changes aren't applied
These issues can prevent your configuration changes from being applied:
The configuration isn't applied to the regions where virtual networks are located
Check the regions where the virtual networks are located. The configuration only applies to the regions where the virtual networks are located. If you have a virtual network in a region that isn't included in the configuration, the configuration isn't applied to that virtual network.
To resolve this issue, add the region where the virtual network is located to the configuration.
I deployed a configuration in the Azure portal, but the status still shows as “Not deployed”. Did my deployment fail?
Not necessarily. After a deployment or configuration commit completes, the status updates in the portal can take time. To see the correct, updated status, manually refresh the portal page or wait. The status should then reflect the actual deployment state.
Configuration isn't deployed
You need to deploy the configuration after you create or modify it. The configuration is only applied to the virtual networks after you deploy it.
To resolve this issue, deploy the configuration after you create or modify it.
Configuration changes didn't have enough time to apply
You need to wait for the configuration changes to apply. The base time to apply a configuration after you commit it is a few minutes. The time to update network group membership varies by membership type: manually added members update immediately, conditionally added members in environments with fewer than 1,000 subscriptions update within a few minutes, and conditionally added members in environments with more than 1,000 subscriptions are notified by Azure Policy within a 24-hour window, after which the configuration applies in a few minutes. For more information, see Deployment latency and timing.
Updated configuration changes don't appear in Azure Virtual Network Manager
You need to deploy the new configuration after you modify the configuration.
Connectivity configuration isn't working as expected
Here are common reasons why your connectivity configuration isn't working as expected:
The virtual network peering creation fails
In a hub-spoke topology, if you enable the option to use the hub as a gateway, you need to have a gateway in the hub virtual network. Otherwise, the creation of the virtual network peering between the hub and the spoke virtual networks fails.
Members in the network group can't communicate with each other
If you want members in the network group to communicate with each other across regions in a hub and spoke topology configuration, you need to enable the global mesh option.
Resource group creation fails
When you deploy network manager configurations by using Azure Virtual Network Manager, the service creates a managed resource group to host AVNM-managed resources. In certain cases, Azure Policy assignments can cause this process to fail.
Why does resource group creation fail?
Policy restrictions can cause resource group creation to fail. If your subscription enforces policies requiring specific tags or other constraints, AVNM can't create the resource group automatically. For example, a policy that mandates a tag on every resource group blocks AVNM's resource group creation.
How to resolve resource group creation failures
You have two options to resolve resource group creation failures:
Option 1: Update policy
- Temporarily adjust the policy to allow AVNM to create the resource group.
- After deployment, revert the policy if needed.
Option 2: Manual resource group creation
If policy changes aren't possible, you can manually create the resource group and recommit the AVNM configuration.
- Create a resource group in the target subscription.
- Use the required naming convention of
AVNM_Managed_ResourceGroup_<subscriptionId>for resource group creation. - Apply all mandatory tags and settings to comply with your policies.
- Recommit the AVNM configuration.
Best practices for resource group creation
To avoid issues with resource group creation in AVNM, consider the following best practices:
- Review your Azure Policy assignments before onboarding AVNM.
- Document internal tag requirements and ensure they align with AVNM's managed resource group process.
- Keep the naming convention consistent across all subscriptions.
High scale private endpoints aren't working
To use high scale private endpoints in a mesh topology, you need to enable the high scale private endpoint feature for each virtual network in the configuration.
How to identify inactive virtual networks for high scale private endpoints

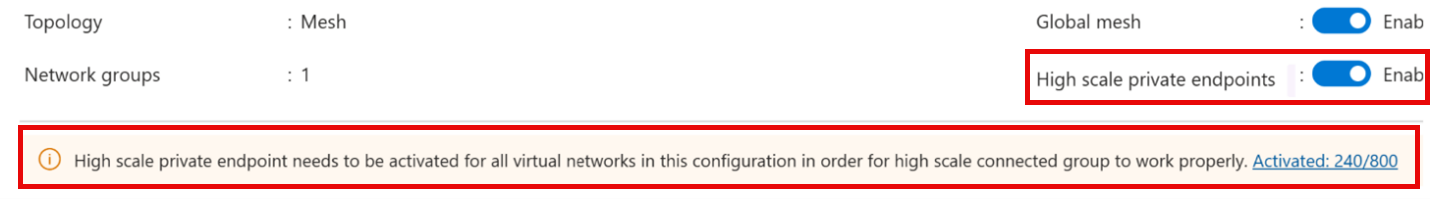

The portal interface highlights which virtual networks are inactive for high scale private endpoints. This indication appears only when the high scale private endpoint feature is enabled.
For information on how to enable high scale private endpoints, see Enable high-scale private endpoints in Azure Virtual Network Manager connected groups.
