Security admin rules in Azure Virtual Network Manager (Preview)

Azure Virtual Network Manager provides two different types of configurations you can deploy across your virtual networks, one of them being a SecurityAdmin configuration. A security admin configuration contains a set of rule collections. Each rule collection contains one or more security admin rules. You then associate the rule collection with the network groups that you want to apply the security admin rules to.

Important

Azure Virtual Network Manager is currently in public preview. This preview version is provided without a service level agreement, and it's not recommended for production workloads. Certain features might not be supported or might have constrained capabilities. For more information, see Supplemental Terms of Use for Microsoft Azure Previews.

Security admin rules

A security admin rule allows you to enforce security policy criteria that matches the conditions set. You can only define security administrative rules for resources within the scope of the Azure Virtual Network Manager instance. These security rules have a higher priority than network security group (NSG) rules and will get evaluated before NSG rules. Also note that security admin rules don't change your NSG rules.

The order of evaluation

Security admin rules are evaluated before NSG rules. Depending on the type of security admin rule you create, they can interact differently with NSG rules. When this happens, organizations can set enforced security policies alongside the teams' NSGs that address their own use cases. The diagram below illustrates the order of evaluation of traffic.

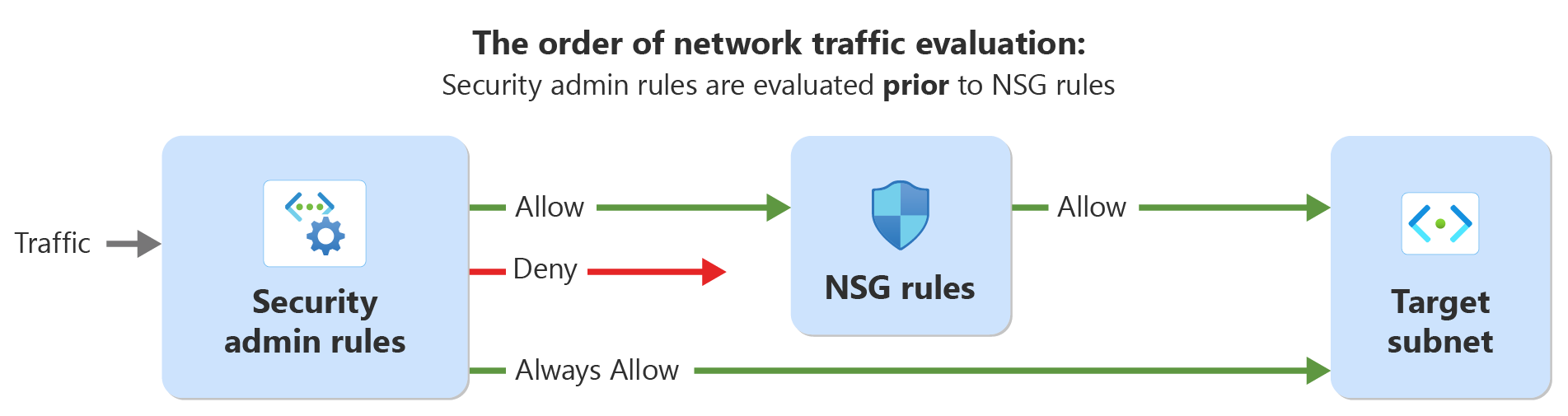

Diagram showing order of evaluation for network traffic with security admin rules and network security rules.

There are three kinds of actions – Allow, Always Allow, and Deny. If you create a security admin rule to Allow a certain type of traffic, then this rule will be evaluated first. When the traffic is allowed by a security admin rule, it will be further evaluated by NSG rules. This means it leaves room for NSG rules down the line to handle this type of traffic differently as needed. If you create a security admin rule to Always Allow or Deny a certain type of traffic, then this rule will be evaluated first, and it will terminate the NSG evaluation of this traffic – meaning the evaluation is stopped. If the security admin rule is Always Allow, the traffic won't hit NSGs, and instead deliver directly to VMs or other resource. This can be useful when administrators want to enforce some traffic to be not denied by NSG rules. For example, administrators may want to force the organization to consume software updates from certain ports. When Deny is used, evaluation and therefore traffic is stopped without being delivered to the destination. This means that you can use security admin rules to set definitive security rules that can't be overridden by others. Security admin rules don't depend on NSGs in order to exist. This means that administrators can use security admin rules to create default security rules. Even if application owners misconfigured or forgot to establish NSGs, your organization is protected by default!

Management at scale

When you apply a security admin configuration to a network group – a collection of VNets that were selected either manually or conditionally – then all of the resources in the selected network groups’ VNets have those security admin rules applied to them, regardless a network group contains dozens or hundreds of VNets matters not, since a security admin configuration would apply its rules to all the VNets in the selected network groups. This protection encapsulates not only existing resources, but extends even to new resources. If you add new VMs to a VNet that belongs to a network group that has a security admin configuration applied on it, then those VMs will automatically be secured as well. In effect, security admin rules protect your resources from day zero. As soon as your resources are provisioned, they'll fall under the protection of security admin rules. Then, if new security risks are identified, new security admin rules can still protect your resources at scale. You can create security admin rules to protect against the new risk, then apply them to network groups – essentially, hundreds of VNets at once.

Protect high-risk ports

Based on the industry study and suggestions from Microsoft, below is what we recommend customers restrict the traffic from outside using security admin rules. These ports are often used for the management of resources or unsecure/unencrypted data transmission and shouldn't be exposed to the internet. However, there are times when certain virtual networks and their resources will need to allow traffic for management or other processes. You can create exceptions where needed. Learn how to blocking high-risk ports with exceptions for these types of scenarios.

Port Protocol Description
20 TCP Unencrypted FTP Traffic
21 TCP Unencrypted FTP Traffic
22 TCP SSH. Potential brute force attacks
23 TCP TFTP allows unauthenticated and/or unencrypted traffic
69 UDP TFTP allows unauthenticated and/or unencrypted traffic
111 TCP/UDP RPC. Unencrypted authentication allowed
119 TCP NNTP for unencrypted authentication
135 TCP/UDP End Point Mapper, multiple remote management services
161 TCP SNMP for unsecure / no authentication
162 TCP/UDP SNMP Trap - unsecure / no authentication
445 TCP SMB - well known attack vector
512 TCP Rexec on Linux - remote commands without encryption authentication
514 TCP Remote Shell - remote commands without authentication or encryption
593 TCP/UDP HTTP RPC EPMAP - unencrypted remote procedure call
873 TCP Rsync - unencrypted file transfer
2049 TCP/UDP Network File System
3389 TCP RDP - Common brute force attack port
5800 TCP VNC Remote Frame Buffer over HTTP
5900 TCP VNC Remote Frame Buffer over HTTP
11211 UDP Memcached

Security admin rules vs. NSGs

Security admin rules are similar to NSG rules in structure and the parameters they intake, but as we’ve explored so far, they’re not the exact same construct. The first difference is intended audience – admin rules are intended to be used by network admins of a central governance team, thereby delegating NSG rules to individual application or service teams to further specify security as needed. With these intentions, admin rules were designed to have a higher priority than NSGs and therefore be evaluated before NSG rules. Admin rules also include another action type of “Always Allow”, which allows the specified traffic through to its intended destination and terminates further (and possibly conflicting) evaluation by NSGs rules. Admin rules are also applied not only to a network group’s existing VNets but also to newly provisioned resources, as described in the previous section. Admin rules are currently applied at the VNet level, whereas NSGs can be associated at the subnet and NIC level. The table below shows these differences and similarities:

Rule Type Target Audience Applied On Evaluation Order Action Types Parameters
Security Admin Rules Network admins, central governance team Virtual networks Higher priority Allow, Deny, Always Allow Priority, protocol, action, source, destination
NSG Rules Individual teams Subnets, NICs Lower priority, after security admin rules Allow, Deny Priority, protocol, action, source, destination

Network intent policies and security admin rules

A network intent policy is applied to some network services to ensure the network traffic is working as needed for these services. By default, deployed security admin rules aren't applied on virtual networks with services that use network intent policies such as SQL managed instance service. If you deploy a service in a virtual network with existing security admin rules, those security admin rules will be removed from those virtual networks.

If you need to apply security admin rules on virtual networks with services that use network intent policies, contact AVNMFeatureRegister@microsoft.com to enable this functionality. Overriding the default behavior described above could break the network intent policies created for those services. For example, creating a deny admin rule can block some traffic allowed by the SQL managed instance service, which is defined by their network intent policies. Make sure to review your environment before applying a security admin configuration. For an example of how to allow the traffic of services that use network intent policies, see How can I explicitly allow SQLMI traffic before having deny rules

Security admin fields

When you define a security admin rule, there are required and optional fields.

Required fields

Priority

Security rule priority is determined by an integer between 0 and 99. The lower the value the higher the priority of the rule. For example, a deny rule with a priority of 10 override an allow rule with a priority of 20.

Action

You can define one of three actions for a security rule:

Action Description
Allow Allows traffic on the specific port, protocol, and source/destination IP prefixes in the specified direction.
Deny Block traffic on the specified port, protocol, and source/destination IP prefixes in the specified direction.
Always allow Regardless of other rules with lower priority or user-defined NSGs, allow traffic on the specified port, protocol, and source/destination IP prefixes in the specified direction.

Direction

You can specify the direction of traffic for which the rule applies. You can define either inbound or outbound.

Protocol

Protocols currently supported with security admin rules are:

  • TCP
  • UDP
  • ICMP
  • ESP
  • AH
  • Any protocols

Optional fields

Source and destination types

  • IP addresses: You can provide IPv4 or IPv6 addresses or blocks of address in CIDR notation. To list multiple IP address, separate each IP address with a comma.
  • Service Tag: You can define specific service tags based on regions or a whole service. See Available service tags, for the list of supported tags.

Source and destination ports

You can define specific common ports to block from the source or to the destination. See below for a list of common TCP ports:

Ports Service name
20, 21 FTP
22 SSH
23 Telnet
25 SMTP
53 DNS
80 HTTP
443 HTTPS
3389 RDP

Next steps

Learn how to block network traffic with a SecurityAdmin configuration.
