Selective inspection with Azure Firewall

Note

This article applies to secure Virtual WAN hubs that use static routes to route traffic to Azure Firewall. Custom bypass scenarios are not supported when using routing intent.

Scenario overview

This design pattern describes scenarios in a secure Virtual WAN hub where certain traffic flows bypass Azure Firewall inspection, while other traffic continues to be inspected by Azure Firewall.

These scenarios are useful when you need selected traffic between two virtual networks, or between on-premises and specific virtual networks, to route directly instead of traversing Azure Firewall.

Virtual Network to Virtual Network selective inspection

This design pattern allows trusted virtual networks to communicate directly, while all other traffic between branches and untrusted virtual networks is routed through Azure Firewall.

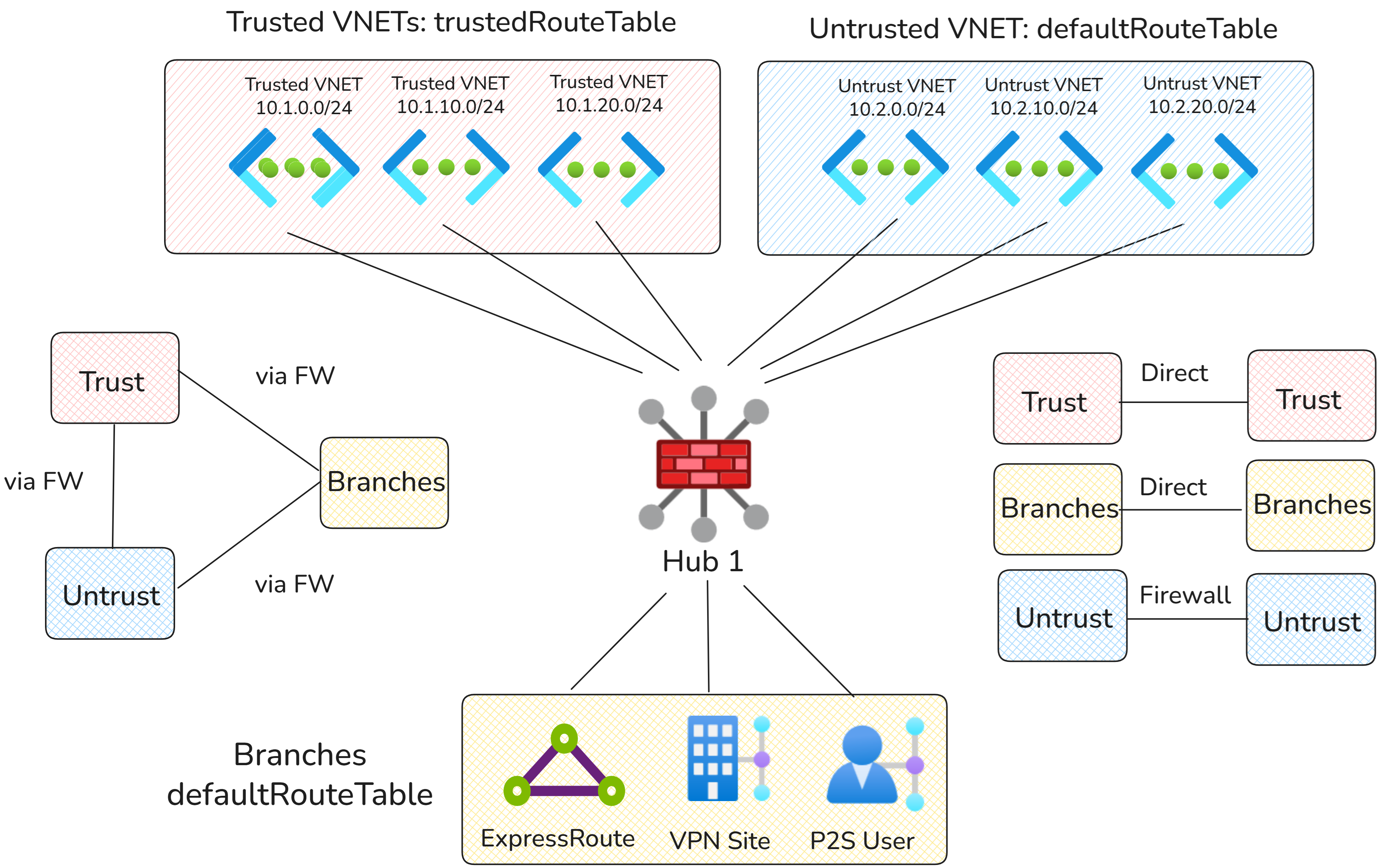

Network diagram

In the diagram above, virtual networks are split into two types:

• Trusted Virtual Networks: Trusted virtual networks are part of one domain that can communicate directly.
• Untrusted Virtual Networks: Traffic within the untrusted domain, and traffic between the trusted and untrusted domains, requires inspection with Azure Firewall.

Traffic flows

Source	Trusted Virtual Networks	Untrusted Virtual Networks	Branches
Trusted Virtual Networks	Direct via Virtual WAN hub router	Via Azure Firewall	Via Azure Firewall
Untrusted Virtual Networks	Via Azure Firewall	Via Azure Firewall	Via Azure Firewall
Branches	Via Azure Firewall	Via Azure Firewall	Via Azure Firewall

Configuration

Virtual WAN route tables

Route table name	Associated connections	Reasoning
defaultRouteTable	Branches and untrusted virtual networks	Used by connections to forward traffic to Azure Firewall, including branch traffic and all traffic to or from untrusted virtual networks. No connections propagate to this route table to ensure traffic is inspected by Azure Firewall.
trustedRouteTable	Trusted virtual networks	Used to keep trusted virtual networks in a separate route table, routing trusted-to-trusted traffic directly and bypass Azure Firewall inspection.

Virtual WAN routing configuration

Connection	Associated route table	Propagated route table	Reasoning
Trusted virtual networks	trustedRouteTable	trustedRouteTable	Trusted virtual networks associate and propagate to a dedicated route table so trusted-to-trusted traffic can bypass Azure Firewall.
Untrusted virtual networks	defaultRouteTable	noneRouteTable	Untrusted virtual networks can only be reached via Azure Firewall.
Branches	defaultRouteTable	noneRouteTable	Branch traffic must be routed via Azure Firewall.

Static routes

Route table	Address prefix	Next hop	Reasoning
trustedRouteTable	10.0.0.0/8, 192.168.0.0/16, 172.16.0.0/12	Azure Firewall	Virtual WAN advertises trusted Virtual Networks ranges to other trusted Virtual Networks (allowing for Firewall bypass). All other traffic is routed via Azure Firewall.
defaultRouteTable	10.0.0.0/8, 192.168.0.0/16, 172.16.0.0/12	Azure Firewall	All branch and untrusted Virtual Networks utilize static routes to route all traffic to Azure Firewall for inspection.

On-premises to Virtual Network selective inspection

This design pattern builds on the previous design by allowing branches to directly access trusted virtual networks. All other traffic patterns remain the same.

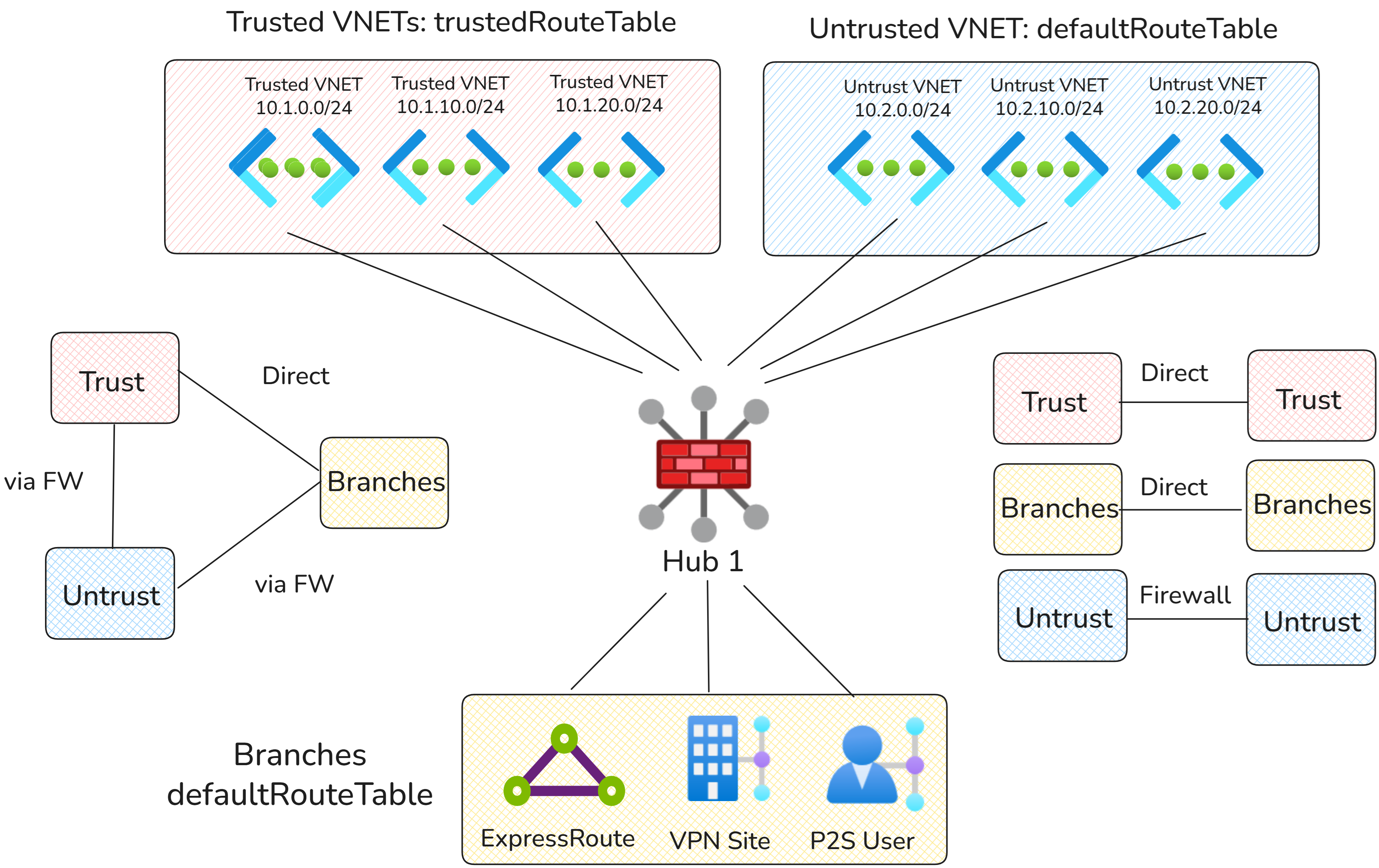

Network diagram

As before, virtual networks are split into two types:

• Trusted Virtual Networks: Trusted virtual networks are part of one domain that on-premises connections can communicate with directly.
• Untrusted Virtual Networks: Traffic from on-premises to untrusted virtual networks requires inspection with Azure Firewall.

Traffic flows

Note

Because all on-premises connections must associate and propagate to the same route tables, all on-premises connections must send traffic to trusted or untrusted virtual networks through the same routing path. On-premises connection-level traffic customization isn't supported.

Source	Trusted Virtual Networks	Untrusted Virtual Networks	Branches
Trusted Virtual Networks	Direct via Virtual WAN hub router	Via Azure Firewall	Direct
Untrusted Virtual Networks	Via Azure Firewall	Via Azure Firewall	Via Azure Firewall
Branches	Direct via Virtual WAN hub router to trusted Virtual Networks, otherwise via Azure Firewall	Via Azure Firewall	Direct

Configuration

Virtual WAN route tables

Route table name	Associated connections	Reasoning
defaultRouteTable	Branches and untrusted virtual networks	Used by connections that must forward traffic to Azure Firewall, including branch traffic to untrusted virtual networks and all traffic to or from untrusted virtual networks.
trustedRouteTable	Trusted virtual networks	Used by trusted virtual networks to forward traffic directly to other trusted virtual networks and on-premises.

Virtual WAN routing configuration

Connection	Associated route table	Propagated route table	Reasoning
Trusted virtual networks	trustedRouteTable	trustedRouteTable, defaultRouteTable	Trusted virtual networks associate with and propagate to trustedRouteTable so trusted virtual networks can communicate directly. Trusted virtual networks also propagate to defaultRouteTable so branches can reach trusted virtual networks directly.
Untrusted virtual networks	defaultRouteTable	noneRouteTable	Untrusted virtual networks can only be reached via Azure Firewall.
Selected branches	defaultRouteTable	trustedRouteTable, defaultRouteTable	Branch connections must associate to defaultRouteTable. Branches propagate to the trusted route table so branch-to-trusted-virtual-network traffic bypasses Azure Firewall.

Static routes

Route table	Address prefix	Next hop	Reasoning
trustedRouteTable	10.0.0.0/8, 192.168.0.0/16, 172.16.0.0/12	Azure Firewall	Virtual WAN advertises more specific routes for Virtual Network trusted prefixes and on-premises to trusted spokes. All other traffic is routed to Azure Firewall using static routes.
defaultRouteTable	10.0.0.0/8, 192.168.0.0/16, 172.16.0.0/12	Azure Firewall	All traffic for untrusted virtual networks and non-bypassed branch connectivity is routed to Azure Firewall for inspection.
