This article helps you use the Route-maps feature to prepend routes using the Azure portal. For more information about Virtual WAN Route-maps, see About Route-maps.
Prerequisites
Verify that you have met the following criteria before beginning your configuration:
You have virtual WAN (VWAN) with a connection (S2S, P2S, or ExpressRoute) already configured.
- For steps to create a VWAN with a S2S connection, see Tutorial - Create a S2S connection with Virtual WAN.
- For steps to create a virtual WAN with a P2S User VPN connection, see Tutorial - Create a User VPN P2S connection with Virtual WAN.
Be sure to view About Route-maps for considerations and limitations before proceeding with configuration steps.
Design
In this situation, we have two hubs. Hub 1 has 2 VNets and a VPN branch office. One of the VNets has an NVA (network virtual appliance) peered with the hub. Hub 2 also has 2 VNets and a VPN branch office.
Here's the addressing for this environment:
| Resource | Address Space |
|---|---|
| Hub 1 | 192.168.1.0/24 |
| Hub 2 | 192.168.2.0/24 |
| Virtual network 1 | 10.1.0.0/24 |
| Virtual network 2 | 10.2.0.0/24 |
| Virtual network 3 | 10.3.0.0/24 |
| Virtual network 4 | 10.4.0.0/24 |
| VPN Branch 1 | 10.122.1.0/24, 10.122.2.0/24, 10.122.3.0/24, 10.100.0.0/16 |
| VPN Branch 2 | 10.200.0.0/16 |
| NVA 1 | 10.150.1.0/24, 10.150.2.0/24, 10.150.3.0/24, 10.150.4.0/24 |
Scenario: Using ASNs to prepend routes
In this scenario, the goal is to prepend route 10.5.0.192/26 from virtual network 3 on Hub 2 with ASN 65533.
Important
When using Route-maps, don't use private ASNs (Autonomous System Numbers) for AS prepending. If you're using ExpressRoute, the gateway strips private ASNs.
Don't use ASNs reserved by Azure for AS prepending:
Public ASNs: 8074, 8075, 12076
Private ASNs: 65515, 65517, 65518, 65519, 65520
Workflow

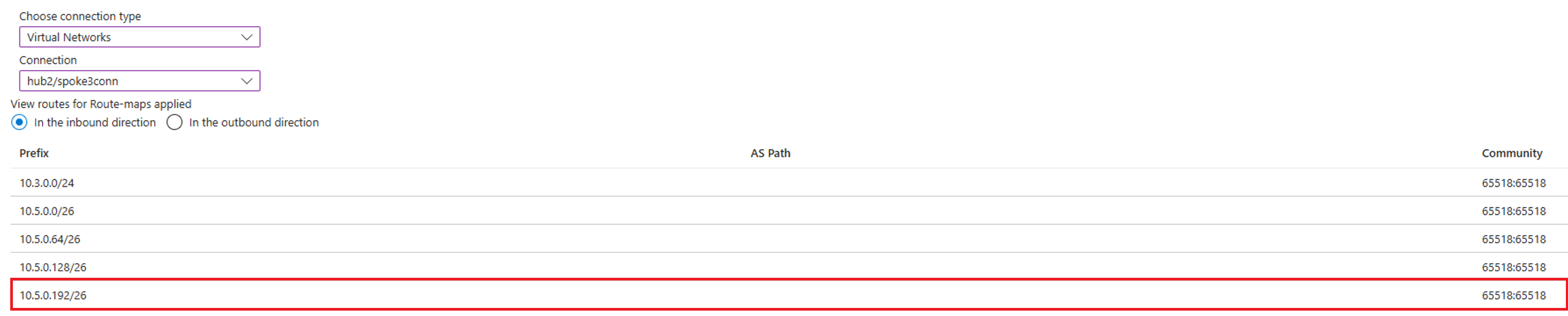

Use the Route-Map dashboard in hub 2 to verify the ASNs on routes are being advertised from the virtual network connection.
Look at the Route-Map dashboard for the VPN branch 2 to verify the ASNs for route 10.5.0.192/26 that are being sent to the branch office.
Create a Route-Map to tag the route. If this is your first time creating a Route-Map, see How to configure Route-maps for more information.
The Route-Map will have a match rule for route 10.5.0.192/26. The action modify will be selected. Route Modification has a Prepend for AS Path 65533.
Apply the Route-Map on the virtual network 3 connection. The Route-Map will be applied in the inbound direction.
Using the Route-Map dashboard in Hub 2, Verify that route 10.5.0.192/26 has an ASN of 65533 added.
look at the Route-Map dashboard for VPN branch 2 connection to verify route 10.5.0.192/26 has the ASNs 65533 advertised to VPN branch 2.
Next steps
- Use the Route-maps dashboard to monitor routes, AS Path, and BGP communities.
- To learn more about Route-maps, see About Route-maps.
