Translate SAP query parameters into EXECQUERY command

  • Article

Explains how the parameters of a query translate into an EXECQUERY command text. This topic uses the example of a custom SAP query, ZQUERY_TST_NEW.

Open the Query in SAP GUI

Perform the following steps to open the query in SAP. The steps provided here are for ZQUERY_TST_NEW query and are specific to SAP versions.

  1. Run the transaction SQ01.

  2. In the Query from User Group page, click Quick Viewer.

  3. In the Quick Viewer page, in the Quick View text box, type ZQUERY_TST_NEW, and then click Display.

  4. In the Quick Viewer page, click the Selection fields tab to list all the parameters in the query.

    The following figure shows all the parameters in the query definition.

    List of parameters for an SAP query

  5. Click Execute. The following page is displayed.

    Provide parameter values for an SAP query

  6. Click the yellow arrows to define each parameter. You can either define specific allowable/non-allowable values or you can define a range of allowable/non-allowable values. The EXECQUERY syntax must be specified based on the values configured in the SAP GUI for each parameter.

    The next section provides an explanation about how the values are defined in the SAP GUI and how those values translate to EXECQUERY syntax.

Frame an EXECQUERY Syntax

Let’s look at what the EXECQUERY syntax looks like based on the parameter values defined in the query definition. To understand this, we’ll show examples of how the values configured for the first parameter, Two digit number, translate to the ZQUERY_TST_NEW query.

First, let’s assume the values in the Single vals tab (with a green dot) are defined as shown in the following screenshot:

List of parameter values that a query can take

Note

This dialog box appears after you click the yellow arrow against the Two digit number parameter.

In such a case, the EXECQUERY syntax looks like:

EXECQUERY ZQUERY_TST_NEW @USERGROUP='mygroup', @P1 = '2', @P1 = '3', @P1 = '5'

For the same query, in addition to the values in the Single vals tab (with a green dot), you can also have the values in the Single vals tab (with a red dot) defined as following:

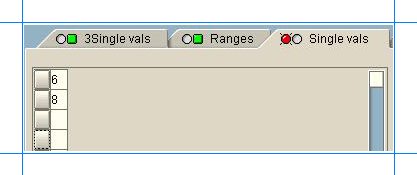

List of parameter values that a query cannot take

In such a case, EXECQUERY syntax looks like:

EXECQUERY ZQUERY_TST_NEW @USERGROUP='mygroup', @P1 = '2', @P1 = '3', @P1 = '5', NOT @P1 = '6', NOT @P1 = '8'

Now, if you add values to the Ranges tab (with a green dot), like shown in the following screenshot:

Range of parameter values that a query can take

the EXECQUERY syntax looks like:

EXECQUERY ZQUERY_TST_NEW @USERGROUP='mygroup', @P1 = '2', @P1 = '3', @P1 = '5', NOT @P1 = '6', NOT @P1 = '8', @P1 BETWEEN '2' and '5'

Similarly, if you add values to the Ranges tab (with a red dot), like shown in the following screenshot:

Range of parameter values that a query cannot take

the EXECQUERY syntax looks like:

EXECQUERY ZQUERY_TST_NEW @USERGROUP='mygroup', @P1 = '2', @P1 = '3', @P1 = '5', NOT @P1 = '6', NOT @P1 = '8', @P1 BETWEEN '2' and '5', NOT @P1 BETWEEN '6' AND '8'

For simplicity and understanding, this topic only talks about the first parameter, Two digit number. You can use similar methods to determine how values defined for other parameters translate into an EXECQUERY syntax.
