Tutorial: Debug a CMake project on a remote Windows machine

This tutorial uses Visual Studio C++ on Windows to create and build a CMake project that you can deploy and debug on a remote Windows machine. The tutorial is specific to Windows ARM64, but the steps can be generalized for other architectures.

In Visual Studio, the default debugging experience for ARM64 is remote debugging an ARM64 Windows machine. Configure your debug settings as shown in this tutorial. Otherwise, when you try to debug an ARM64 CMake project, you'll get an error that Visual Studio can't find the remote machine.

In this tutorial, you'll learn how to:

  • create a CMake project
  • configure a CMake project to build for ARM64
  • configure a CMake project to run on a remote ARM64 Windows machine
  • debug a CMake project running on a remote ARM64 Windows machine

Prerequisites

On the host machine

To set up Visual Studio for cross-platform C++ development, install the build tools for the target architecture. For this tutorial, install the ARM64 build tools by doing these steps:

  1. Run the Visual Studio Installer. If you haven't installed Visual Studio yet, see Install Visual Studio
  2. On the Visual Studio Installer home screen, choose Modify.
  3. From the choices at the top, choose Individual components.
  4. Scroll down to the Compilers, build tools, and runtimes section.
  5. Ensure that the following are selected:
    • C++ CMake tools for Windows
    • MSVC v142 - VS 2019 C++ ARM64 build tools (Latest) It's important that you choose the ARM64 build tools and not the ARM build tools (look for the 64) and that you choose the version that goes with VS 2019.
  6. Select Modify to install the tools.

On the remote machine

  1. Install the remote tools on the remote machine. For this tutorial, install the ARM64 tools by following the instructions in Download and Install the remote tools.
  2. Start and configure the remote debugger on the remote machine. For this tutorial, do so by following the directions in set up the remote debugger on the remote Windows machine.

Create a CMake project

On the Windows host machine:

  1. Run Visual Studio
  2. From the main menu, select File > New > Project.
  3. Select CMake Project > Next
  4. Give the project a name and choose a location. Then select Create.

Give Visual Studio a few moments to create the project and populate the Solution Explorer.

Configure for ARM64

To target an ARM64 Windows machine, you need to build using ARM64 build tools.

Select the Visual Studio Configuration dropdown and select Manage Configurations.

Choose Manage Configurations in the Visual Studio configurations drop-down.

Add a new configuration by selecting Add a new configuration (the green + button).
In the CMakeSettings dialog that appears, select arm64-debug, and then choose Select:

Add arm64-debug configuration.

This command adds a debug configuration named arm64-Debug to your CmakeSettings.json file. This configuration name is a unique, friendly name that makes it easier for you to identify these settings in the Configuration dropdown.

The Toolset dropdown is set to msvc_arm64_x64. Your settings should now look like this:

CMake settings dialog.

Note

In the Toolset dropdown, msvc_arm64 selects 32-bit host tools to cross-compile to ARM64, whereas msvc_arm64 x64 selects 64-bit host tools to cross-compile to ARM64, which is what you'll do in this tutorial. For more information about the available toolset environments, see Pre-defined environments.

Save the CMakeSettings.json file. In the configuration dropdown, select arm64-debug. (It may take a moment after saving the CMakeSettings.json file for it to appear in the list):

Ensure that arm64-debug is selected in the Visual Studio configurations drop-down.

Add a debug configuration file

Next, add configuration information that tells Visual Studio where to find your remote machine, along with other configuration details.

Change the Solution Explorer view to targets view by selecting the Switch Views button:

Solution explorer switch view button.

Then, in the Solution Explorer, double-click CMake Targets View to see the project.

Open the project folder (in this example, CMakeProject3 Project), and then right-click the executable and select Add Debug Configuration:

Select add debug configuration.

This command creates a launch.vs.json file in your project. Open it and change the following entries to enable remote debugging:

  • projectTarget: this value is set for you if you added the debug configuration file from the Solution Explorer targets view per the instructions above.
  • remoteMachineName: set to the IP address of the remote ARM64 machine, or its machine name.

For more information about launch.vs.json settings, see launch.vs.json schema reference.

Note

If you're using the folder view instead of the targets view in Solution Explorer, right-click the CMakeLists.txt file and select Add Debug Configuration. This experience differs from adding the debug configuration from the targets view in the following ways:

  • You'll be asked to select a debugger (select C/C++ Remote Windows Debug).
  • Visual Studio will provide less configuration template information in the launch.vs.json file so you'll need to add it yourself. You'll need to provide the remoteMachineName and projectTarget entries. When you add the configuration from the targets view, you only need to specify remoteMachineName.
  • For the projectTarget setting value, check the startup item dropdown to get the unique name of your target, for example, in this tutorial it is CMakeProject3.exe'.

Start the remote debugger monitor on the remote Windows machine

Before you run your CMake project, ensure that the Visual Studio 2019 remote debugger is running on the remote Windows machine. You may need to change the remote debugger options depending on your authentication situation.

For example, on the remote machine, from the Visual Studio Remote Debugger menu bar, select Tools > Options. Set the authentication mode to match how your environment is set up:

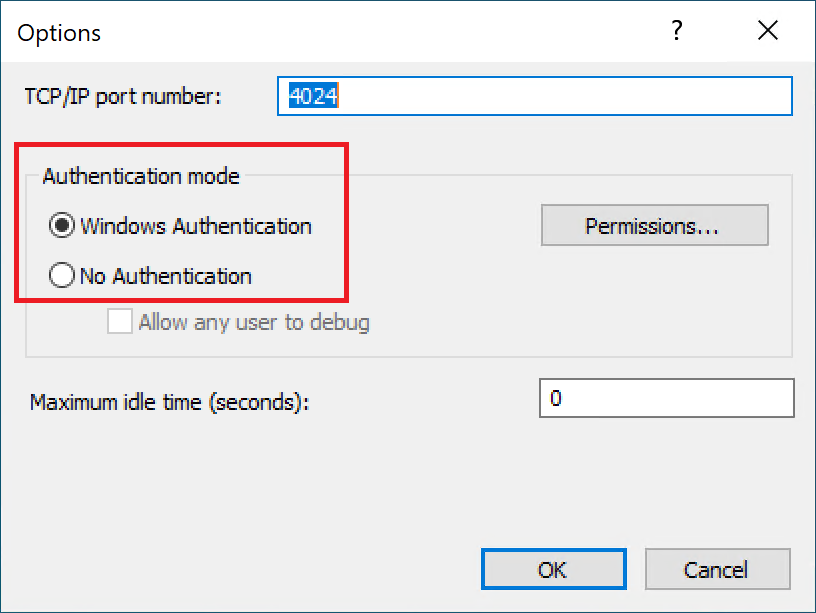

Remote debugger authentication options.

Then, in Visual Studio on the host machine, update the launch.vs.json file to match. For example, if you choose No Authentication on the remote debugger, update the launch.vs.json file in your project by adding "authenticationType": "none" to the configurations section launch.vs.json. Otherwise, "authenticationType" defaults to "windows" and doesn't need to be explicitly stated. This example shows a launch.vs.json file configured for no authentication:

{
  "version": "0.2.1",
  "defaults": {},
  "configurations": [
    {
        "type": "remoteWindows",
        "authenticationType": "none"
        "name": "CMakeLists.txt",
        "project": "CMakeLists.txt",
        "projectTarget": "CMakeProject3.exe",
        "remoteMachineName": "<ip address goes here>",
        "cwd": "${debugInfo.defaultWorkingDirectory}",
        "program": "${debugInfo.fullTargetPath}",
        "deploy": [],
        "args": [],
        "env": {}
    },
    {
      "type": "default",
      "project": "CMakeLists.txt",
      "projectTarget": "CMakeProject3.exe",
      "name": "CMakeProject3.exe"
    }
  ]
}

Debug the app

On the host machine, in the Visual Studio Solution Explorer, open the CPP file for your CMake project. If you're still in CMake Targets View, you'll need to open the (executable) node to see it.

The default CPP file is a simple hello world console app. Set a breakpoint on return 0;.

On the Visual Studio toolbar, use the Startup Item dropdown to select the name you specified for "name" in your launch.vs.json file:

Example startup item dropdown with CMakeProject3.exe selected.

To start debugging, on the Visual Studio toolbar choose Debug > Start Debugging (or press F5).

If it doesn't start, ensure that the following are set correctly in the launch.vs.json file:

  • "remoteMachineName" should be set to the IP address, or the machine name, of the remote ARM64 Windows machine.
  • "name" should match the selection in the Visual Studio startup item dropdown.
  • "projectTarget" should match the name of the CMake target you want to debug.
  • "type" should be "remoteWindows"
  • If the authentication type on the remote debugger is set to No Authentication, you should have "authenticationType": "none" set in the launch.vs.json file.
  • If you're using Windows authentication, sign in when prompted using an account recognized by the remote machine.

After the project builds, the app should appear on the remote ARM64 Windows machine:

Hello CMake console app running on remote Windows ARM64 machine.

Visual Studio on the host machine should be stopped at the breakpoint for return 0;.
